MachMotion X15-350-04 Manuel utilisateur
2007
X15-350-04
CNC Control with Mitsubishi Drives
and Servo Motors Setup Guide
Mach Motion
X15-350-04
CNC Control with:
Mitsubisi Drives
Mitsubisi Motors
24V Power Supply
IO6 Breakout Board
Mounting Arm
Setup Guide
MachMotion
MachMotion.com
support@machmotion.com
Step 1
Universal Mounting Arm Assembly
MachMotion.com
support@machmotion.com
Mount arm base on a level
and flat surface. (Figure 1)
Hold the 2 90° plates on the
vertical square tubing. Insert 4
bolts into the 2 90° plates and
only hand tighten. (Figure 3)
When finished, make sure this
bolt is still above the vertical
square tubing. (Figure 3)
Slide the vertical square
tubing onto base, and make
a mark at the desired arm
height. Cut tubing on line
with a metal chop-saw or
band-saw. (Figure 2)
(Figure 1)
(Figure 3)
(Figure 2)
6
Mach Motion

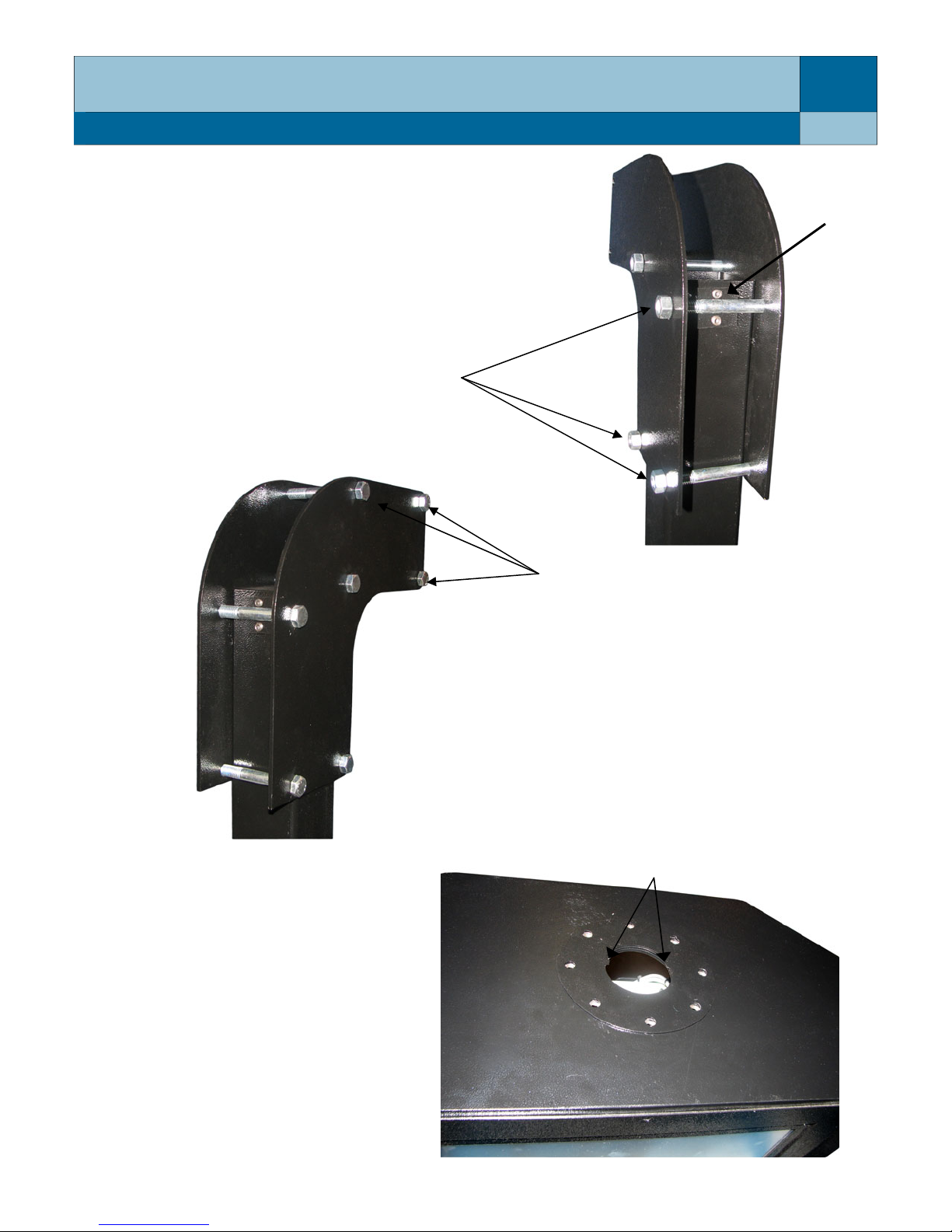

Place the square leveling
plate with the set-screws
behind the bolt. (Figure 4)
Now lightly tighten these 3
bolts with a wrench.
Insert the tree remaining bolts
and hand tighten. (Figure 5)
Cut the horizontal square tubing
to desired length. (Just like we
did with the vertical square tubing
in figure 2).
(Figure 4)
(Figure 5)
square level-
ing plate
Place the round metal disc
down the CNC Control, with
the two tabs closer to the
rear of the Control.
(Figure 6)
(Figure 6)
7
MachMotion.com
support@machmotion.com
Set one of the plastic half
moon rings down with a
metal one on top and
lightly screw down.
(Figure 8)
Stack the round plastic disc
on top of the metal disc
with the grooves facing up-
ward. Set the O-ring in
groove of the plastic disc.
(Figure 7)
(Figure 8)
(Figure 7)
Slide the horizontal square
tubing flange under the
plastic and metal half moon
rings which were installed
in figure 8 above.
(Figure 9)
(Figure 9)
8
Mach Motion
Take the whole panel and
arm (horizontal square tub-
ing) and slide into the top
of the 2 90° plates as
shown in figures 11 and
12.
Screw the other to half
moon ring down, and
tighten the screws until
they are snug. (Figure 10)
(Figure 11)
(Figure 10)
Level the arm by using the
leveling plate. Just tighten
the two set-screws evenly
until the arm is level
(Figure 12)
(Figure 12)
9
MachMotion.com
support@machmotion.com

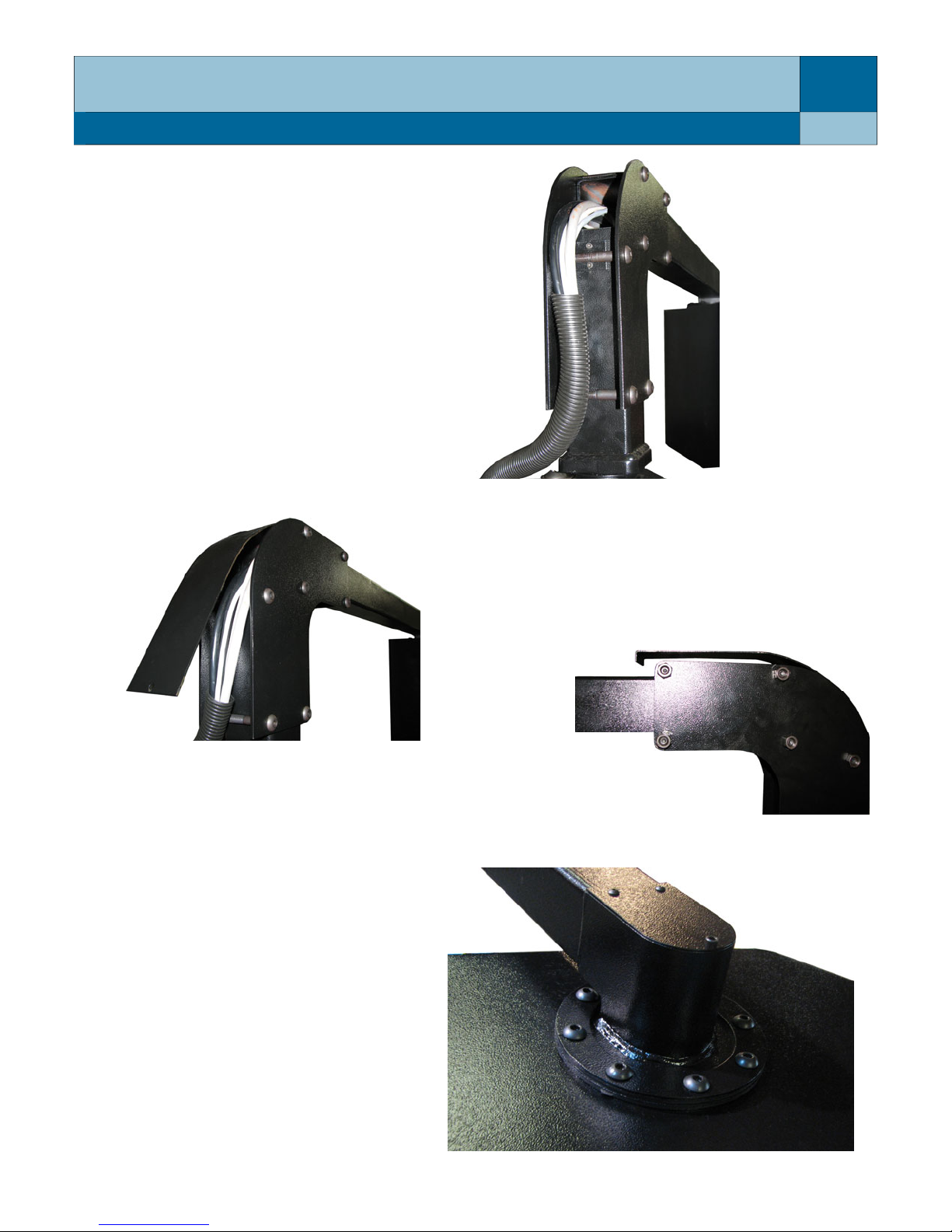

Slide the cable cover in between the 2 90°
plates starting at the top front bolt and
working your way down the back, tighten-
ing the bolts as you go. As shown in fig-
Route all your wires and
cables through the arm.
(Figure 13)
(Figure 15)
(Figure 13)
Mount the small cable
cover by installing the 2
small screws in the back
and the 3” screw on the
round end of cover.
(Figure 16)
(Figure 14)
(Figure 16)
10
