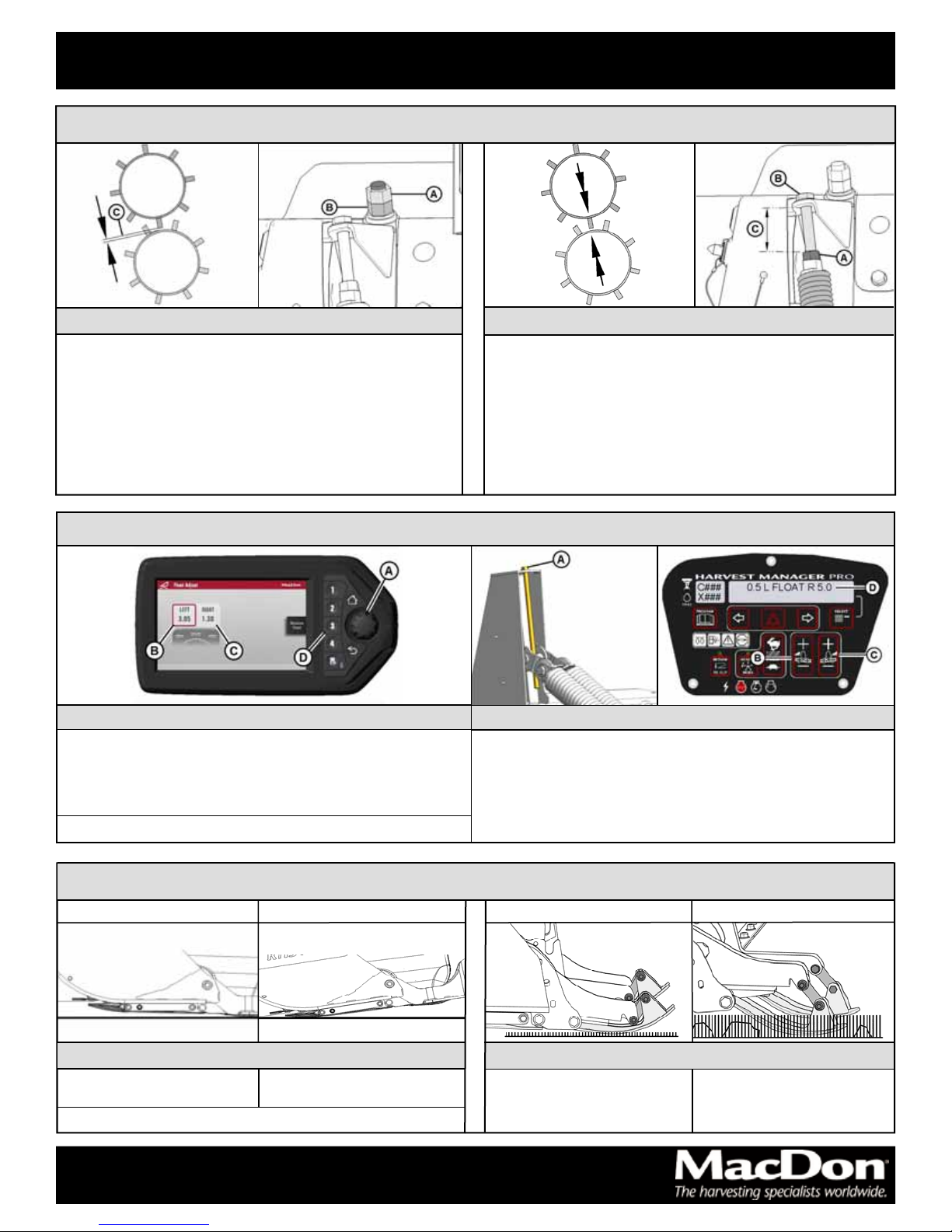

R113/R116 Self-Propelled Disc Mower Quick Card MD #214620 Rev. A

Supplement to R113/R116 SP Disc Mower Operator’s Manual

R113/R116 SP Quick Card Subject to change without notice.

Use this card as a guide only. Refer to your Operator’s Manual

for detailed settings and adjustment procedures.

Light / Thin Crop

Light or Heavy / Tough Crop

Disc Speed

Rear Baffle Deflector Fins

Controls material distribution across windrow. Narrower windrow.

1. Remove fins from storage position (on top of baffle).

2. Position deflector fin (A) under baffle.

3. Secure with existing bolt and nut (B) (bolt head facing down).

4. Adjust to approximately 60 degree angle (as shown).

5. Torque nut to 69 Nm (51 lbf-ft). Repeat on other side.

Rear Baffle Plate

Controls windrow height. Directs crop flow that affects width.

1. Remove lynch pin (A).

2. Pull adjustment lever (B) inboard to disengage from bracket (C).

3. Move lever forward—raise baffle—narrow swath.

4. Move lever backward—lower baffle—wide swath.

5. Release lever so tab engages the notch in bracket (C).

6. Secure lever with lynch pin (A).

Controls windrow width and placement.

1. Loosen locking handle (A).

2. Slide adjuster bar (B) along adjuster

plate (C) to desired position.

3. Engage bar (B) into a notch in the

adjuster plate.

4. Tighten locking handle (A).

5. Repeat for other side to the same

position.

6. Adjust rear baffle as required.

Wide swath (A)

Deflectors are angled

outboard.

Narrow swath (B)

Deflectors are angled

inboard.

Side Deflectors—Roll Conditioner

Smooth / level / firm ground: 16 km/h (10 mph)

and higher, or until cutting and conditioning quality

are compromised.

Rocks / ridges / loose ground: Slow to minimize

bouncing, uneven stubble, and damage to the

cutterbar.

(A) acres/hr (B) hectares/hr (C) km/h (D) mph (E) R116 (F) R113

Ground Speed

Windrow

R113/R116 Self-Propelled Disc Mower Quick Card MD #214620 Rev. A

Supplement to R113/R116 SP Disc Mower Operator’s Manual

R113/R116 SP Quick Card Subject to change without notice.

Use this card as a guide only. Refer to your Operator’s Manual

for detailed settings and adjustment procedures.

Shallow Angle Steep Angle

Rocks / ridges / loose ground:

Shallow angle High stubble / rocks / cane:

Lower position

Short stubble / smooth ground:

Upper position

Skid Shoes

Upper Position Lower Position

Cutting Height

Roll Gap

Increase conditioning:

1. Loosen jam nut (A).

2. Turn lower nut (B) counterclockwise to decrease roll gap (C).

3. Tighten jam nut (A).

Decrease conditioning:

1. Loosen jam nut (A).

2. Turn lower nut (B) clockwise to increase roll gap (C).

3. Tighten jam nut (A).

Roll Tension

Light crops—less tension:

1. Loosen jam nut (A).

2. Turn bolt (B) counterclockwise to increase exposed thread (C).

3. Tighten jam nut (A).

Heavy / tough crops—more tension:

1. Loosen jam nut (A).

2. Turn bolt (B) clockwise to decrease exposed thread (C).

3. Tighten jam nut (A).

Conditioning

Smooth / level / firm ground:

Steep angle

Header Angle

M1170

1. Turn scroll knob (A) to highlight left float (B) or right float (C).

2. Press knob (A) to activate selection.

3. Rotate scroll knob to adjust float setting.

4. Press scroll knob when finished.

M155 / M155E4

1. Coarse adjust float with drawbolt (A):

• clockwise to increase float (makes header lighter).

• counterclockwise to decrease float (makes header heavier).

2. Fine adjust left float with switch (B) or right float with switch (C):

• Setting displays at (D).

• Press + to increase or — to decrease float.

Float

NOTE: Check float after significantly changing header angle.

NOTE: Adjust float in small increments.
