MAASLAND ML420 Manuel utilisateur

VERSIE 2023

HANDLEIDING

ML420

t +31 88 500 2800

260123

MODELLEN

ML420, MB420, MG420

1. INHOUDSOPGAVE

1. Inhoudsopgave.........................................................................................................................................................2

2. Algemene informatie....................................................................................................................................................2

2.1 Inhoud en doel.....................................................................................................................................................3

2.2 Doelgroep........................................................................................................................................................3

3. Veiligheid en naleving....................................................................................................................................................3

3.1 Veiligheidsinformatie................................................................................................................................................3

3.2 Informatie over naleving van de regelgeving.......................................................................................................3

4. Productinformatie......................................................................................................................................................5

4.1 Productbeschrijving..............................................................................................................................................5

4.2 Inhoud van de verpakking....................................................................................................................................5

4.3 Technische informatie..........................................................................................................................................5

5. Afmetingen......................................................................................................................................................6

5.1 Afmetingen slot....................................................................................................................................................6

5.2 Afmetingen sluitplaat...........................................................................................................................................6

5.3 Afmetingen behuizing...........................................................................................................................................7

5.4 Afmetingen afdekplaat..........................................................................................................................................7

5.5 Afmetingen montageplaatjes................................................................................................................................7

6. Voorbereiding installatie...............................................................................................................................................8

6.1 Voorbereiding montage........................................................................................................................................8

6.2 Voorbereiding bekabeling....................................................................................................................................9

6.3 Voorbereiding stroomprincipe..............................................................................................................................9

7. Montage......................................................................................................................................................10

7.1 Inbouw montage (hout)......................................................................................................................................10

7.2 Inbouw montage (profiel)...................................................................................................................................11

7.3 Opbouwmontage (hout)......................................................................................................................................12

7.4 Opbouwmontage (glas).......................................................................................................................................13

8. Bekabeling......................................................................................................................................................14

8.1 Informatie bekabeling.........................................................................................................................................14

8.2 Aansluiten ruststroom.........................................................................................................................................14

8.3 Aansluiten arbeidsstroom...................................................................................................................................14

9. Stroomprincipe..........................................................................................................................................................15

9.1 Werking ruststroom............................................................................................................................................15

9.2 Werking arbeidsstroom.......................................................................................................................................15

10. Onderhoud..........................................................................................................................................................15

10.1 Onderhoud en reiniging......................................................................................................................................15

10.2 Einde levensduur................................................................................................................................................15

ELEKTRISCHE SLOTEN

[email protected] www.maaslandgroep.nl 3

260123

2. ALGEMENE INFORMATIE

2.1 INHOUD EN DOEL

Dit document beschrijft installatie, aansluiting, bediening en onderhoud van het ML420 slot. Lees het document zorgvuldig

en neem de aanwijzingen in acht. Ze bevatten belangrijke informatie voor een betrouwbare installatie en een probleemloze

werking.

2.2 DOELGROEP

Doelgroep van deze instructies zijn:

• Installateur

• Servicetechnicus

Installateurs en onderhoudstechnici zijn geschoold personeel dat beschikt over de specialistische kennis die nodig is voor

installatie, inbedrijfstelling en onderhoud.

3. VEILIGHEID EN NALEVING

3.1 VEILIGHEIDSINFORMATIE

WARNING

• Bewegende delen binnenin.

• De behandeling en installatie van dit apparaat moet worden uitgevoerd door een vakman.

• Het gebruik van een ongeschikte voedingseenheid kan leiden tot productstoringen of letsel.

• Verwijder de afdekplaten of frontplaat niet om het slot te openen.

• Zorg ervoor dat bij de installatie geen scherpe randen van het product aan de gebruikers worden blootgesteld.

3.2 INFORMATIE OVER NALEVING VAN DE REGELGEVING

Dit product is in overeenstemming met de CE-richtlijnen, waaronder de richtlijn elektromagnetische

compatibiliteit (EMC), de richtlijn beperking van het gebruik van bepaalde gevaarlijke stoffen (RoHS) en

de verordening registratie, evaluatie, autorisatie en beperking van chemische stoffen (REACH).

De EU-conformiteitsverklaring is beschikbaar op www.maaslandgroep.nl.

Dit product is in overeenstemming met de wetgeving van het Verenigd Koninkrijk (VK) waaronder de

Electromagnetic Compatibility Regulation 2016, en de Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations 2012.

Dit product voldoet aan het Regulatory Complaince Mark (RCM) voor Australië en Nieuw-Zeeland.

ELEKTRISCHE SLOTEN

t +31 88 500 2800

260123

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential, commercial, or industrial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation.

Modifications: Any modifications made to this device that are not approved by the manufacturer may void the authority

granted to the user by the FCC to operate this equipment.

Innovation, Science and Economic Development Canada ICES-003: CAN ICES-3(B)/NMB-3(B)

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the

warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be

taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences to the

environment and human health, which could otherwise be caused by inappropriate handling of this product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to dispose of this product please

contact your local authorities and ask for the correct way of disposal.

ELEKTRISCHE SLOTEN

[email protected] www.maaslandgroep.nl 5

260123

4. PRODUCT INFORMATIE

4.1 PRODUCTBESCHRIJVING

The ML420 is a motor driven low voltage electric lock designed to secure commercial and residential doors. The lock has

been designed to address the two biggest issues in concealed electric locking today;

The ability to ‘pull’ a door into alignment even if the door has not closed in a central position.

The ability to release when requested even if there is excessive load on the door.

The bolt pin of the ML420 operates on a cam action which enables the bolt pin to pull a door into place. In practice as the

door closes it may come to rest in a position that is not fully closed, especially if it closing against a door seal of some

type. The ML420 senses when the door is within 8mm (5/16 inch) of being fully closed and activates the bolt pin. The bolt

pin then rotates out and pulls the door from its resting position to the closed and sealed position.

With the door secured and locked the ML420 can be given an unlock signal and it will instantly unlock. If the door is

loaded (pre-load) when the unlock signal is given the ML420 will still unlock, even with loads in excess of about 600kg

on the door. Critically, the ability of the ML420 to instantly release with excessive pre-load on the door even occurs in the

event of a power failure, providing the lock is configured as fail safe.

Additional features of the ML420 are;

• Multi-voltage input (12 - 24VDC)

• Very low current consumption

• Door position and bolt position monitors

• High physical strength

• Fail-safe / Fail-secure on-site conversion with the re-positioning of a single switch

4.2 INHOUD VAN DE VERPAKKING

• 1 x electric lock

• 1 x strike plate

• 1 x 300mm 7-way wire loom

• 4 x 10G self-tapping screws

4.3 TECHNISCHE INFORMATIE

Materials

Bolt Stainless Steel 17-4PH

Lock / Strike Plate Stainless Steel 304

Mechanical

Bolt Extension 13mm

Door Gap max. 6mm

Misalignment Correction max. 8mm

Cycle Life 1,000,000 cycles

Holding Force 10,000N (ca. 1.000 kg)

Side Load Release 6,000N (ca. 600 kg)

Locking Time 1.0 seconds

Unlocking Time 0.3 seconds

Electrical

Power Requirements 12-24 VDC ±15%

Initial Power Up Time 11 seconds

Initial Power Up Current 750mA@12VDC, 400mA@24VDC

Standby Current 40mA@12VDC, 25mA@24VDC

Signal Contacts Bolt Position (NO) 30VDC max., 100mA max.

Door Position (NO)

Compliance

CE, UKCA, FCC, IC, RCM, RoHS 2

ELEKTRISCHE SLOTEN

t +31 88 500 2800

260123

5. AFMETINGEN

5.1 AFMETINGEN SLOT

Dimensions shown are approximate and subject to change without prior notice.

5.2 AFMETINGEN SLUITPLAAT

Dimensions shown are approximate and subject to change without prior notice.

96mm

47mm

160mm

3mm

10mm

140mm

10mm

30mm

160mm

3mm

10mm

140mm

10mm

14mm

107mm

30mm

20mm

ELEKTRISCHE SLOTEN

[email protected] www.maaslandgroep.nl 7

260123

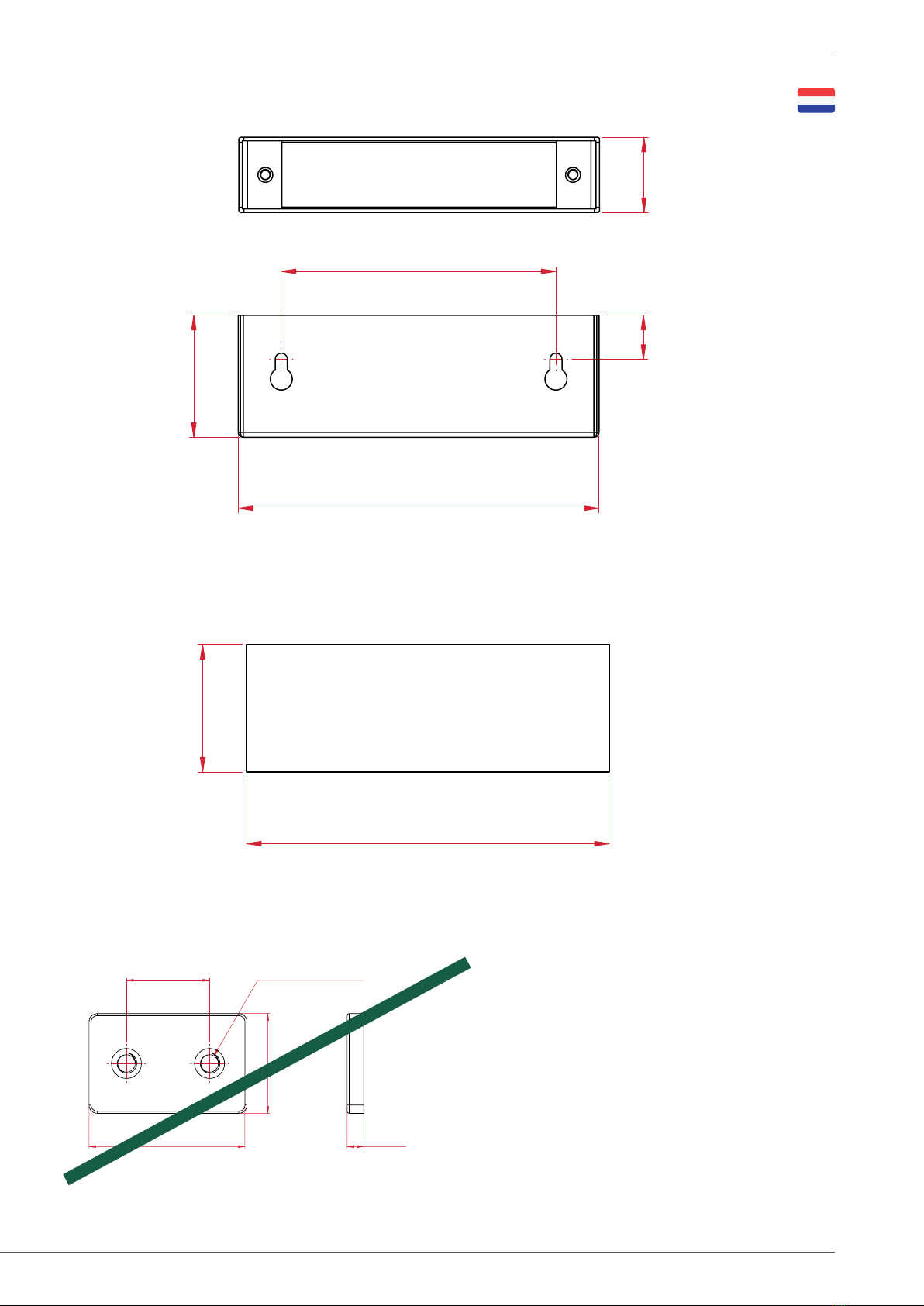

5.3 AFMETINGEN BEHUIZING

Dimensions shown are approximate and subject to change without prior notice.

5.4 AFMETINGEN AFDEKPLAAT

Dimensions shown are approximate and subject to change without prior notice.

5.5 AFMETINGEN MONTAGEPLAATJES

Dimensions shown are approximate and subject to change without prior notice.

164mm

56mm

125mm

20mm

34mm

165mm

58mm

38mm

24mm

20mm

M5x0.8 Thread

4mm

ELEKTRISCHE SLOTEN

t +31 88 500 2800

260123

6. VOORBEREIDING INSTALLATIE

6.1 VOORBEREIDING MONTAGE

The first decision regarding installation is whether the ML420 will be morticed or surface mounted. Mortice installation

ensures a discrete solution as the lock and strike plate can be embedded into the door leaf and frame, however in some

instances this is not possible. Glass doors for example require surface mounting which is done with the aid of the MB400

housing and dress plate (available separately).

The lock and strike plate can be installed morticed (1), surface mounted (2), or a combination of the two (3). Regardless

of the installation method it is vital that the lock face plate and strike plate are aligned vertically to each other and that the

gap between them does not exceed 6mm when the door is closed.

When the door is closed, the resting position of the door leaf can be misaligned up to 8mm from the door frame and the

ML420 will pull the door into alignment with ease. This misalignment could be caused by an installed weather seal or

natural distortions in the door assembly.

The ML420 can be installed vertically or horizontally but is not designed to be mounted in a floor cavity firing upwards or in

a wet environment.

DIN Left DIN Right

ELEKTRISCHE SLOTEN

[email protected] www.maaslandgroep.nl 9

260123

6.2 VOORBEREIDING BEKABELING

Before installation begins, consideration must be made for where to run the wires and decide on

what feedback is required from the lock. There are a total of seven available connections; three are

compulsory power/control connections whilst the remaining four provide optional door and bolt position feedback. These

optional connections can be integrated into access control or alarm systems to provide full monitoring.

The correct gauge of wire needs to be chosen as voltage drop across the power/control wires can limit the locks operation.

For all the remaining connections, a lower gauge wire can be used as these are only signal wires. The following table

shows the maximum distance that the wire runs can be between the power supply and the lock, assuming the power

supply outputs 12VDC or 24VDC.

Conductor Cross Sectional Area Maximum Distance

#AWG (mm²) at 12VDC at 24VDC

24 0.20 10m 30m

22 0.33 16m 48m

20 0.52 26m 77m

18 0.82 41m 122m

16 1.31 65m 195m

14 2.08 103m 310M

6.3 VOORBEREIDING STROOMPRINCIPE

The ML420 can be set to one of two operating modes before installation, Fail Safe or Fail Secure.

When the operating mode is set to Fail Safe, supply voltage is applied to the control input to lock the door, and the ML420

will unlock in the event of power loss.

When the operating mode is set to Fail Secure, supply voltage is applied to the control input to unlock the door, and the

ML420 will lock or remain locked in the event of power loss.

The failure mode of the ML420 is factory set as Fail Safe. Before the lock is installed this can be changed to Fail Secure

by repositioning the switch located at the end of the product.

ELEKTRISCHE SLOTEN

t +31 88 500 2800

260123

7. MONTAGE

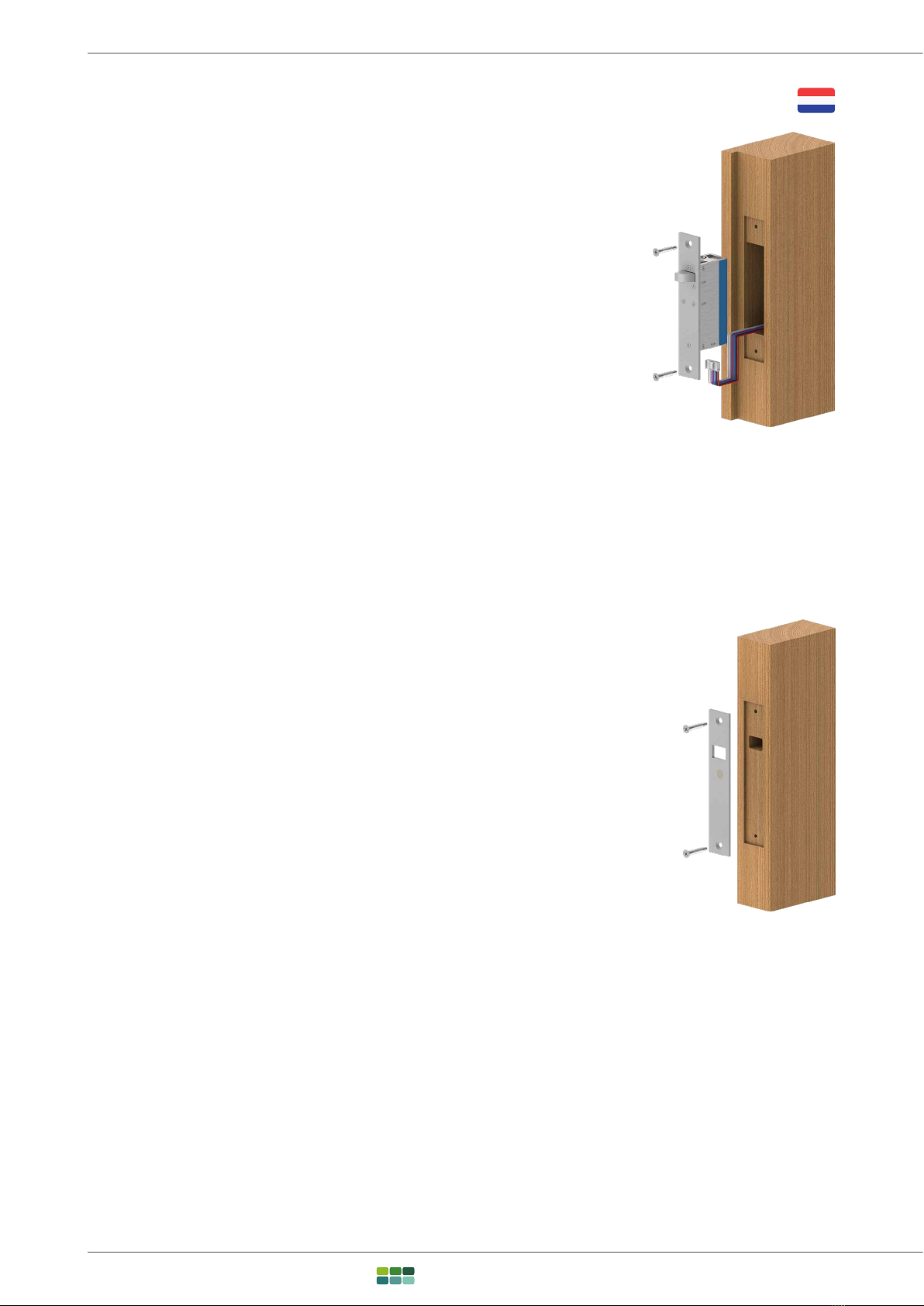

7.1 INBOUW MONTAGE (HOUT)

1. Cutting the mortice

Referring to the product dimension drawings, a mortice is cut into the door frame to fit

the lock and a mortice is cut into the door leaf to fit the strike. Wooden doors and frames

require full mortices with space made behind the lock body to accommodate the wire

connections.

It is crucial to ensure that the mortices in the door leaf and frame are aligned vertically

and horizontally when the door is closed as this aligns the bolt pin to the strike opening

and also the strike magnet to the locks internal door position sensor.

Ensure that the final gap between the lock face plate and strike plate once it is installed

will be no more than 6mm.

2. Wiring the lock

A hole needs to be drilled in the back of the mortice to bring the wires out and a

connection can be made to the supplied wire loom which in turn plugs into the lock.

Refer to the Wiring section of this document for detailed instructions on wiring.

3. Setting the operating mode

Ensure the operating mode switch is positioned to the required state, Fail Safe or Fail

Secure.

Refer to the Operating Mode section of this document for detailed instructions on wiring.

4. Fitting the lock and strike plate

The lock can be slid back into the door frame mortice, ensuring that the wiring integrity

is maintained, and then secured in place with the supplied 10G self-tapping screws.

Please ensure the lock is the correct orientation as to pull the door into the door jamb.

The strike is then placed into the door leaf mortice and the remaining 10G self-tapping

screws are used to secure it in place. Ensure the strike is oriented so that the bolt hole

aligns with the lock bolt.

ELEKTRISCHE SLOTEN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MAASLAND Serrure de porte

MAASLAND

MAASLAND SE-APB1-1T Manuel utilisateur

Manuels Serrure de porte populaires d'autres marques

Assa Abloy

Assa Abloy effeff 827A-IP Manuel utilisateur

We.lock

We.lock SECBNEBL51 Manuel utilisateur

Iseo

Iseo MA1A Manuel utilisateur

ID Lock

ID Lock 150 Manuel utilisateur

Lockly

Lockly ACCESS TOUCH PRO Manuel utilisateur

iLoq

iLoq G50S Manuel utilisateur

SDC

SDC Z7835 Manuel utilisateur

ilco

ilco 452 Manuel utilisateur

Samsung

Samsung shs-h705 Manuel utilisateur

TRU-BOLT

TRU-BOLT 08102017 Manuel utilisateur

CDVI

CDVI 500-LADJ Manuel utilisateur

Igloohome

Igloohome Deadbolt 2S Metal Grey Instructions d'installation et d'entretien

eSSL

eSSL FL-300 Manuel utilisateur

JAKO

JAKO JKBTNX4 Manuel utilisateur

Dorma

Dorma MUNDUS PREMIUM GK 50 Guide de l'utilisateur

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manuel utilisateur

Yale

Yale MORTISE 8800 SERIES Manuel utilisateur

Siegenia

Siegenia KFV AS3500 Manuel utilisateur
