M-Systems IDE 4000 Instructions d'installation

IDE 4000 Flash Disk

1.8" and 2.5"

Product Specification and User Manual

January 2005

34-PS-0304-00 Rev. 2.1

DOCUMENT CONTROL INFORMATION

DCO No.:

Title Name Date

Issued by: VP Marketing, Embedded Division Ofer Tsur January 5, 2005

REVISION HISTORY

Revision Date Description Reference

2.0 June 7, 2004 Added information for new 1.8” form factor --

Updated available capacity information Section 1.2.8

Updated reliability information Section 1.2.9

Updated supported temperature ranges Sections 1.3.1, 9

2.1 January 2, 2004

Update CHS settings information Section 1.2.8

2 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

TABLE OF CONTENTS

1. Specifications........................................................................................................................5

1.1. Critical Item Definition ....................................................................................................5

1.2. Characteristics................................................................................................................5

1.2.1. Interface Definition...........................................................................................................5

1.2.2. IDE Transfer Modes.........................................................................................................5

1.2.3. Performance ....................................................................................................................5

1.2.4. Access Time ....................................................................................................................6

1.2.5. Seek Time........................................................................................................................6

1.2.6. Input Voltage....................................................................................................................6

1.2.7. Current Consumption.......................................................................................................6

1.2.8. Memory Capacity.............................................................................................................7

1.2.9. Endurance........................................................................................................................8

1.2.10. Mean Time Between Failures (MTBF).............................................................................8

1.2.11. Physical Characteristics...................................................................................................8

1.3. Environmental Conditions ............................................................................................11

1.3.1. Temperature ..................................................................................................................11

1.3.2. Altitude...........................................................................................................................12

1.3.3. Relative Humidity...........................................................................................................12

1.3.4. Shock.............................................................................................................................12

1.3.5. Vibration.........................................................................................................................12

1.3.6. Storage Life and Data Retention ...................................................................................12

2. Drive Configuration.............................................................................................................13

3. Interface Connectors..........................................................................................................14

4. Supported IDE Commands.................................................................................................15

5. CE and FCC Compatibility..................................................................................................16

6. Label Information................................................................................................................17

7. Using the IDE 4000 Flash Disk...........................................................................................18

7.1. Unpacking the Drive.....................................................................................................18

7.2. Handling Instructions....................................................................................................18

7.3. Installing the Drive in a PC...........................................................................................18

7.4. Using the IDE 4000 in an MS-DOS-Based Platform....................................................19

7.5. Troubleshooting ...........................................................................................................19

7.6. How to Get Help...........................................................................................................20

3 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

8. Warranty...............................................................................................................................21

9. Ordering Information..........................................................................................................22

How to Contact Us....................................................................................................................23

4 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

1. SPECIFICATIONS

1.1. Critical Item Definition

The dimensions of the IDE 4000 flash disk enable mounting in a standard 2.5”or 1.8” disk drive

bay, as described in Section 1.2.11.

Note: The information written in this document refers to both IDE 4000 2.5” and 1.8” unless

otherwise stated.

1.2. Characteristics

1.2.1. Interface Definition

The IDE 4000 supports the commands listed in Section 4, in compliance with ATA4 standards.

1.2.2. IDE Transfer Modes

The IDE 4000 supports the following transfer modes:

•PIO modes 0 through 4

•DMA modes 0 through 2

1.2.3. Performance

The IDE 4000 complies with the performance requirements described in Table 1.

Table 1: IDE 4000 Transfer Rates

Operation Burst Rate (MB/sec) SustainedRate (MB/sec)

Write 16.6 3.4

Performance was measured on a system with the following configuration:

•Computer with ASUS P4T533-C motherboard and Intel 2.4 GHz processor

•Windows XP Professional operating system

•IDE transfer mode: Multiword DMA 2

•IDE 4000 disk capacity: 4GB

The HDTACH v2.61 benchmark utility was used to measure IDE 4000 performance. See

Figure 1 for measurement results.

5 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

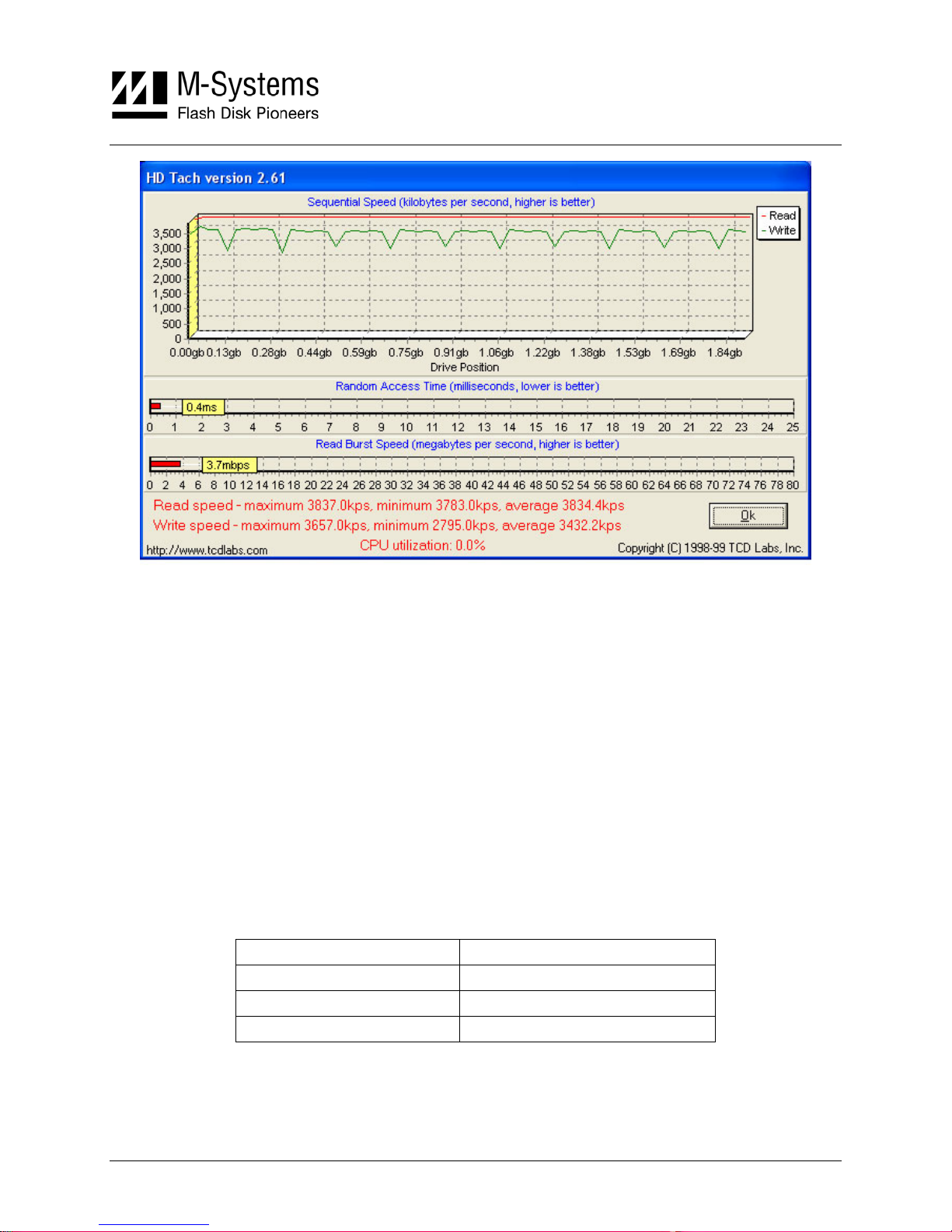

Figure 1: IDE 4000 Performance Results

1.2.4. Access Time

Standby to active (typical.): 0.1 msec

1.2.5. Seek Time

The IDE 4000 has no seek time, as it has no moving parts.

1.2.6. Input Voltage

The IDE 4000 input voltage is 3.3VDC to 5.0VDC.

1.2.7. Current Consumption

The current consumption at an input voltage of +5 VDC is described in Table 2.

Table 2: IDE 4000 Input Current Consumption with +5 VDC Input Voltage

Function/Mode Current (max) mA DC

Write 23.0

Idle/Sleep 5.0

6 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

The current consumption at an input voltage of +3.3 VDC is described in Table 3.

Table 3: IDE 4000 Input Current Consumption with +3.3VDC Input Voltage

Function/Mode Current (max) mA DC

Write 16.0

Idle/Sleep < 1

1.2.8. Memory Capacity

As of software version 1.09, the changes listed in Table 4 apply to the CHS (Cylinder, Heads,

Sectors) settings for the IDE 4000, capacities 128MB to 512MB (there are no changes for other

capacities).

Table 4: CHS Settings for Low-Capacity IDE 4000

Cylinder Heads Sectors

Capacity (MB) V1.08 V1.09 V1.08 V1.09 V1.08 V1.09

128 993 500 8 16 32 32

256 998 1000 16 16 32 32

512 1015 1015 16 16 63 63

Table 5 describes the different densities of the IDE 4000 (unformatted, in MB).

Table 5: IDE 4000 Flash Disk Capacities

Disk Capacity (MB) Disk Capacity (MB)

128 2048

256 2560

384 3072

512 3584

640 4096

768 5120

1024 6144

1280 7168

1536 8192

1792

7 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

1.2.9. Endurance

The IDE 4000 provides 2,000,000 write/erase cycles and an unlimited number of read cycles.

Performance is enhanced by the following features:

•Wear-Leveling Algorithm: This algorithm guarantees the use of all flash components at the

same level of the write/erase cycle.

•EDC/ECC (Error Detection Code/Error Correction): The enhanced Reed-Solomon

EDC/ECC extends disk endurance by detecting and then fixing flash blocks.

1.2.10. Mean Time Between Failures (MTBF)

Table 6 summarizes the MTBF prediction results for various IDE 4000 configurations. The

analysis was performed using a RAM Commander™ failure rate prediction.

Table 6: IDE 4000 MTBF

Product Condition MTBF (Hours)

Failure Rate per

Million Hours

IDE 4000 1GB Telcordia SR-332, GB, 25°C 2,893,495 0.3456

IDE 4000 2GB Telcordia SR-332, GB, 25°C 2,188,066 0.4570

IDE 4000 3GB Telcordia SR-332, GB, 25°C 1,759,180 0.5684

IDE 4000 4 to 8GB Telcordia SR-332, GB, 25°C 1,470,874 0.6799

A detailed MTBF report can be furnished upon request.

1.2.11. Physical Characteristics

1.2.11.1 Weight

The weight of the IDE 4000 complies with the values defined in Table 7.

Table 7: IDE 4000 Maximum Weight

Memory Capacity (MB) 2.5” Unit Weight (g) 1.8” Unit Weight (g)

8192 90 30

1.2.11.2 Dimensions

Table 8 describes the nominal dimensions of the IDE 4000. Refer to Figure 2 for detailed

mounting configuration dimensions.

Table 8: Nominal Dimensions

Dimensions IDE 4000 2.5” IDE 4000 1.8”

Height 0.291 in 7.40 mm 0.339 in 8.6 mm

Width 2.750 in 69.85 mm 2.008 in 51.0 mm

Depth 3.945 in 100.20 mm 3.004 in 76.3 mm

8 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

Recommended Tightening Tourqe is 6.0 in-lb (0.675 N-m)

Figure 2: IDE 4000 2.5” Assembly

Figure 3: IDE 4000 1.8” Assembly

Notes: 1. All dimensions are in mm [in].

2. General tolerance is ±0.25 mm [±0.01 in].

9 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1

1.2.11.3 Connector Interface

The pinout for the IDE 4000 interface connector is detailed in Table 9 and in Figure 4.

Table 9: J1 Pin Assignment

Pin Number Signal Name Pin Number Signal Name

1 RESET- 2 GND

3 HD7 4 HD8

5 HD6 6 HD9

7 HD5 8 HD10

9 HD4 10 HD11

11 HD3 12 HD12

13 HD2 14 HD13

15 HD1 16 HD14

17 HD0 18 HD15

19 GND 20 KEY

21 N.C. 22 GND

23 HIOW- 24 GND

25 HIOR- 26 GND

27 IORDY 28 CSEL

29 N.C. 30 GND

31 INTRQ 32 IOCS16-

33 HA1 34 PDIAG-

35 HA0 36 HA2

37 CS0- 38 CS1-

39 DASP- 40 GND

41 VCC 42 VCC

43 GND 44 RSVD

Table 10: J2 Pin Assignment

Pin Number Signal Name Pin Number Signal Name

47 Master/Slave 48 Master/Slave

49 Master/Slave 50 Master/Slave

10 Product Specification and User Manual IDE 4000 Flash Disk 34-PS-0304-00 Rev. 2.1
