M.C. MILLER IBTVM Manuel utilisateur

iBTVM User Guide (MAN400) Page 1of 27

Revised June 16, 2023

iBTVM User Guide

(Item #12400)

M.C. Miller Co., Inc.

11640 US Highway 1

Sebastian, FL 32958

772.794.9448

sales@mcmiller.com

www.mcmiller.com

iBTVM User Guide (MAN400) Page 2of 27

Revised June 16, 2023

Contents

Charging the Battery:.................................................................................................................................... 3

Charging Status: ........................................................................................................................................ 3

Push Button Operation: ................................................................................................................................ 4

Turning the unit ON: ................................................................................................................................. 4

Turning the unit off:.................................................................................................................................. 4

Resetting the unit: .................................................................................................................................... 4

LED1: Status Indicator: (Blue push button lamp)......................................................................................... 5

With the Power ON… ................................................................................................................................ 5

ON Mode … LED1: On all the time ....................................................................................................... 5

Link Mode… LED1: On 1 sec, Off 3 sec ................................................................................................. 5

Active Mode… LED1: ON 0.9 second, Off 0.1 second. ......................................................................... 5

Battery Too Low or Error detected… LED1: On 0.2 sec, Off 0.2 sec...................................................... 5

Power OFF indications: ............................................................................................................................. 5

The BLUE LED is Off............................................................................................................................... 5

Connecting an Android device to the iBTVM:............................................................................................... 6

Turning on WPAN: .................................................................................................................................... 6

Opening and closing the “Basic” application: ........................................................................................... 6

To send data by email:............................................................................................................................10

To use Dropbox:...................................................................................................................................... 11

Voltmeter setup:..................................................................................................................................... 12

Using the Data logger Function: ................................................................................................................. 18

Using the data recorder:.............................................................................................................................20

Setting the recording interval................................................................................................................. 20

To close the application: .........................................................................................................................24

External connections:..................................................................................................................................25

Included Accessories:.............................................................................................................................. 25

Voltmeter Characteristics: .......................................................................................................................... 26

Specifications: .........................................................................................................................................27

iBTVM User Guide (MAN400) Page 3of 27

Charging the Battery:

Please charge the battery fully prior to using the iBTVM!

With the unit turned off,open the case and locate the charge port and charge

lamp on the right side.

Connect the charging cable to the included AC adaptor and plug the adaptor into

a standard 120VAC 60Hz outlet. The other end of the cable plugs into the charge port

on the iBTVM. DO NOTattempt to close the cover with the charger connected or

charge portdamage will result!

Charging Status:

The LED on the AC adaptor should illuminate when plugged into the wall outlet

and the red charge lamp on the iBTVM battery pack should illuminate indicating the unit

is charging.

When the red charge lamp on the iBTVM turns off, the unit isfully charged and

ready for use.

When the iBTVM ispowered on and connected to a compatible device, the

voltmeter application on the tablet indicates the battery status by the green square in

the top right corner of the screen. When nearly discharged, the battery level line will

change from green to red.

When using the supplied charger and cable the iBTVM should fully recharge in 3-

4 hours.

Revised June 16, 2023

iBTVM User Guide (MAN400) Page 4of 27

Revised June 16, 2023

Push Button Operation:

Turning the unit ON:

Press the Push Button for 2 to 4 seconds to turn the Power ON.

The system is now in Active Mode.

Turning the unit off:

If the power is already ON

Press the Push button for 2 to 4 seconds to turn the Power OFF.

Resetting the unit:

Press the Push button for 6 to 10 seconds

This resets the power, turns OFF WPAN, voltmeter and GPS then turns everything

back on again.The Blue pushbutton lamp will turn off and then back on.

NOTE 1:

Pressing more than the above specified times will not turn the system ON, OFF or

Reset until the button is released and pressed again within the time allowed.

NOTE 2:

On later models with the ORANGE push button switch, it is no longer

necessary to hold the button in for a specified length of time to power on or off.

Simply push to turn on and push again to turn off. The button remains in when

the unit is on. Turning the unit off also performs the reset function.

iBTVM User Guide (MAN400) Page 5of 27

Revised June 16, 2023

LED1: Status Indicator: (Blue push button lamp)

With the Power ON…

ON Mode … LED1: On all the time

Normally when the system wakes up from power off or reset power,

the system is on but no WPAN link to a tablet or smart phone, and there are

no detected system errors.

Link Mode… LED1: On 1 sec, Off 3 sec

No activity on WPAN but there is an active link to tablet or phone.

The system is ready for use.

Active Mode… LED1: ON 0.9 second, Off 0.1 second.

The system is linked and was receiving/sending commands to/from WPAN within

the last 1 minute.

Battery Too Low or Error detected… LED1: On 0.2 sec, Off 0.2 sec

The detected system indication could be:

- Battery voltage too low:

The battery voltage is in a close to critical level. When battery voltage falls

to 3.0 volts, this BAT / Error Mode starts blinking. When Battery reaches 2.7 volts,

the system shuts itself off

Power OFF indications:

The BLUE LED is Off

Normally it will be Off because the unit was turned Off or the battery voltage level is

extremely low.

iBTVM User Guide (MAN400) Page 6of 27

Revised June 16, 2023

Connecting an Android device to the iBTVM:

Turning on the WPAN technology:

If WPAN is not already enabled on the tablet or smart phone do so by opening

“Settings”, selecting the WPAN button and selecting “On”.

Having done this, close the “Settings” page.

Opening and closing the “Basic” application:

Turn the iBTVM on as instructed above.

Find and tap the icon for the “MCM iBTVM” application and the app should open as

shown below.

To close the application, tap the “Menu Bar” at the top right corner of the display, select

“Exit” and tap “YES” to exit.

iBTVM User Guide (MAN400) Page 7of 27

Revised June 16, 2023

On the screen displayed above there is no currently connected device.

To connect to the iBTVM, turn the meter on and when the blue push button lamp is

continuously on, tap the blue bar on the tablet display.

iBTVM User Guide (MAN400) Page 8of 27

Revised June 16, 2023

The next screen will show the available iBTVM(s).If none are shown, tap “Discover

New Devices” to refresh the view. Then tap the device name matching that of the

iBTVM you are using. For example: MCM-iBTVM-06005.

Available iBTVM devices

iBTVM User Guide (MAN400) Page 9of 27

Revised June 16, 2023

Once connected, the iBTVM will display the screen shown below (actual values may be

different).

Before recording any data, it is desirable to set up the email and/or Dropbox accounts in

the tablet’s corresponding apps.These apps are then used by the iBTVM app to deliver

recorded readings to your specified recipient.

iBTVM User Guide (MAN400) Page 10 of 27

Revised June 16, 2023

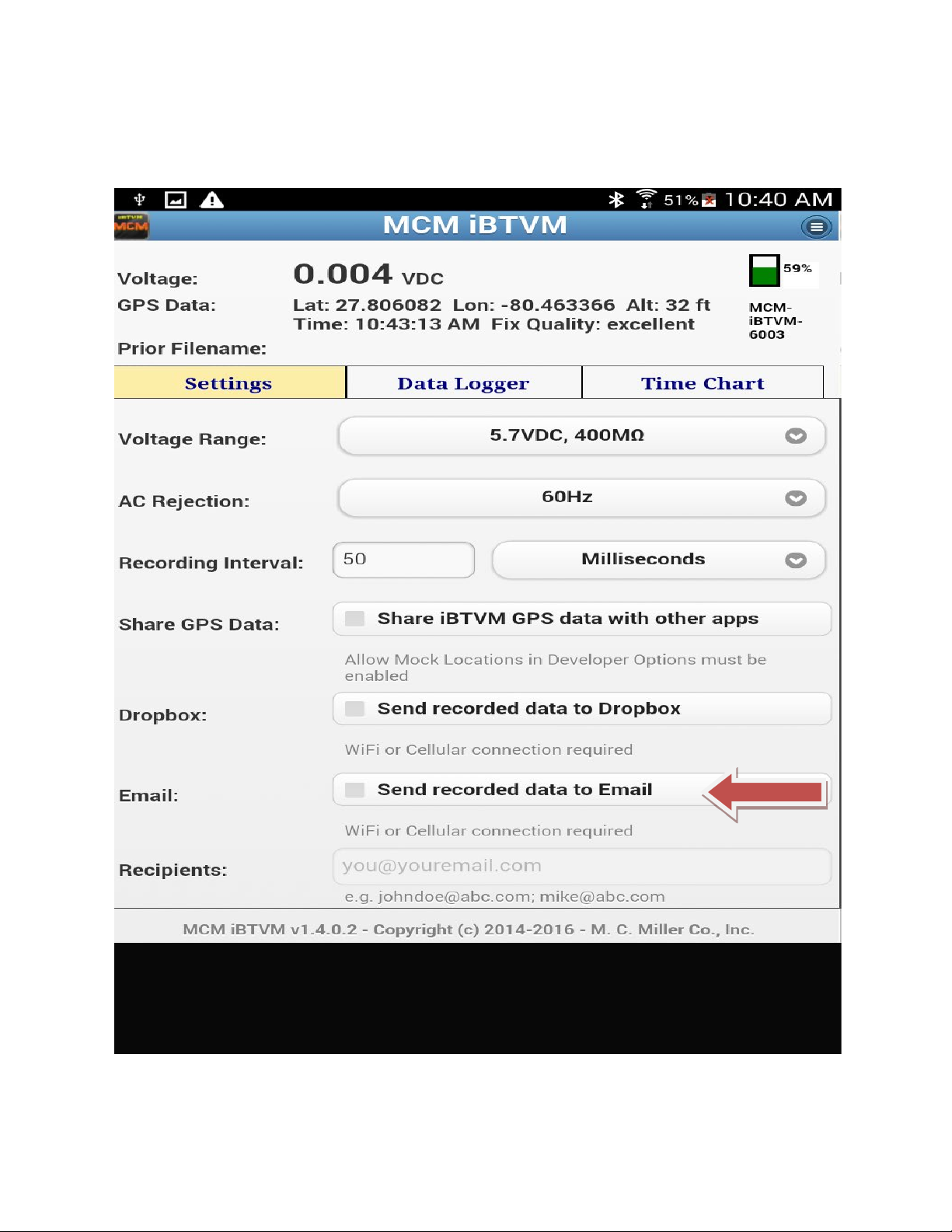

To send data by email:

Tap the “Send recorded data to Email” box and enter the email address you wish to

send the file to (see below).
