MobilePre USB
User’s Guide
Quick Start Guide
This Quick Start Guide is a very short, step-by-step guide to getting you
started right away at using your new M-Audio MobilePre USB.
Step 1: Run the Installer
Insert the included Install CD-ROM into your CD or DVD drive and
double-click the install program. Follow the onscreen instructions.
Depending on your operating system, you may be prompted to restart
your computer at the end of the installation procedure. If the installer
instructs you to restart, you must restart your computer.
Step 2: Connect the Audio Cables
Atypical system using the MobilePre USB has its two outputs connected
to a mixer or a pair of powered speakers. Connect a Microphone to the
Channel 1 XLR Input on the rear panel of the MobilePre USB.
Step 3: Connect the USB Cable
Connect the supplied USB cable to an open USB porton your computer.
Step 4: Test your Installation
Set your computer’s output to play out of the MobilePre USB and play and
audio file to test your connections. Launch an audio recording program,
arm one of the channels, and try recording some audio from a microphone
connected to the MobilePre USB’s inputs.
Still need more info? The following pages will walk you through the setup
and use of your MobilePre USB, in much greater detail.
2
Introduction
Thank you for purchasing the MobilePre USB by M-Audio. MobilePre USB
is your audio upgrade for any PC or Macintosh computer*, utilizing the
convenience of your computer’s USB port—no tools, computer
disassembly, or power supply is needed; In fact, the MobilePre USB is also
class-compliant on Windows XP & Mac OS X 10.2.6 & higher, so no driver
installation is necessary—just Plug and Play.The MobilePre USB brings you
two high-quality line or microphone/instrument inputs and stereo outputs,
making it the perfect compact recording solution for any computer.
Please take the time to read this User Guide. It will tell you how to install
the MobilePre USB on your particular computer and instruct you on how
to get the most from your MobilePre USB audio interface.
*Must meet minimum system requirements
Package Contents
Your MobilePreUSB was carefullypacked at the factory, and the shipping
carton was designed to protect the unit during shipping. Please retain this
container in the unlikely event that you need to return your MobilePre
USB for service.
The following items are included with your MobilePre USB:
• MobilePre USB audio interface
• One (1) high-quality USB cable
• M-Audio Driver CD (includes driver installation software)
• Additional software installation CDs
• This Product Manual
• Warranty Card
Features of the MobilePre USB
• Portable 16-bit/48kHz audio upgrade for laptops and desktops
• Supports professional two-channel recording and playback
•Supports common sampling frequencies (see T
echnical Spec section)
• Extremely wide dynamic range and low signal-to-noise (see Technical
Spec section) for ultra-quiet, professional-quality recording
•Analog 1/4” unbalanced outputs for powered speakers or stereo receiver
• Completely USB-powered (no power supply required)
•Class-compliancy onWindows XP & Mac OS X (10.2.6 & higher) systems
•One-year warranty
3
System Requirements
The MobilePre USB has been designed to work with Windows 98SE, ME,
2000, or XP and Mac OS 9.2.2 or OS X 10.1.5 and Jaguar (10.2.2). Specific
requirements include:
Windows PC:
Minimum Required—
• 350 MHz Pentium II
• 64MB RAM
• CD-ROM Drive
• Native USB 1.1 Port, on motherboard
• Windows® 98SE, 2000 (SP2), ME, or XP (SP1) Home or Pro (128 MB
RAM required for XP Pro)
Recommended—
• 700 MHz Pentium III
• 128MB RAM
• DVD-ROM Drive
• Windows 2000 (SP2) or XP (SP1) Home or Pro
Macintosh:
Minimum Required—
• Apple Macintosh® G3, 300MHz*; Apple Macintosh® G4, 350MHz*
• CD-ROM Drive
• Available built-in USB port
•Mac OS 9.2.2 or later with 128MB RAM; Mac OS X version 10.1.5,
10.2.6 or later with 256MB RAM
*CPU Accelerator cards not supported
Recommended—
• Apple Macintosh® G4, 500MHz*
• DVD-ROM Drive
• Mac OS X version 10.1.5, 10.2.6 or later with 512MB RAM
• Available built-in USB port
*CPU Accelerator cards not supported
4
Software Setup
Your MobilePre USB comes with driver software that allows it to
communicate with your computer’s operating system: Windows or Mac
OS. Please skip to your computer’s operating system in this section and
follow those instructions.
IMPORTANT NOTE: Your MobilePre USB provides a USB connector
which accepts the standardUSB cable supplied with the unit. You
should install the software drivers, as described below, BEFORE
connecting the MobilePre USB to your computer. After installing the
included drivers, plug the “computer end” of the cable into your
computer’s USB port. When you are asked to connect your MobilePre
USB during the driver software installation, simply plug the “device
end” of the USB cable into your MobilePre USB (the “computer end”
and “device end” will be easily identifiable by their size and shape).
Windows XP
1. Place the M-Audio Drivers Software CD in your CD-ROM Drive.
2. Launch the MobilePre USB Installer.exe installation program.

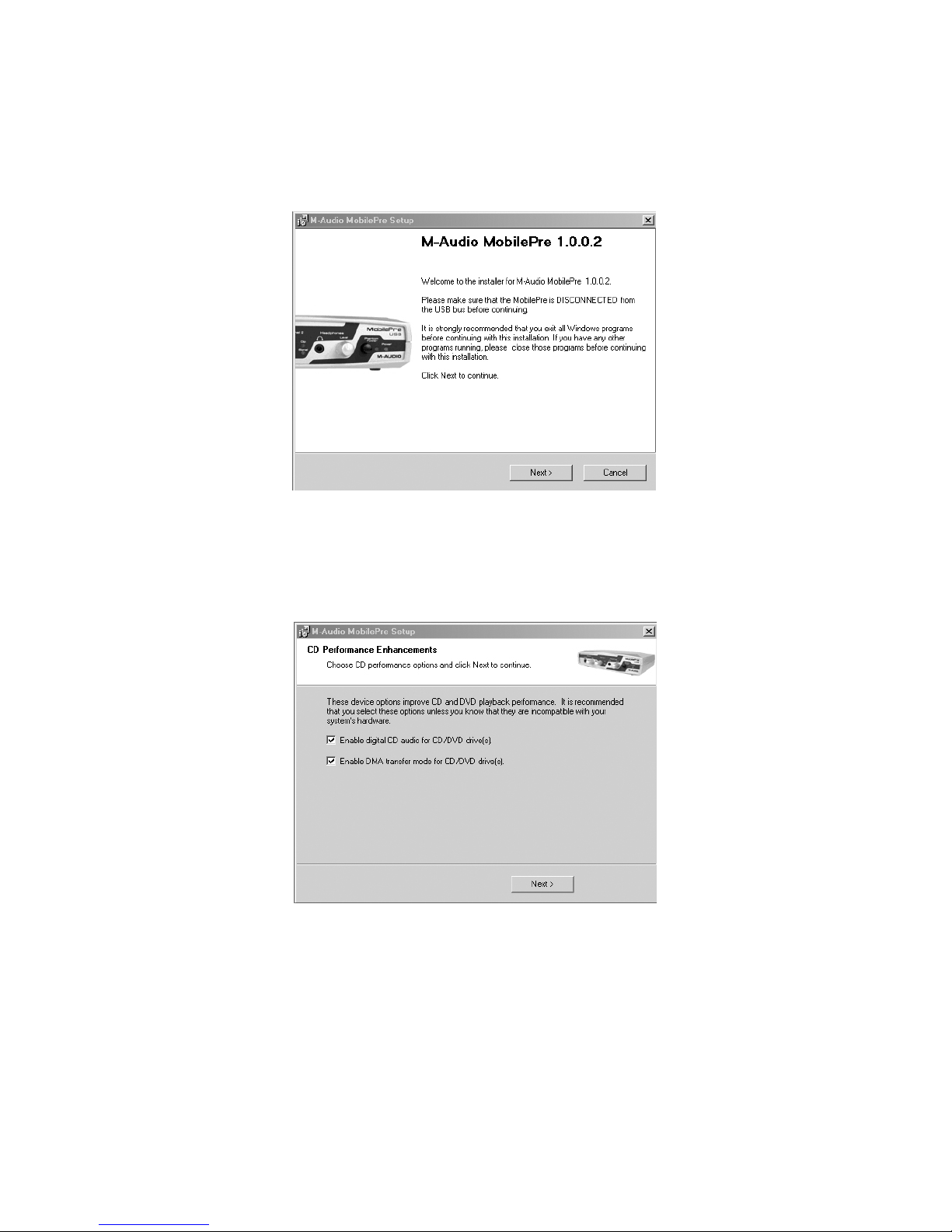

3. The MobilePre USB install screen will appear. Click “Next” to continue.
4. Click “Continue Anyway” on the next screen.
5
5. The CD performance enhancements page will then appear. Click
“Next.”
6. The installation program will now prompt you of a successful hardware
installation. Click “Finish” and restart your computer.
7. After restarting your computer, Windows will tell you that your
hardwarehas not passed Windows Logo testing. Go ahead and click
“ContinueAnyway,” to finish the installation.
8. Please refer to the HardwareInstallation section of this manual for
assistance in hooking up the MobilePre USB to your computer.
6
Windows 2000
1. Place the M-Audio Drivers Software CD in your CD-ROM Drive.
2. Launch the MobilePre USB Installer.exe program.
3. Close all other running applications, as directed by the first screen
that appears.

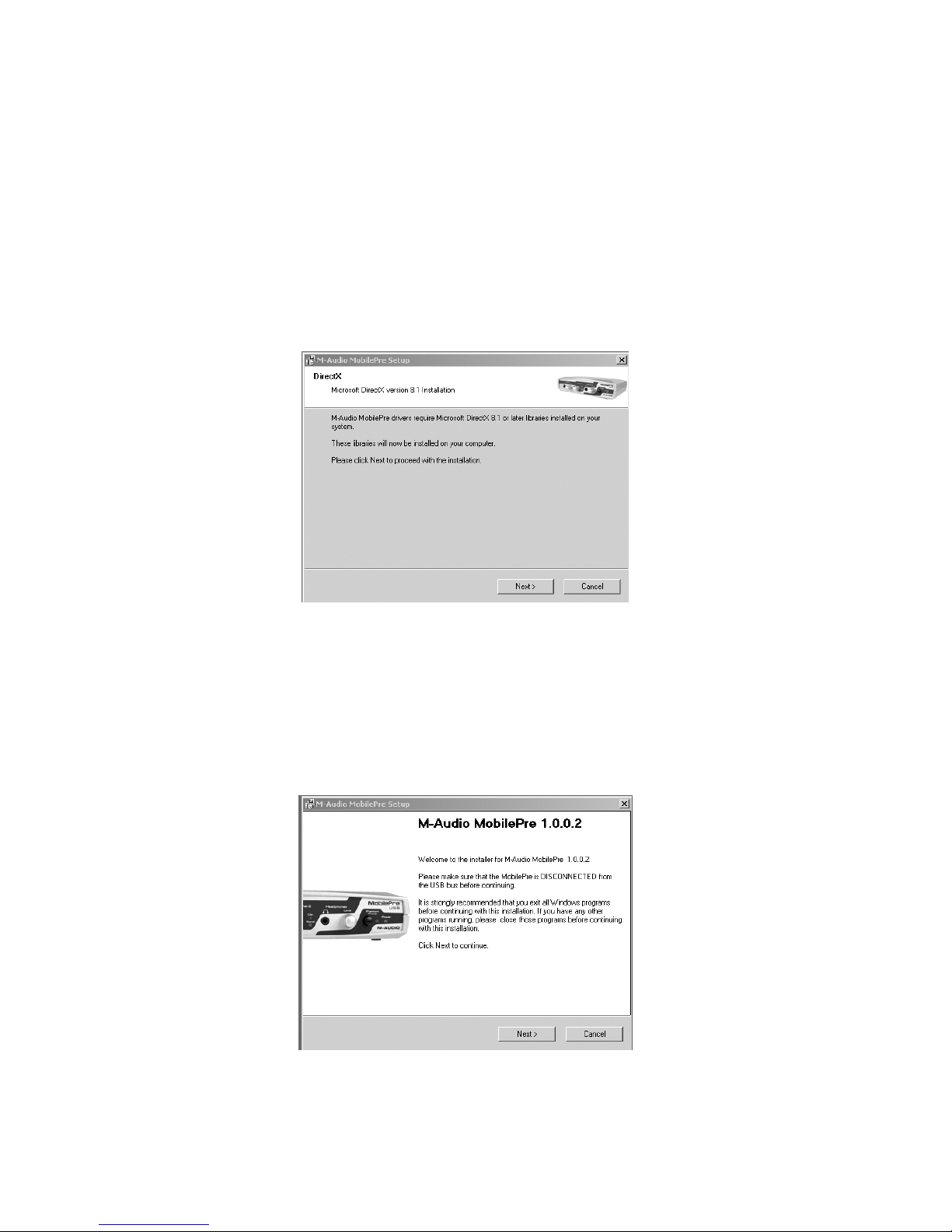

4. Direct X 8.1 or greater must be installed on your computer. If this
software has not been previously installed, the installer program will
prompt you to do so.If you have been presented with this request, click
“Next” to install or upgrade Direct X now.
5. Your MobilePre USB must be disconnected from your computer’s USB
bus, before continuing (if you just finished installing Direct X, your
computer will have restarted, and a reminder to disconnect the
MobilePre USB will follow).If it is currently connected, disconnect it now.
6. The MobilePre USB install screen will now appear.Click“Next” to continue.
7

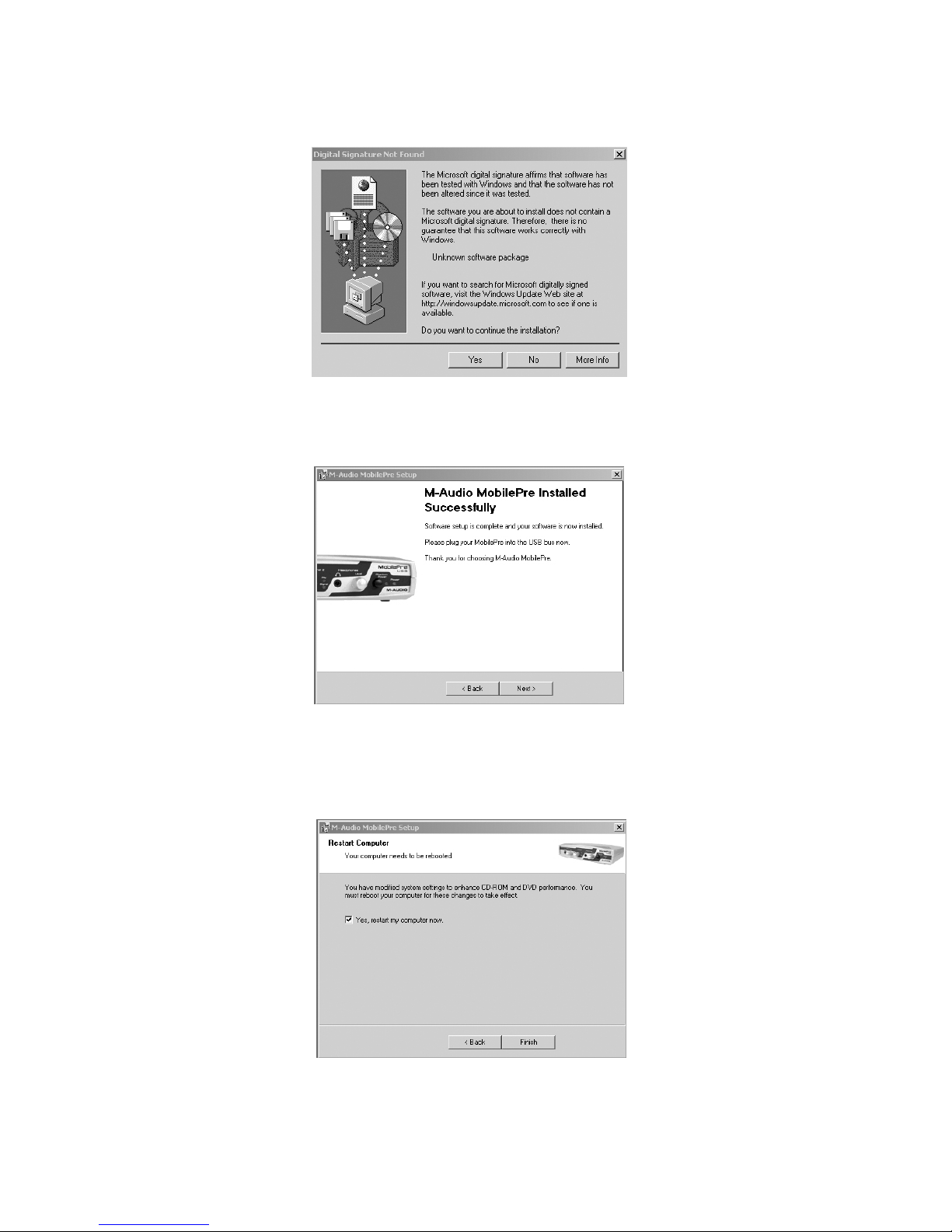

7. Click “Yes” to continue.
8. Click “Next,” twice.
9. Click “Finish” on the next screen appearing.This will cause Windows to
restart your computer.
8
10. You may now connect the MobilePre USB to your computer (refer to
the Hardware Installation section of this manual for instructions).

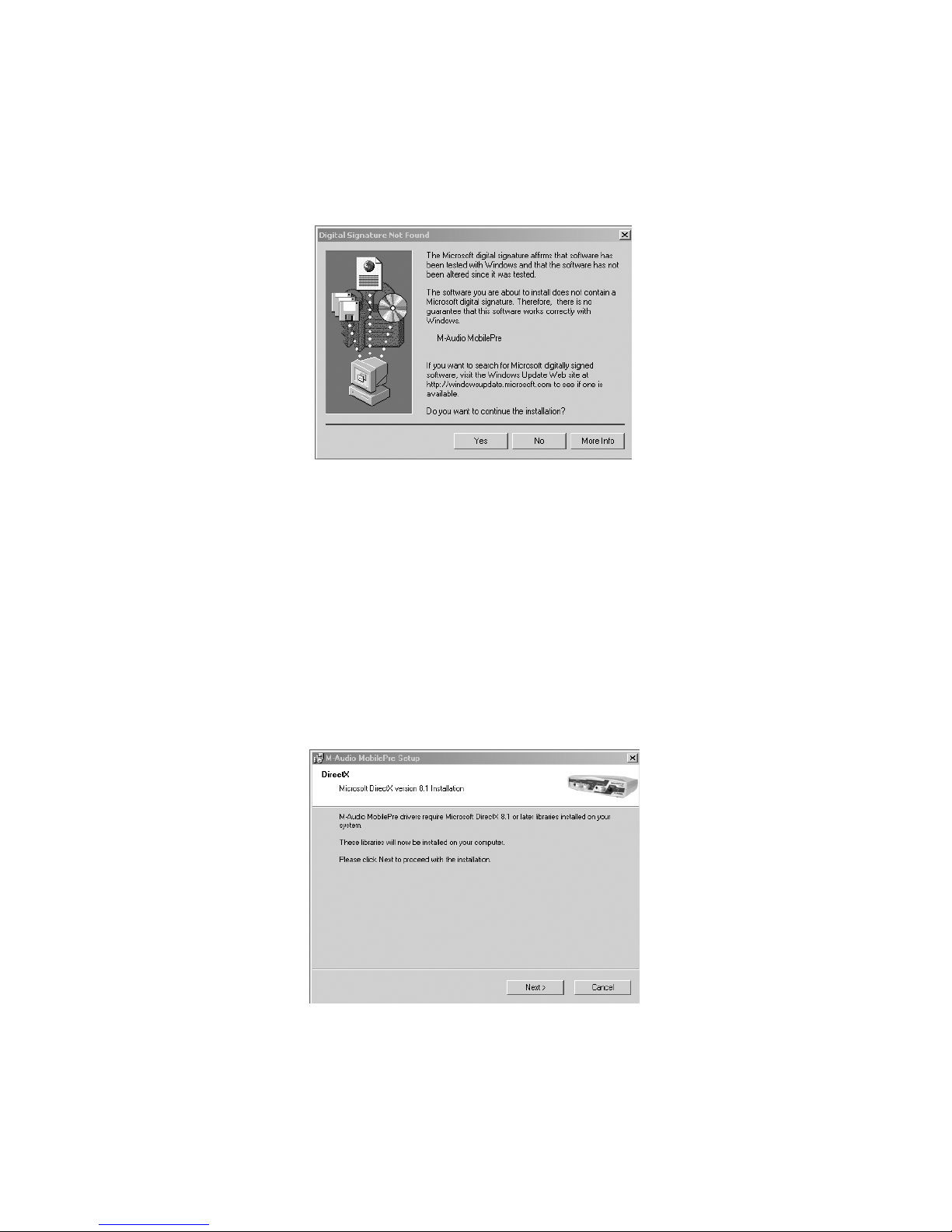

11. After your computer restarts, you will be prompted with a note about
“Digital Signature not found.” Click “Yes” to continue.
Windows ME
1. Place the M-Audio Drivers Software CD in your CD-ROM Drive.
2. Launch the MobilePre USB Installer.exe program.
3. Close all other running applications,as directed by the first screen that appears.
4. Direct X 8.1 or greater must be installed on your computer. If this
software has not been previously installed, the installer program will
prompt you to do so.If you have been presented with this request, click
“Next” to install or upgrade Direct X now.
9
5. Your MobilePre USB must be disconnected from your computer’s USB
bus, before continuing (if you just finished installing Direct X, your
computer will have restarted, and a reminder to disconnect the
MobilePre USB will follow).If it is currently connected, disconnect it now.
6. The MobilePre USB install screen will now appear.Click“Next” to continue.
7. A screen appears that displays checked boxes for Digital Audio and
DMA transfer. Click “Next” to continue.
