C-1000f Control Amplifier

Owner’s Manual

The lightning flash with arrowhead,

within an equilateral triangle, is intended

to alert the user to the presence of

uninsulated “dangerous voltage” within

the product’s enRiskclosure that may be

of sufficient magnitude to constitute a risk of

Risk of Electric Shock

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important

operating and maintenance (servic-

ing) instructions in the literature ac-

companying the appliance.

WARNING -TO REDUCE RISK OF

FIRE OR ELECTRICAL SHOCK, DO

NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

IMPORTANT SAFETY

INSTRUCTIONS!

PLEASE READ THEM BEFORE

OPERATING THIS EQUIPMENT.

1. Read these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Do not use this apparatus near water.

5. Clean only with a dry cloth.

6. Do not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

7. Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that

produce heat.

8. Protect the power cord from being

walked on or pinched particularly at

plugs, convenience receptacles, and the

point where they exit from the

apparatus.

To prevent the risk of electric shock,

do not remove cover or

back plate. No user serviceable

parts inside.

9. Only use attachments/accessories

specified by the manufacturer.

10. Unplug this apparatus during lightning

storms or when unused for long periods

of time.

11. Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as liquid has been spilled or objects

have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

12. Do not expose this equipment to

dripping or splashing and ensure that no

objects filled with liquids, such as vases

or beverages, are placed on the

equipment.

13. To completely disconnect this equipment

from the AC. mains, disconnect the

power supply cord plug from the AC

socket.

14. The power supply cord should be kept in

good condition, if it gets chewed up by a

pet, it should be replaced.

Thank You

Your decision to purchase this Luxman C-1000f Control Amplifier singles you out as

one of the most discriminating music listeners. Luxman have been hand-crafting

exquisite audio reproducing equipment in Japan since 1925. Luxman’s relentless

dedication to Quality is your assurance that you will receive many years of musical

enjoyment from this unit.

Please take a short time to read the information in this manual. We want you to be as

familiar as possible with all the features and functions of your new Luxman.

Important Safety Instructions Page 3

Contents 4

Front Panel Controls 5 –6

Rear Panel Inputs & Outputs 7 - 8

Remote Control Layout 9 -11

Balance Control (Preset) 12

Preset Index 13

Tone Controls 14

Tone Controls Index 15

Remote Control (batteries) 16

Installation 17

Connections 15 -19

Home Theater Processor connection 19

Subwoofer connection 19

Block Diagram - General 20

Block Diagram – LECUA 1000 21

Block Diagram – REGULATOR, POWER SUPPLY 22

Specifications 23

Warranty 24 - 25

Remote Control Code 26

Luxman Worldwide Contacts 28.

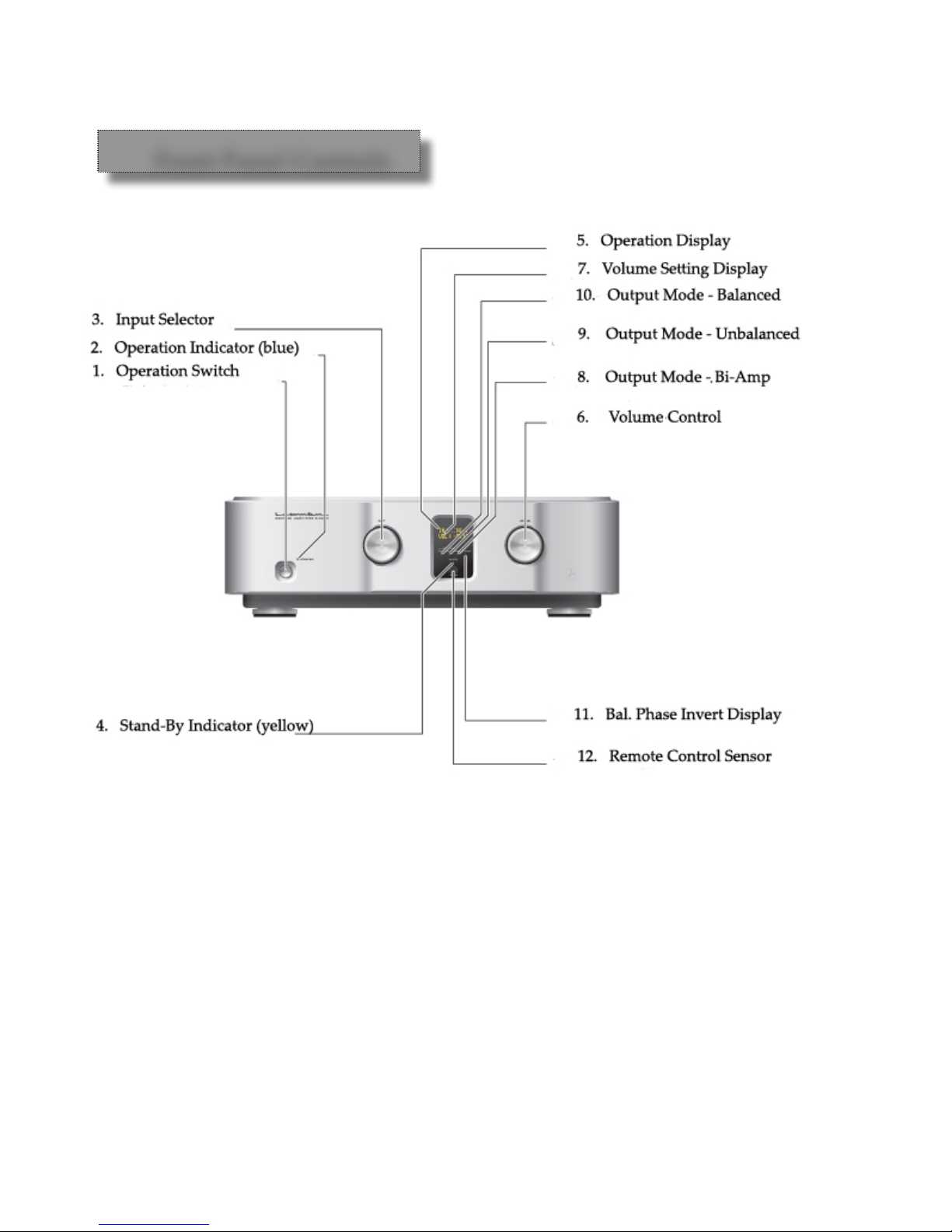

1. OPERATION SWITCH / Power Stand-by / On, push button turns the C-1000f either ON

or OFF (stand-by).

2. OPERATION INDICATOR; LED blinks gently initially to show that it is warming up, will shine

constantly once the C-600f is fully operational. The legend Warming Up will be displayed

meanwhile.

3. NPUT SELECTOR; select any one of the eight music signal sources, either from this knob on the

front panel or from the remote control

4. STAND-BY INDICATOR, glows yellow while in stand-by.

5. OPERATION DISPLAY; the illuminated display makes it easy to view the selected music source

& the volume setting, even from a distance.

6. VOLUME CONTROL; adjust the Volume Control for the desired listening level. The VOLUME

control adjusts the overall loudness of the signals being fed to the loudspeakers. It is fully

electronic and can also be adjusted from the remote control handset. The VOLUME control does

not affect recordings made using the Tape outputs.

Front Panel Controls

7. VOLUME DISPLAY, the illuminated display makes it easy to view the gain setting even from a

distance.

8. OUTPUT MODE - Bi Amp The blue LED shows that the unbalanced output is active. →

9. OUTPUT MODE –Unbal. The blue LED shows that the unbalanced output is active.

10. OUTPUT MODE – Bal. The blue LED shows that the balanced output is active.

11. BAL INVERT INDICATOR;The blue LED shows that the phase is inverted.

12. REMOTE SENSOR receives commands from the Remote Control. There must be a clear line-of-

sight path from the remote control to this window; if that path is obstructed, the remote control

may not work.

NOTE: Direct sunlight or very bright ambient lighting may affect the operating range and angle for the

remote control handset.

Front Panel Controls

13. UNBALANCED OUTPUTS need to be connected to an outboard amplifier(s).

14. UNBALANCED INPUTS, Line 1 –3 These inputs accept the stereo output signal from CD,

SACD, DVD-Audio, Tuner (XM, Sirius).

15. BALANCED INPUTS 1 –2. These inputs accept the stereo output signal from CD, SACD,

DVD-Audio, or Tuner.

The balanced input is desirable for minimizing earth loop generated mains hum and ripple,

or high frequency interference, if a noise problem occurs.

16. GROUND POST. Accepts a ground wire from an external phono stage.

This terminal does not have to be used, but you may connect it to a suitable ground on an

amplifier for example, which under some circumstances will reduce hum and ripple.

17. BALANCED OUTPUTS need to be connected to an outboard amplifier(s).

18. REMOTE CONTROL TRIGGER. Generates a 12 volt DCtrigger signal which will activate

aLUXMAN B-1000f, M-800Aor M-600A. It togglesbetween Stand-By and Operate. Uses

a simple RJ-11 connector (normally used for the phone lines).

Rear Panel Controls

19. MAIN POWER Switch. If you are not using your C-1000f for an extended period of time

and want to turn off the power completely.The remote control will not be able to activate

the control amplifier.

20. LINE PHASE SENSOR. Here is a clever device found on the back of almost every Luxman

powered product. You press the button and it will check the phase of the electricity it is

receiving. If the AC outlet in the wall is incorrectly wired, meaning the live and neutral are

swapped, a red LED will turn on to warn you. You only need to press it once, when you are

installing a product to check that everything is in order. It’s a simple mistake, that occurs

often, and one that can undermine your listening enjoyment.

21. AC INLET Connect the C-1000f power cord to a live AC outlet. Refer to information on the

back panel to deter-mine the correct voltage.

Rear Panel Controls

1. Operation (On / Stand-by) push button turns the C-1000f either ON or OFF (stand-by).

The muting circuit operates for about 60 seconds after the power is turned on, until

the circuitry stabilizes. No sound is heard during this period.

While the unit is warming up, you will see the legend:

2. Input Selection; select any one of the eight music signal sources, either from the rotary

selector on the front panel or from the remote control. The front panel display will show the

Input Selected on the top line, with the Volume setting underneath, as in:

While the balanced inputs will look like this:

Remote Control

WARMING UP

IN : LINE -1

VOL : -71 dB

IN : BAL. -1

VOL : -71 dB

3. Output Mode cycles between modes: BAL →Bi-Amp →UNBAL →.The blue LEDs

will illuminate which outputs are active on the front panel display.

4. Balanced Output Phase Invert; this will invert the phase from where it is set. The

blue LED shows that the phase is inverted.

5. Volume Control; adjust the Volume Control for the desired listening level. The

VOLUME control adjusts the overall loudness of the signals being fed to the loudspeakers.

It is electronic with 72 discrete steps and can be adjusted from the remote control handset.

At this setting the volume is turned off. You can raise the volume using the volume

button.

You should acquire the habit of lowering the volume, when changing between inputs or

before playing a record.

Remote Control

IN : BAL. -1

VOL: --dB
