luminii Tavan TAV Series Manuel utilisateur
Installation Instructions for Tavan
Models TAV-XX-XX
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
Page 1 of 12
round version
square version
Instruction page index:
Tavan stand-alone installation
Tavan joiner installation
Tavan L, T or X connector installation
Wiring Diagrams
2 - 3
4 - 7
8 - 11
12
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
Tavan - Tavan stand-alone installation
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
4

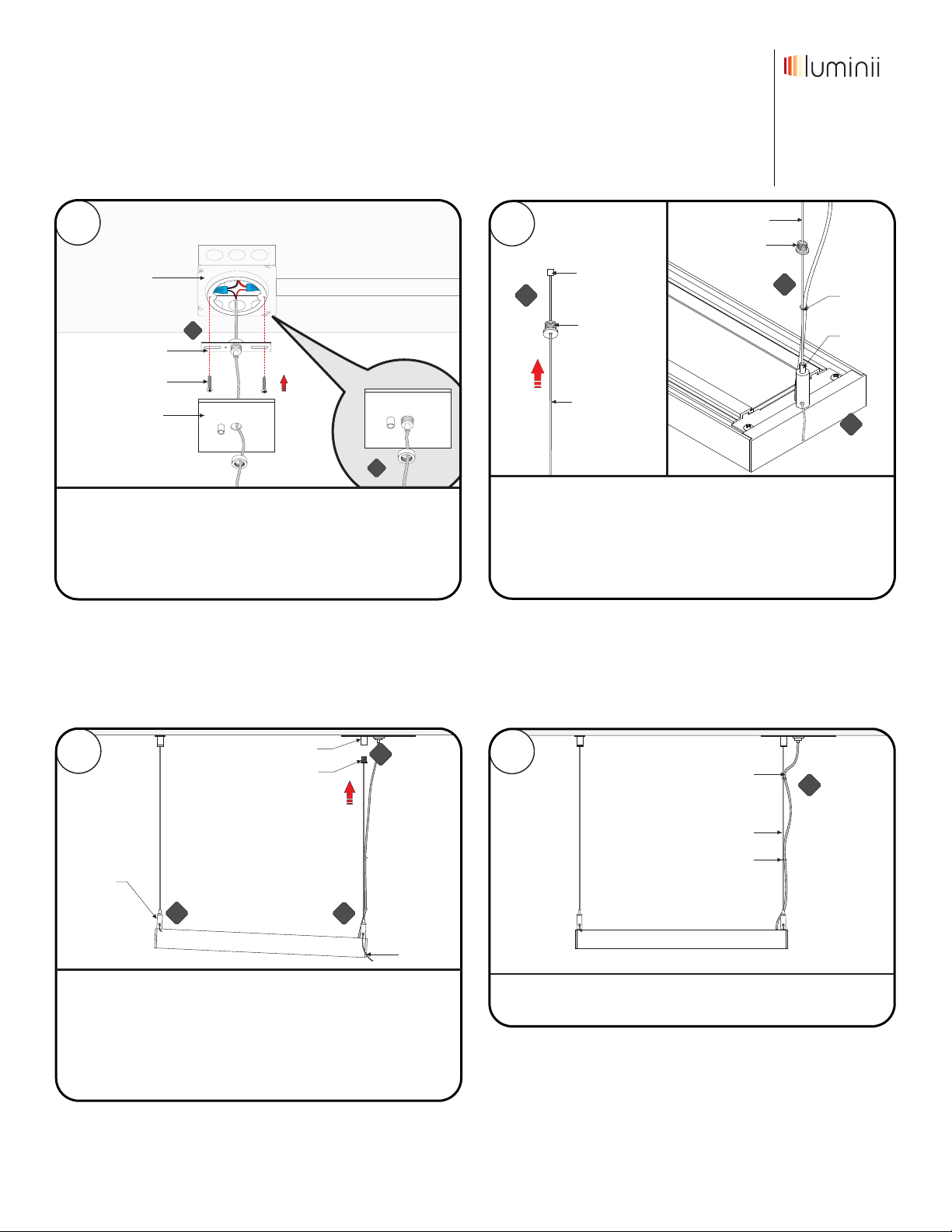

4.1 While one person is holding the fixture, the other person can
slide the coaxial cable end through the clear o-rings, thumb
nut, backplate & crossbar assembly.
4.2 Refer to the wiring diagram on page 12 and make all necessary
connections.
junction box
backplate
crossbar
assembly
fixture
power wire
4.1
Note: Prior to wiring the desired fixture height must be
determined to cut off any un-necessary wire.
thumb nut
-4.2
strain
relief
coaxial
cable
4.1
o-ring

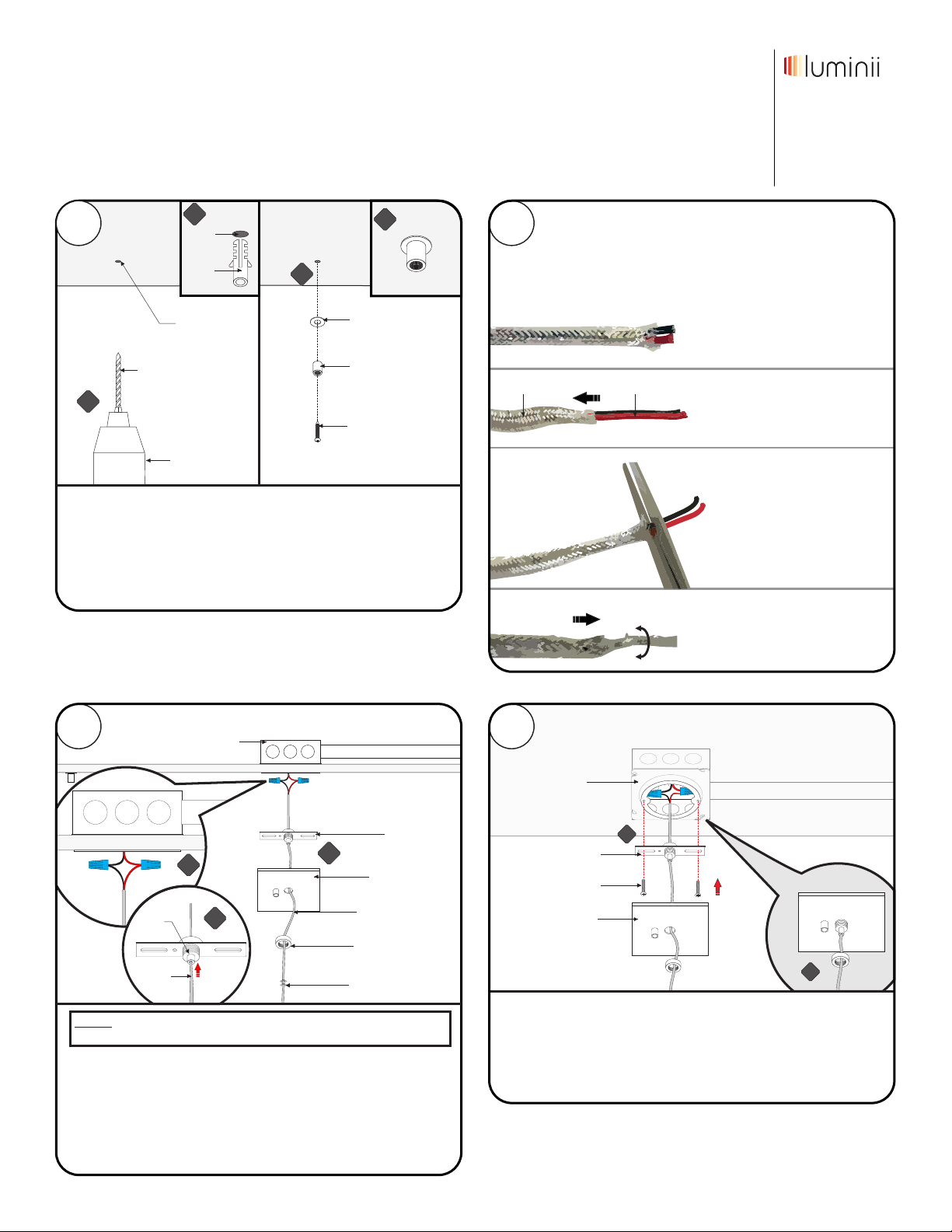

3Prior to installing fixture to power, coaxial cable
must be prepared to go inside crossbar assembly.
If this step if skipped coaxial cable metal sleeve
will tangle up.
1 - while holding the coaxial cable end.
2 - Pull back about an 1-1/2" of the
metal sleeve to expose the wires.
metal sleeve wires
3 - Cut off 1-1/2" of the wires.
4 - Pull forward the metal sleeve and
twist to make a firmer single wire.
Models TAV-XX-XX
Note: Prior to installation all wires must be present in
junction box. Junction box must be located within 96” from
the power cable on the fixture. Reference page 12 for wiring
diagrams.
Note: More than one person is recommended for this
installation.
1
1.1 For stand-alone fixture, align one standoff hub to the junction
box & measure the distance from standoff hub to the other hub.
Then mark this location to the ceiling. Use canopy detail to
slighting off center standoff hub.
canopy detail
4-3/8"
4-3/8"
7/8"
standoff
cap
standoff
location
marks
anchor
2.1 On the marked location(s), make a hole using a 13/64" drill
bit.
2.2 Insert the anchor into the hole and push completely in.
2.3 Insert wood screw through cap & washer and then tighten to
secure into the anchors.
ceiling
drill
13/64"
drill bit
2.1
2.3
2.3
hole
2.2
2
wood screw
cap
spacer
1.1
standoff hub
Tavan
measure
Page 2 of 12
+
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
Models TAV-XX-XX
aircraft cable
standoff
hub tab
6.3
6.2
aircraft cable
cable stopper
threaded post
6
6.1 Untangle each aircraft cable and insert into the threaded post
until the cable stopper.
6.2 Push on the standoff hub tab and feed the aircraft cable into the
standoff hub until necessary. Release tab to secure in place. For
the aircraft cable closest to the coaxial cable slide through the
o-rings on the coaxial cable first.
6.1
threaded post
5.1 Insert the wire nut connections into the junction box & align the
crossbar to the junction box holes and secure using the provided
two #8-32 screw.
5.2 Slide the backplate up to the crossbar and secure by hand
tightening the thumb nut into the crossbar.
#8-32 screw
crossbar
backplate
junction box
5.1
5
5.2
7.1 Tighten each threaded post into a cap, one will be on the
backplate and other(s) on the ceiling. If fixture not leveled,
adjustments can be made by pushing on the standoff hub tab.
Then either feed more cable into the standoff hub or pull out
cable from the standoff hub and release to secure.
7.2 Cut off any extra aircraft cable from the standoff hub hole.
7
standoff
hub tab
threaded post
aircraft
cable
cap 7.1
7.2
7.2
8
8.1 If necessary make any final adjustments to the cables use the
o-rings for a cleaner look.
8.1
o-ring
aircraft cable
coaxial cable
Page 3 of 12
Tavan - Tavan stand-alone installation
o-ring
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE

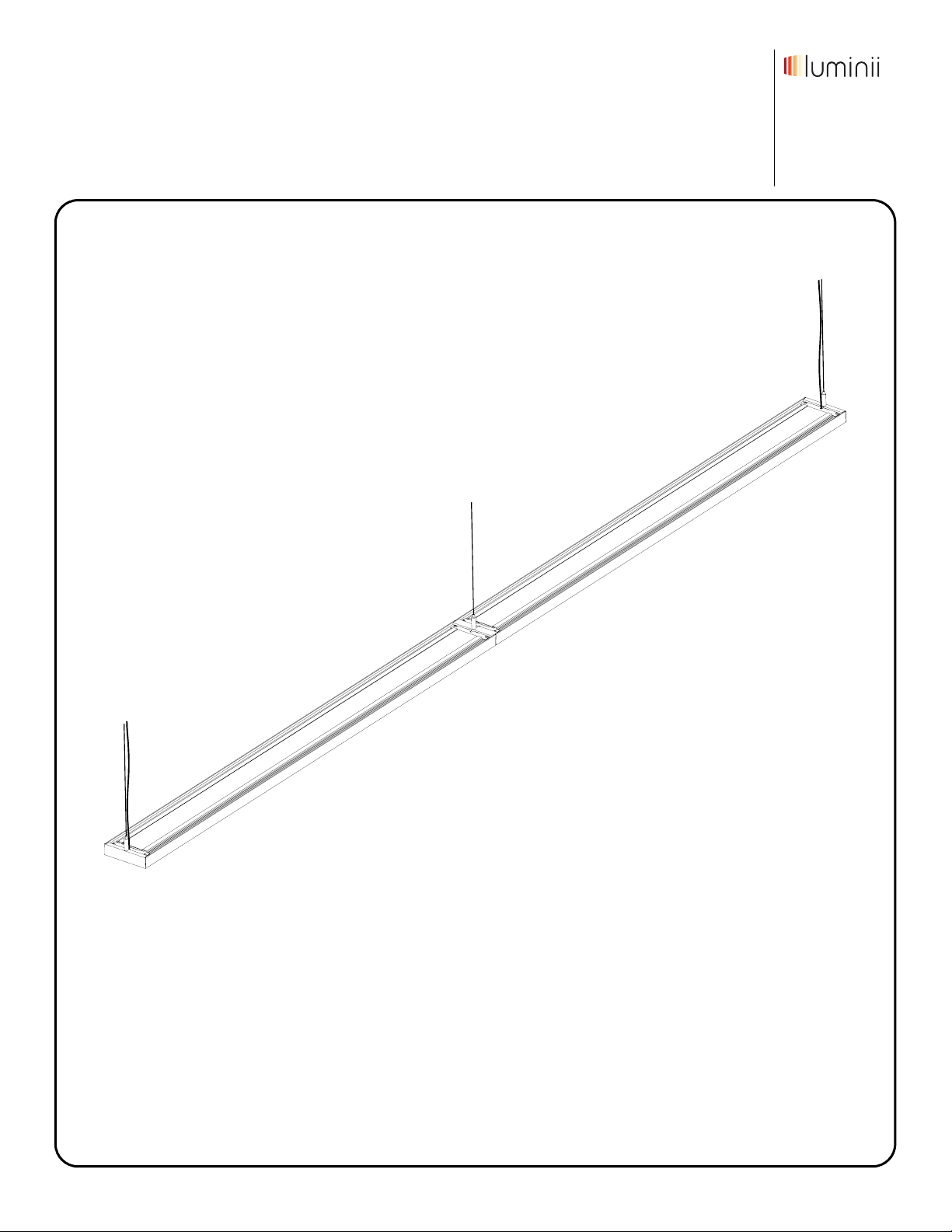

straight/joiner
connector installation
Tavan - Tavan joiner installation
Models TAV-XX-XX
Page 4 of 12
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE

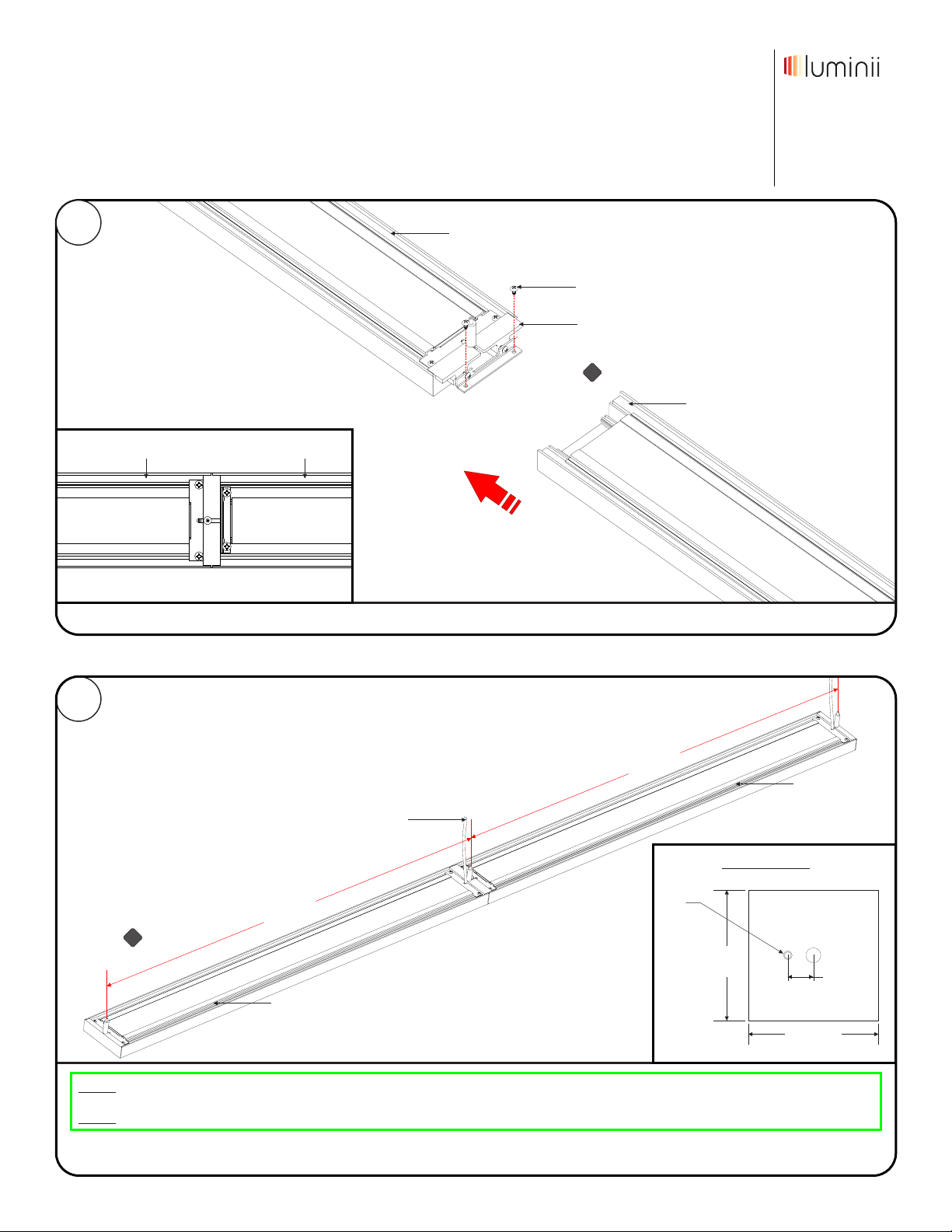

1.1 Lay the fixtures on the floor, then slide each fixture housing to each other secure using the provided screws.
1
fixture
fixture w/joiner
joiner
screw
1.1
2
canopy detail
4-3/8"
4-3/8"
7/8"
standoff
cap
measure
measure
2.1
Note: Prior to installation all wires must be present in junction box. Junction box must be located within 96” from the power cable
on the fixture. Reference page 12 for wiring diagrams.
Note: More than one person is recommended for this installation.
2.1 A canopy will be needed for every power feed cable. Measure the distance from one standoff hub to the other hub. Then mark this location to the
ceiling. Use canopy detail to slighting off center standoff hub.
fixture
fixture
power cable
Tavan - Tavan joiner installation
Models TAV-XX-XX
Page 5 of 12
fixture w/joiner
Top View fixture
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
standoff
location
marks
anchor
3.1 On the marked location(s), make a hole using a 13/64" drill
bit.
3.2 Insert the anchor into the hole and push completely in.
3.3 Insert wood screw through cap & washer and then tighten to
secure into the anchors.
ceiling
drill
13/64"
drill bit
3.1
3.3
3.3
hole
3.2
3
wood screw
cap
spacer
5
5.1 While one person is holding the fixture, the other person can
slide the coaxial cable end through the clear o-rings, thumb
nut, backplate & crossbar assembly.
5.2 Refer to the wiring diagram on page 12 and make all necessary
connections.
junction box
backplate
crossbar
assembly
fixture
power wire
5.1
Note: Prior to wiring the desired fixture height must be
determined to cut off any un-necessary wire.
thumb nut
-5.2
strain
relief
coaxial
cable
5.1
o-ring
4Prior to installing fixture to power, coaxial cable
must be prepared to go inside crossbar assembly.
If this step if skipped coaxial cable metal sleeve
will tangle up.
1 - while holding the coaxial cable end.
2 - Pull back about an 1-1/2" of the
metal sleeve to expose the wires.
metal sleeve wires
3 - Cut off 1-1/2" of the wires.
4 - Pull forward the metal sleeve and
twist to make a firmer single wire.
6.1 Insert the wire nut connections into the junction box & align the
crossbar to the junction box holes and secure using the provided
two #8-32 screw.
6.2 Slide the backplate up to the crossbar and secure by hand
tightening the thumb nut into the crossbar.
#8-32 screw
crossbar
backplate
junction box
6.1
6
6.2
Tavan - Tavan joiner installation
Models TAV-XX-XX
Page 6 of 12
+
aircraft cable
standoff
hub tab
7.3
7.2
aircraft cable
cable stopper
threaded post
7

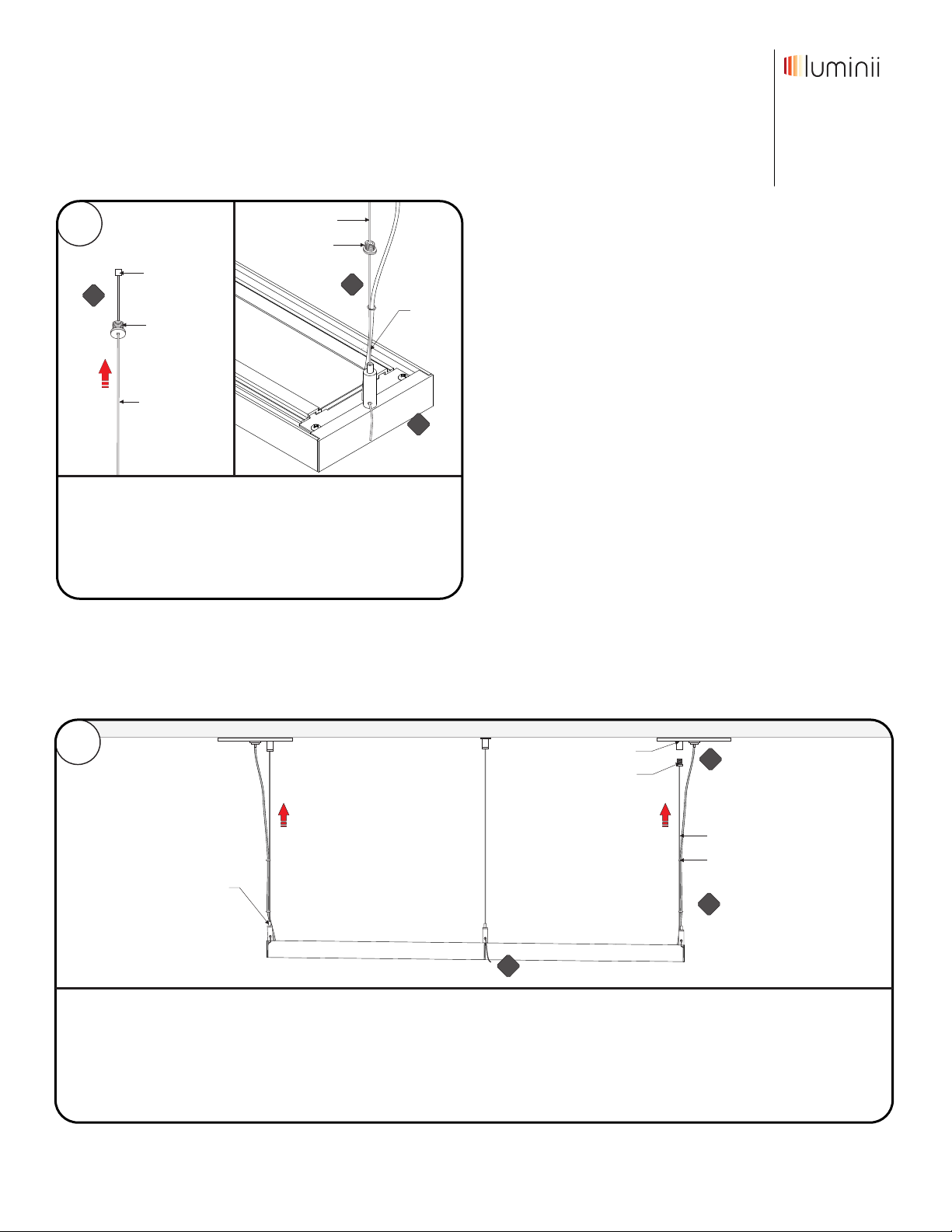

7.1 Untangle each aircraft cable and insert into the threaded post
until the cable stopper.
7.2 Push on the standoff hub tab and feed the aircraft cable into the
standoff hub until necessary. Release tab to secure in place. For
the aircraft cable closest to the coaxial cable slide through the
o-rings on the coaxial cable first.
7.1
threaded post
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
8.1 Tighten each threaded post into a cap, one will be on the backplate and other(s) on the ceiling. If fixture not leveled, adjustments can be made
by pushing on the standoff hub tab. Then either feed more cable into the standoff hub or pull out cable from the standoff hub and release to
secure.
8.2 Cut off any extra aircraft cable from the standoff hub hole.
8.3 If necessary make any final adjustments to the cables use the o-rings for a cleaner look.
8
standoff
hub tab
threaded post
cap
8.3
8.1
8.2
aircraft cable
o-ring
Tavan - Tavan joiner installation
Models TAV-XX-XX
Page 7 of 12
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE

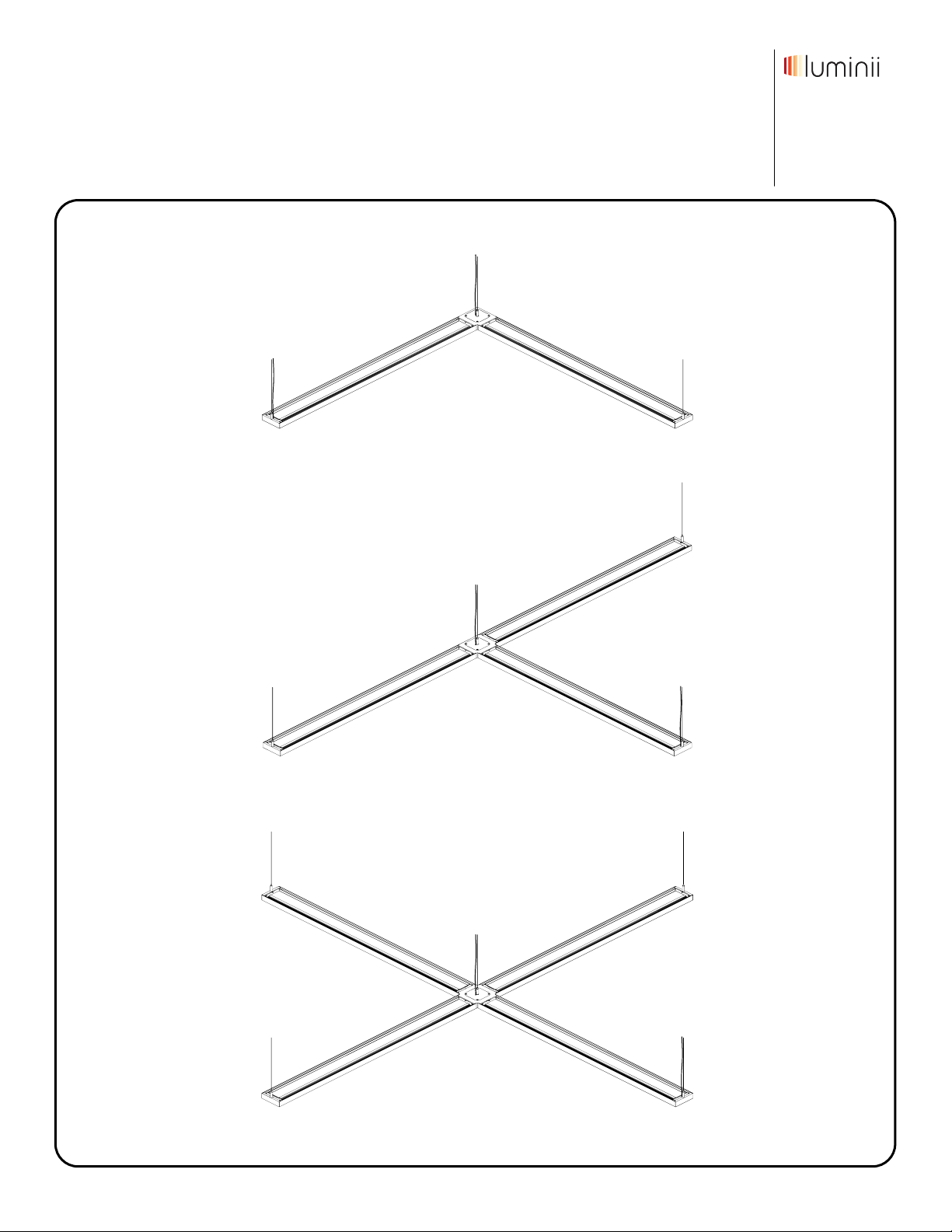

Tavan - Tavan L, T or X connector installation
Models TAV-XX-XX
X-connector
T-connector
L-connector
Page 8 of 12
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
Models TAV-XX-XX

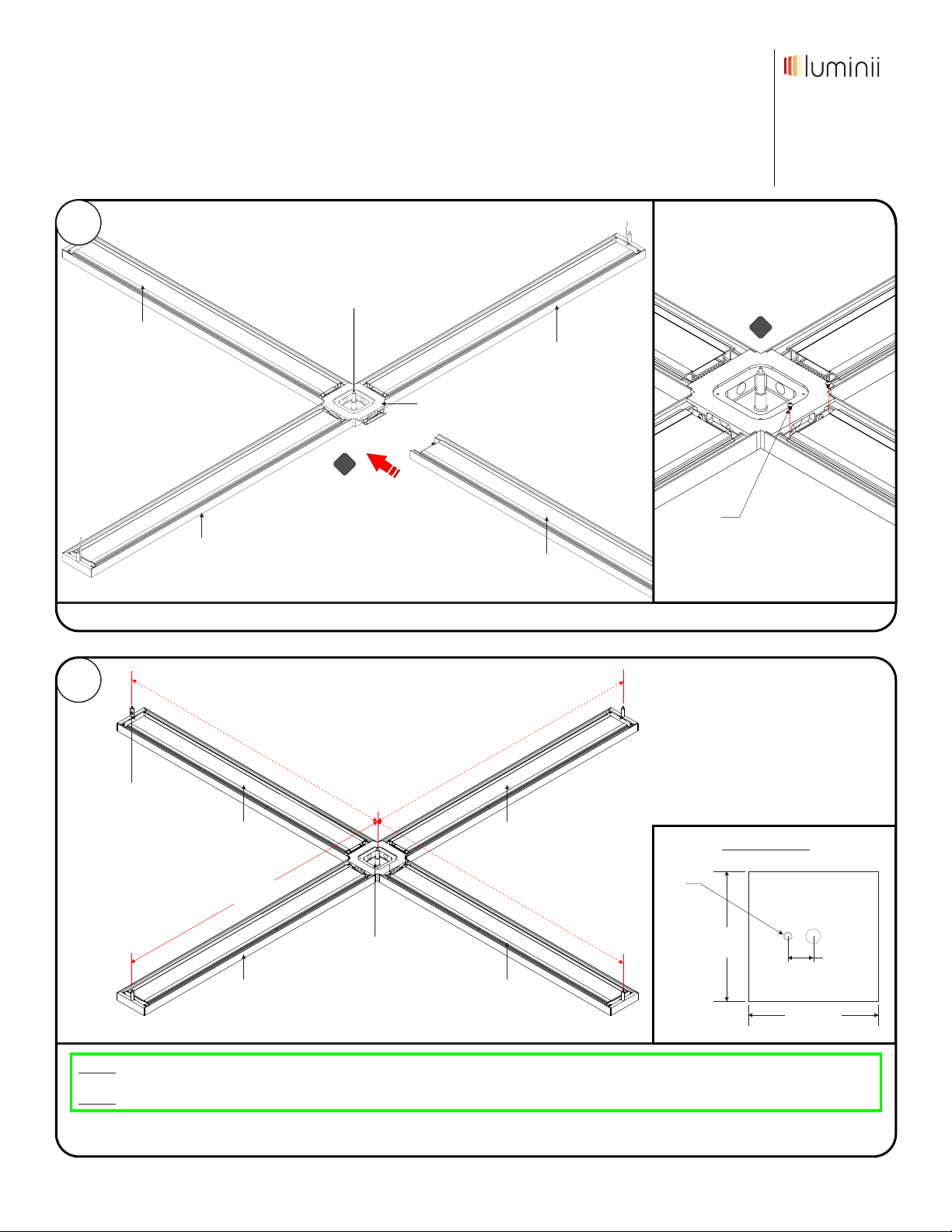

1.1 Lay the fixtures on the floor. Then slide each fixture housing into the connecting hub then secure using the provided screws.
2
canopy detail
4-3/8"
4-3/8"
7/8"
standoff
cap
Note: Prior to installation all wires must be present in junction box. Junction box must be located within 96” from the power cable
on the fixture. Reference page 12 for wiring diagrams.
Note: More than one person is recommended for this installation.
2.1 A canopy will be needed for every power feed cable. Measure the distance from standoff hub to the other hub. Then mark this location to the
ceiling. Use canopy detail to slighting off center standoff hub.
Tavan - Tavan L, T or X connector installation
1
screw
measure
fixture
housing 3
fixture
housing 4
fixture
housing 1
fixture
housing 2
X-connector hub
standoff hub
Page 9 of 12
fixture
housing 4
fixture
housing 1 fixture
housing 2
fixture
housing 3
connecting
hub
1.1
1.1
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
7777 N. Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
www.luminii.com
REV0.0*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
Models TAV-XX-XX
Tavan - Tavan L, T or X connector installation
standoff
location
marks
anchor
3.1 On the marked location(s), make a hole using a 13/64" drill
bit.
3.2 Insert the anchor into the hole and push completely in.
3.3 Insert wood screw through cap & washer and then tighten to
secure into the anchors.
ceiling
drill
13/64"
drill bit
3.1
3.3
3.3
hole
3.2
3
wood screw
cap
spacer
5
5.1 While one person is holding the fixture, the other person can
slide the coaxial cable end through the clear o-rings, thumb
nut, backplate & crossbar assembly.
5.2 Refer to the wiring diagram on page 12 and make all necessary
connections.
junction box
backplate
crossbar
assembly
fixture
power wire
5.1
Note: Prior to wiring the desired fixture height must be
determined to cut off any un-necessary wire.
thumb nut
-5.2
strain
relief
coaxial
cable
5.1
o-ring
4Prior to installing fixture to power, coaxial cable
must be prepared to go inside crossbar assembly.
If this step if skipped coaxial cable metal sleeve
will tangle up.
1 - while holding the coaxial cable end.
2 - Pull back about an 1-1/2" of the
metal sleeve to expose the wires.
metal sleeve wires
3 - Cut off 1-1/2" of the wires.
4 - Pull forward the metal sleeve and
twist to make a firmer single wire.
6.1 Insert the wire nut connections into the junction box & align the
crossbar to the junction box holes and secure using the provided
two #8-32 screw.
6.2 Slide the backplate up to the crossbar and secure by hand
tightening the thumb nut into the crossbar.
#8-32 screw
crossbar
backplate
junction box
6.1
6
6.2
+
Page 10 of 12
Table des matières
Autres manuels luminii Lanterne
