DC158 Visual Presenter

Quick Start Guide

[Important]

To download quick start guide, multilingual

manuals, software, and drivers, please visit

Lumens web site at

http://www.lumens.com.tw/goto.htm

English - 0

1. Package Content

DC158 Quick Start Guide User Manual

(To download this manual in

other languages, visit

Lumens website.)

Download Card Remote Control VGA Cable



USB Cable C-Video Cable Power Cord

Appearance may vary

depending on country/region

Microscope Adapter Accessory Pouch Presenter Protector

Bag

Backlight (Optional) RS-232 Adapter

(Optional) Padded Carry Bag

(Optional)

English - 1

2. System Diagram

Monitor Television PCProjector

English - 2

3. Product Overview

2 Lamp

5. Remote sensor

1. Gooseneck

4. LED indicator

3. Control panel

6. Lens

7. DIP switch

(Bottom)

English - 3

4. Connecting Devices

4.1 Step 1: Plugging in the Power Outlet AC Outlet

English - 4

<Note> Appearance of power cord may vary depending on

country/region.

4.2 Step 2: Connecting projector with other hardware devices

4.2.1 Connecting to a Projector or Monitor

zConnect the VGA cable to the VGA OUT port on the DC158 and to the

VGA IN port on the projector or monitor.

4.2.2 Connecting to a TV

1.Connect the C-VIDEO cable to the C-VIDEO port on the DC158 and the

C-VIDEO port on the TV.

2.Adjust DIP Switch Setting

NTSC:America, Taiwan, Panama, Philippine, Canada, Chile, Japan and Mexico.

234

PAL: Country/region not listed above.

234

<Note>: OSD is not available in C-VIDEO. Some functions are not

available on the control panel and the remote control in this mode.

<Note>: VGA OUT is not supported once C-VIDEO is enabled.

3.DIP switch settings will not availabe until the DC158 has been restarted.

4.2.3 Connecting to a Computer

zConnecting to a computer through USB

Connect the USB cable to the USB port on the DC158 and the USB port

on the computer. Next, download the queue™program at

http://www.lumens.com.tw/goto.htm.Please refer to the queue™ user

manual for more detailed instructions.

zConnecting to a computer through VGA IN

Connect the VGA cable to the VGA IN port on the DC158 and the VGA

OUT port on the computer.

English - 5

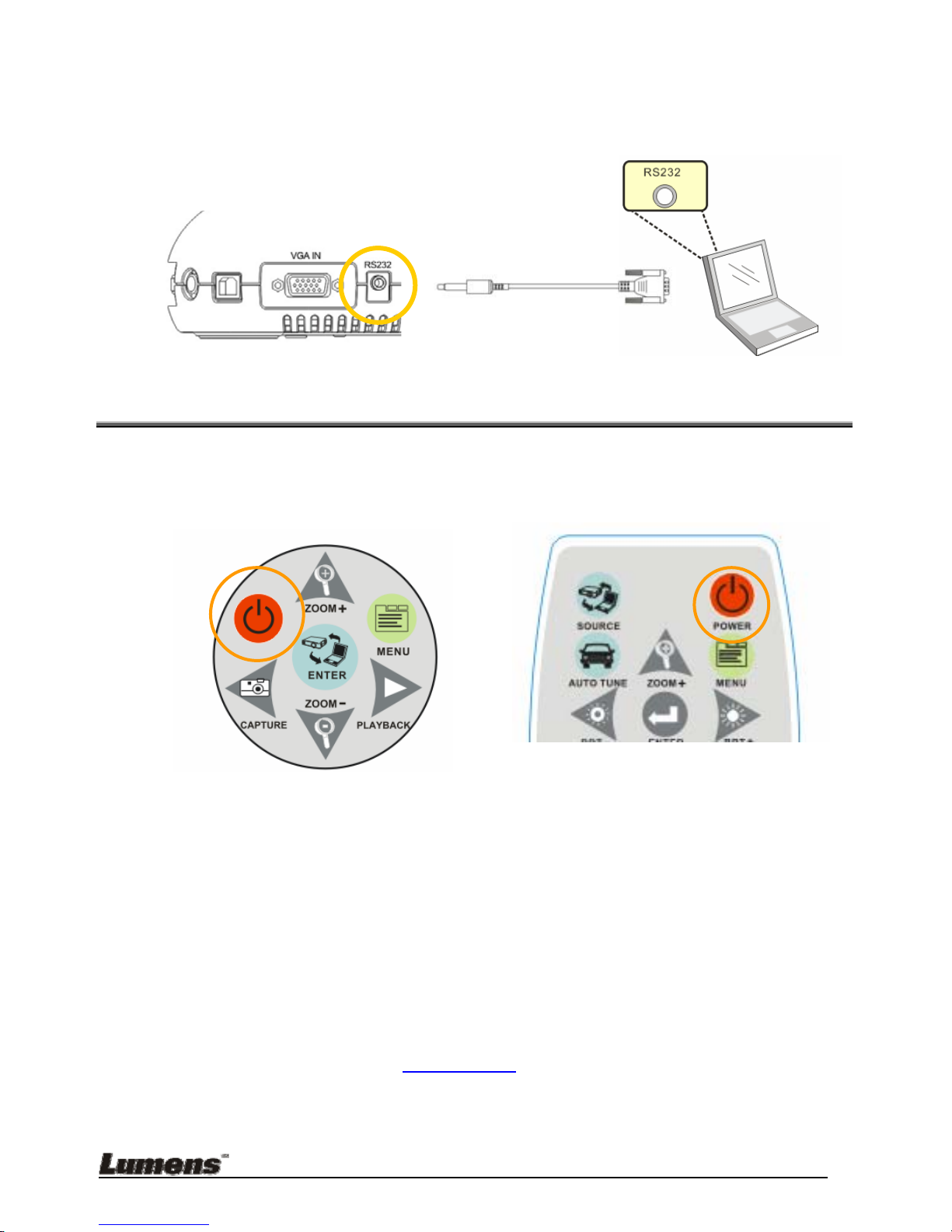

zConnecting to a computer through RS-232

Connect the RS-232 adapter (Optional) to the RS-232 port on the DC158

and the RS-232 port on the computer.

5. Start Using the DC158

5.1 Powering on the DC158

Control Panel Remote Control

zWhen using the remote control, aim at the remote sensor at the

DC158 and press the power button.

zOnce the visual presenter is turned on, the LED on the projector will

flash a few times and then stay lit. Please contact your distributor if

LED is not on.

*For a detailed introduction to menu functions and additional operating

instructions, please refer to the user manual.

English - 6
