FW012 - VC-B30U FW Update Manual 1
VC-B30U Firmware(FW) Upgrade
Warning：
Before upgrade, please check FW version of unit and update the FW accordingly.
Original FW version
New FW version
VHH_VHG_VHS_VHI_VHK
VHH_VHG_VHS_VHI_VHK
VAF_VAE_VHS_VAD_VAX
VAF_VAE_VHS_VAD_VAX
VHH_VHG_VHS_VHI_VHK can’t upgrade to VAF_VAE_VHS_VAD_VAX due to the
hardware limitation.
FW Check
OSD Menu: [Status] > [FW version] on the last page.
[USB PTZ Camera Controller] software: [Advance]> [FW version]
Version Difference:
FW Type
VC-B30U
VC-B30U,V01
USB
VHHxxx
VAFxxx
Master
VHGxxx
VAExxx
Motor
VHSxxx
CM
VHIxxx
VADxxx
DSP
VHKxxx
VAXxxx
FW012 - VC-B30U FW Update Manual 2
FW012 - VC-B30U FW Update Manual 3
1Device and Tool Preparation
1.1 Please prepare following devices and tools before FW upgrade.
VC Model
PC with a RS232 port or Laptop
or
Mini Din-RS232 cable
RS232-USB cable
(if connect with a laptop)
(9Pin D-Sub Female to 8P in Mini Din Male)
Monitor
Power adapter and power cord
FW012 - VC-B30U FW Update Manual 4
2Connections for FW upgrade
**Note: Support: Windows Vista, Windows XP, Windows 7, Windows 8, Windows 10
The VC FW cannot be upgraded through MAC OS.
2.1 Connect the VC camera (RS232 Port) with a PC
2.2 Connect the VC camera (RS232 Port) with a laptop
Need 2 cables: RS232 cable and RS232-USB cable
RS232 cable
PC
FW012 - VC-B30U FW Update Manual 5
RS232 cable
RS232-USB cable
FW012 - VC-B30U FW Update Manual 6
3FW Update
3.1 Please download [Firmware Download Tool] from Lumens website.

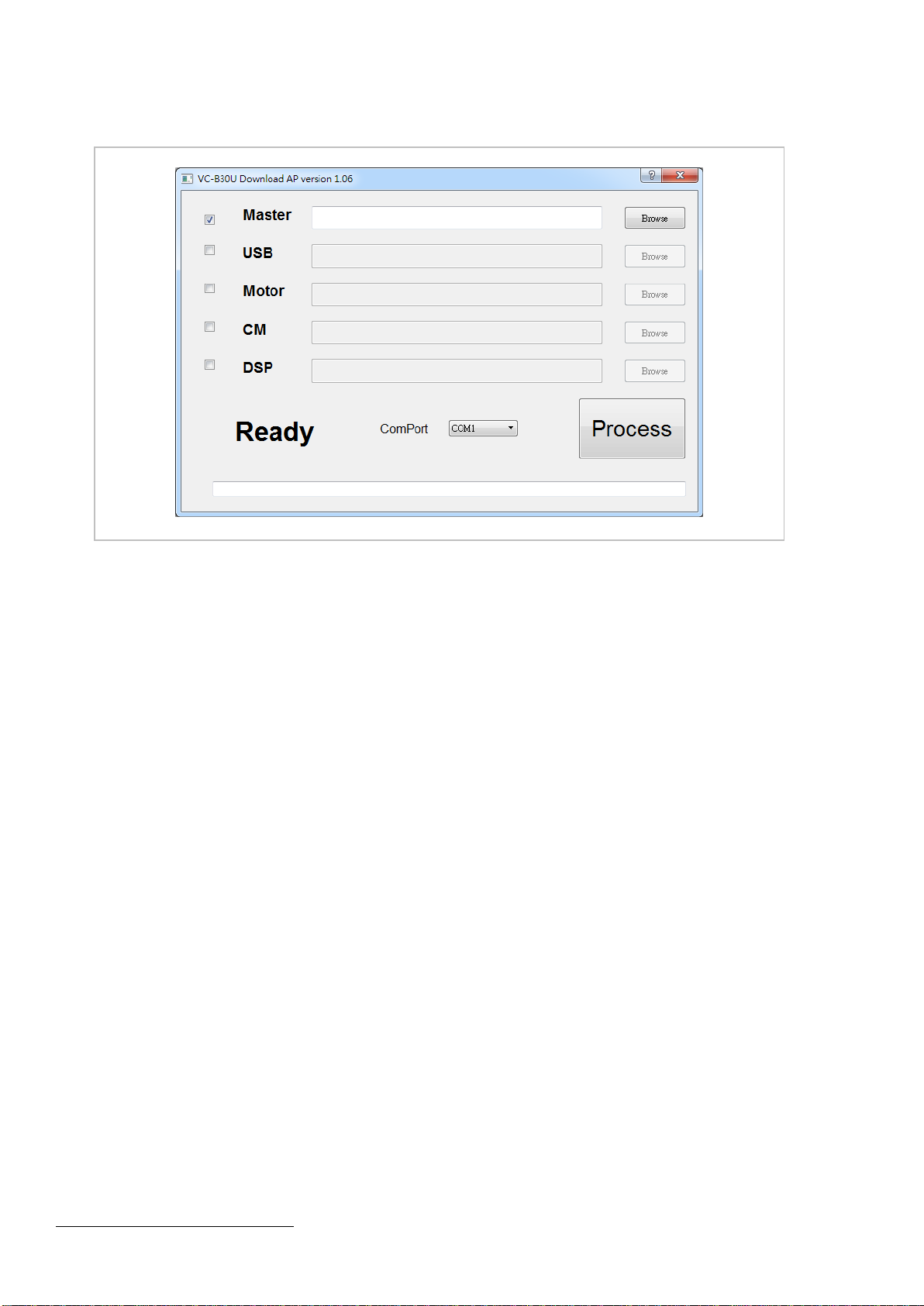

3.2 Launch the [VC-B30U_Download_AP].
FW012 - VC-B30U FW Update Manual 7
FW012 - VC-B30U FW Update Manual 8

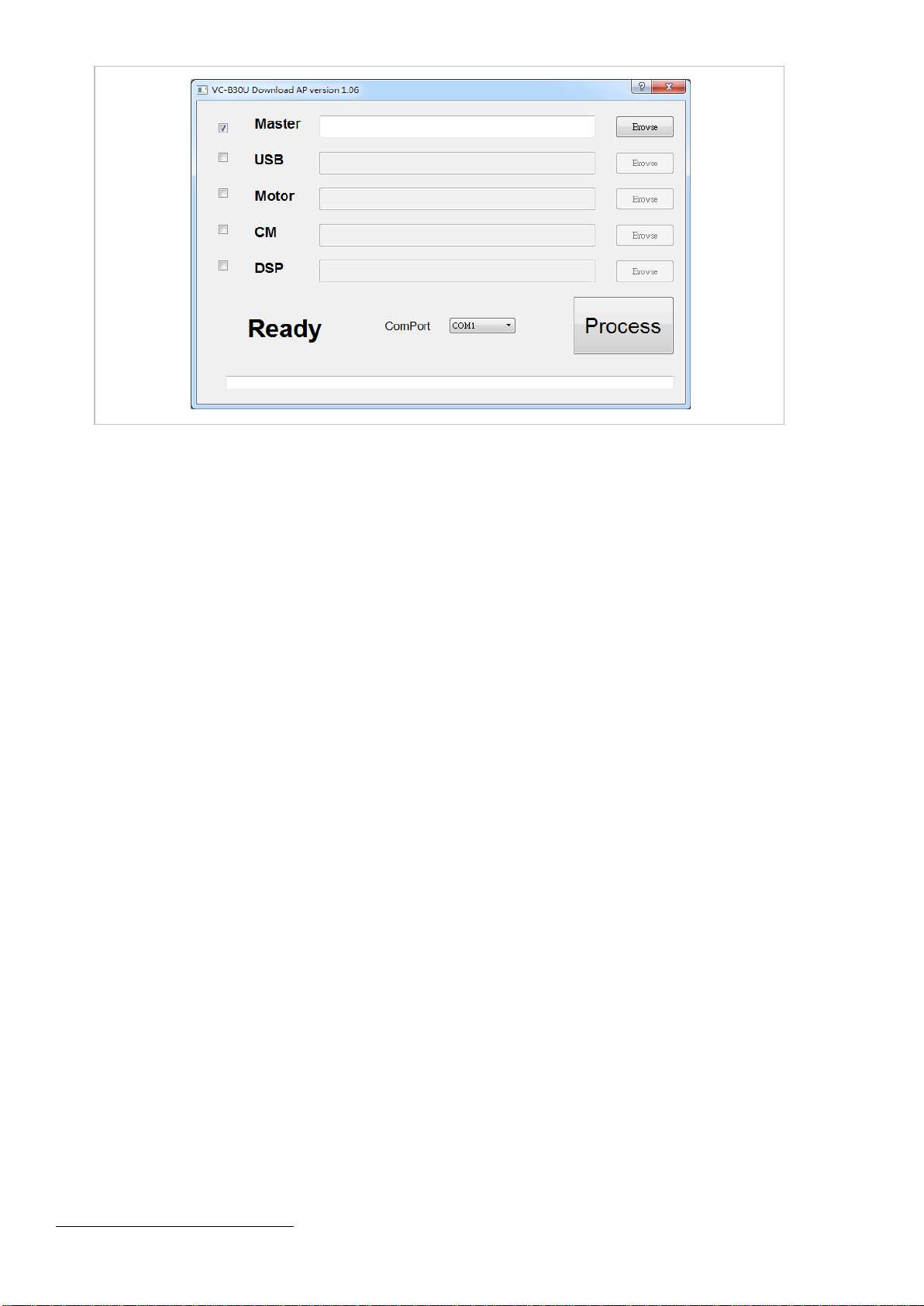

3.3 Browse and select proper FW file.
Check the front box for updating FW. (Uncheck the box if no need to update
specific FW file.)
Go to 3. Current FW version check to check the FW in the unit and upgrade with
the same FW identified code.
VC-B30U
VC-B30U,V01
USB
VHHxxx
VAFxxx
Master
VHGxxx
VAExxx
Motor
VHSxxx
CM
VHIxxx
VADxxx
DSP
VHKxxx
VAXxxx
FW012 - VC-B30U FW Update Manual 9
FW012 - VC-B30U FW Update Manual 10
3.4 Select proper [ComPort], and then press [Process] to start.
3.5FW start updating. (Around 5min taken for the five FW update.)
