LTS Pro Series Manuel utilisateur

Industrial Router Pro Series

LT-4GPOEW1

Quick Start Guide

Welcome

Thank you for choosing LTS Industrial LT-4GPOEW1 industrial cellular router.

This guide describes how to install the LT-4GPOEW1 and how to log in the Web GUI to configure the

device. Once you complete the installation, refer to the LTS Industrial LT-4GPOEW1 User Guide for

instructions on how to perform configurations on the device.

Related Documents

This Start Guide only explains the installation of LTS Industrial LT-4GPOEW1 router. For more

functionality and advanced settings, please refer to the relevant documents as below.

Document

Description

LT-4GPOEW1 Datasheet

Datasheet for LT-4GPOEW1 industrial cellular router.

LT-4GPOEW1 User Guide

Users could refer to the guide for instruction on how to log in the

web GUI, and how to configure all the settings.

The related documents are available on LTS Industrial website: www.LTsecurityinc.com.au

Declaration of Conformity

LT-4GPOEW1 are in conformity with the essential requirements and other relevant provisions of the CE,

FCC, and RoHS.

For assistance, please contact

LTS Industrial technical support:

Email: servic[email protected]

Tel: 02 9135 8750

Revision History

Date

Doc Version

Description

Apr. 26, 2019

V 1.0

Initial version

May 11, 2020

V 1.1

Web interfaces upgrade

Nov. 25, 2020

V 2.0

Layout Replace

1. Packing List

Before you begin to install the LT-4GPOEW1 router, please check the package contents to verify that you

have received the items below.

1 × LT-4GPOEW1 1 × Ethernet Cable 1 × Power Adapter 2 × Magnetic Cellular

Antennas

1 × Quick Start Guide

1 × Stubby Wi-Fi

Antenna

(Wi-Fi Version Only)

1 × GPS Antenna

(GPS Version Only)

2 × Stubby Cellular

Antennas (Optional)

If any of the above items is missing or damaged, please contact your sales representative.

1 × 6-Pin Pluggable

Terminal

1 × DIN Rail Kit

4 × Setscrews

1 × Warranty Card

2. Hardware Introduction

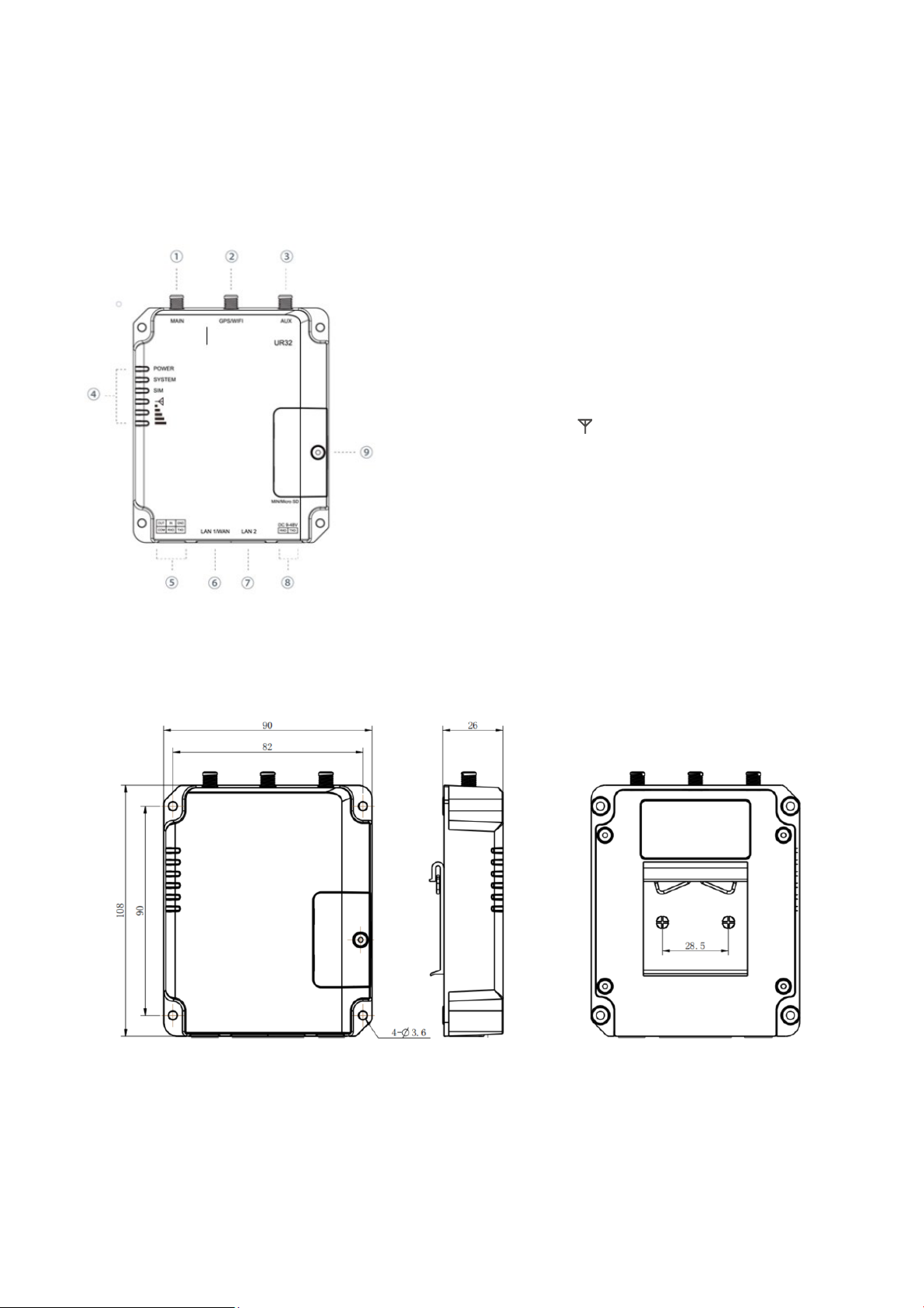

2.1 Overview

2.2 Dimensions (mm)

①Main Cellular Antenna Connector

②GPS/WIFI Antenna Connector

③AUX Cellular Antenna

④LED Indicator Area

POWER: Power Indicator

SYSTEM: Status Indicator

SIM : Status Indicator

: Signal Strength Indicator

⑤Serial Port & I/O

⑥Ethernet LAN1/WAN Port

⑦Ethernet LAN2 Port

⑧Power Connector

⑨SIM and Reset Button Holder

2.3 Connectors

*: Only for -485 model.

2.4 LED Indicators

LED Indication Status Description

POWER Power Status Off The power is switched off

On The power is switched on

SYSTEM System Status Green Light

Static: Start-up

Blinking slowly: the system is running properly

Red Light

The system goes wrong

SIM SIM Card Status

Off

SIM1 or SIM2 is registering or fails to register (or there

are no SIM cards inserted)

Green Light

Blinking slowly: SIM1 has been registered and is ready

for dial-up

Blinking rapidly: SIM1 has been registered and is

dialing up now

Static: SIM1 has been registered and dialed up

successfully

Orange

Light

Blinking slowly: SIM2 has been registered and is ready

for dial-up

Blinking rapidly: SIM2 has been registered and is

dialing up now

Static: SIM2 has been registered and dialed up

successfully

Signal

Strength Signal 1/2/3

Off

No signal

Green Light

Static/Off/Off: weak signals with 1-10 ASU (please

check if the antenna is installed correctly, or move the

antenna to a suitable location to get better signal)

Static/Static/Off: normal signals with 11-20 ASU

RS232

RS485*

Description

---

OUT

Digital Output

---

Digital Input

GND

---

Ground

4 --- --- COM COM Common Ground

5 RXD B --- --- Receive Data

6 TXD A --- --- Transmit Data

Description

Positive

Negative

7 8

(average signal strength)

Static/Static/Static: strong signals with 21-31 ASU

(signal is good)

2.5 Reset Button

Reset button is under the SIM slots.

Function

Description

SYSTEM LED

Action

Reset

Blinking Press and hold the reset button for more than 5 seconds.

Static Green →

Rapidly Blinking Release the button and wait.

Off →Blinking

The router is now reset to factory defaults.

2.6 Ethernet Port Indicator

Indicator Status Description

Link Indicator (Orange)

On Connected

Blinking

Transmitting data

Off

Disconnected

3. Hardware Installation

Environmental Requirements

- Power Input: 9-48 VDC

- Power Consumption: Typical 1.9W (Max 2.4 W)

- Operating Temperature: -40°C to 70°C (-40°F -158°F)

- Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F

3.1 SIM Card/Micro SD Card Installation

A. Unscrew the cover of the SIM card then B. Put SIM card/Micro SD into the slot and

screw it up. take it off.

3.2 Antenna Installation

Rotate the antenna into the antenna connector accordingly.

The external antenna should be installed vertically always on a site with a good signal.

3.4 Router Installation

The router can be placed on a desktop or mounted to a wall or a DIN rail.

3.4.1 Wall Mounting (Measured in mm)

Use 4 pcs of M3 × 6 flat head Phillips screws to fix the router on the wall.

Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.

3.4.2 DIN Rail Mounting (Measured in mm)

Use 2 pcs of M3 × 6 flat head Phillips screws to fix the mount clip to the router, and then hang the

device to the DIN rail. The width of DIN rail is 3.5 cm.

Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.

4. Log in the Web GUI of Router

4.1 PC Configuration

Please connect PC to LAN port of LT-4GPOEW1 router. PC can obtain an IP address, or you can

configure a static IP address manually. The following steps are based on Windows 10 operating system

for your reference.

(Note: As remote access is disabled by default, you can't access to the router's Web GUI if you connect

PC to WAN port of the router. But it will function properly if you enable it on Web GUI.)

③Click “Ethernet” (May have different names). ④Click “Properties”.

①

Click “Search Box” to search “Control Panel” on the

Windows 10 taskbar.

②Click “Control Panel” to open it, and then

click

“View network status and tasks”.

(Note: Remember to click “OK” to finish configuration.)

4.2 Log in the Router

If this is the first time you configure the router, please use the default settings below:

IP Address: 192.168.1.1

Username: admin

Password: password

A. Start a Web browser on your PC (Chrome is recommended), type in the IP address, and press Enter

on your keyboard.

B. Enter the username and password, click “Login”.

If you enter the username or password incorrectly more than 5 times, the login page will be

locked for 10 minutes.

⑤

Double Click “Internet

Protocol Version 4 (TCP/IPv4)”

to configure IP address and

DNS server.

⑥

Method 1: click “Obtain an IP

address automatically”;

Method 2: click “Use the

following IP address” to assign

a static IP manually within the

same subnet of the router.
