Lorex W461ASC Series Manuel utilisateur

HD Wi-Fi Camera

Quick Start Guide

W461ASC Series

lorex.com

Safety precautions

Disclaimers

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use and handling of the product.

• Use camera within given temperature, humidity & voltage levels noted in the camera’s specications.

• Do not disassemble the camera.

• Do not point the camera directly at the sun or a source of intense light.

• Periodic cleaning required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

• The camera is rated for indoor use only. Do not mount the camera outdoors.

• Do not place the magnetic mounting plate on or near other electrical devices.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between

Day/Night viewing modes, an audible clicking noise may be heard from the camera.

This clicking is normal, and indicates that the camera lter is working.

• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no

liability for use of its products that does not conform with local laws.

Contents

What’s included...............................................................................1

Camera overview and dimensions..............................................2

Status indicator...............................................................................3

Step One: Connect to the app......................................................4

Camera placement.........................................................................5

Step Two: Mounting the camera (optional)..............................6

Lorex Home app overview............................................................7

What’s included

Camera USB

power

adapter

USB

power

cable

Mounting

template

Double-sided

mounting

tape

Magnetic

mounting

plate

Anchors &

screws (x3)

ATTENTION: A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this

camera (included). Use of a non-regulated, non-conforming power supply can damage this product and

voids the warranty.

Camera overview

Dimensions

AA. Status indicator

B. Microphone

C. Device QR code

D. microSD slot

E. Speaker

F. Reset button

G. Power port

Height: 4.3” (109mm)

Width: 2.7” (68mm) 2

Status indicator

Solid green Operating correctly.

Flashing green Ready for connection.

Solid red Device malfunction. Press and hold the reset button.

Flashing red Network connection failed. Press and hold the reset button.

Rapidly flashing red microSD error. Remove and re-insert the microSD card, or

use a different card.

Flashing red & green Firmware update in progress.

Step One: Connect to the app

1. Scan the QR code on this page to download the free

Lorex Home app from the App Store or Google Play Store.

2. Open the Lorex Home app.

3. Sign in or sign up and create an account.

4. Connect the USB power cable to the camera and plug the USB power adapter into an outlet.

5. Once the status indicator on the camera is flashing green and the startup chime sounds,

tap the +icon to add your camera.

6. Scan the device QR code. If your mobile device cannot scan the QR code,

tap Manually enter Device ID.

7. Follow the in-app instructions to complete the setup.

Camera placement

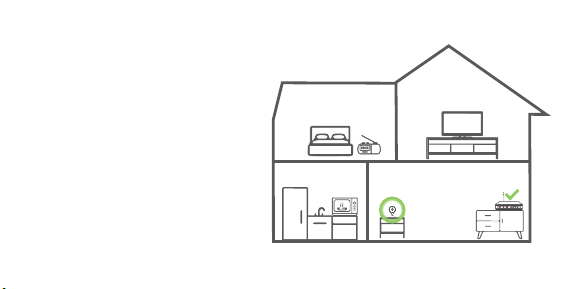

• Place the camera as close to your Wi-Fi

router or access point as possible.

• Reduce the number of obstructive

materials between the camera and the

router or access point. Concrete, brick,

metal and wood are the most common

materials in your house that can cause

poor signal strength.

• Other electronic devices such as

microwaves, TVs, cordless phones,

and baby monitors can cause signal

interference. It is recommended to install

the camera as far away from these

devices as possible.

Step Two: Mounting the camera (optional)

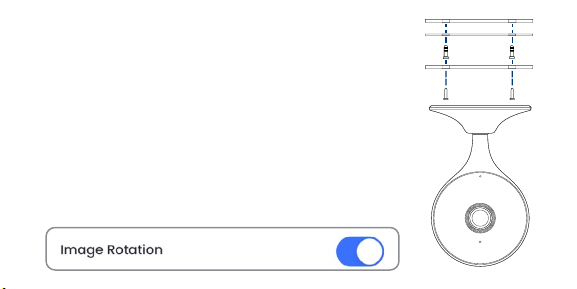

1. Use the mounting template to mark two holes for the screws.

2. Drill holes using a 1/4” (6mm) drill bit. If mounting to masonry or

drywall, gently tap the anchors into the holes.

3. Align the magnetic mounting plate with the drilled holes.

4. Using a Philips screwdriver and two screws secure the magnetic

mounting plate in position.

5. Place the camera base onto the magnetic mounting plate.

6. Angle and rotate the camera’s position as needed.

7. Open the camera’s settings in the app and enable Image Rotation

to flip the camera image.

Lorex Home app

overview

Camera

live view

Take a snapshot

Two-way talk

Go on Privacy Mode

to disable the

camera’s live feed

Shared users

Settings

Date & time

Play back recorded videos

Manually record video

Back

For a complete

overview of controls

available in the

Lorex Home app,

go to lorex.com.
