Lorex VQ1536HR Manuel utilisateur

LOREX Technology Inc.

products are subject to continuous improvement,

LOREX and its subsidiaries reserve the right to mod-

ify product design, specifications and prices, without

notice and without incurring any obligation. E&OE

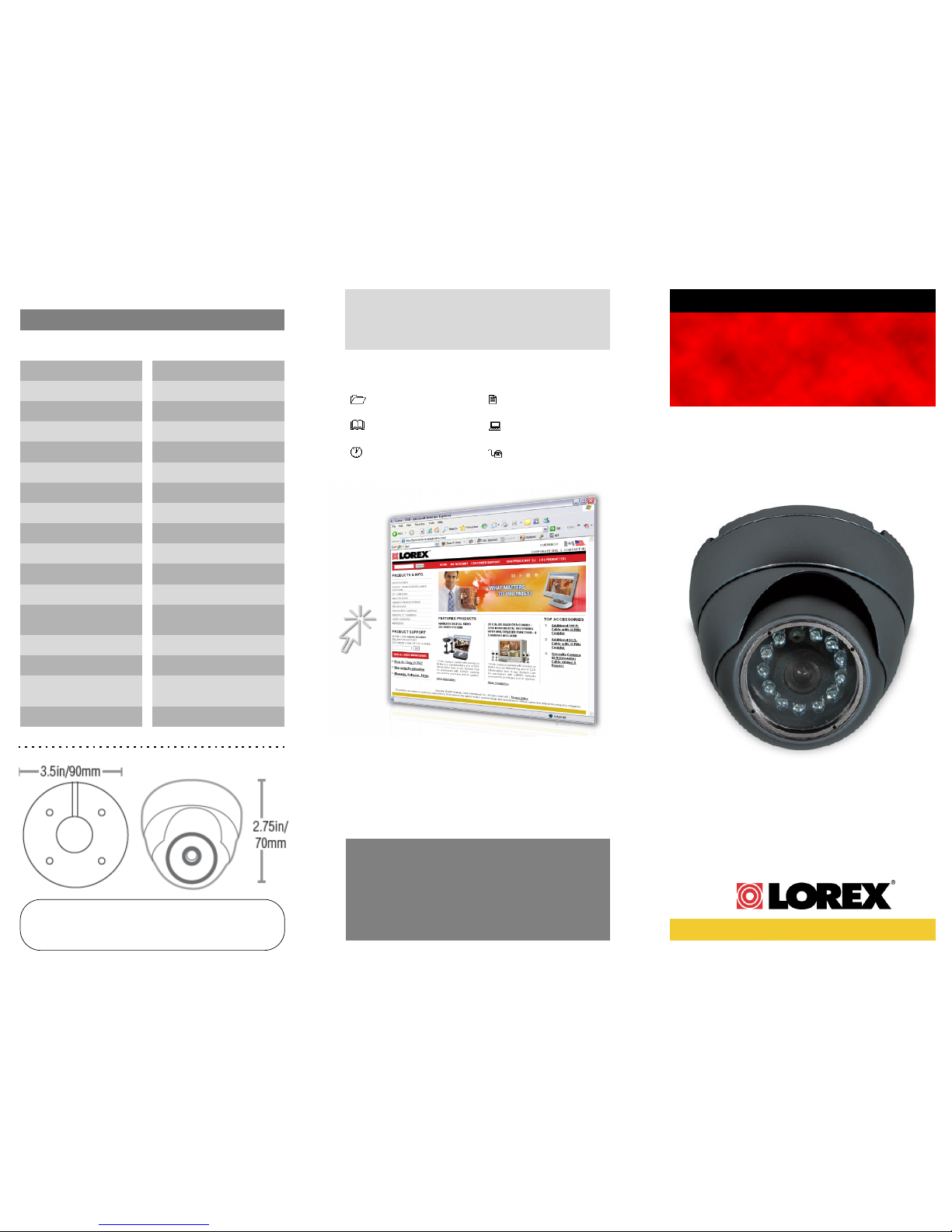

Quick Set-up Guide

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

H O M E & B U S I N E S S S E C U R I T Y

WARNING - REGULATED 12V DC 300mA power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-

conforming power supply can damage this product and will void the

warranty.

HIGH RESOLUTION

VANDAL RESISTANT

COLOR DAY/NIGHT IR

DOME CAMERA

Model: VQ1536HR

4. Camera Specifications

Specifications:

Dimensions:

Image Sensor 1/3” Hi-Res Color CCD

Lens

Number of Pixels

Horizontal Resolution

Minimum Illumination

IR Range

Scan System

FOV (Diagonal)

Electronic ShutterSpeed

Iris

S/N Ratio

Sync. System

Termination

Video Output

Power Supply

NTSC: 768(H) x 494 (V)

480 TV Lines

0.1LUX (no LED)

~ 26 ft. / 8 m

2:1 Interlace

55 Degree

1/60 ~ 1/10,000 sec.

AES

More than 48dB

Internal

Video: BNC Female

Power: Barrel Female

Comp. 1.0 Vpp @ 75ohm

DC 12V, 300mA (inc.)

Operating Temp

Weight

14°F ~ 113°F

(-10°C ~ 45°C)

1 lb. / 460g

6.0mm F2.0 / Fixed

1. Package Contents 2. Installing the Camera 3. Connecting the Camera

1. Mount the Camera Base to a Wall or

Ceiling using the provided screws.

2. Position the camera to the desired

direction and angle.

3. Position the Dome Cover over the Ball

Camera and tighten the screws using the

provided Hex Tool

4. Connect the BNC end of the Camera

Cable to the Extension Cable. Connect

the extension cable to an Observation

System, DVR or to a Monitor.

5. Connect the Power end of the Camera

Cable to the Extension Cable. Connect

the extension cable to an AC Adapter.

Plug the adapter into a wall outlet.

Setup Diagram:

1 x 60 ft. extension cable

1 x BNC to RCA Adaptors

NOTE: Test the camera prior to selecting a permanent mounting

location by temporarily connecting the Cameras and cables to the

system or DVR.

1 x Weatherproof Color

Day/Night IR Dome

Camera

1 x Hex Tool for Dome

Cover

1 x AC Power Adapter

1 x Dome Cover

1 x Dome Ring

1 x Camera Base

Features:

• True High Resolution: 1/3” CCD advanced image sensor

produces video with 480 TV Lines and 380K pixels

• Advanced Day / Night mode: Picture automatically switches

camera to B&W delivering better clarity in low light conditions

• 12 IR LEDs provides effective night vision range of 26 ft. (8m)*

• Ceiling or Wall Mountable

• Vandal Resistant Dome Can Withstand Impact from 10lb

Sledge Hammer

• Weatherproof Design: Ideal for Outdoor and indoor

applications (IP67)**

* IR Illumination range of 26 ft. under ideal conditions. Objects at or beyond

this range may be partially or completely obscured,

depending on the camera application.

** Not recommended for submersion in water

You may need to remove the Dome Cover,

Dome Ring and Ball Camera from the

Camera Base by loosening the tightening

screw with the provided Hex Tool.
