Lorex CVC6997 Manuel utilisateur

LOREX Technology Inc.

products are subject to continuous improvement,

LOREX and its subsidiaries reserve the right to mod-

ify product design, specifications and prices, without

notice and without incurring any obligation. E&OE

Quick Set-up Guide

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

4. Camera Specifications H O M E & B U S I N E S S S E C U R I T Y

LONG RANGE COLOR

DAY/NIGHT IR CAMERA

Model CVC6997

Specifications:

Dimensions:

Image Sensor 1/4” Interline transfer

type Color CCD

Effective Pixels 512H x 492V (25K Pixels)

Scanning System

Resolution

Shutter Speed

S/N Ratio

Sync. System

Min. Illumination

White Balance

Video Output

Lens

Power Supply

Current Consumption

Operating Temp

Operating Humidity

525 Lines 2:1 Interlace

Horizontal 350 TV Lines

1/60 ~ 1/10,000 sec.

More than 48dB (AGC off)

Internal

1.0Lux (without LED)

AWB

VBS 1.0Vp-p (75 ohms)

Fixed lens (3.6mm)

DC12V ±10% (regulated)

100mA (without LED) /

520mA (with LED)1

14°F ~ 113°F

(-10°~45°C)

90% RH max.

Features:

• Advanced 1/4” CCD Image Sensor with 250,000

effective pixels

• 62 IR LEDs provide illumination up to 75ft*

• Weatherproof** Design (IP67) with Removable

sunshade ideal for outdoor installations

• Color in the day, automatically switches to B/W at

night

• 3.6 mm wide angle lens

* IR Illumination range of 75ft under ideal conditions. Objects at or

beyond this range may be partially or completely obscured,

depending on the camera application.

** Not recommended for direct exposure to water, rain, or snow.

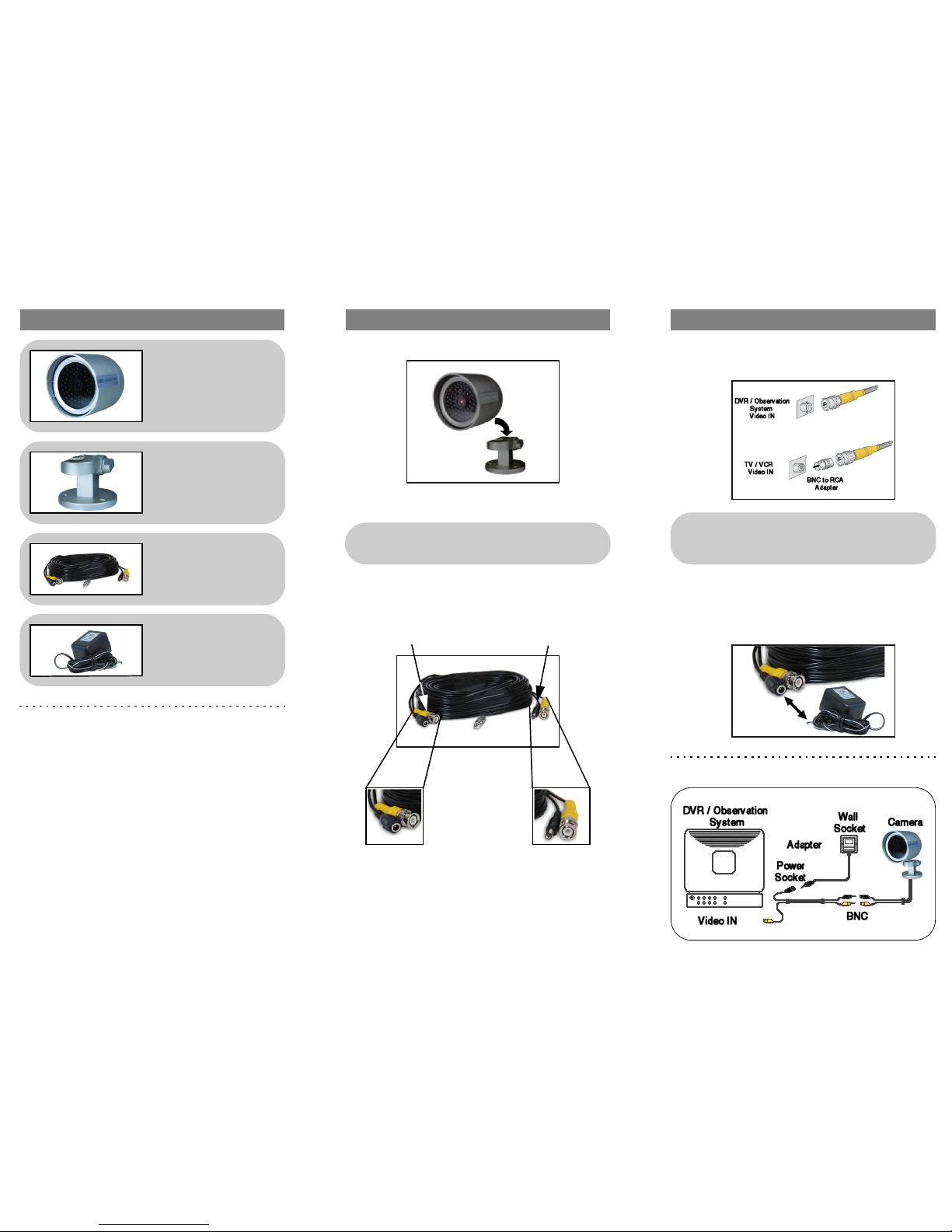

1. Package Contents 2. Installing the Video Camera 3. Connecting the Camera

1 x CVC6997 Long Range

CCD Color Day/Night IR

Camera (with 62 IR

LEDs)

1 x Heavy-Duty

Mounting Bracket /

Stand

1 x 60 ft. extension cable

1 x BNC to RCA Adaptors

1 x AC Power Adaptor

1. Attach the camera to the supplied stand.

2. Mount the camera stand to the desired mounting

surface

3. Connect the 60ft Extension cable to the camera:

The mounting stand is designed to permanently

mount the camera to a surface.

BNC (VIDEO)

(Yellow Connector)

POWER

(Black Connector)

4. Connect the BNC end of the 60ft Extension Cable

to the DVR / Observation System or to a TV/VCR.

5. Connect the A/C Power Adaptor to the 60ft Exten-

sion cable (Black connector). Plug the Power

adaptor to a wall outlet

Setup Diagram:

Connect the BNC to RCA Adaptor as needed to

allow for proper connectivity.

CAMERA

CONNECTIONS:

Connect the BNC

and Power cables to

the Camera

VIDEO INPUT

CONNECTIONS:

Connect the BNC cable to

the video input of the

monitor, and connect the

power adaptor to an

outlet.
