Lorex E893DD Series Manuel utilisateur

4K Ultra HD Smart Deterrence IP

Dome Camera

Quick Start Guide

E893DD Series

lorex.com

Thanks for choosing the Lorex

4K Ultra HD Smart Deterrence IP Dome

Camera. Here’s how to get started.

Welcome!

Safety precautions

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use and handling of the product.

• Do not disassemble the camera.

• Use the camera only with compatible Lorex NVRs.

• Use the camera within given temperature, humidity and voltage levels noted in the camera’s specs.

• Do not point the camera directly towards the sun or a source of intense light.

• Install the camera where vandals cannot easily reach.

• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

• Periodically clean the camera lens with a soft cloth and warm water.

• Check the packaging of the included cable to verify the cable grade based on the model number.

CBL605U: The supplied cable is rated for surface and in-wall mounting. CBL100C5: The supplied cable

is rated for surface mounting only. Cables for in-wall and oor-to-oor installations are sold separately

(CMR type). These and other cables are available at lorex.com.

Disclaimers

• For a full list of compatible NVRs, visit lorex.com/compatibility.

• Not intended for submersion in water. Installation in a sheltered location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night

viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and

indicates that the camera lter is working.

Contents

Package contents...................................................................1

Dimensions............................................................................. 2

Important installation guidelines...........................................3

1. Optimizing person and vehicle detection......................4

2. Optimizing face and mask detection.............................5

Installing the camera...............................................................8

Connecting the camera...........................................................10

Using the RJ45 cable gland & Cable extension options.......12

Audiosettings..........................................................................16

Using deterrence features......................................................13

Troubleshooting.......................................................................17

Package contents

User-supplied tools

• 4K Ultra HD Smart Deterrence IP Dome Camera

• Mounting Kit*

• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*

• Drill (drill bit size 1/8”)

• Philips screwdriver

*Per camera in multi-camera packs.

ATTENTION: It is recommended to connect the camera to the NVR or an external PoE switch.

If using a DC power adapter (not included) with the camera, a REGULATED power supply is REQUIRED

for use with this camera. Use of a non-regulated, non-conforming power supply can damage this

product and voids the warranty.

Dimensions

4.8” / 122mm

4.8”

122mm

4.4”

111mm

Camera base Camera

Important installation guidelines

The optimal installation location, including the height and angle of your camera, will depend on

the type of detection settings that you want to enable. Since the optimal angle for person and

vehicle detection is different from the optimal angle for face detection, you will need to select one

approach.

1. Optimizing person and vehicle detection accuracy, see page 4.

2. Optimizing face and mask detection accuracy, see pages 5-7.

Based on your detection preference choose between:

Note:

You cannot enable both face detection and person and vehicle detection at the same time.

8-16ft

30-60° down

50ft

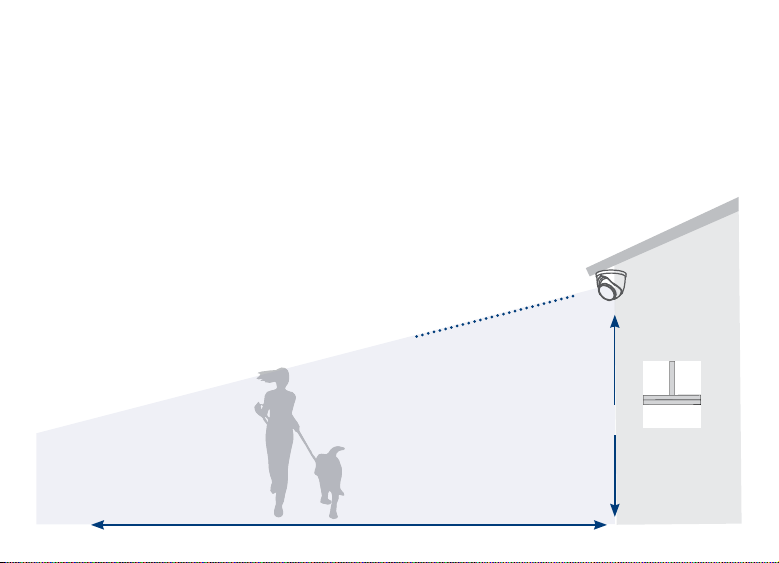

1. Optimizing person and vehicle detection accuracy

• Choose a location where objects of interest will be no further than 50ft (15m) from the camera.

• Install the camera between 8-16ft (2.5-5m) off the ground.

• Angle the camera between 30-60° down from the level position.

• Optimal accuracy for objects of interest appear in the bottom 2/3 of the camera image.

• Point the camera where there is the least amount of obstructions (i.e. tree branches).

Accuracy will be inuenced by multiple factors, such as the

object’s distance from the camera, the size of the object,

and the height and angle of the camera. Night vision will

also impact the accuracy of detection.

Accuracy of person and vehicle detection

2. Optimizing face and mask detection accuracy

• Install in a bright area and avoid facing direct sunlight with strong backlights and dark shadows.

• Choose a location where objects of interest will be no further than 15ft (4.5m) from the camera.

• Position the camera 10ft (3m) off the ground to detect the full proportion of a face.

• Angle the camera around 15° down from the level position.

• Point the camera directly where objects of interest will be facing.

10ft

15° down

15ft

ATTENTION: Facial recording without consent

is illegal in certain jurisdictions. Lorex Technology does

not assume liability for any use of its product that fails

to conform with local laws.
