Lorex L4248 Series Manuel utilisateur
2K Network Video Recorder (NVR) &
Wire-Free Camera System
Quick Start Guide
L4248 Series
lorex.com
En
How to get started with your
2K NVR & Wire-Free Camera system
Thank you for your purchase!
Disclaimers
• A regulated UL / CSA approved power supply is required for use with this camera (included).
Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for
use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night
viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and
indicates that the camera lter is working.
• Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not
be available to connect to during setup.
Safety precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Operate the camera within the specied temperature, humidity and voltage and use manufacturer approved
accessories.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.
Contents
Package Contents
Section
NVR Overview
Camera Overview
Before You Start
Camera Setup
1
2
3
4
5
Recorder Setup
6
Camera Pairing to the App
App Live View
Optional: Setup Wizard
Install the Camera
8
9
10
11
App Setup
7
Package Contents
*Dependent on the number of cameras included.
2K NVR
(x1)
HDD
2K Wire-Free
Security Camera
(x1)*
NVR Power
Adapter
(x1)
Re-chargeable Camera
Battery Pack
(x1)*
USB Mouse
(x1)
Ethernet Cable
(x1)
Battery Pack
Adapter & Cable
(x1)*
Camera
Antenna
(x1)*
HDMI Cable
(x1)
Mounting
Bracket
(x1)*
Anchors (x4)*
Screws (x4)*
Security Screws (x2)*
Allen key (x1)
Drill bit (x1)
Screwdriver (x1)
1
BACK
FRONT
NVR Overview
4
1
5
2
6
7
8
3
3. QR code
4. HDMI port
5. Ethernet port
6. USB port (x2)
7. MicroSD slot
(card included for
specic models)
8. Power port
1. Power status indicator
2. HDD status indicator
Dimensions
Status indicator
• Height: 8.6” (220mm)
• Width: 2.5” (64mm)
• Length: 6.7” (169mm)
Power status indicator (solid) Operating correctly
HDD status indicator (solid) Hard disk drive installed
2
Camera Overview
7. Fastener
8. Pairing button
9. Adjustment ring
10. Battery release
tabs (x2)
11. Mounting plate
slots (x2)
1. Detachable
antenna
2. Warning light
3. PIR sensor
4. Locking screw
5. Power port
6. Battery
charging
indicator
SIDE
FRONT
BOTTOM BACK MOUNTING PLATE
7
1
8
2
39
4
5
11
10
6
3
Dimensions
• Height: 4.8” (121mm)
• Width: 5.2” (131mm)
• Length: 2.9” (73mm)
The camera battery comes partially charged (due to safety regulations). Please, fully charge the battery
before use and setup. You can charge the battery pack inside or outside of the camera.
Before You Start
To charge the camera battery pack:
1. Remove the protective lm on the
battery contacts and camera lens.
2. Using the provided battery charging
adapter and cable, connect the camera
to a nearby outlet.
Camera battery charging indicator Battery charging time
(solid) Fully charged
(solid) Charging
2-cell Approx. 6 hours
3-cell Approx. 8 hours
4

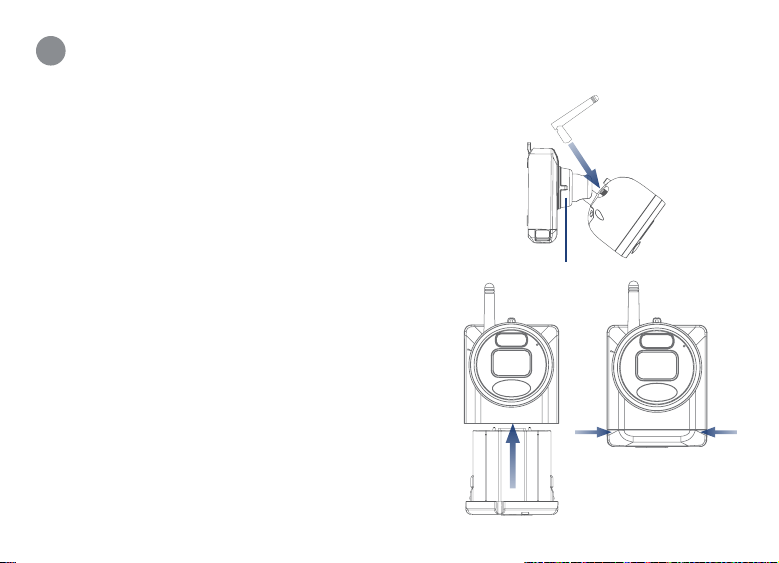

Camera Setup
1. Turn the adjustment ring counter-clockwise to loosen
and reposition the camera.
2. Screw in the antenna.
3. Insert the power pack into the bottom of the camera.
Note: You will hear a ‘beep’ when the power pack is
properly inserted. If you do not hear this alert, remove
the power pack by pushing in on the battery release
tabs then re-insert.
Adjustment ring
5
Recorder Setup
1. Connect the included NVR power adapter to the recorder.
2. Connect the recorder to your router using the included
Ethernet cable.
1. Connect a monitor using the included HDMI cable.
2. Connect the included USB mouse to one of the USB
ports.
Optional: Full Recorder Setup
6
