Logitech Harmony Link Manuel utilisateur
Getting
started
with
Premiere utilisation
Logitech® Harmony® Link
English
Espanol
Franf;ais
Portugues
'
Logitech@
Logitech
Harmony
Link

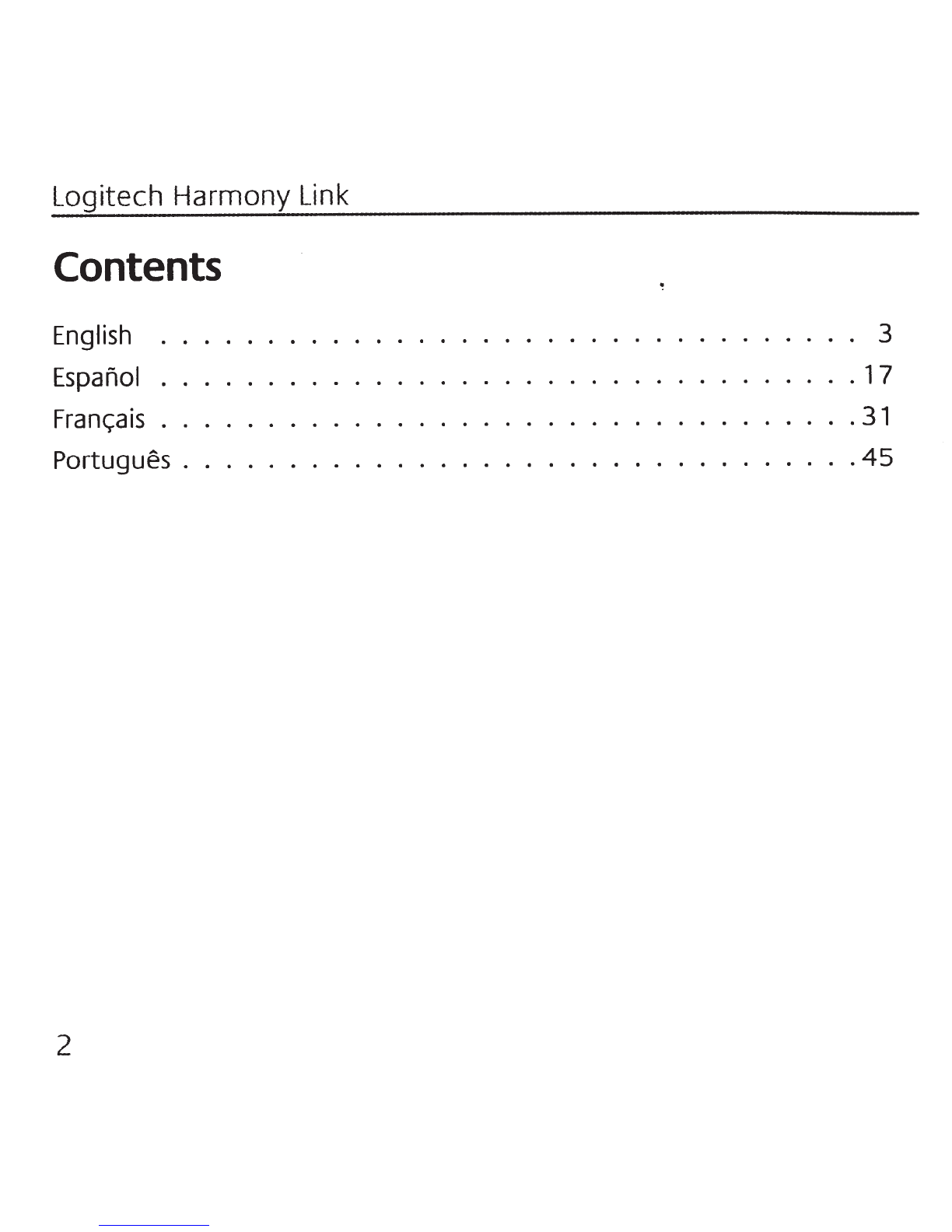

Contents
English
.
Espariol
. .
Franc;ais
..
Portugues
..
2
. . 3
. . 17
. .
31
. .
45
Logitech
Harmony
Link
Thank
you!
Harmony
Link
allows you
to
use
your smart phone or
tablet-iPhone,
iPad,
iPod
Touch, or Android
device-to
control your entertainment
system.
This
guide shows you
how
to
set up your Harmony
Link,
where
to
position it, and
how
to
download and set up the Harmony
Link App for iPhonefAndroid.
Package
Contents
A.
Harmony
Link
C.
USB
Cable
B.
AC
Adaptor
D.
Mini-blaster
English 3
Logitech
Harmony
Link
How Harmony
Link
works
Harmony
Link
turns your smart
device-iPhone,
iPad,
iPod
Touch,
or Android phone
or
tablet-into
a Harmony remote control.
Your smart device communicates
with
your Harmony
Link
using a
wireless
(Wi-Fi)
network, and then
sends
infrared
(IR}
signals
to
your
entertainment devices
to
turn
them
on or off, set their inputs, change
volume, and perform any other functions you require.
4 English
Logitech Harmony Link

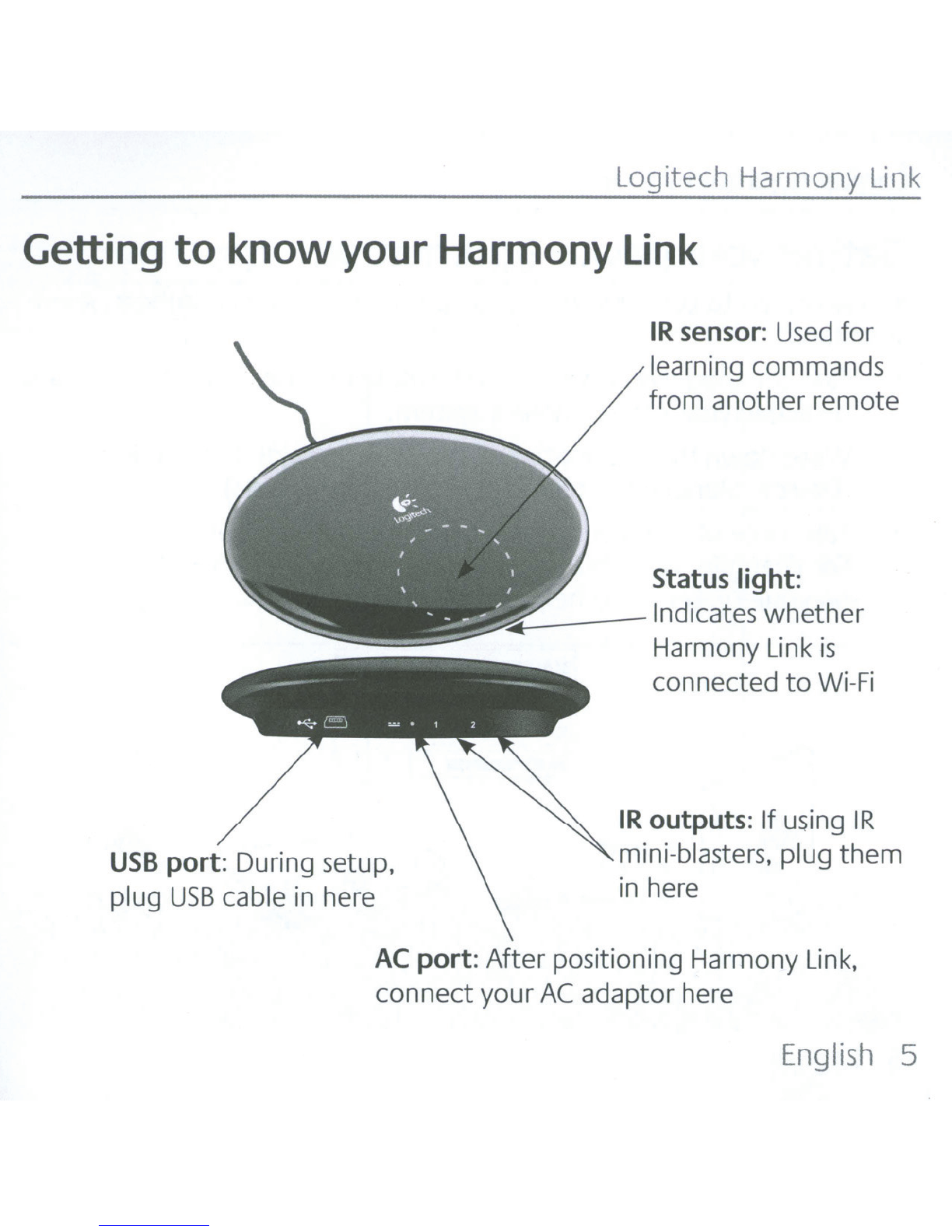

Getting
to
know
your Harmony Link
USB
port: During setup,
plug
USB
cable in here
IR sensor: Used for
learning commands
from another remote
Status light:
~---Indicates
whether
Harmony Link
is
connected
to
Wi-
Fi
IR outputs: Ifusing
IR
mini-blasters, plug
them
in here
AC
port:
After
positioning Harmony
Link,
connect your
AC
adaptor here
English 5
Logitech
Harmony
Link

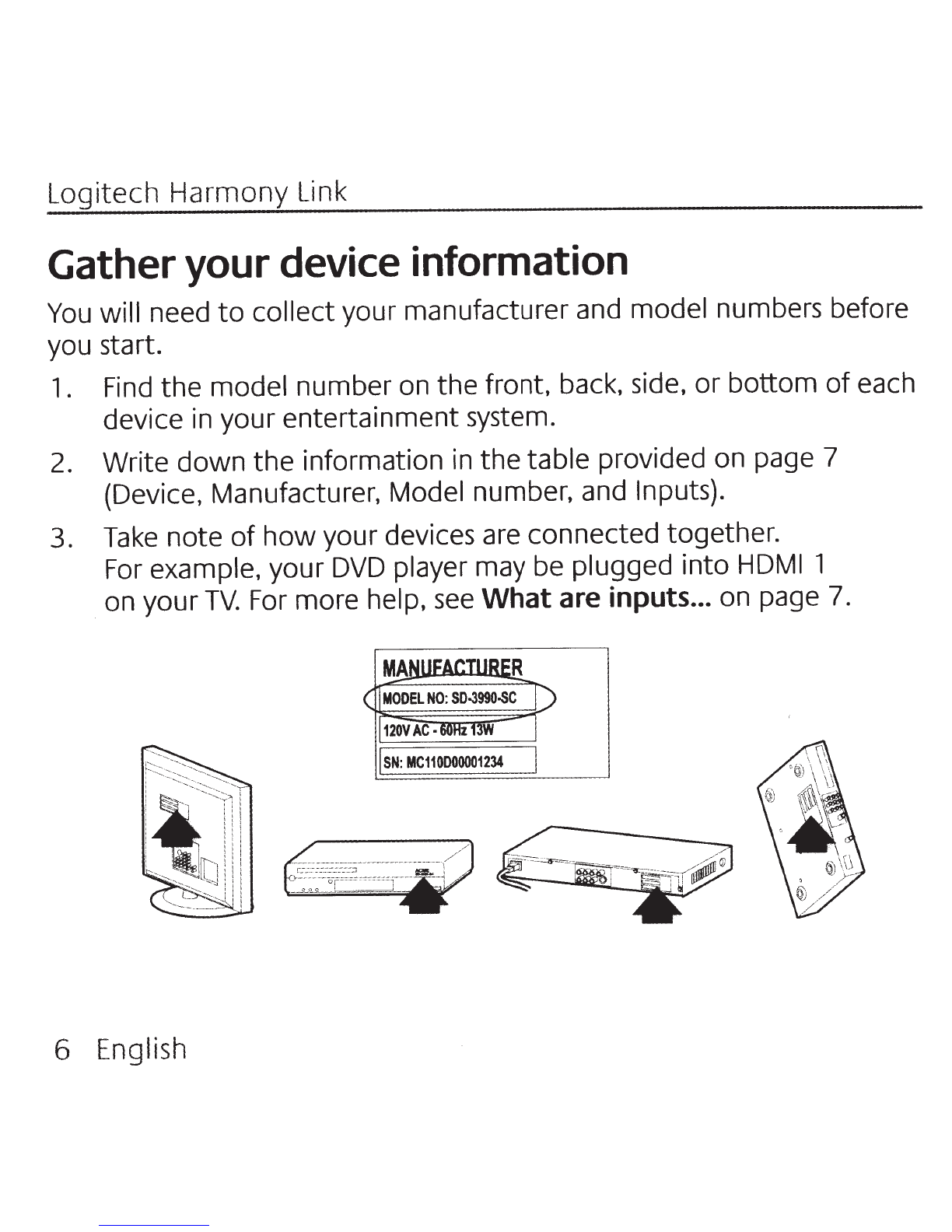

Gatheryour device information
You
will need
to
collect your manufacturer and model numbers before
you start.
1.
Find
the model number on the front, back, side, or bottom
of
each
device
in
your entertainment system.
2.
Write down the information
in
the table provided on page 7
(Device, Manufacturer, Model number, and Inputs).
3.
Take
note
of
how
your devices
are
connected together.
For
example, your
DVD
player may be plugged into
HOM
I 1
on your
TV.
For
more help,
see
What
are inputs... on page
7.
I
SN:
MC110000001234
6 English
Logitech
Harmony
Link
Device Manufacturer
Model#
Inputs
From
e.g.
TV
Sony
f(DL
-42\./4 7
00
f-ID!V11
7 Cable
box
TV
Cable/
Satellite
DVD
Carne systen1
AV
Receiver I
Horne Theater
English
7
Logitech
Harmony
Link
Setting
up
your
Harmony
Link
1.
Connect the
AC
adaptor
to
your Harmony
Link,
and plug the
adaptor into any power source.
The
status light on the front ofthe
Link
is
red
since you haven't yet connected
to
your
Wi-Fi
network.
2.
From your computer, open a browser and go
to
MyHarmony.com.
3. Follow the online instructions
to
set up your Harmony
Link.
If are setting up Harmony
Link
for the first time, you'll
be
asked
to
create a Harmony account.
4.
You
will
be
instructed
to
connect the Harmony
Link
to
your
computer using the
USB
cable provided.
8 English
Logitech
Harmony
Link
5. Next, you will
be
instructed
to
connect
to
your
Wi-Fi
network.
While your Harmony
Link
is
connecting
to
your
Wi-Fi
network,
the
status light on the
front
of
the
Link
flashes green. When
it
has
connected
to
your
Wi-Fi
network,
the
green light becomes solid.
. If
it
cannot connect
to
your network, the light turns red.
6. Follow
the
online instructions
to
add devices
to
your account
and set up activities.
An
activity
is
something you
do
with
your
entertainment system, like watching
TV,
listening
to
music, or
playing a game.
You
can set up activities
so
that
a single touch
turns on the necessary devices, and switches them
to
the right
inputs.
You
can
now
position your Harmony
Link
for
use,
and set up
your Harmony
Link
app
to
work with your Harmony
Link.
English 9
Logitech Harmony Link
Positioning
your
Harmony
Link
Now
that
you have set up your Harmony
Link,
follow
these steps
to
position
the
device
for
use:
1.
Disconnect
the
USB
cable from
the
Harmony Link.
2.
Unplug
the
Harmony
Link's
AC
adaptorfrom its powersource.
3. Choose a location
for
your Harmony
Link,
near your entertainment
devices, where
it
will have a strong connection
to
yourwireless
network.
For
best results, choose a location where your smart
device
has
a strong connection
to
your
wireless network.
See
the
following pages for some positioning tips.
4. Once you've chosen
the
best location, connect
the
Harmony Link's
AC
adaptor
to
a powersource.Your Harmony Link will reconnect
to
your
Wi-Fi
network.
10 English
