Logic LGC-7598 Manuel utilisateur

INSTALLATION MANUAL

PUSH PULL WALL MOUNT

www.logicav.in

MODEL SERIES VESA DISPLAY SIZE MAX LOAD

LGC-7598 PUSH PULL 400x400 to 75” to 98” 265 lbs (120 kg)

WALL MOUNT 900x600

www.logicav.in

W-A: Concrete

Screw x 6

M-H:

Allen key x 1

Wall mount x 1 W-B: Fischer

expansion plug x 6

M-A: M8 X 25 x 4 M-D:

M6 X 25 x 4

M-F:

M5 X 25 x 4

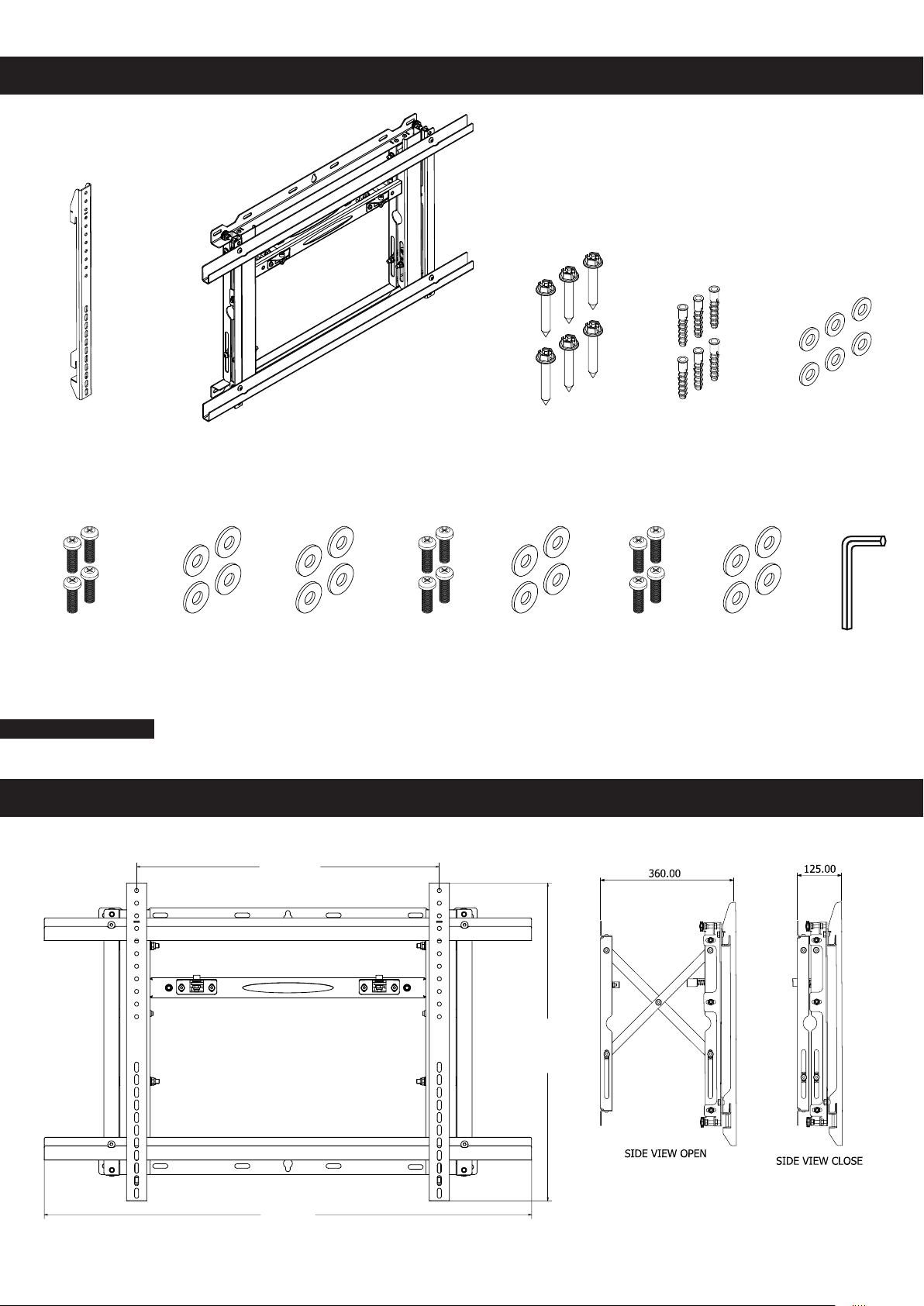

Checklist

1. Product Dimension

M-B: plastic

washer x 4

M-C: Metal

washer x 4

M-E:

Plastic x 4

metal x 4

washer

M-G:

Plastic x 4

metal x 4

washer

W-C: Washer x 6

Interface

bracket x 2

Dimension in mm

VESA

400x400

900x600

630.00

966.00

IMPORTANT : Prior to installation, ensure that you have received all the parts as per the checklist

www.logicav.in

Choose below method for fixing wall mount.

ATTENTION: Drilling the wall for the wall mount should be executed by a craftsperson only

Exercise care to prevent any scar or damage to the wall.

2. Installation

CAUTION : Wear safety glasses while operating power equipment.

Failure to comply may result in eye injury

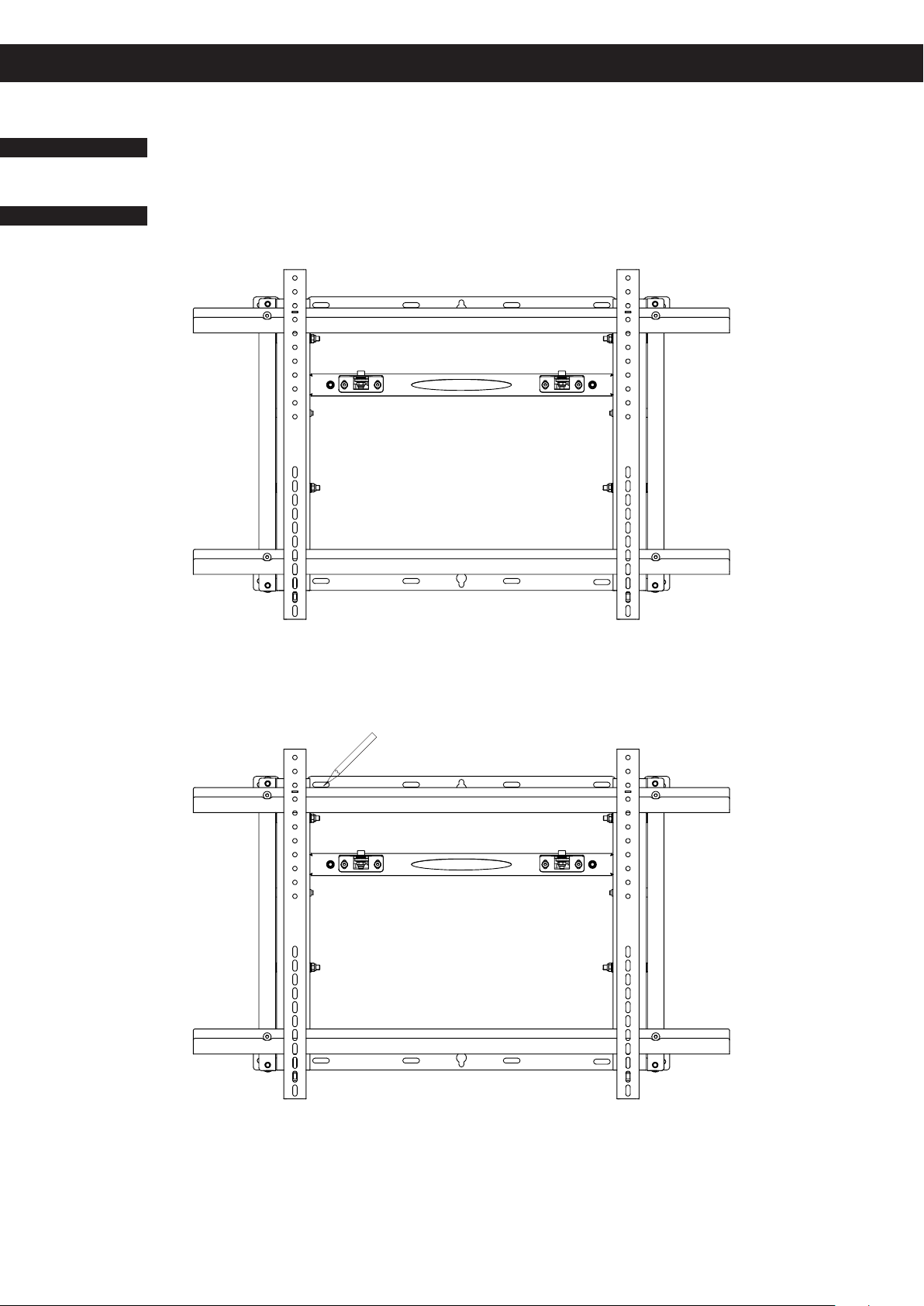

1. Place the mount on the wall

2. Place the unit on the wall and make marks on the wall.

Note: While marking make sure the mount is placed in a straight line using the surface leveler

www.logicav.in

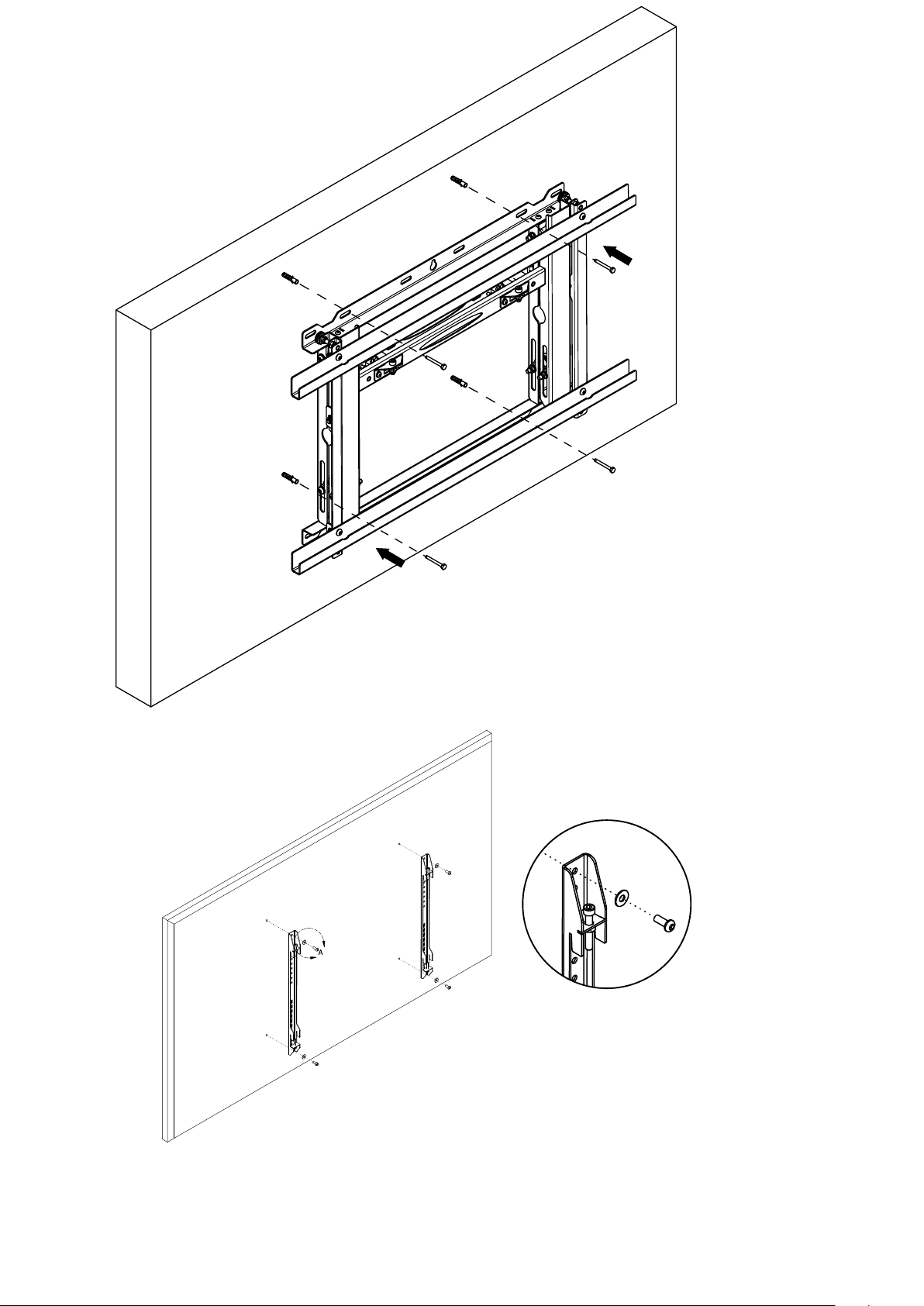

3. Drill the wall and insert the Fischer expansion plugs into the holes

place the mount on the wall and insert concrete screw. (Refer W-A,

W-B, W-C in the checklist)

4. Place the interface bracket on the TV/ display and insert

the washer and screw (Refer the checklist for the suitable screw and washer)

www.logicav.in

5. After placing the mount to the wall,

pull the swivel mount towards the front

6. Place the TV/ display

on the wall mount

www.logicav.in

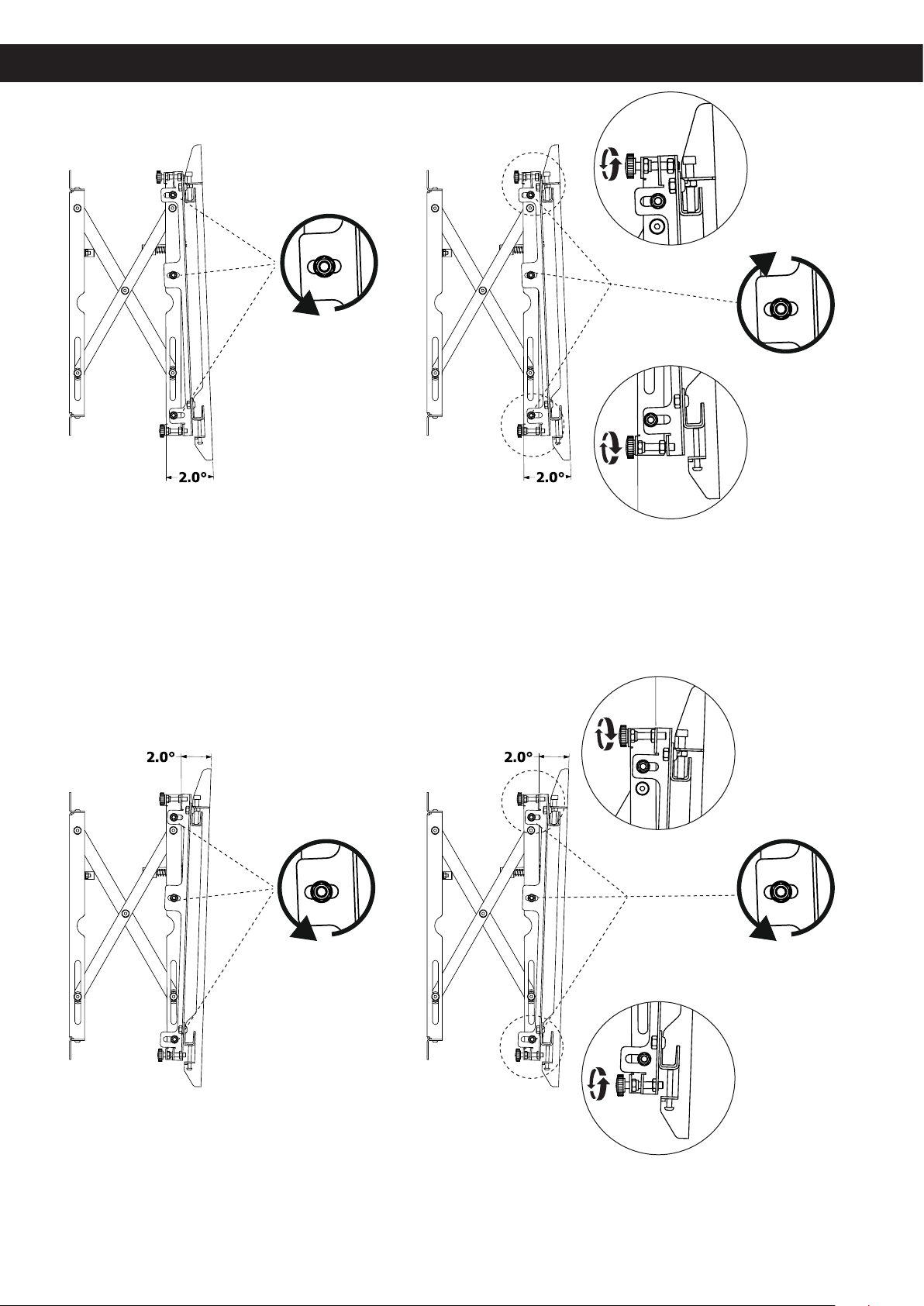

7. Rotate the three screw slightly, and than rotate the top knob anti-clockwise

for angle adjustment next rotate the bottom knob clock wise, than tighten the three screw.

8. Rotate the three screw slightly, and than rotate the top knob clockwise for angle adjustment

next rotate the bottom knob anti-clockwise, than tighten the three screw.

Angle adjustment details

www.logicav.in

9. Slightly loosen the below screw first and next rotate the top screw

for height adjustment. (Refer allen key M-H in the checklist)

BEFORE HEIGHT

ADJUSTMENT

AFTER HEIGHT

ADJUSTMENT

TOP SCREW

Height adjustment details

BOTTOM SCREW

Final view after installing the mounted display on the wall

Closed view

Opened view

www.logicav.in
