Lippert Components 432223 Manuel utilisateur

Import Bike Rack

OEM INSTALLATION MANUAL

Rev: 08.15.2017 Page 2 Import Bike Rack OEM Installation Manual

System Information

Safety Information

TABLE OF CONTENTS

System Information 2

Safety Information 2

Resources Required 3

Preparation 3

Under Bumper Attachment 3

Over Bumper Attachment 3

Installation 3

Under Bumper Attachment Assembly 3

Over Bumper Attachment Assembly 6

Bike Rack Accessories 8

Spare Tire Carrier 8

Optional Vertical Bike Support Bracket 9

The Lippert Components, Inc. Import Bike Rack was designed to have a maximum total load capacity of 200 lbs.

Before using a Import Bike Rack, please note the following:

Follow all Lippert Components, Inc. operation instructions. Failure to utilize the instructions provided may result

in damage to the trailer, cause death or serious injury. The Import Bike Rack MUST NOT be used for the mounting

of electric or motorized equipment. Any additional welding modifications to the chassis or bumper will void the

warranty. Any aftermarket attachments by dealers or consumers to the bumper area will not be covered and will

void the warranty of the bumper area. Please be advised that Lippert Components, Inc. frames, bumpers, bike

racks, and hitches are warranted for factory installed equipment by the OEM RV manufacturer only. Call Lippert

Components, Inc. Customer Service at 1-574-537-8900 if you have any further questions.

Bike Rack Weight Ratings

The Import Bike Rack weight rating is based on the height of the main rail tube. Weight ratings for the under-

mounting and over-mounting brackets are as follows:

Under-mount bike rack bracket - 200 lb.

Over-mount bike rack bracket - 200 lb.

Optional under-mount tire carrier with spare tire - 100 lb. additional weight to bike rack of OEM's choice

Optional vertical mounting tube - no additional weight to bike rack, only used for vertical support of carried items.

Lippert Components, Inc. Import Bike Rack should not be used for any other purpose or reason than

its intended use. To use the Import Bike Rack for any reason other than what it was designed for, may

result in death or serious injury.

Failure to acknowledge bike rack weight ratings may result in damage to the trailer.

The Import Bike Rack can be provided with either an under bumper mounting configuration (432223), or an over

bumper mounting configuration (432336). The bike rack can also be equipped with an optional bolt-on under-

mount tire carrier (432585) and vertical mounting tube (118478) to help secure bicycles.

Rev: 08.15.2017 Page 3 Import Bike Rack OEM Installation Manual

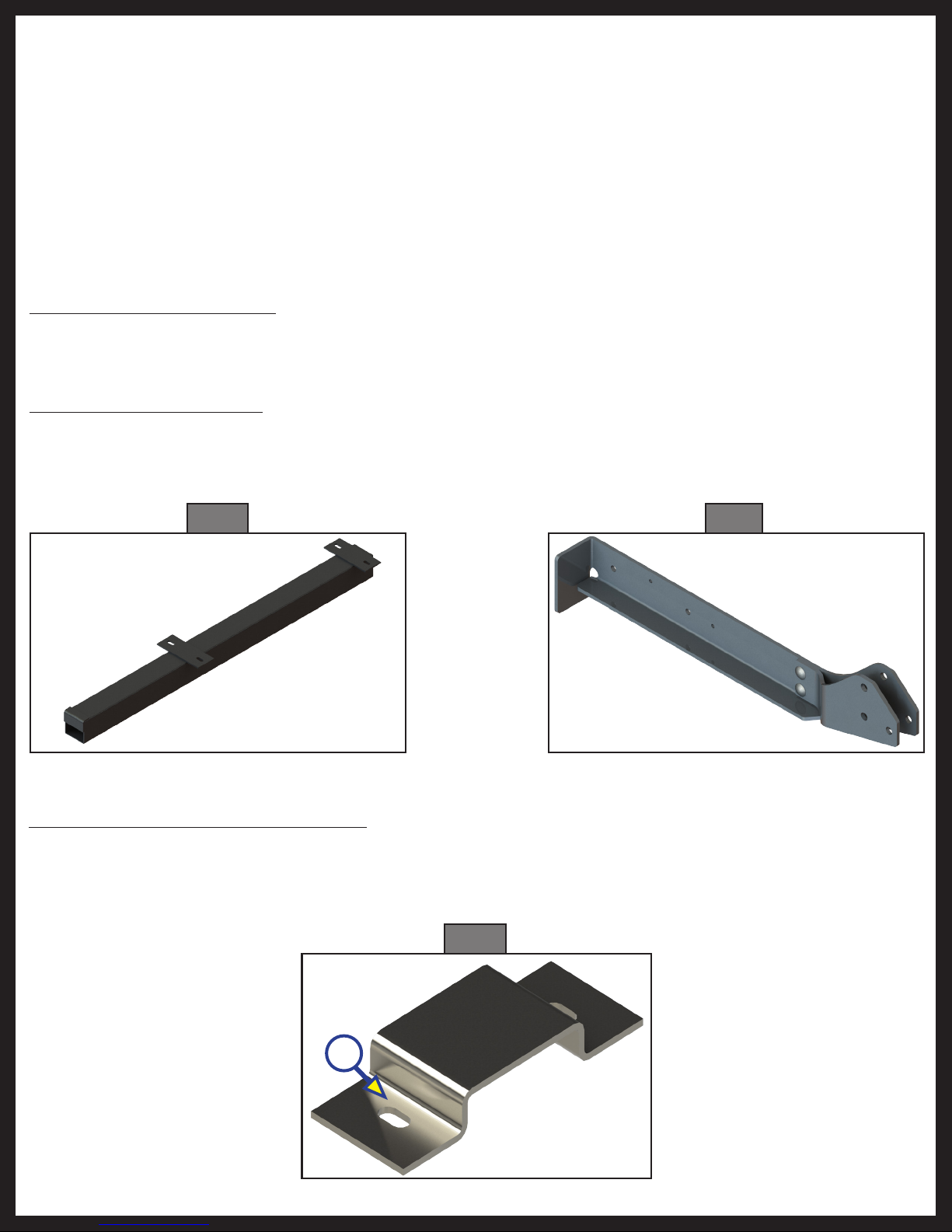

Preparation

Under Bumper Attachment

NOTE: If using the under-mount attachment (Fig. 1) assembly (432223) to connect the bike rack, verify that

the chassis was equipped with the necessary assembly bracket mount.

Over Bumper Attachment

NOTE: If using the over-mount attachment (Fig. 2) assembly (432336) to connect the bike rack, verify that

the chassis was not equipped with the under-mount assembly brackets.

Resources Required

• 1 to 2 Persons

• Cordless or Electric Drill or Screw Gun

• Appropriate Drive Bits

• ½", ⁄” and ¼” Drill Bits

• ½", ⁄” and ¼” Combination Wrenches

• ½", ⁄” and ¼” Socket

• Torque Wrench (Ft-Lbs)

• Marker

Fig. 1 Fig.2

Installation

Under Bumper Attachment Assembly

NOTE: Verify that trailer is equipped with the weld-on brackets (Fig. 3). The trailer MUST have these

brackets in order to complete the installation. If the unit is already equipped with the weld-on

brackets, skip to step 12.

Fig. 3

Rev: 08.15.2017 Page 4 Import Bike Rack OEM Installation Manual

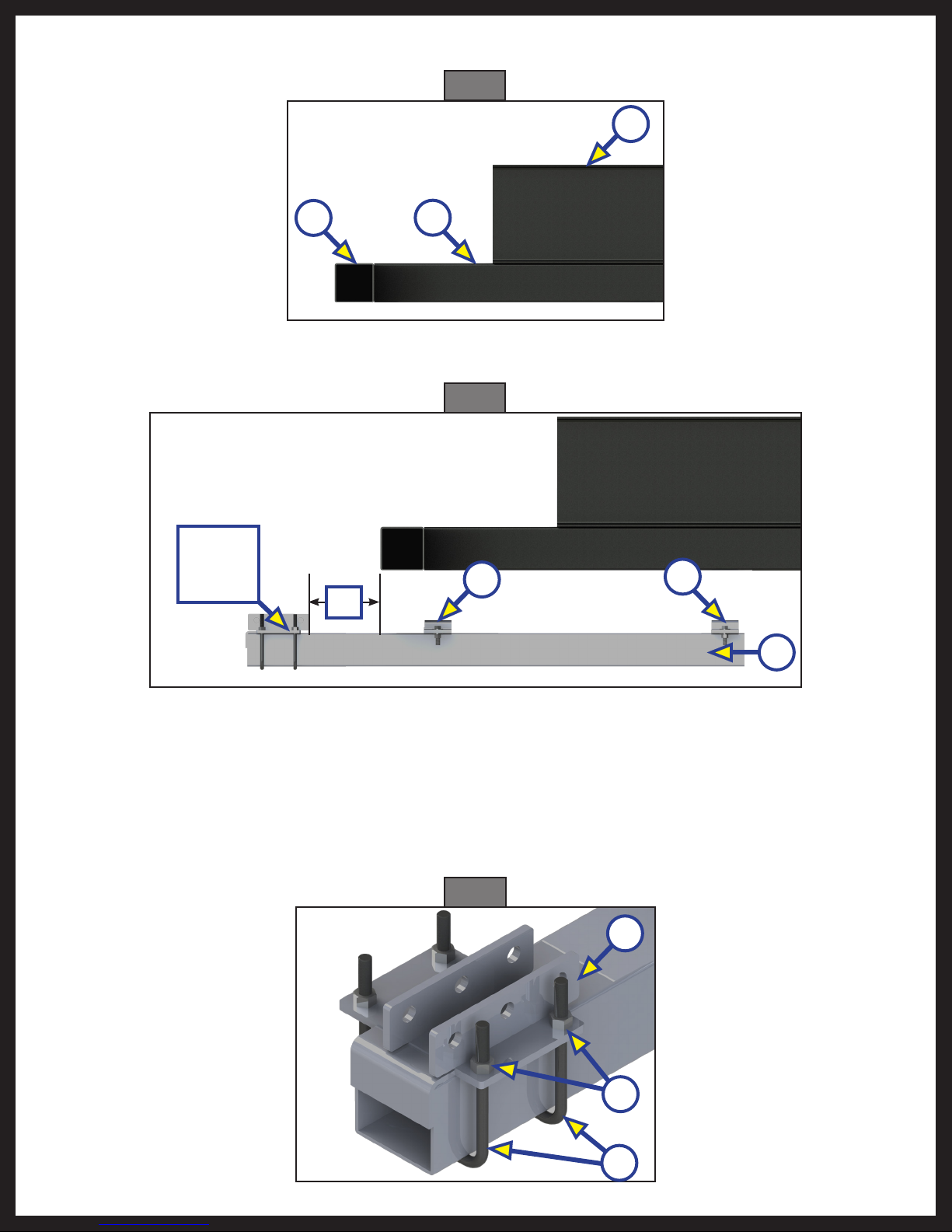

Fig. 4

1. Locate the following on the trailer: the frame rails (Fig. 4A), the bumper bracket (Fig. 4B) and the

bumper (Fig. 4C).

Fig. 6

Fig. 5

2. Bolt on the weld-on brackets (Fig. 5A) to the bike rack support arm (Fig. 5B), using 4 supplied ⁄”-16 x 1

½” zinc bolts with one ⁄” flat washer per bolt.

3. Insert the bolt through the precut slot (Fig. 3A) in both the support arm brackets and the weld-on

brackets.

4. Attach the bike rack brackets (Fig. 6A) to the top of the mounted bike rack support arms

5. With the provided ⁄”-16 x 4 ¾” x 5 ½”U-bolts (Fig. 6B); mount the U-bolts spanning both sides of

the previously mounted support arms, and exiting through the bike rack brackets on the top of the

support arms.

6. Thread and secure ⁄”- 16 hex nuts (Fig. 6C) onto the exposed ends of the U-bolts.

Bike

Rack

Bracket

Rev: 08.15.2017 Page 5 Import Bike Rack OEM Installation Manual

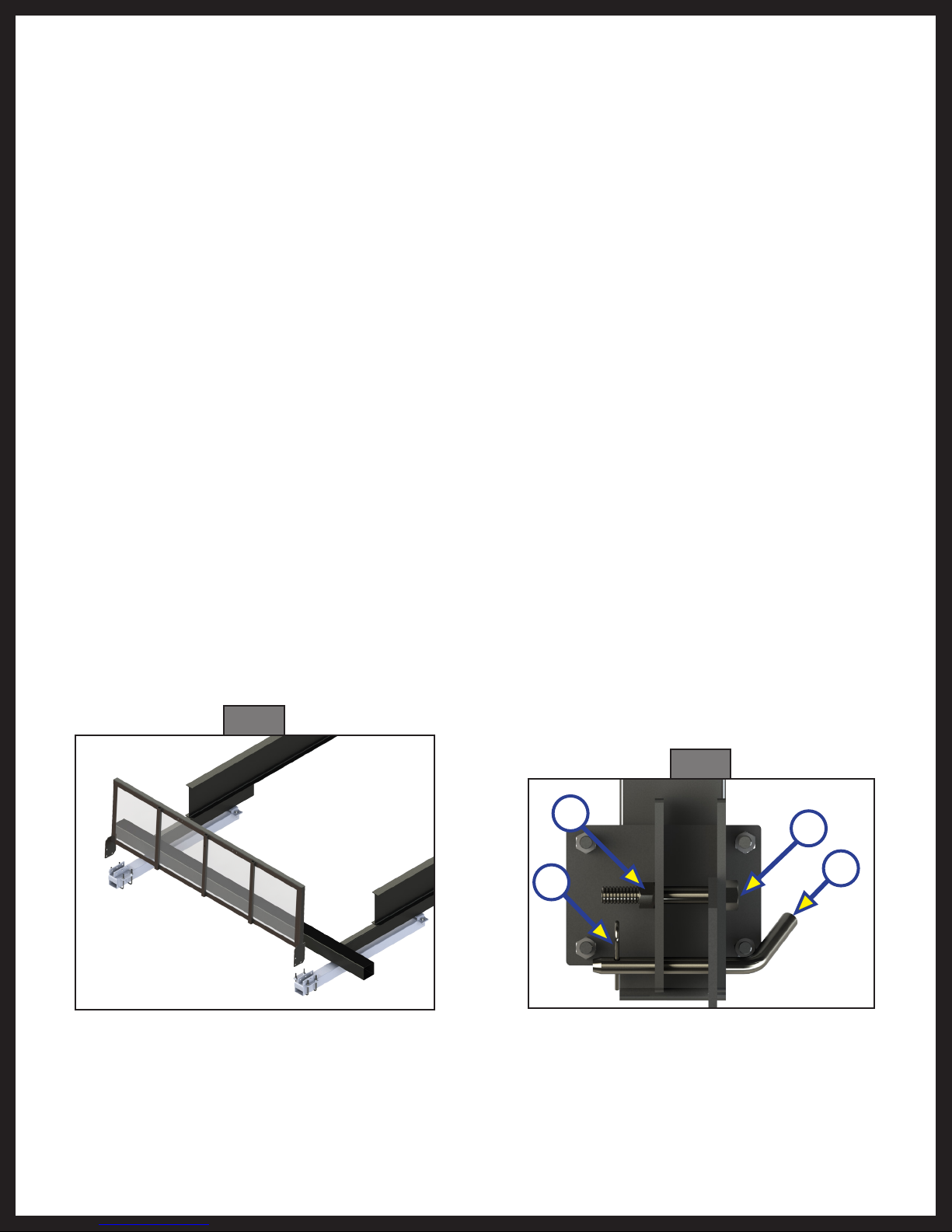

Fig. 7

Fig. 8

7. Lift the bike rack support arm, with weld-on brackets attached, and center the assembly on the frame

rails.

8. While supporting the bike rack support arm, outline the weld-on bracket placement onto the frame rail

with a marker.

NOTE: A minimum of 4" is needed for the bike rack to be stored in the closed and upright position (Fig. 5).

9. Disassemble the weld-on brackets from the support arm.

10. Align the weld-on brackets into the previously marked outline on the frame rail, and seam weld the

weld-on brackets onto the frame rail.

11. Let the welds air cool, then clean and paint the brackets with black spray paint.

12. Install one 3/8” flat washer on each of the 8 supplied ⁄”-16 x 1 ½” zinc bolts (4 per support arm) and

then insert the bolt through the precut slot in both the support arm brackets and the brackets welded

on the chassis.

NOTE: Bolt should be inserted from the top chassis bracket down through the support arm.

13. Install an additional washer over the exposed thread of the bolt, and then thread and secure a 3/8”

nyloc nut.

14. At this point, the bike rack support arms should be attached securely to the chassis.

15. Repeat step 1 through step 14 on the other bike rack support arm.

16. The bike rack is now ready to attach to the bike rack brackets.

17. Lift the bike rack and insert it into the bike rack brackets (Fig. 7).

18. Insert the provided ½”-13 x 3 ½” bolts (Fig. 8A) through the bike rack bracket, the Light Bolt-on Bike

Rack, and through the other side of the bike rack bracket.

19. Thread and secure the ½”-13 lock nut onto the bolts (Fig. 8B).

20. Lastly, insert the ½” clevis pin (Fig. 8C) through the remaining horizontal hole on both the bike rack

bracket and the bike rack, securing with a hairpin cotter pin (Fig. 8D).

Rev: 08.15.2017 Page 6 Import Bike Rack OEM Installation Manual

Over Bumper Attachment Assembly

NOTE: Verify that trailer is not equipped with the weld-on brackets (Fig. 3). The trailer MUST NOT have

these brackets in order to complete the installation of the over bumper bike rack brackets. If the

brackets are present, either grind off the weld-on brackets or order the under bumper bike rack

attachments.

NOTE: The over bumper bike rack attachments are not interchangeable and are side specific.

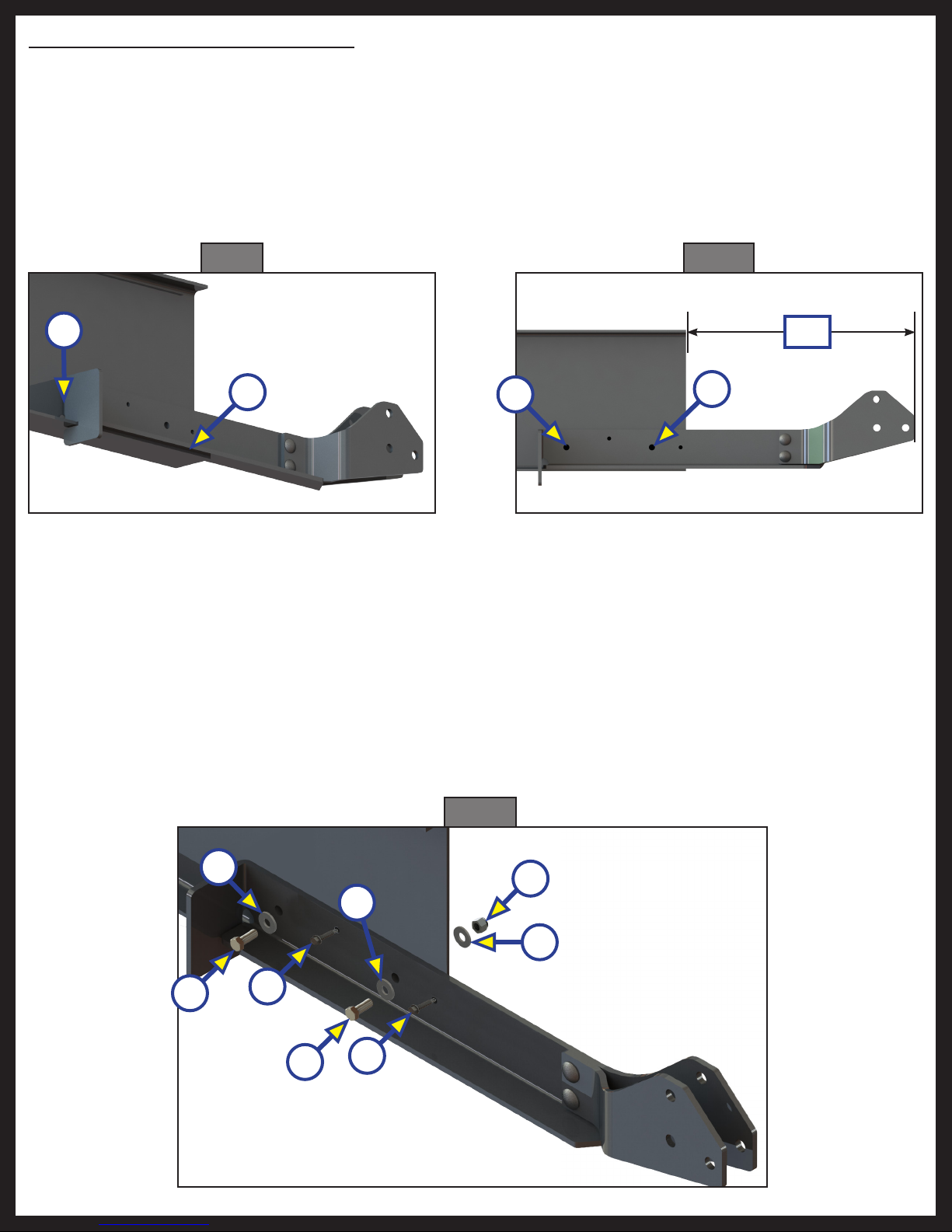

1. Place the roadside bracket on the roadside chassis rail. The bottom flange of the bike rack bracket (Fig.

9A) will rest on the lower shoulder of the I-beam lip (Fig. 9B).

Fig. 9 Fig. 10

Fig. 11

NOTE: Approximately 16” of the bike rack bracket will extend past the end of the frame rails (Fig. 10). It is

important to maintain that distance as the bike rack will not stow properly in the upright position

if that measurement is less.

2. Clamp the bike rack attachment to the I-beam.

3. With a ⁄” drill bit, drill through the bike rack bracket and the I-beam (Fig. 10A).

4. Install a ⁄”-16 x 1” bolt (Fig. 11A) through a ⁄” flat washer (Fig. 11B), the bike rack bracket and lastly

through the I-beam. Do this to both of the 2 drilled holes.

5. Install an additional ⁄” flat washer (Fig. 11B) over the exposed thread and secure with a ⁄”-16 nyloc

nut (Fig. 11C).

6. Install the ¼”-14 x 1 ¼” self-tapping hex head screws into the remaining holes as applicable (Fig. 11D)

on the bike rack bracket.

B16"

Rev: 08.15.2017 Page 7 Import Bike Rack OEM Installation Manual

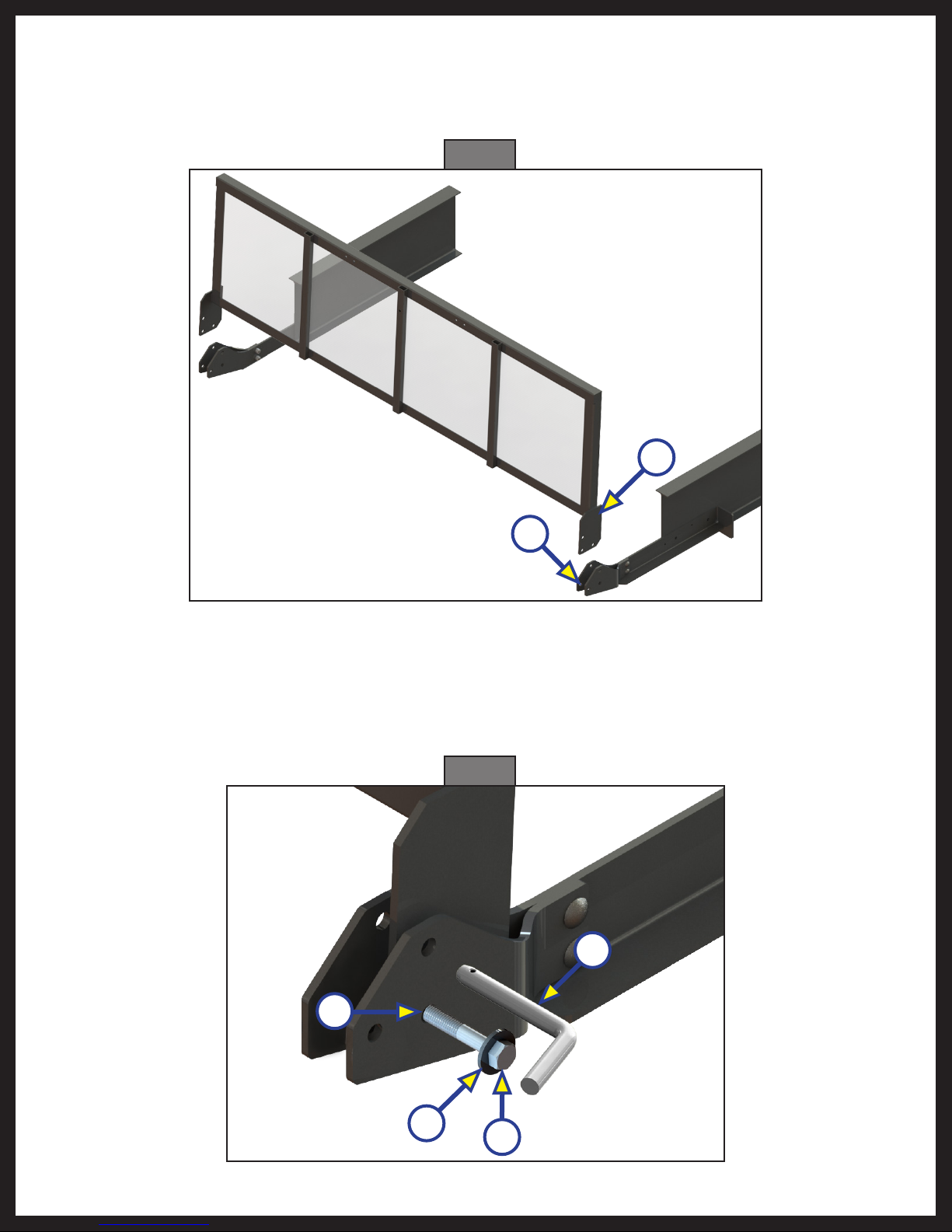

Fig. 12

Fig. 13

7. Repeat step 1-6 with the remaining curbside bike rack bracket.

8. Once the bike rack bracket is secured onto the chassis frame rails, the Light Bolt-on Bike Rack can be

attached to the bike rack bracket assembly.

9. Lift the bike rack up so that it is perpendicular (Fig. 12A) to the bike rack bracket assembly (Fig. 12B).

10. While supporting the bike rack, insert the ½”-13 x 3 ½” bolt (Fig. 13A) through the ½” washer (Fig. 13B),

and the bike rack bracket hole (Fig. 13C).

11. Secure the bolt with an additional ½” washer and ½” nyloc nut.

12. Lastly, install the ½” clevis pin through the remaining vertical hole (Fig. 13D) on both the bike rack

bracket and the bike rack, securing with a hairpin cotter pin.

Rev: 08.15.2017 Page 8 Import Bike Rack OEM Installation Manual

Bike Rack Accessories

Spare Tire Carrier

1. Place the tire, hub side up, directly underneath the spare tire bracket (Fig. 14).

2. Insert one bolt from inside of the spare tire carrier down through the tire carrier and exiting through

one of the wheel stud holes.

3. Thread and secure a nyloc nut onto the bolt.

4. Insert an additional bolt through the horizontal channeled slot in the spare tire carrier and through an

additional opposing wheel stud hole from the first one.

5. Secure a nyloc nut onto the additional bolt.

Fig. 14

Failure to acknowledge tire carrier weight ratings may result in damage to the trailer. Lippert spare tire

carriers are not intended to be used for more than one spare tire. The combined weight of the spare tire

carrier and tire must not exceed a total weight of 100 lbs.

Prior to transporting the trailer, note the new departure angle with the spare tire carrier and spare tire

attached. The new angle will be less than the original departure angle.

Rev: 08.15.2017 Page 9 Import Bike Rack OEM Installation Manual

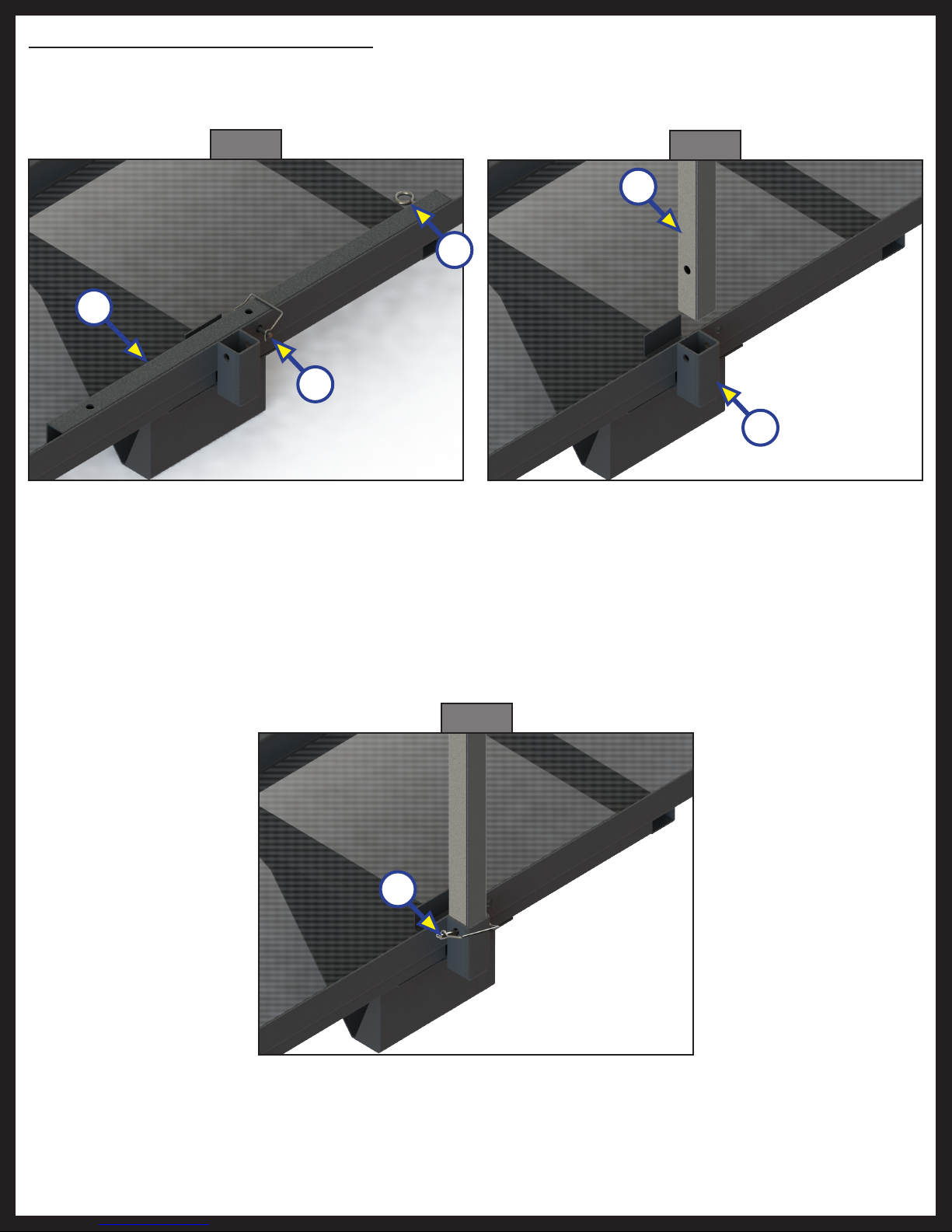

Optional Vertical Bike Support Bracket

1. Remove the snapper pin (Fig. 15A) from the mounting tube (Fig. 15B).

2. Rotate the mounting tube vertically (Fig. 16A) and place it in the mounting bracket (Fig. 16B).

Fig. 15 Fig. 16

Fig. 17

3. Insert the snapper pin completely through the mounting bracket and tube holes (Fig. 17A).

NOTE: Make sure the snapper pin is securely fastened and that the bike rack is stable.

4. The vertical bike support bracket is now extended and ready for operation.

NOTE: Utilizing the mounting holes on the front cross member of the bike rack and the hole and eye-bolt

(Fig. 15C) on the mounting tube, secure the bicycle to the bike rack. Possible items to use to secure

the bicycle include rope, bungee cords and ratchet-style motorcycle straps, none of which are

included with the bike rack assembly.

The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”).

LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an

authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty.

The information contained in this manual is subject to change without notice and at the sole discretion of LCI.

Revised editions are available for free download from lci1.com.

Please recycle all obsolete materials.

For all concerns or questions, please contact

Lippert Components, Inc.

Ph: (574) 537-8900 | Web: lci1.com | Email: [email protected]
