EtherFast®10/100

Switches

f you want your network to be more reli-

able and as fast as possible, look no fur-

ther than the EtherFast 12, 16 and 24-Port

10/100 Rack Mountable Dual-Speed switches.

The EtherFast 10/100 Switches allow seamless

communication between your 10Mbps and

100Mbps network segments. Unlike regular

hubs which bounce data around your network

until it reaches its intended target, a switch

sends data to a specific location --the EtherFast

Switch will immediately improve the efficiency

and performance across your network. Also,

10/100 Switches offer up to 200Mbps of full-

duplex dedicated bandwidth to any node on

your network -- workstations, file servers, or

anywhere that high-performance is a must. As

your network grows, add an optional

100BaseFX Fiber Optic Distance Extender

module -- you can uplink to fiber optic LAN

and WAN backbones. Speed up your network,

eliminate data bottlenecks and boost perform-

ance in just one step!

• 12, 16 and 24-Port Rack Mountable 10/100

Dual-Speed Switches with Full Duplex

Capability on Every Port

• Slot for Optional Switched 100BaseFX Fiber

Optic Distance Extender Module --Send Data

Up to 2000 Meters at Full Duplex

• Perfect for Mixing 10BaseT, 100BaseTX and

100BaseFX Hardware Together

• Reach Blazing Speed of Up to 200Mbps in

Full Duplex Mode

• Internal Bandwidth of 2.7Gbps

• Advanced Store-and-Forward Packet

Switching

• Fully Compliant with All Major Network

Operating Systems

• Free Technical Support

• 5 Year Limited Warranty

•Variety of Port Densities and Flexible

Expansion --Perfect for Enterprise and

Medium-Sized Networks

•Get Full Duplex Capability on Every Port

•Optional Full-Duplex 100BaseFX

Fiber Optic Distance Extender Modules

•Seamless Communication Between

Existing 10Mbps and 100Mbps Networks

•5-Year Limited Warranty

•Free Technical Support

EEtthheerrFFaasstt1122--PPoorrtt1100//110000SSwwiittcchh((DDSSSSXX1122))

EEtthheerrFFaasstt1166--PPoorrtt1100//110000SSwwiittcchh((DDSSSSXX1166))

EEtthheerrFFaasstt2244--PPoorrtt1100//110000SSwwiittcchh((DDSSSSXX2244))

110000BBaasseeFFXXDDiissttaanncceeEExxtteennddeerrSSCC--TTyyppee((DDSSSSXXFFXXSSCC))

110000BBaasseeFFXXDDiissttaanncceeEExxtteennddeerrSSTT--TTyyppee((DDSSSSXXFFXXSSTT))

Get the Hottest Network Performance Possible from a

10/100 Switch with Full Duplex Capability and Fiber

Connectivity Options

FullDuplex & Fiber

Features

Benefits

Specifications

Standards IEEE 802.3 and IEEE 802.3u

Protocol CSMA/CD

Ports 12, 16 or 24 Straight-Through

10BaseT/100BaseTX Dual-Speed Auto-

Sensing RJ-45 Ports. One Shared Uplink Port

Expansion Slots 1for 100BaseFX Distance Extenders

(Shared With Uplink Port)

Speed 10Mbps or 100Mbps (Half Duplex)

20Mbps or 200Mbps (Full Duplex)

MAC Addressing 16, 384 Unicast Entries

Unlimited Multicast Broadcast Addresses

Max Frame Size 1536 Bytes

Memory Buffer 64K per Port

LEDs Power, Full Duplex/Collision per Port,

Link/Activity per Port, 100/10 per Port

Environmental

Dimensions 17.3” x 9.8” x 2.6”

Unit Weight 6.2 to 7.7 lbs

Power Input 90-250V AC, 50-60Hz

Certifications FCC Class A

CE Mark Commercial

UL and CSA Listed

Operating Temp. 32ºF to 131ºF (0ºC to 55ºC)

Storage Temp. -40ºF to 158ºF (-40ºC to 70ºC)

Operating Hum. 10% to 85%, Non-Condensing

Storage Hum. 5% to 90%, Non-Condensing

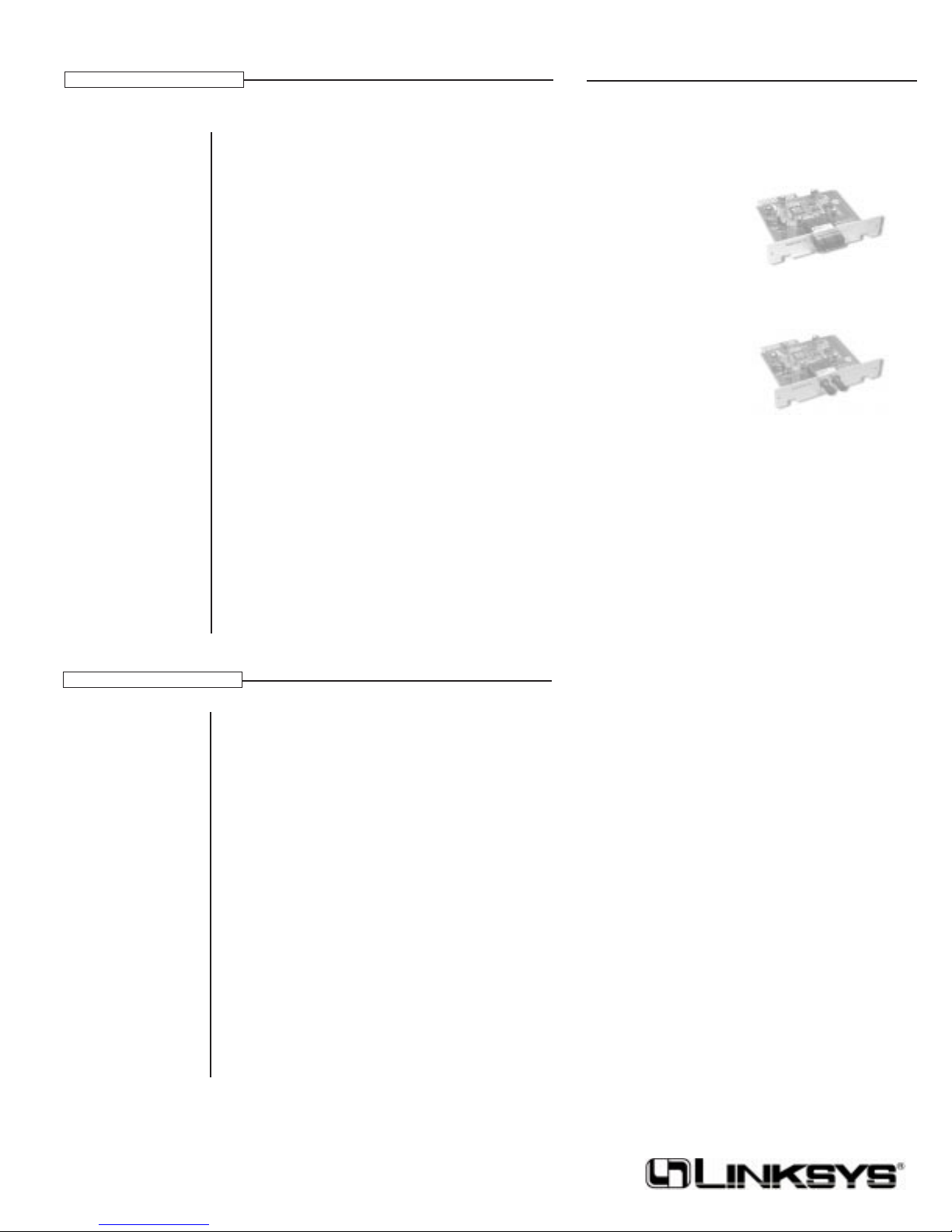

Expansion Modules

• 100BaseFX

1-Port Fiber Optic Distance

Extender Module (SC-Type)

(Model No.: DSSXFXSC)

• 100BaseFX

1-Port Fiber Optic Distance

Extender Module (ST-Type)

(Model No.: DSSXFXST)

Sales (800) 546-5797

Support (800) 326-7114

Fax (949) 261-8868

Email [email protected]

Web www.linksys.com
