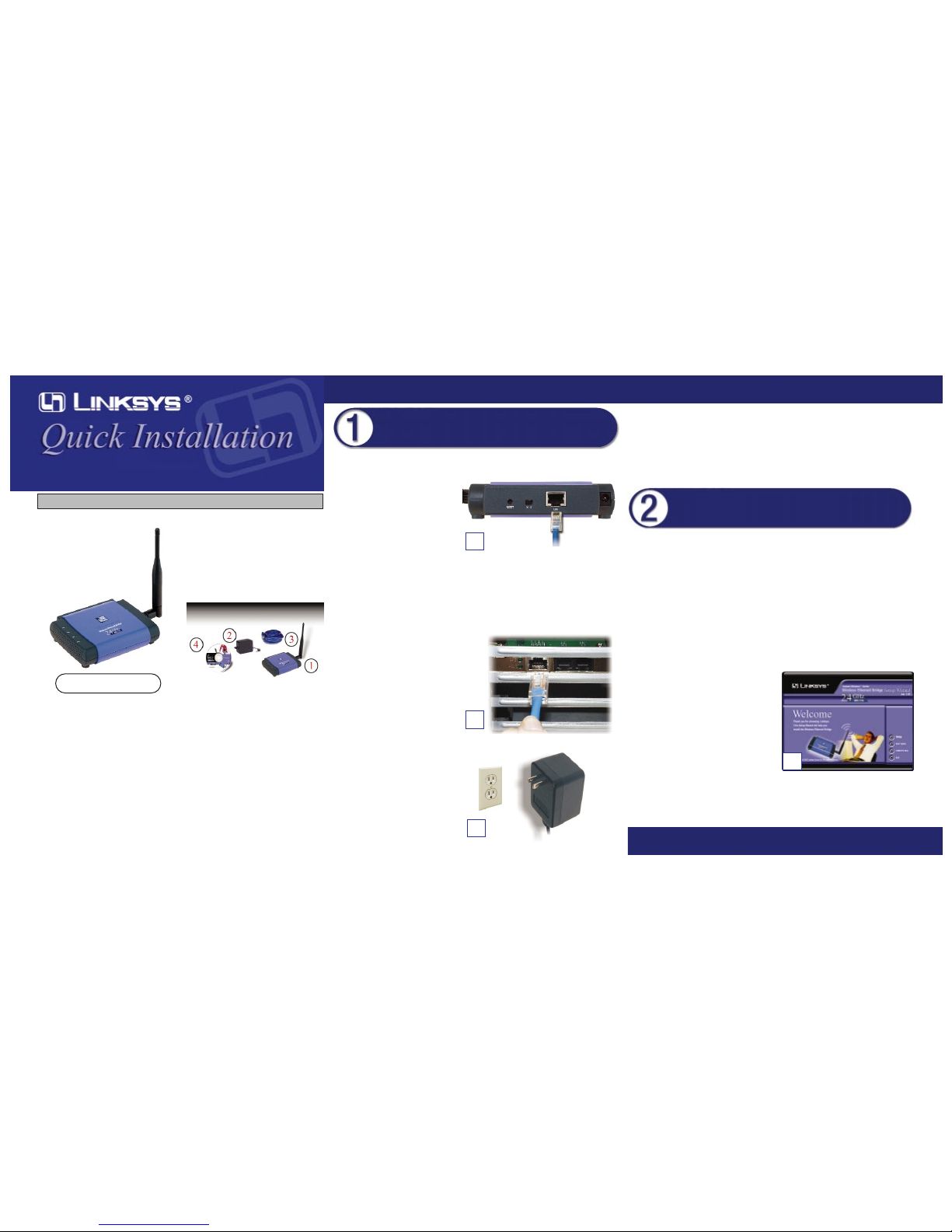

Included with the Linksys WET11 Wireless

Ethernet Bridge

• Linksys Wireless Ethernet Bridge (1)

• One External Antenna (attached)

• One Power Adapter (2)

• One RJ45 CAT 5 UTP Cable (3)

• One Setup CD-ROM with User Guide (4)

• Quick Installation and Registration Card (not

shown)

A. Plug a crossover or straight-

through cable into the RJ-45

jack on the back panel of the

Bridge.

B. The X-ll selection switch offers a choice between two settings. Use the X

setting if you are connecting the Bridge to a network card or other

Ethernet device. Use the ll setting if you are connecting the Bridge to a

hub or switch.

C. Plug the other end of the

crossover or straight-through

cable into the RJ-45 jack on

the PC you wish to use to con-

figure the Bridge.

D. Plug the supplied power

adapter into the jack on the

back panel of the Bridge.

Then plug the other end into

an electrical outlet.

E. Proceed to the next section, “Set Up the Wireless Ethernet Bridge.”

F. After configuration, unplug the crossover or straight-through cable from

the PC, and plug it into the RJ-45 jack on the Ethernet-ready network

device you wish to add to the WLAN.

A. Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup

Wizard should run automatically, and the Welcome screen should appear.

If it does not, click the Start button and choose Run. In the box that

appears, enter D:\setup.exe (where “D” is the letter of your CD-ROM

drive).

B. To set up your Wireless Ethernet

Bridge, click the Setup button.

EEtthheerrnneett

WWoorrkkggrroouupp

BBrriiddggee

Instant Wireless

Connect the Wireless Ethernet Bridge

WWW.LINKSYS.COM

Installation Process

For more detailed instructions, please refer to the Wireless Ethernet Bridge

User Guide.

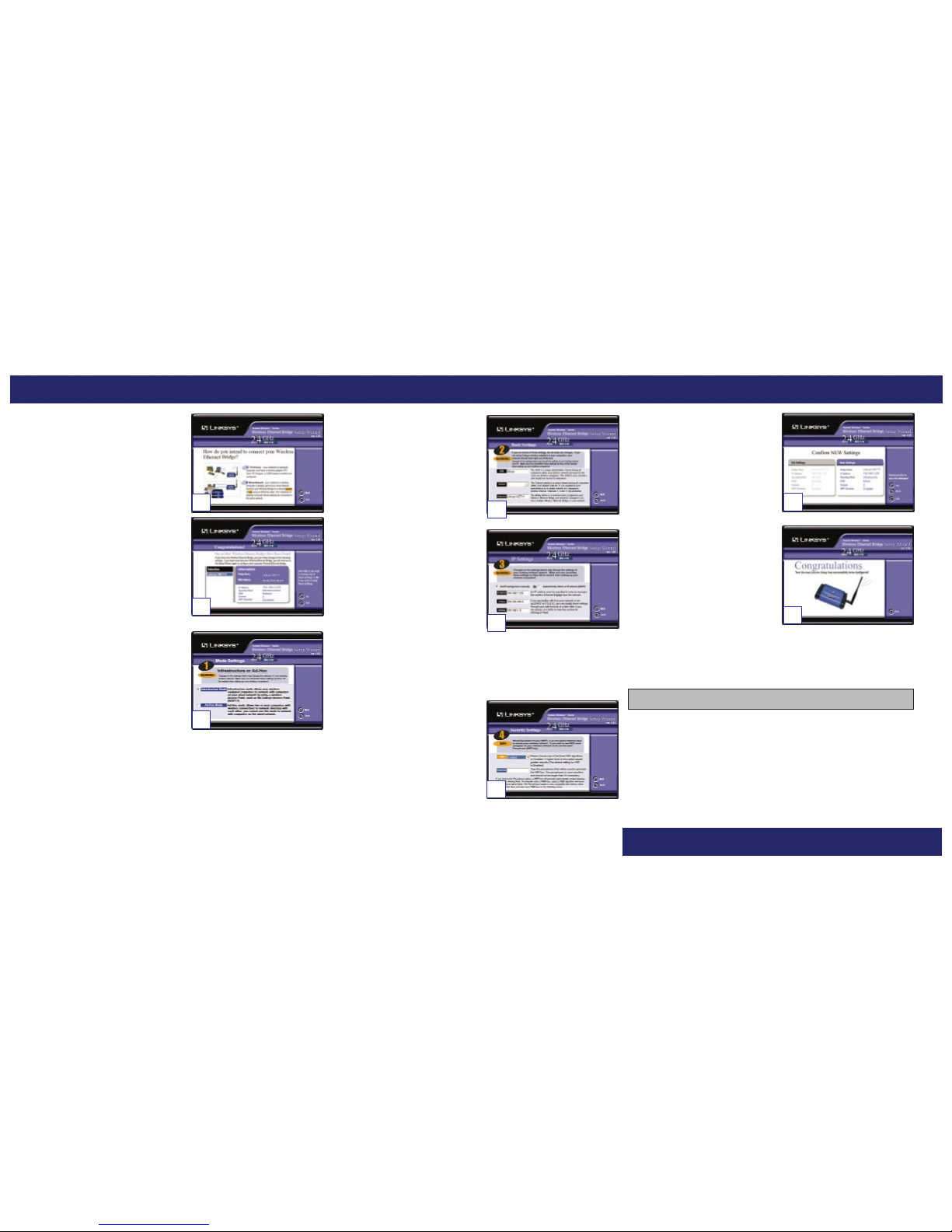

Set Up the Wireless Ethernet Bridge

The SetupWizard will guide you through all the steps necessary to set up the

Wireless Ethernet Bridge.

This Quick Installation is meant to help you install the WET11 quickly and easily. For detailed instructions on

installation and configuration and further setup options, please consult the User Guide.

C. This screen shows the two ways to

configure the Bridge using this

Setup Wizard. Click the Next button.

D. Now displayed is a list of Wireless

Ethernet Bridges on your network. If

you have only one Bridge on your

network, it will be the only one dis-

played. If you have multiple Bridges

on your network, select the Bridge

you are currently installing by click-

ing its name in the Selection box.

Click the Yes button.

E. This screen shows a choice of two

wireless modes. Click the

Infrastructure Mode radio button if

you want your wireless computers to

network with computers on your

wired network using a wireless

access point. Click the Ad-Hoc

Mode radio button if you want mul-

tiple wireless computers to network

directly with each other. Then click

the Next button.

F. The Basic Settings screen will now

appear. Enter your wireless net-

work’s SSID, and select the Channel

at which the network broadcasts its

wireless signal. Enter a unique

Bridge Name for the Bridge. Then

click the Next button.

G. The IP Settings screen will now

appear. If your network has a DHCP

server, click the radio button next to

Automatically obtain an IP

address (DHCP). Then click the

Next button and proceed to step H.

If your network does not have an

DHCP server, click the radio button

beside Set IP configuration manu-

ally. Enter an IP Address, IP Mask, and Gateway appropriate to your

network.You must specify an IP address. If you are unsure about the IP

Mask and Gateway, it is better to leave these two fields alone. Then click

the Next button and proceed to step H.

H. The Security Setting screen will

appear. Set the Wired Equivalent

Privacy (WEP) encryption for your

wired network. Select a WEP con-

figuration method: Disabled (no

WEP encryption), 64-bit WEP, or

128-bit WEP. Then select a

passphrase, the code used when

logging a wireless device onto the

wireless network. The passphrase is

case-sensitive and should not be longer than 16 alphanumeric characters.

I. Review your settings. If these set-

tings are correct, click the Yes button

to save these settings. If any of these

settings are wrong, click the Back

button to make changes.

J. The configuration using the Setup

Wizard is complete. To configure

any other Bridges on your network,

you can run this Setup Wizard again.

Click the Exit button to exit the

Setup Wizard.

K. After configuration, unplug the crossover or straight-through cable from

the PC, and plug it into the RJ-45 jack on the Ethernet-ready network

device you wish to add to the WLAN.

WWW.LINKSYS.COM

Your installation is complete. For advanced configuration, setup informa-

tion, or any other questions, refer to your products User Guide.

QI-WET11-052902B JL
