Linksys EG1064 Instructions d'utilisation d'origine

Model No.

Quick Installation

A Division of Cisco Systems, Inc.

Model No.

WIRED

EG1064

Network Adapter

Gigabit

Package Contents

• 10/100/1000 Gigabit Network Adapter

• Driver CD

•UserGuideonCD

• Registration Card

APower off your PC and any

peripheral equipment

attached to it. Unplug your

PC’s power cord.

BOpen your PC’s case, and

locate an available PCI slot on

the motherboard.

CRemove the metal PCI slot

cover on the back of the PC.

DInsert the Adapter into the PCI

slot. Make sure that all of its

pins are touching the slot’s

contacts. You may have to

apply a bit of pressure to slide

the Adapter all the way in.

EAfter the Adapter is set firmly in

place, secure its fastening tab

to your PC’s chassis with a

mounting screw. Then close

your PC’s case.

FConnect one end of the

Ethernet network cable to your

network’s Gigabit hub or

switch.

GReconnect your PC’s power

cord, and then power on your

computer.

HProceed to step 2.

Installing the Gigabit Networ

Installing the Driver for the

Now that the hardware installation is

complete, you will install the driver

for the Adapter. Proceed to the sec-

tion for your PC’s Windows operating

system.

Windows XP

APower on your computer.

BWindows XP will automatically

detect the Adapter installed in

your computer. Insert the Driver

CD into your computer’s CD-

ROM drive.

COn the first screen of the Found

New Hardware Wizard, select

Install from a list or specific

location (Advanced), and

click Next.

DSelect Search for the best

driver in these locations. Then

select Include this location in

the search:, and enter

D:\WinXP in the field provided

(if “D” is the letter of your CD-

ROM drive). Click Next.

EWhen Windows XP has finished

installing the driver, click Finish.

Congratulations! The installation of

the 10/100/1000 Gigabit Network

Adapter is complete.

NOTE: For best results, Linksys

recommends using Category 5e

or better Ethernet network

cabling. This is the only cabling

thatwillworkforGigabittransfer

speeds. (You can use Category 5

Ethernet network cabling for

100Mbps or lower speeds.)

10/100/1000

Adapter in Your PC

Gigabit Network Adapter

Windows Millennium or 98SE

APower on your computer.

BWindows Millennium or 98SE

will automatically detect the

Adapter installed in your

computer. Insert the Driver CD

into your computer’s CD-ROM

drive.

COn the first screen of the Found

New Hardware Wizard, select

Specify the location of the

driver (Advanced). Then click

Next.

DSelect Search for the best

driver for my device.

(Recommended). Then select

Specify a location:.

If your computer is running

Windows Millennium, enter

D:\WinME in the field provided

(if “D” is the letter of your CD-

ROM drive).

If your computer is running

Windows 98SE, enter D:\Win98

in the field provided (if “D” is

the letter of your CD-ROM

drive).

Then click Next.

EAfter Windows has found the

driver, click Next.

FWhen Windows Millennium or

98SE has finished installing the

driver, click Finish.

GThe System Settings Change

screen will appear and ask you

if you want to restart your

computer. To complete the

driver installation and restart

your computer, click Yes.

Congratulations! The installation of

the 10/100/1000 Gigabit Network

Adapter is complete.

For additional information or troubleshooting

help, refer to the User Guide on the Setup CD-

ROM. You can also call or e-mail for further

support.

24-hour Technical Support

800-326-7114

(toll-free from US or Canada)

E-mail Support

[email protected]

Website

http://www.linksys.com or

http://support.linksys.com

RMA (Return Merchandise Authorization)

http://www.linksys.com/support

FTP Site

ftp://ftp.linksys.com

Sales Information

800-546-5797 (800-LINKSYS)

Linksys is a registered trademark or trademark of

Cisco Systems, Inc. and/or its affiliates in the U.S.

Model No.

EG1064_V2-UG-31017NC JL

Windows 2000

APower on your computer.

BWindows 2000 will

automatically detect the

Adapter installed in your

computer. Insert the Driver CD

into your computer’s CD-ROM

drive.

COn the first screen of the Found

New Hardware Wizard, click

Next.

DSelect Search for a suitable

driver for my device

(recommended). Then click

Next.

ESelect Specify a Location,

and click Next.

FIn the field provided, enter

D:\WIN2000 (if “D” is the letter

of your CD-ROM drive). Then

click OK.

GOn the Driver Files Search

Results screen, click Next.

HWhen Windows 2000 has

finished installing the driver,

click Finish.

Congratulations! The installation of

the 10/100/1000 Gigabit Network

Adapter is complete.

Autres manuels pour EG1064

Table des matières

Autres manuels Linksys Carte réseau

Linksys

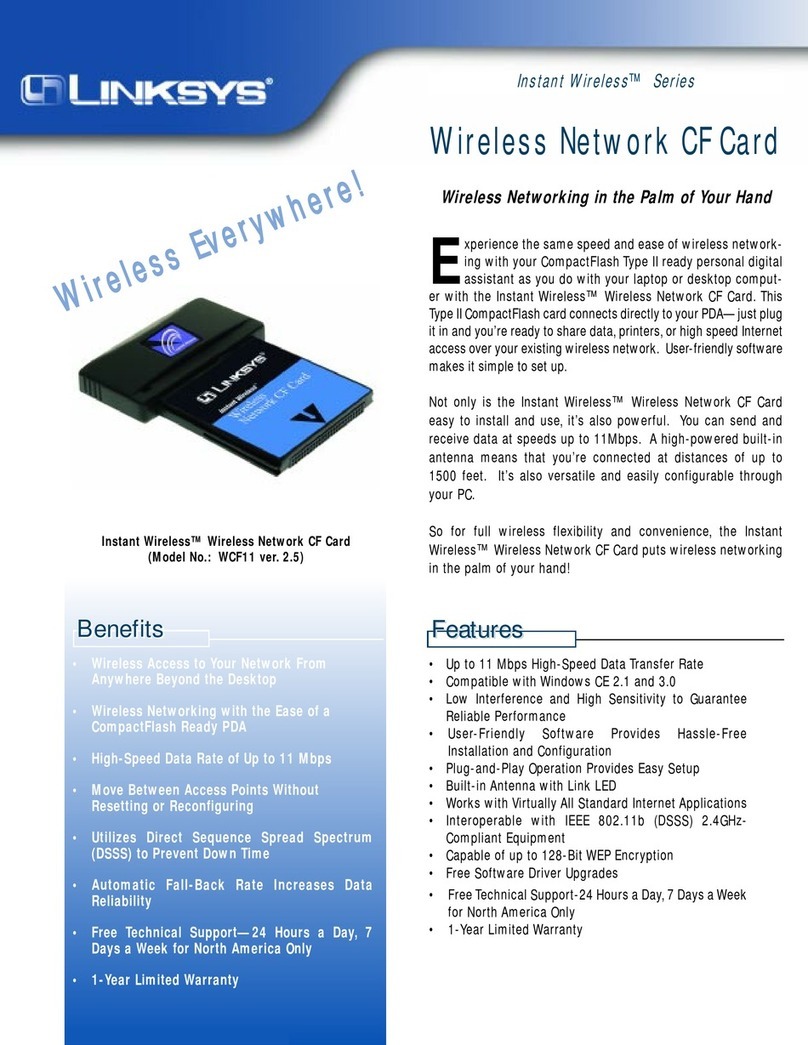

Linksys WCF11 - Wireless CompactFlash Card Type II Manuel utilisateur
