Linkskey LKS-SG16R Manuel utilisateur

LKS

-

SG16R / SG24R

Rev.B

1

Introduction

A

The LKS-SG16R / LKS-SG24R 10BASE-T/100BASE-TX/1000BASE-T

Switches which are high-performance Gigabit Ethernet Switches designed

for the network core. It provides 16/24 10BASE-T/100BASE-TX/1000BASE-T

ports that can significantly improve the performance of your network’s

backbone,and deliver the throughput needed to support a broad range of

advanced network applications. With LKS-SG16R / LKS-SG24R high

performance band-width , it provides the quickest solution to meeting the

growing demands on your network＇s limited resources.

Features

B

z16/24 Port 10/100/1000Mbps Auto-Negotiation andAuto-MDI/MDI-X

Gigabit Ethernet Switch

zComplies with the IEEE 802.3 10Base-T Ethernet,IEEE 802.3u

100Base-TX Fast Ethernet and IEEE 802.3ab 1000Base-T Gigabit

Ethernet standards

zIEEE 802.3x Flow Control for Full-duplex and Back Pressure for

Half-duplex

zSupport Full/Half duplex transfer mode for 10/100Mbps

zSupport Full duplex transfer mode for 1000Mbps

zSupport Store-and-Forward architecture and performs Forwarding

LKS

-

SG16R / SG24R

Rev.B

2

and Filtering

zFull Wire-Speed Non-Blocking Reception and Transmission

zExtensive front-panel diagnostic LEDs

zRack-mountable kit to fit 19” rackmount shelf

Package Contents

C

zRackmount Kit.

zUser guide.

zPower cord.

zLKS-SG16R/LKS-SG24R Gigabit Ethernet Switch

Hardware Introduction

D

4.1 Front Panel

The unit front panel provides a simple interface monitoring the

Switch. See the chart in section 4.2 for the status of each LED

denotes..

LKS

-

SG16R / SG24R

Rev.B

3

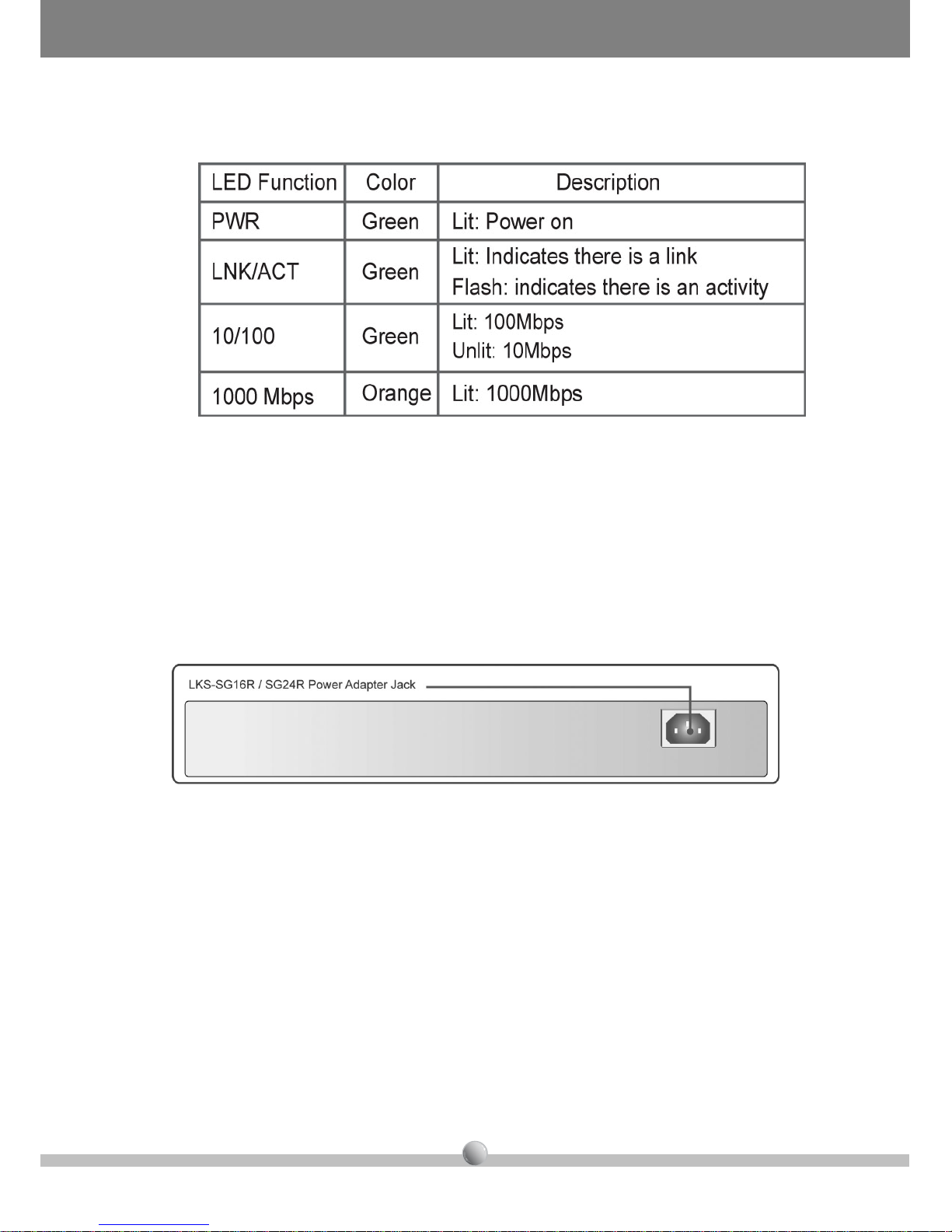

4.2 LED Displays

4.3 Rear Panel

The rear panel of the LKS-SG16R / SG24R Gigabit Ethernet Switch

indicates an AC inlet, which accepts 100-240VAC 50-60Hz power input.

LKS

-

SG16R / SG24R

Rev.B

4

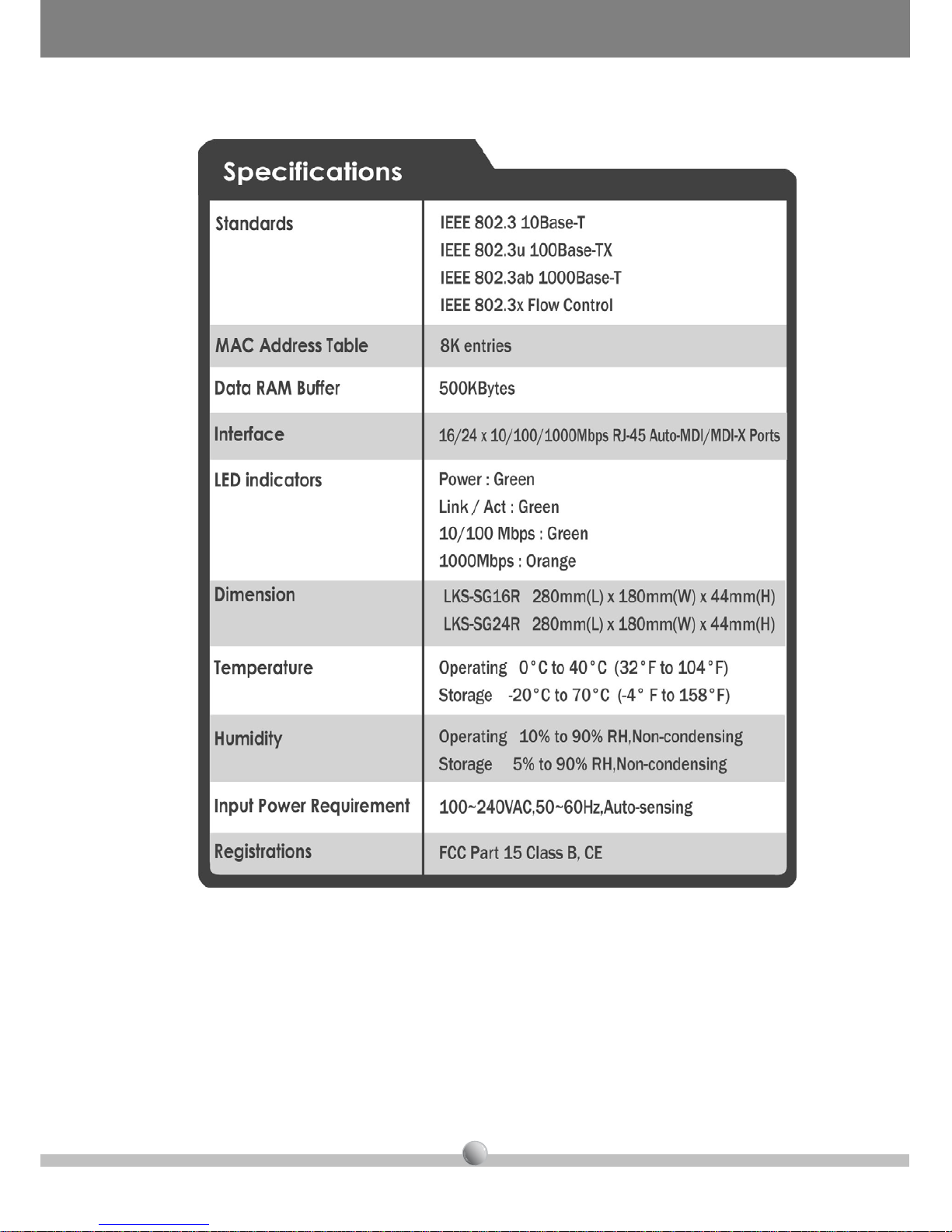

LKS

-

SG16R / SG24R

Rev.B

5

FCC Warning

This ations

e

equipment has been tested and found to comply with the regul

for a Class B digital device, pursuant to Part 15 of the FCC Rules. Thes

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with this

user’s guide, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his own expense.

zReorient the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit in a different room

that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.
