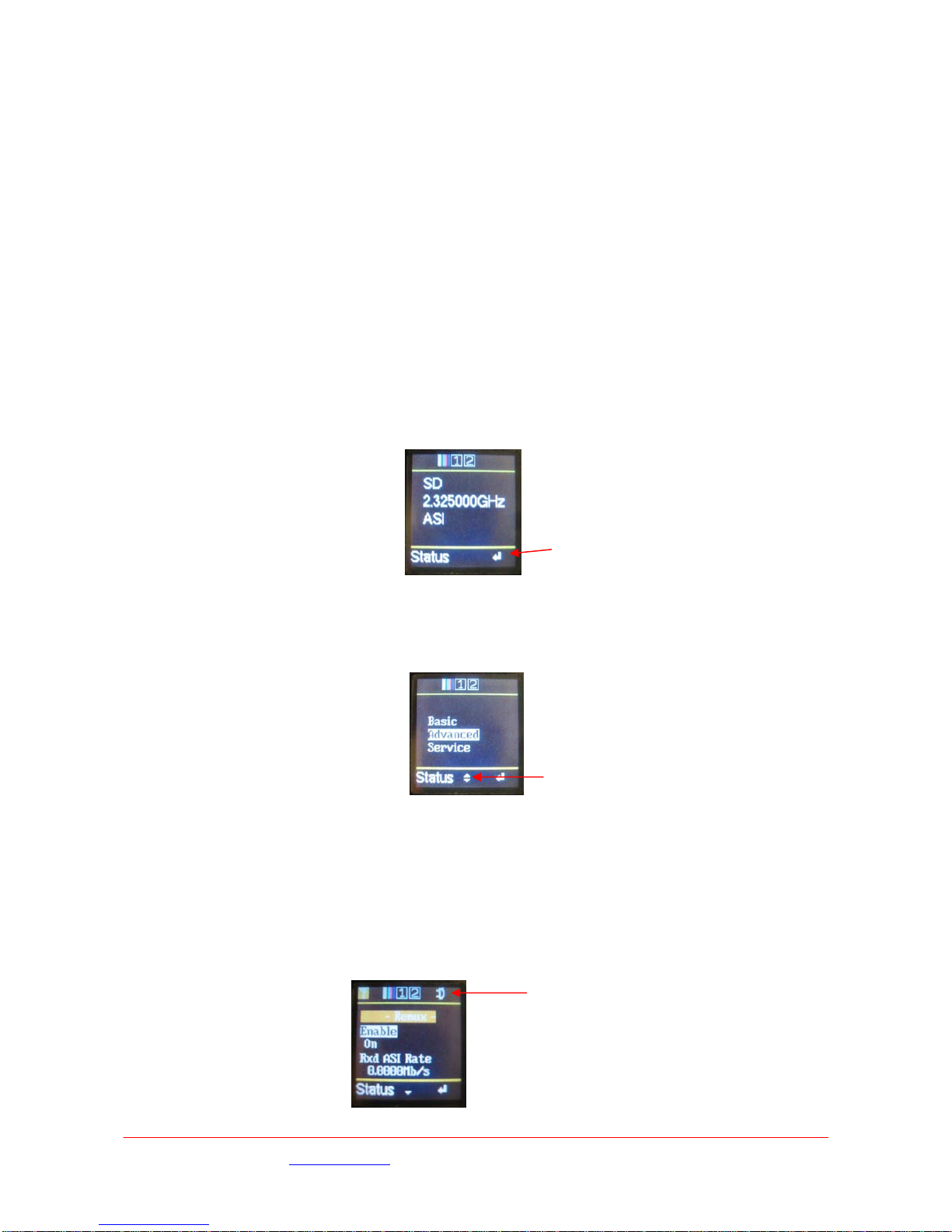

3.1.2 L1500 Menus
The Greyed Out parameters not selectable with the current version of code.
The table below is splli into the three ‘Levels’ corresponding to BASIC, ADVANCED and SERVICE levels
of operation.
The BASIC functions are also included in the ADVANCED level, this is to allow all functions of the unit
to be configured by a competent operator; the normal operational functions can then be changed at
the BASIC level.
The SERVICE functions are intended for diagnostics and servicing by a technician / engineer.
BASIC FUNCTIONS
Options Function Comment
Modulator Frequency Range dependent on module
fitted
Only if module detected and NOT in
ASI mode
RF Output Level 10,50,100,250mW
RF Output On/Off
Mod. Mode QPSK,16QAM,64QAM
Video Source Video Input 1080i/50,720p30 etc etc Options dependent on either SD or
HD
Test Pattern On/Off
Video Loss Bars, Blank, Bars+Audio If no video input detected sets Bars
On
Audio Ch1 Enabled On/Off
Input Analogue, Test Tone,
Embedded, Channel ID’s
Mic/Line Mic or Line level input Mic adds +25dB gain & optional
Phantom Power
Phantom Power On / Off Only if Mic is selected
Level Left Sets required gain
Level Right
Audio Ch2 As Ch1
Status Temperature Display units internal temp
Service Name Display / set units current
Service Name
Serial Number Display units serial number Should be quoted in all enquiries
with service department
Licence Code Display units licence code Defines units enabled features
Camera
Control
Camera Type Selects camera type in use
Frequency Sets UHF receiver frequency
ADVANCED FUNCTIONS
Options Function Comment
System Auto Set Service 1… Sets PID information for multiple
camera operation
Restore default Yes / No Sets unit configuration to Default
values
Save Profile 1… Stores current configuration
Load Profile Yes / No Loads saved configuration
Last Profile 1…
Lock Panel Locked / Unlocked
Unit Fans Off/Auto Control units fans
Download Allows download new unit firmware
Modulation Frequency Range dependent on
module fitted
Only if module detected
RF Output Level 10,50,100,250mW
RF Output On/Off
Mod. Mode QPSK,16QAM, 64QAM LMS-T QPSK & 16QAM only
Mod. Type LMS-T, DVB-T
Guard Interval 1/32 ….
FEC ½ ……
Bandwidth 6,7,8,10 & 20MHz …. LMS-T 10 & 20MHz; DVB-T 6,7,8MHz
Mod. Polarity Normal, Invert
Multiplexer ASI Packet Off,188,204 bytes
ASI Bit Rate 10.000Mb/s Display / set output bit rate
Service Name
Network Name
PMT PID Sets PID 0 - 9999
