DEMO MANUAL DC2007A-B

DESCRIPTION

LTM4630EV

High Efficiency, PolyPhase

105A Step-Down Power

µModule Regulator

Demonstration circuit 2007A-B features a PolyPhase

design using the LT M

4630EV, the high efficiency, high

density,dual18A,switchmodestep-downpowerµModule

regulator. The input voltage is from 4.5V to 15V. The out-

put voltage is jumper selectable from 0.9V to 1.8V. The

DC2007A-B can deliver a nominal 105A output current.

As explained in the data sheet, output current derating is

necessary for certainVIN,VOUT,andthermalconditions.The

LTM4630 on DC2007A-B always operates in continuous

conduction mode. The switching frequency can be pro-

grammed through a resistor or can be synchronized to an

external clock signal. The board allows the user to program

how its output voltage ramps up and down through the

L, LT, LTC, LTM, Linear Technology, the Linear logo, PolyPhase and µModule are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

TRACK pin. The output voltage is tightly regulated between

“VO+” and “VO-” through remote output voltage sensing

which improves output voltage regulation at heavy loads.

These features and the availability of the LTM4630EV in a

compact 16mm ×16mm ×4.41mm LGA package make

it ideal for use in many high density point-of-load regula-

tion applications. The LTM4630 data sheet must be read

in conjunction with this demo manual for working on or

modifying the demo circuit DC2007A-B.

Design files for this circuit board are available at

http://www.linear.com/demo

Figure 1. 70A PolyPhase LTM4630/DC2007A-B Demo Board

dc2007a_bf

DEMO MANUAL DC2007A-B

QUICK START PROCEDURE

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS / NOTES VALUE

Input Voltage Range 4.5V ~ 15V

Output Voltage VOUT VIN = 4.5A ~ 15V, IOUT = 0A ~ 105A, JP5: 1.0V 1.0V ±1.5% (0.985V ~ 1.015V)

Maximum Continuous Output Current Derating Is Necessary for Certain VIN, VOUT and

Thermal Conditions, See Data Sheet for Details.

105A

Default Operating Frequency 400kHz

Resistor Programmable Frequency Range 400kHz to 780kHz

External Clock Sync. Frequency Range 400kHz to 780kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 105A, fSW = 400kHz 83.8% See Figure 3

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 0A ~ 26.25A <100mV, See Figure 4

Output Voltage Ripple VIN = 12V, VOUT = 1.0V, IOUT = 105A <4mV, See Figure 5

Demonstration circuit DC2007A-B is easy to set up to

evaluate the performance of PolyPhase operation of the

LTM4630EV. Due to the high input/output current, user

should select the proper input supply/load/cable which

can sustain the full load operation. It’s recommended to

pull load current from J2 and J4. The load current pulled

from J5 and J6 shouldn’t exceed 18A. Please refer to

Figure 2 for proper measurement setup and follow the

procedure below:

1. Place jumpers in the following positions for a typical

1.0VOUT application:

JP1 JP2 JP4 ~ JP8

CLK RUN VOUT SELECT

INT OFF ON JP5/1.0V

2. With power off, connect the input power supply, load

and meters as shown in Figure 2. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. Place JP2 to the

ON position. The output voltage between “VO+” and

“VO-” should be 1.0V ±1.5% (0.985V ~ 1.015V).

4. Oncethe proper outputvoltage is established,adjust the

load within the operating range and observe the output

voltage regulation, output voltage ripple, efficiency

and other parameters. Output voltage ripple should

be measured at J7 with BNC cables. 50Ω termination

should be set on the oscilloscope or BNC cables.

5. (Optional) For an optional load transient test, apply an

adjustable pulse signal between “IOSTEP CLK” and the

“GND” test point. Pulse amplitude (3V~ 3.5V) sets the

loadstepcurrent amplitude. The output transientcurrent

can be monitored at the BNC connector, J8 (5mV/A).

The pulse signal should be very small duty cycle (<10%)

to limit the thermal stress on the transient load circuit.

6. (Optional) The LTM4630 can be synchronized to an

external clock signal. Place the JP1 jumper on EXT

and apply a clock signal (0V~ 5V, square wave) on the

“EXT_CLK” test point.

7. (Optional)TheoutputsoftheLTM4630can track another

supply. The output voltage tracks the voltage on TRACK

when a valid signal is applied on the test point.

8. (Optional) The DC2007A-B can be configured to a dual

output configuration with VO at 87.5A load current and

VO2 at 18A load current. Stuff a 0Ω resistor on R61

and a 0.1µF on C14. Remove R22, R23, R24, R26, R27,

R28, R32, R33, R35. Output voltage VO2 is set by R37

based on the equation VO2 = 0.6V(1 + 60.4K/R37).

dc2007a_bf

DEMO MANUAL DC2007A-B

QUICK START PROCEDURE

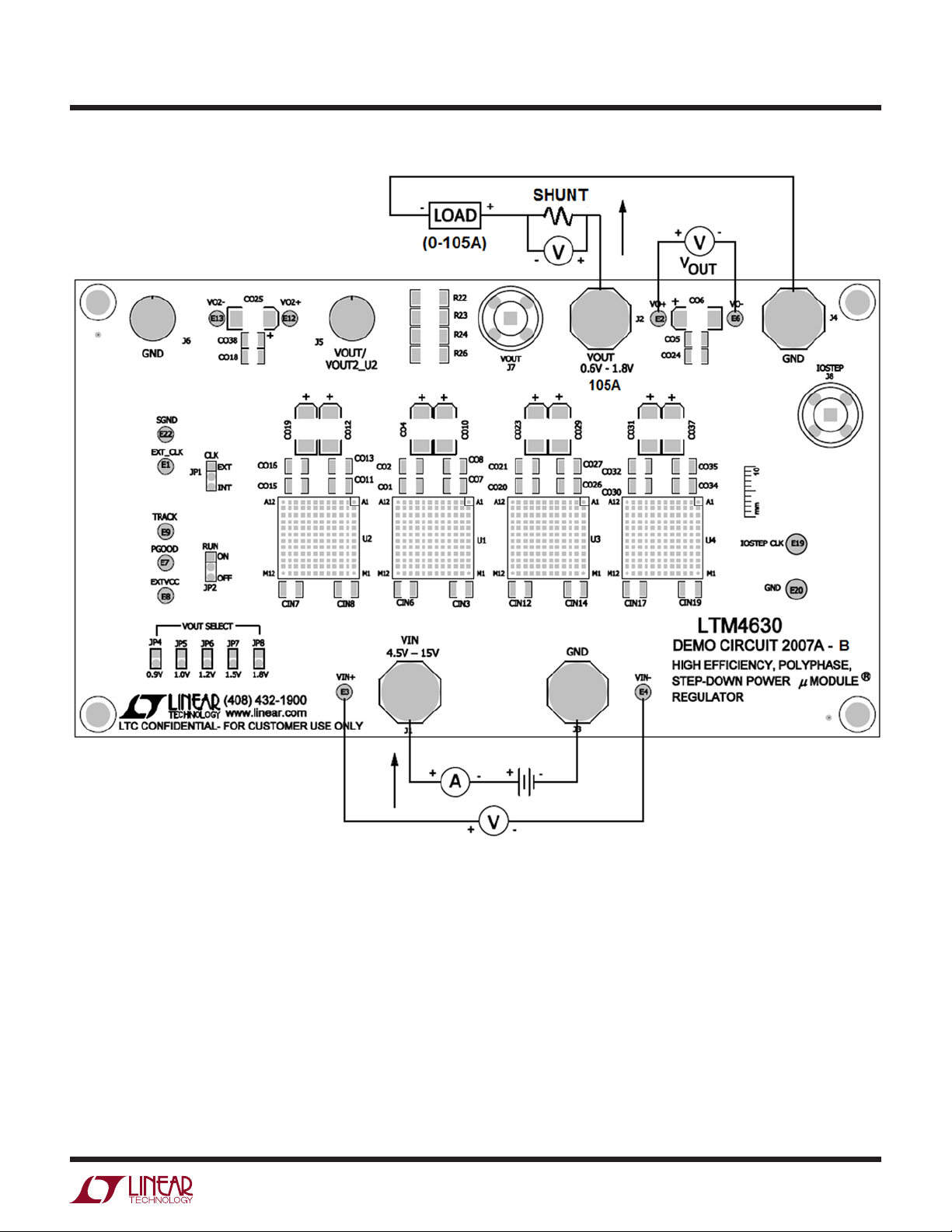

Figure 2. Test Setup of DC2007A-B

dc2007a_bf

DEMO MANUAL DC2007A-B

PARTS LIST

QUICK START PROCEDURE

Figure 3. Measured Efficiency VIN = 12V, fSW = 400kHz

Figure 5. Measured Output Voltage Ripple at 12VIN, 1.0VOUT,

105A with Standard Demo Circuit Default Setup

Figure 6. Thermal Capture at 12VIN, 1.0VOUT, 105A

(TA= 25°C, 400 LFM Airflow and No Heat Sink)

Figure 4. Load Transient 0A to 26.25A (VIN = 12V, VOUT = 1.OV)

LOAD CURRENT (A)

EFFICIENCY (%)

100

20 40 60 80 100

VO= 1.8V

VO= 1.5V

VO= 1.2V

VO= 1.0V

VO= 0.9V

0A TO 26.25A LOAD

1.0V OUTPUT (20MHz BW) [50mV/DIV]

1.0V OUTPUT (20MHz BW) [5mV/DIV]

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 12 CIN3, CIN4, CIN5, CIN6, CIN7, CIN8, CIN9, CIN10, CIN12,

CIN13, CIN14, CIN15

CAP, 1210 22µF 10% 25V X5R AVX, 12103D226KAT2A

2 10 CO1, CO5, CO7, CO11, CO15, CO18, CO20, CO24,

CO26, CO38

CAP, 1210 100µF 20% 10V X5R TAIYO YUDEN, LMK325BJ107MM-T

3 8 CO4, CO6, CO10, CO12, CO19, CO23, CO25, CO29 CAP, 7343 470µF 20% 4V POSCAP SANYO, 4TPE470MCL

4 15 R6, R13, R19, R20, R27, R28, R32, R33, R34, R35, R40,

R45, R46, R62, R63

RES, 0603 0Ω JUMPER VISHAY, CRCW06030000Z0EA

5 3 U1, U2, U3 IC, VOLTAGE REGULATOR, LGA LINEAR TECH., LTM4630EV#PBF

Additional Demo Board Circuit Components

1 1 CIN1 CAP, 150µF 25% 25V ALUM SUN ELECT., 25CE150AX

2 2 CIN2, CIN11 CAP, 1206 1µF 10% 25V X5R TAIYO YUDEN, TMK316BJ105KD-T

dc2007a_bf

DEMO MANUAL DC2007A-B

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

3 1 C1 CAP, 0603 100pF 10% 25V XNPO AVX, 06033A101KAT2A

4 0 C2, C3, C5, C8, C9, C12, C13, C14, C15, C16, C17, C20, C21,

C26, C29, C30

CAP, 0603 OPTION OPTION

5 4 C4, C10, C18, C22 CAP, 0603 2.2µF 20% 10V X5R TAIYO YUDEN, LMK107BJ225MA-T

6 6 C6, C11, C19, C23, C27, C28 CAP, 0603 1µF 10% 10V X7R TAIYO YUDEN, LMK107BJ105KA-T

7 2 C7, C25 CAP, 0603 0.1µF 10% 25V X7R AVX, 06033C104KAT2A

8 1 C24 CAP, 0603 0.01µF 10% 100V X7R AVX, 06031C103KAT2A

9 0 CO2, CO3, CO8, CO9, CO13, CO14, CO16, CO17, CO21,

CO22, CO27, CO28, CO30, CO32, CO33, CO34, CO35, CO36

CAP, 1210 OPTION OPTION

10 0 CO31, CO37 CAP, 7343 OPTION OPTION

11 0 CIN16, CIN17, CIN18, CIN19 CAP, 1210 OPTION OPTION

12 2 Q1, Q2 MOSFET, N-CH D-S 30V TO252 VISHAY, SUD50N04-8M8P-4GE3

13 4 R1, R3, R25, R29 RES, 0603 10Ω 5% 1/10W VISHAY, CRCW060310R0JNEA

14 5 R2, R14, R21, R39, R47 RES, 0603 121k 1% 1/10W VISHAY, CRCW0603121KFKEA

15 4 R4, R36, R41, R54 RES, 0603 10k 5% 1/10W VISHAY, CRCW060310K0JNEA

16 0 R5, R7, R8, R10, R30, R37, R38, R42, R44, R48, R49, R50,

R52, R53, R55, R61

RES, 0603 OPTION OPTION

17 4 R9, R31, R43, R51 RES, 0603 100k 1% 1/10W VISHAY, CRCW0603100KFKEA

18 1 R15 RES, 0603 90.9k 1% 1/10W VISHAY, CRCW060390K9FKEA

19 1 R16 RES, 0603 60.4k 1% 1/10W VISHAY, CRCW060360K4FKEA

20 1 R17 RES, 0603 40.2k 1% 1/10W VISHAY, CRCW060340K2FKEA

21 1 R18 RES, 0603 30.1k 1% 1/10W VISHAY, CRCW060330K1FKEA

22 4 R22, R23, R24, R26 RES, 2010 0Ω JUMPER VISHAY, CRCW20100000Z0EF

23 2 R56, R57 RES, 2512 0.010Ω 1% 1W VISHAY, WSL2512R01000FEA

24 0 R58, R59 RES, 2512 OPTION OPTION

25 1 R60 RES, 1206 0Ω JUMPER VISHAY, CRCW12060000ZOEA

26 0 U4 OPTION

Hardware

1 11 E1, E2, E3, E4, E6, E7, E8, E9, E12, E13, E22 TURRET MILL MAX 2308-2-00-80-00-00-07-0

2 2 E19, E20 TURRET MILL MAX 2501-2-00-80-00-00-07-0

3 2 JP1, JP2 HEADER, 3-PIN 2mm SAMTEC TMM-103-02-L-S

4 5 JP4, JP5, JP6, JP7, JP8 HEADER, 2-PIN 2mm SAMTEC TMM-102-02-L-S

5 4 J1, J2, J3, J4 STUD PEM KFH-032-10

6 2 J5, J6 JACK, BANANA KEYSTONE 575-4

7 8 NUT, BRASS 10-32 ANY

8 4 LUG RING #10 KEYSTONE 8205

9 4 WASHER, TIN PLATED BRASS #10 ANY

10 2 J7, J8 CON, BNC CONNEX 112404

11 3 JP1, JP2, JP4 SHUNT SAMTEC 2SN-BK-G

12 4 STAND-OFF, NYLON KEYSTONE 8833
