Presentation Switch Pro with
HDBaseT Extender
User Manual English
No. 38281
lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!
User Manual English
Introduction
Thank you for purchasing the Lindy Presentation Switch Pro with HDBaseT Extender. This product has
been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty
and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it
for future reference.
The Lindy Presentation Switch Pro is designed to allow many different video inputs including audio to be
switched and extended at the same time. It is an ideal addition to any meeting or conference room, lecture
hall or auditorium. For added flexibility the Switch is provided with a 70m HDBaseT Receiver to reach
remote displays and projectors.
Package Contents
▪Presentation Switch Pro
▪70m HDBaseT Receiver
▪Mounting ears
▪Remote Control
▪IR Receiver Cables
▪IR Emitter Cables
▪1x 24V / 1A Power Adapter (5.5mm / 2.1mm) with UK, EU, AUS and US adapters
▪1x RCA x3 (Female) to VGA (Male) Cable
▪This Manual
Features
•HDMI 2.0, HDCP 2.2 and 1.4 compliant
•DisplayPort 1.2a compliant
•Mirrored HDBaseT 70M output via included receiver
o4K 30Hz, RGB, 8bit with 40m of Cat.6 cable
o1920x1080, 60Hz, RGB, 8Bit with 70m of Cat.6 cable
oDimensions: 115x17x65mm (4.53x0.67x2.56in)
•HDMI / DisplayPort video input resolution up to 4K 60Hz (4:4:4)
•VGA input resolution up to 1920x1200 60Hz
•Output of up to 4k 30Hz via local and remote HDMI
•HDBaseT receiver is powered by the transmitter using PoH
•Supports automatic and manual switching modes
•Supports EDID management
•Supports pass-through of PCM 2CH
•Control via Touch Panel buttons, Web GUI, IR remote, Terminal block contacts and RS-232
User Manual English
Specification
•Input ports: 3x HDMI 2.0, DisplayPort 1.2a and VGA, 5x Stereo Terminal blocks, 1x Mic Terminal
Block
•Output ports: 1x HDMI, 1x HDBaseT, 1x Stereo Terminal block
•Control Ports: 1x IR in, 1x IR out, 1x Contact Terminal block (6pin), 1x RS-232 terminal block, 1x RJ-
45, 1x USB Type A (firmware upgrade)
•Supports up to 18 Gbps / 600Mhz bandwidth
•Supported Resolutions
•HDMI / DisplayPort up to 3840x2160 60Hz 4:4:4 8bpc (30Hz output)
•VGA up to 1920x1200 60Hz
•HDBaseT up to 3840x2160 30Hz
•PCM stereo pass-through formats
•Optional phantom power for mic input
•HDCP 2.2 and 1.4 compatible
•Colour: Black
•Power Consumption: Main unit: 9W, HDBaseT Receiver: 9W
•Operating Temperature: 0°C - 40°C (32°F - 104°F)
•Storage Temperature: -20°C - 60°C (-4°F - 140°F)
•Relative humidity: 20 –90% RH (non condensing)
Installation
Front Panel:
Power button and indicator:
When this device is in standby mode the indicator will illuminate red. When switching the unit
on, the indicator will illuminate blue.
IR Window:
IR signal from remote control.
Input Source & Auto buttons:
Press these buttons for source selection.
The active source will be illuminated to corresponding indicator on the front panel.
User Manual English
Operation buttons:
•Pressing “OK/MENU” button enters the OSD. Then navigate using the 4-way arrow buttons.
A new OSD setting is confirmed by pressing the “OK/MENU” button.
•Pressing "EXIT/AUTO" will exit the OSD. Press "EXIT/AUTO" for 5 seconds to auto
switching on/off. When the button LED light is on, this means auto switching is on.
•Pressing the “MIC-/+” button decreases or increases MIC volume. Pressing the “VOL+/-“
button increases or decreases “Master volume”.
•Pressing both “MIC-“ and “MIC+” buttons simultaneously will reset the HDMI/HDBT output
resolution to 720P 60Hz.
•Pressing both “VOL-“ and “VOL+” buttons simultaneously will lock / unlock the front panel,
these two button LEDs will light on when the front panel is lock on.

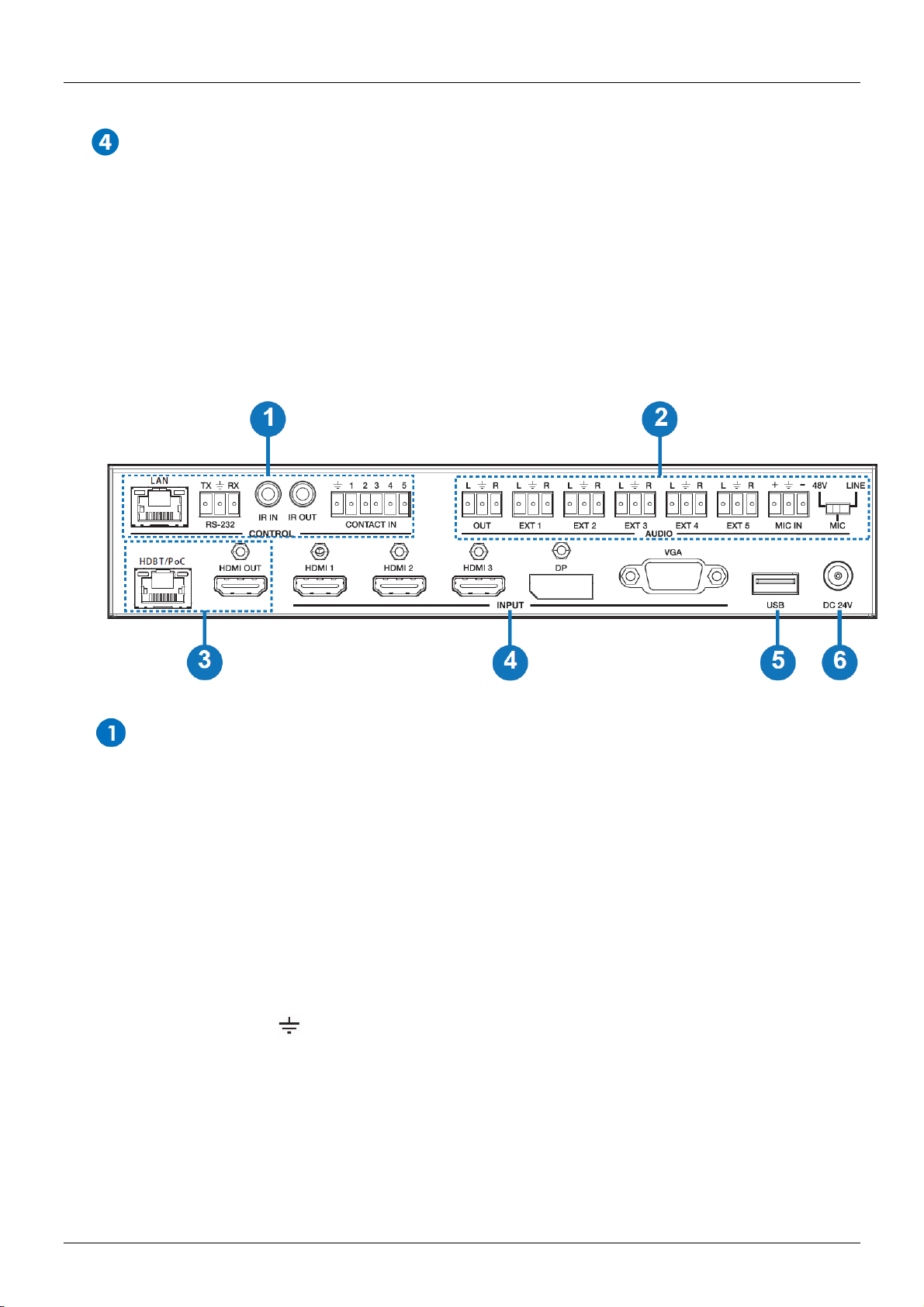

Rear Panel:
Control ports:
•LAN: This port is for Web GUI control; connect to an active Ethernet link with an RJ45
terminated cable.
•RS-232: Serial control port, connects with a control device to control the switch or it can be
used as an extender to control another device connected with the HDBaseT receiver.
•IR IN: Connect the IR receiver cable to receive IR signals sent by the IR remote or this can
be used to extend IR signals to the HDBaseT receiver.
•IR OUT: Connect the IR emitter cable. Used for controlling the local source device or the
switch.
•CONTACT IN: This input control is reserved for direct source selection. Connect the ground
pin (marked as on panel) with following pin number for individual source selection.
User Manual English
Pin number
Source
Pin 1
HDMI1
Pin 2
HDMI2
Pin 3
HDMI3
Pin 4
DisplayPort
Pin 5
VGA/YPbPr/CVBS
Audio Ports:
•OUT: The audio comes from the input audio corresponding to the selected video source and
mixed with MIC audio.
•HDMI1/2/3/DP: The external analog audio input for the respective input.
•VGA: The external analog audio input for the VGA input.
•MIC IN: Plug a microphone in to mix with the current audio source.
•PHANTOM ON/OFF: Slide the switch to “OFF”for a condenser or dynamic microphone, or
to “ON”for professional 48V phantom microphones.
Output Ports:
•HDBT Out: Connects to the HDBaseT Receiver with PoH functionality.
•HDMI Out: Connects to a HDMI display or AV Receiver for video and/or audio output.
Input Ports:
•These video input ports include 3 x HDMI inputs, 1 x Display Port input & 1 x VGA input. The
VGA port supports VGA, YPbPr and CVBS formats. The Factory default is VGA.
USB Port:
Reserved for future firmware upgrades
Power:
Plug the 24V DC power supply into the unit and connect the adaptor to an AC socket.
User Manual English
Operation
Main OSD MENU
The Main MENU includes Picture, Aspect ratio, Screen, Audio setup, Network, System and Software
update options.
The picture MENU adjusts the picture quality.
Contrast 0-100 (default 50),
Brightness 0-100 (default 50),
Color 0-60 (default 30),
Sharpness 0-20 (default 10),
Tint 0-100 (default 50, for CVBS NTSC format only)
User Manual English
Aspect Ratio
Provides the ability to adjust the picture output aspect ratio to 4:3 or 16:9/10.
Screen
The screen MENU is only for the VGA input. You can adjust horizontal, vertical position, size and phase.
EDID
The EDID MENU adjusts HDMI and DisplayPort inputs only.
EDID1.4
4K2K30,PCM 2.0
EDID2.0
4K2K60,PCM 2.0
EDID From HDMI
EDID copy from local HDMI port
EDID From HDBT
EDID copy from HDBaseT Receiver HDMI port
EDID AUTO
Auto compare HDMI and HDBT Receiver HDMI port EDID
User Manual English
Audio Setting
The Audio Setting MENU switches between Embedded or External analog audio for each HDMI and DP
input port.
MIC mixer on: The switch will mix the source audio and MIC audio to the audio output (HDMI, HDBT,
Audio output port).
MIC mixer auto: The switch will reduce the source audio volume automatically when it detects the MIC
audio input.
MIC mixer off: The switch will mute the MIC input audio.
Network
The network MENU will display the IP address and allow either a DHCP or static IP to be set.
Resolution
The switch supports multiple HDMI output resolutions. Press the “RES” button on the IR remote, the
resolution menu will be displayed. Then select a suitable resolution for your HDTV or monitor. Auto
means that the HDMI resolution is based on the EDID information read from the display device.
User Manual English
Remote Control
Power: Press this button to power on the switch or turn to standby mode.
INPUT: Press these buttons to select the input source.
ADJ: Press this button to operate the VGA input auto adjustment function
RES: Press this button to select the HDMI output resolution. (Press and
hold 5 seconds or more and the HDMI output resolution will reset to 720p
60Hz.)
Menu operation buttons:
MENU: Press this button to enter the OSD menu.
EXIT: Press this button to exit the OSD menu.
OK: Press this button to confirm the operation.
UP/DOWN/LEFT/RIGHT buttons: Selection operation.
VOLUME: Control master audio volume.
MIC: Control MIC input audio volume.
1) Control far-end device locally
To control the switch or a remote display device by using the corresponding remote controller.
2) Control local device from remote
To control the switch or local source device by using the corresponding remote controller.
