Lindy 51170 Manuel utilisateur

2 Port SATA II - 3Gbps

PCI-Express Card

User Manual

English

LINDY No. 51170

www.LINDY.com

- 2 -

1. Introduction

This Low Profile PCI Host Adapter is a PCI-Express controller board which supports

low profile PCI and regular size PCI interfaces in one card. The card can upgrade your

desktop computer to have 2 Serial ATA ports with transfer rates of up to of 3 Gb/s (300

MB/s).

The SATA ports can access SATA storage media such as hard disk drives, Zip drives,

CD-ROM, CD-RW, DVD-ROM and DVD-RAM drives.

It comes with drivers for Windows NT4.0, XP, 2000, Server2003.

1.1. Features

 External SATA II (eSATA) Connector

 48 bit LBA supports HDD larger than 137GB

 Supports 1-lane 2.5Gbps PCI Express

 Hot-plug capability

 Supports SATA II transfer rate of 3.0Gbps

 Fully compliant with Serial ATA 1.0 specifications

 Supports two independent Serial ATA channels

 Independent Link, Transport, and data FIFO

 Independent command fetch, scatter/gather, and command execution

 Supports Legacy Command Queuing (LCQ)

 Supports Native Command Queuing (NCQ)

 Supports Non-zero offsets NCQ

 Supports Out of order data delivery NCQ

 Supports FIS-based switching with Port Multipliers

 31 Commands and Scatter/Gather Tables per Port

 Two pin headers on board for LED connection

 Complete with drivers for Windows NT, Windows 2000, Windows XP and Windows

Server 2003

- 3 -

1.2. Package Contents

 SATA PCI Express Card

 This User’s Manual

 Driver CD

1.3. Mini DIN 1.5A 5V & 2A 12V Power Source for External Devices

2. Installation

2.1. Windows NT 4.0, Windows 2000/XP or Windows Server 2003 fresh

OS installation

Follow the instructions in this section if you are performing a new installation

of Windows NT 4.0, 2000/XP or Server 2003 and you wish to boot from a

device attached to the SATA port.

1. Power off the system. Insert the SATA Card into an available PCI slot. Connect serial ATA

cable(s) between the SATA port and serial ATA device(s). Power up the system.

2. Put your Windows NT/2000/XP or Windows Server 2003 CD into the CD-ROM/DVD

drive or the NT/2000 boot diskette #1 in the floppy drive if your system cannot boot from

the CD.

- 4 -

3. Press F6 for third party SCSI or driver installation at the beginning of text mode

installation. Press 'S' when setup asks if you want to specify an additional device,

and insert the driver CD. Press 'Enter' and select 'Silicon Image SiI 3132 SATALink

Controller'.

4. Press 'Enter' again, when prompted, to continue with text mode setup.

5. Follow the setup instructions to select your choice for partition and file system.

6. After setup examines your disks, it will copy files from the CD to the hard drive selected

above and restart the system. After restart, the setup process will resume to finish the

installation.

7. Once the operating system installation has completed you can follow the instructions

in section 2.4 to verify controller was installed correctly.

2.2. Adding the card to an existing Windows NT installation

1. Power off the system. Insert the SATA Card into an available PCI slot. Connect serial ATA

cable(s) between the SATA port and serial ATA device(s). Power up the system.

2. After the OS boots up, click 'Start'

3. Under 'Settings', click 'Control Panel'.

4. Select 'SCSI Adapters' from the Control Panel.

5. Select the 'Drivers' tab and click 'Add'.

6. Click 'Have Disk'.

7. Specify a location, e.g. E:\SATA Express_2Port \Sil3132 \ WinXP_2000_2003_NT,

and click 'OPEN' then 'OK'

8. Choose 'Silicon Image SiI 3132 SATALink Controller' and click 'OK'.

9. After the driver installation has completed you can follow the instructions in section

2.4 to verify the controller was installed correctly.

2.3. Adding the card to an existing Windows 2000/XP or Windows Server

2003 installation

1. Power off the system. Insert the SATA Card into an available PCI slot. Connect serial ATA

cable(s) between the SATA port and serial ATA device(s). Power up the system.

2. During OS boot up, Windows will display the 'Found New Hardware Wizard',

'Mass Storage controller'.

3. Select 'Install from a list or specific location (Advanced)', and click 'Next', and

make sure the driver CD is in your CD-ROM/DVD drive.

4. Select 'Search for the best driver in these locations', and check 'Include this

location in the search:'. Uncheck the other boxes.

- 5 -

5. Type in E:\ (If your CD-ROM/DVD is E:\) and then click 'Browse'.

6. Specify a location, e.g. E:\SATA Express_2Port \Sil3132 \ WinXP_2000_2003_NT,

and click 'OPEN' then 'OK'

7. When the wizard indicates that it has found a driver for the device, click 'Next'

8. If the 'Hardware Installation' dialog appears, click 'Continue Anyway'

9. The wizard will now copy the required files to the system and start the driver. After

starting the driver, the wizard will display a completion dialog, click 'Finish' to exit the

wizard.

2.4.Verifying the installation under Windows NT, Windows 2000/XP and

Windows Server 2003

For Windows 2000/XP

2. Right click on the 'My Computer' icon, select 'Properties', left click on the

'Hardware' tab, and then on the 'Device Manager' button.

3. Double click on 'SCSI and RAID Controllers', if there is no yellow '! ' or ' ? ' in front

of 'Silicon Image SiI 3132 SATALink Controller', the driver has started correctly.

4. To view information about the devices attached to the controller, use the SiICfg Utility

and click on the device from the list.

For Windows NT 4.0

1. Double click on the ‘My Computer' icon, select 'Control Panel', click on the 'SCSI

Adapters' icon. 'Silicon Image SiI 3132 SATALink Controller' should be displayed

correctly under 'Device' and 'Driver' tab.

2. To view information about the devices attached to the controller, use the SiICfg Utility

and click on the device from the list.

2.5. Updating the driver in Windows NT 4.0

1. After the OS boots up, click 'Start'

2. Under 'Settings', click 'Control Panel'.

3. Select 'SCSI Adapters' from the Control Panel.

4. Select the 'Drivers' tab and click 'Add'.

5. Click 'Have Disk'.

6. Insert the Driver CD in your CD-ROM/DVD drive and press 'Enter'.

7. Choose ' E:\SATA Express_2Port \Sil3132 \ WinXP_2000_2003_NT ' and click

'OK'.

8. Refer to the instructions in section 2.4 to verify the controller was installed correctly.

- 6 -

2.6. Updating the driver in Windows 2000/XP or Windows Server 2003

1. Right click on 'My Computer' and select 'Properties'. Under the 'System

Properties' section, click on the 'Hardware' tab, and then on 'Device Manager'.

Click 'SCSI and RAID Controllers' and right click 'Silicon Image SiI 3132

SATALink Controller' then select 'Properties' from the context menu.

2. Click 'Driver','Update Driver' and select 'Search for a suitable driver for my

device [Recommended]'. Insert the driver CD into your CD-ROM/DVD drive. Click

'Next' and complete the driver installation.

3. The system will go through the enumeration process and install the driver. At the end

of the process, click 'Yes' to reboot your system where necessary.

4. See the instructions in section 2.4 to verify the controller was installed correctly.

- 7 -

This device complies with Part 15 of the FCC Rules.

Operation is subject to the followin

two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operations.

Table des matières

Autres manuels Lindy Carte PCI

Lindy

Lindy PCI 1S (16C950 128 FIFO) Manuel utilisateur

Lindy

Lindy 70584 Manuel utilisateur

Lindy

Lindy RS-422/485 Manuel utilisateur

Lindy

Lindy 51051 Manuel utilisateur

Lindy

Lindy 51115 Manuel utilisateur

Lindy

Lindy PCMCIA/CardBus Adapter Card 51103 Manuel utilisateur

Lindy

Lindy 51125 Manuel utilisateur

Lindy

Lindy 51274 Manuel utilisateur

Lindy

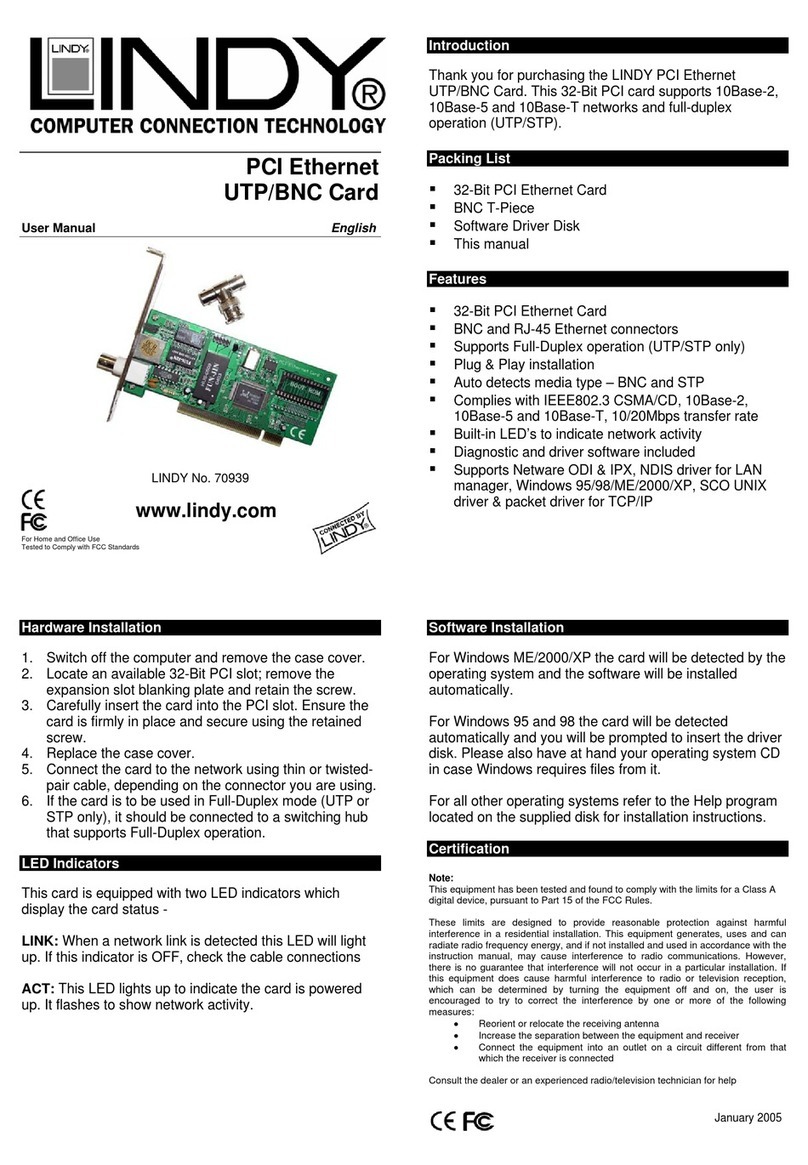

Lindy 70939 Manuel utilisateur
