Flexcut 80 Torch Posioning Procedure

DOC #:7214-0-US70-080818-DS-02-02

Rev#:00

Rev Date:8/8/2018

support@torchmate.com

Proprietary & Confidential: This document contains proprietary information owned by Lincoln Electric Cutting Systems, Inc. and may not be duplicated, communicated to other parties, or used for any

purpose without the express written permission of Lincoln Electric Cutting Systems, Inc.

THIS DOCUMENT IS VALID FOR 24 HOURS AFTER PRINTING – Dated: 6/7/2018

Flexcut 80 Torch Posioning Procedure

Summary: The purpose of the instrucons below are to explain how change the

posion of the LC105/100M within the torch holder clamps, per OEM

specicaon.

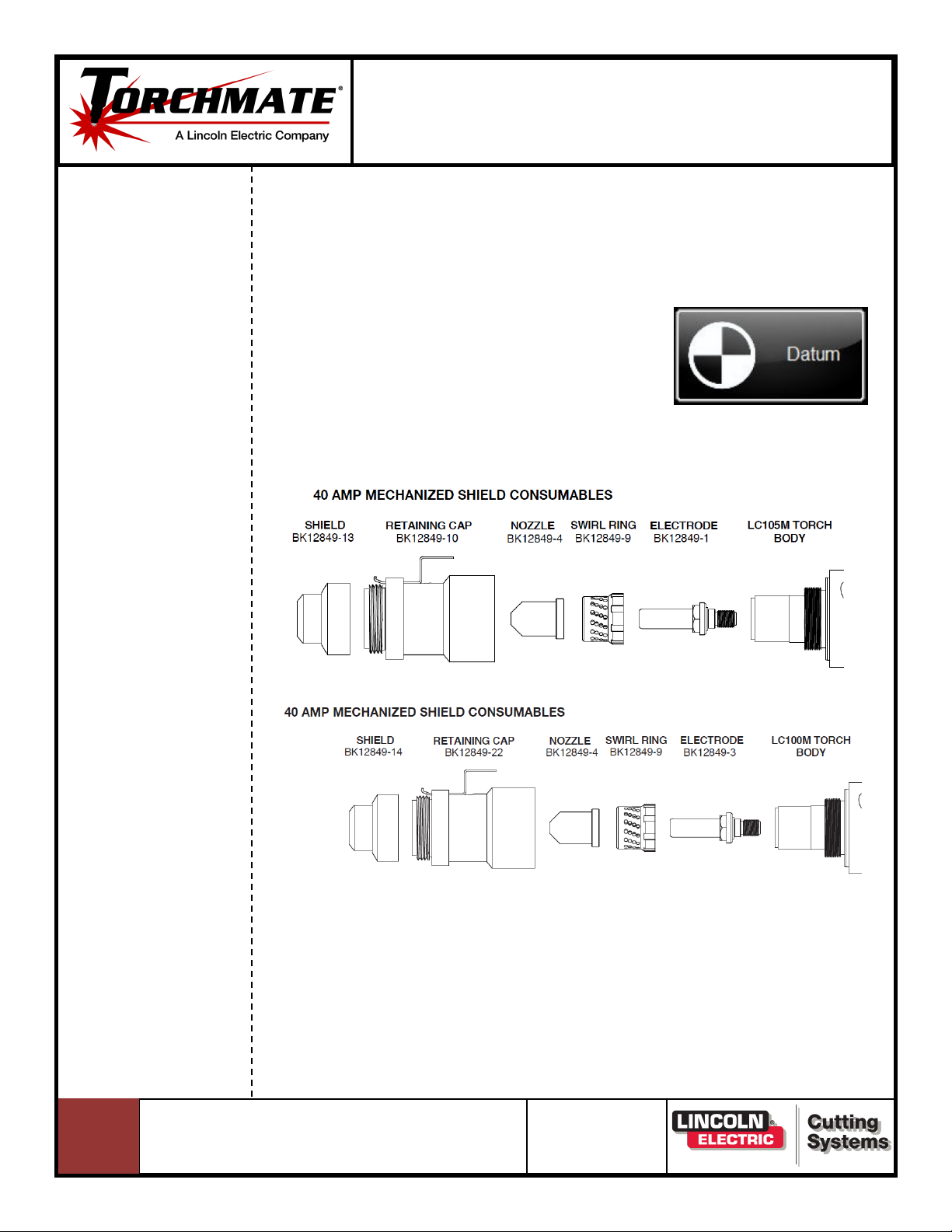

Step 1: Datum the machine.

Step 2: Install the 40 amp consumable stack to the LC105/100M torch.

LC105M:

LC100M:

Step 3: Jog the machine, in the X and Y axis, to a posion between two slats.

Step 4: Jog the Z axis down to the end of its travel.

22

Flexcut 80 Torch Posioning Procedure

DOC #:7214-0-US70-080818-DS-02-02

Rev#:00

Rev Date:8/8/2018

support@torchmate.com

Proprietary & Confidential: This document contains proprietary information owned by Lincoln Electric Cutting Systems, Inc. and may not be duplicated, communicated to other parties, or used for any

purpose without the express written permission of Lincoln Electric Cutting Systems, Inc.

THIS DOCUMENT IS VALID FOR 24 HOURS AFTER PRINTING – Dated: 6/7/2018

Flexcut 80 Torch Posioning Procedure

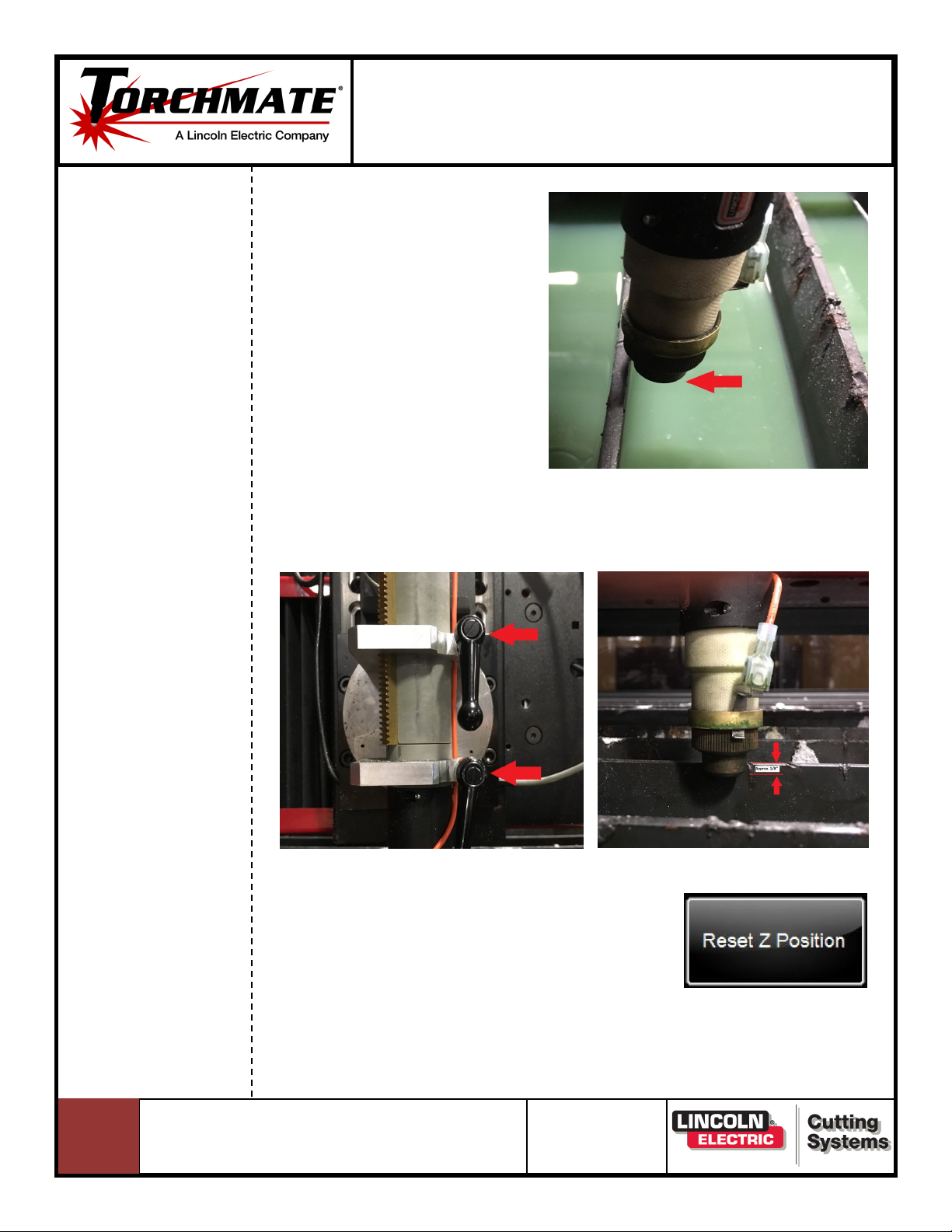

Step 5: Jog the X and Y axis so that the

torch head is near one of the two

slats.

Step 6: Loosen torch clamps and slide torch down to where boom of shield cap is

approximately 1/8” below top of slat. Once adjusted ghten the torch

clamps

Step 6: Reset the Z Posion
