Linak DESKLINE DB5 Manuel utilisateur

Page 1 of 28

LINAK.COM/DESKLINE

DB5/DB6 system

User manual

Page 2 of 28

Contents

Preface.............................................................................................................................................. 3

Important information ................................................................................................................... 4

Safety instructions.......................................................................................................................... 4

Before installation, re-installation or troubleshooting.................................................................... 4

Before start-up ............................................................................................................................ 4

During operation.......................................................................................................................... 5

Repairs.............................................................................................................................................. 5

Manufacturer’s declaration............................................................................................................ 5

Misc. on the DESKLINE®DB5/DB6 system.................................................................................... 6

Description of the DESKLINE® DB5/DB6 system.......................................................................... 7

Mounting guidelines for the DESKLINE®DB5 system ................................................................ 8

Mounting guidelines for the DESKLINE®DB6 system ............................................................... 11

Mounting guidelines CBD4/CBD5/CBD6...................................................................................... 14

Electrical connection of the DB5/DB6 system ........................................................................... 15

Initialisation of the DESKLINE®DB5/DB6 parallel systems....................................................... 16

Accessories .................................................................................................................................... 17

Disposal of LINAK’s products........................................................................................................ 18

Labels ............................................................................................................................................. 19

Drawing appendix.......................................................................................................................... 21

Addresses........................................................................................................................................ 28

Page 3 of 28

Preface

Dear User,

We are delighted that you have chosen a product from LINAK®.

LINAK systems are high-tech products based on many years of experience in the manufacture and development

of actuators, electric control boxes, controls and chargers.

This User Manual does not address the end-user. It is intended as a source of information for the manufacturer

of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It

is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety

information from this manual is passed on to the end-user.

We are sure that your LINAK product will give you many years of problem-free operation.

Before our products leave the factory they undergo full function and quality testing. Should you nevertheless

experience problems with your systems, you are always welcome to contact your local dealer.

LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are

always ready to help you.

LINAK provides a limited warranty on its products. This warranty is, however, subject to correct use in

accordance with the speciﬁcations, maintenance being done correctly, and any repairs being carried out at a

service centre, which is authorised to repair LINAK products. Changes in installation and use of LINAK products/

systems can affect their operation and durability. The products are not to be opened by unauthorised personnel.

You can review the full terms of the LINAK warranty on the LINAK website www.linak.com/warranty.

The User Manual has been written based on of our present technical knowledge. We are constantly working on

updating the information and we therefore reserve the right to carry out technical modiﬁcations.

LINAK A/S

Page 4 of 28

Safety instruction

General

Important information

Important information on LINAK®products can be found under the following

headings:

Warning!

Failure to comply with these instructions may result in accidents involving

serious personal injury.

Failing to follow these instructions can result in the product being damaged

or being destroyed.

Safe use of the system is possible only when the operating instructions are read

completely and the instructions contained are strictly observed.

Failure to comply with instructions marked with the ”NOTE” symbol may result in

serious damage to the system or one of its components.

It is important for everyone who is to connect, install, or use the systems to

have the necessary information and access to this User Manual. Follow the

instructions for mounting – risk of injury if these instructions are not followed.

The appliance is not intended for use by young children or inﬁrm persons

without supervision.

If there is visible damage on the product it must not be installed.

Note that during construction of applications, in which the actuator is to

be fitted, there must be no possibility of personal injury, for example the

squeezing of fingers or arms.

Assure free space for movement of application in both directions to avoid

blockade.

Page 5 of 28

Before installation, reinstallation or troubleshooting:

• Stop the DB5/DB6

• Switch off the power supply and pull out the mains plug.

• Relieve the DB5/DB6 of any loads, which may be released during the work.

Before start-up:

• Make sure that the system has been installed as instructed in this User Manual.

• Make sure that the voltage at the control box is correct before the system is

connected to the mains.

• System connection. The individual parts must be connected before the control box

is connected to the mains. See the User Manual for LINAK actuators, if necessary.

During operation

• If the control box makes unusual noises or smells switch off the mains voltage

immediately.

• Take care that the cables are not damaged.

• Unplug the mains cable on mobile equipment before it is moved.

• The products must only be used in an environment, which corresponds to their IP

protection.

Misc.

The actuator system has a sound level below 55dB(A) in typical applications.

Updated manuals and declarations can always be found here:

www.linak.com/deskline

Page 6 of 28

Only for EU markets

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved.

Children shall not play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

Only for Non EU markets

Persons who do not have the necessary experience or knowledge of the

product/products must not use the product/products. Besides, persons with

reduced physical, sensory or mental abilities must not use the product/

products, unless they are under surveillance or they have been thoroughly

instructed in the use of the apparatus by a person who is responsible for the

safety of these persons.

Moreover, children must be under surveillance to ensure that they do not

play with the product.

It is the operator’s responsibility to ensure that there is free space for the

application to move without risk for the operator or bystanders before

operating the application.

Misuse

Do not overload the actuators – this can cause danger of personal injury and

damage to the system.

Do not use the actuator system for lifting persons. Do not sit or stand on a

table while operating – risk of personal injury.

Do not use the system in environments other than the intended indoor use

Page 7 of 28

Repairs

In order to avoid the risk of malfunction, all DESKLINE®repairs must only be carried out by authorised LINAK service centres or

repairers, as special tools must be used and special gaskets must be ﬁtted. Products under warranty must also be returned to

authorised LINAK service centres.

Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty.

Warning!

If any of the DESKLINE®products are opened, there will be a risk of subsequent malfunction.

Warning!

The DESKLINE®systems do not withstand cutting oil.

DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY

LINAK A/S

Smedevænget 8

DK -6430 Nordborg

Herewith declares that LINAK DESKLINE®products as characterized by the following models and types:

Control Boxes CBD6S

Linear ActuatorsDB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31

Lifting ColumnsDL1A, DL2, DL4S, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15,

DL16,DL17, DL19, BASE1

Desk PanelsDPA, DPB, DPH, DPF, DPG1K, DPG1M, DPG1B, DPG1C, DPT, DP1, DP1CS,

DP1K, DP1V, DP1U

RF ControlsHB10RF,HB20RF, RFT, RFRL

Accessories BA001, SLS, Kick & Click

comply with the following parts of the Machinery Directive 2006/42/EC,ANNEX I,Essential health and

safety requirements relating to the design and construction of machinery:

1.5.1 Electricity supply

The relevant technical documentation is compiled in accordance with part B of Annex VII and that this

documentation or part hereof will be transmitted by post or electronically to a reasoned request by the

national authorities.

This partly completed machinery must not be put into service until the final machinery into

which it is to be incorporated has been declared in conformity with the provisions of the

Machinery Directive 2006/42/EC where appropriate.

Nordborg, 2017-12-08

LINAK A/S

John Kling, B.Sc.E.E.

Certification and Regulatory Affairs

Authorized to compile the relevant technical documentation

Original Declaration

Page 8 of 28

Misc. on the DESKLINE®DB5/DB6 system

This system is a DESKLINE system developed for desks and for indoor use in ofﬁces. Do not use it in industrial kitchens or in

other enviroments that have to be cleaned with aggressive detergents.

Do not bolt the legs to the ﬂoor so that free movement is prevented. This could cause serious damage to the legs in fault

situations.

Warranty

This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK

website www.linak.com/warranty.

Maintenance

Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.

Inspect the connections, cables, and plugs and check for correct functioning as well as ﬁxing points.

Service of double-insulated products:

Class II

A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a

safety connection to electrical earth (US: ground).

The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an

electric shock and that this is achieved without relying on an earthed metal casing. This is usually achieved at least in part by

having two layers of insulating material surrounding live parts or by using reinforced insulation.

There is no earthing/grounding means provided on the product, and no earthing/grounding means is to be added to the

product.

In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or bear the double insulation symbol

(a square inside another square).

Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualiﬁed

service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace.

The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).

Page 9 of 28

Description of the DESKLINE®DB5/DB6 system

Each DESKLINE®DB5/DB6 actuator is equipped with a motor and parallel/memory drive is ensured by means of software in

the CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software,

which ensures a soft start and stop when adjusting the desk.

Application of the DESKLINE®DB5/DB6 system:

Irrespective of the load the duty cycle 10% ~ 6 min./ hour or max. 2 min. at continuous use stated in the data sheets,

must NOT be exceeded as this will result in a superheating of the motor, the brake and the spindle nut. Exceeding the duty

cycle will result in a dramatic reduction of the life of the system.

The system must not be allowed to collide with and be blocked by an external object. In such a case the working parts of DB5/

DB6 can be damaged. If the system collides with an object e.g. If the desktop is stopped by a window ledge, then the system

should be examined to see as to whether the DB5/DB6 still functions correctly.

The DESKLINE®DB5/DB6 system range contains following products:

• 1 control box CBD4/CBD5/CBD6

• 1 single DB5/DB6 or 2, 3, or 4 parallel

• 1 exchangeable mains cable

• 1, 2, 3, or 4 motor cables

• 1 DP1U/DPF1M (if memory function is required) or 1 DPA/DPB/DP1K/DP1V/DPF1K (if only up/down is required.)

Page 10 of 28

Mounting guidelines for the DESKLINE®DB5 system

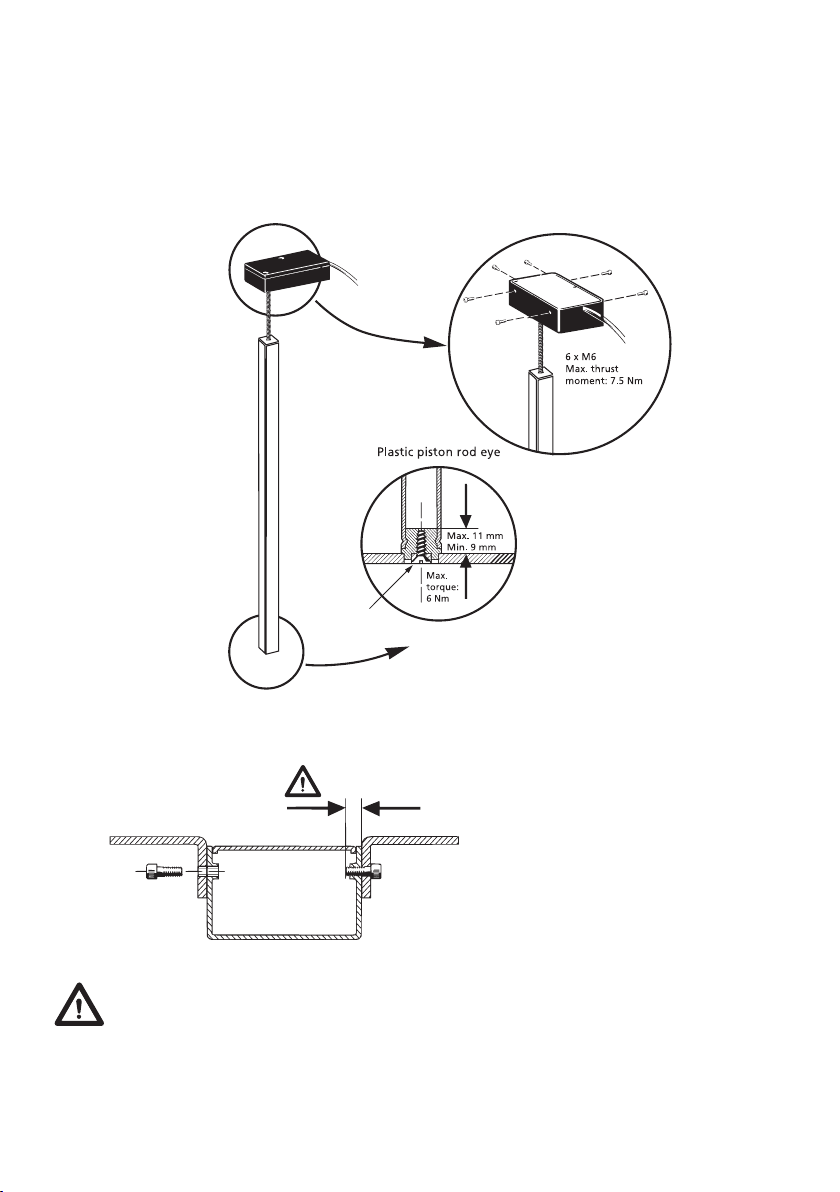

Figure 1

(Example of how to mount the DB5)

2 pcs. self

cutting plastic

screw Type K50

It is important that the correct screws are used.

Check that the screws are ﬁtted correctly to ensure a correct function to prevent the guidance from coming apart

when the desktop is lifted.

Max. 10 mm

DB5/DB6

motor housing

The motor housing is supplied with 6 pcs. M6 threaded holes meant for mounting on the desk frame. We advise you to fasten

the desk frame by means of 6 pcs. M6 screws of a good quality and a suitable length, which must not go further into the

motor housing than max.10 mm. The thrust moment must not exceed 7.5 Nm.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Linak Contrôleurs

Linak

Linak LA20 Manuel utilisateur

Linak

Linak ACTUATOR LA36 Manuel utilisateur

Linak

Linak TR-EM-288-SPF Manuel utilisateur

Linak

Linak TECHLINE LA36 Manuel d'instructions

Linak

Linak HOMELINE KA20IC2 Manuel utilisateur

Linak

Linak TWINDRIVE TD1 280 Manuel utilisateur

Linak

Linak LA12 Manuel utilisateur

Linak

Linak TECHLINE LA25 Manuel d'instructions

Linak

Linak TR-EM-288 Manuel utilisateur

Linak

Linak Homeline TWINDRIVE TD5 Standard Manuel utilisateur

Linak

Linak Techline Linear Actuator Technology Manuel utilisateur

Linak

Linak Homeline KA20IC Manuel utilisateur

Linak

Linak DPA Manuel utilisateur

Linak

Linak TD4 Manuel utilisateur

Linak

Linak LA43IC Manuel utilisateur

Linak

Linak TECHLINE LA35 Manuel utilisateur

Linak

Linak TECHLINE IO-Link LA25 Manuel utilisateur

Linak

Linak TECHLINE LA33 Manuel utilisateur

Linak

Linak 273 Series Manuel utilisateur

Linak

Linak DL12 Manuel utilisateur

Linak

Linak BusLink LA25 Manuel utilisateur

Linak

Linak ACTUATOR LA36 Manuel utilisateur

Linak

Linak ACTUATOR LA36 Manuel utilisateur

Linak

Linak TWINDRIVE TD32 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
