PAR4OWNERS MANUAL Page 1 of 4

MULTIPLE LENS PAR FIXTURE Version 20100224

INTRODUCTION

Thank you for purchasing the PAR4lighting fixture.

This manual contains important information about safe

installation and use of this fixture. Please read and

follow these instructions carefully and keep this

manual for future reference.

The PAR4is suitable for stage, disco, night club, and

other artistic applications.

The housing is a high quality aluminum alloy with an

insulating paint finish.

The PAR4 includes a lens rotation ring to enable beam

adjustments. A gel filter holder is also provided. The

product complies with CE norms and standards.

The fixture is supplied with four interchangeable high

quality lenses to cover various lighting applications.

SAFE USAGE

Disconnect the fixture from the power when it is not in

use, before cleaning it, or before any maintenance.

The fixture must be located a minimum of 1.5 meters

from flammable materials.

Do not touch any part if the fixture during operation.

It can operate at temperatures which can cause severe

burns.

Avoid direct exposure to the light from the lamp. The

light can be bright enough to harm the eye.

Keep the lamp and lens clean. Do not touch the lamp

glass and lens with bare hands.

Do not operate the lamp unless the lamp holder is

installed in the fixture.

Replace the lamp if it becomes damaged or deformed.

Replace the lens if it becomes cracked or scratched.

Do not project the beam onto nearby flammable

surfaces. The minimum distance is 5 meters.

VNS Very Narrow Spot NS Narrow Spot

MF Medium Flood WF Wide Flood

Clear Lens

rox. 15º Beam Diffused Lens

rox. 19º Beam

Oval Beam

rox. 20º X 35º

Oval Beam

rox. 30º X 50º

PAR4INSTRUCTION MANUAL Page 2 of 4

MULTIPLE LENS PAR FIXTURE Version 20100224

INSTALLATION

MOUNTING

CAUTION RISK OF FIRE

The fixture must be located a minimum

of 1.5 meters from flammable objects.

Make sure that all power is disconnected from the

fixture before proceeding.

The fixture is for INDOOR USE ONLY. Use only in

dry locations. Keep this device away from moisture,

excessive heat, humidity and dust. Do not mount the

fixture directly on or to a flammable surface. Maintain

a 1.5 meter clearance from flammable objects.

The fixture must be installed in a location with

adequate ventilation, at least 1.5 meters from adjacent

surfaces. Do not allow vent holes to be blocked.

This unit is designed to be hung via its yoke using M12

or 1/2" size bolt. Ensure that the fixture is firmly

attached to avoid vibration and slipping. Ensure that

supporting structure is able to support the weight of all

fixtures installed. The unit should also be secured with

a safety cable through one of the holes on the yoke.

To adjust the tilt angle of the body, loosen the yoke

locking knob and adjust as needed. Ensure that the

locking knob is tightened down when finished.

POWER CONNECTIONS

CAUTION - RISK OF ELECTRIC SHOCK

The fixture must be correctly grounded

and must be installed to comply to all

applicable regulations.

The unit is supplied with a power cable and may be

provided with a power cable connector. The GREEN /

YELLOW conductor in the power cable is connected

to the fixture case as a safety ground. This conductor

must be used if installing a alternate cable connector.

LAMP REMOVAL / INSTALLATION

The PAR4fixture uses a OSRAM GLA/575 or

GLE/750 (G9.5 Base) lamp. Before installing a lamp

verify that the lamp is compatible with the voltage at

your facility. Operating lamps beyond their rated

voltage reduces lamp life and can cause other lamp

failures.

Disconnect all power from the fixture.

Allow the fixture to cool off before proceeding.

LAMP REMOVAL

1. Remove the lamp holder from the main housing

using the knurled knob at the rear of the fixture.

2. Do not touch the glass envelope of the lamp.

Remove the lamp from the lamp holder by pulling it

straight out of the lamp holder socket.

LAMP INSTALLATION

1. Remove the lamp holder from the main housing

using the knurled knob at the rear of the fixture.

2. Insert the lamp in the lamp holder socket. Do not

touch the lamp glass envelope with your fingers.

Do not operate the lamp unless the lamp holder is

installed in the fixture!

3. Install the lamp holder in the main housing and

tighten the knob.

LENS REMOVAL / INSTALLATION

The PAR4contains lens rotation ring which is located

near the front of the housing. The lens is held in place

by two small fixed tabs on one side of the lens rotation

ring and a larger metal release tab on the other side.

Disconnect all power from the fixture.

Allow the fixture to cool off before proceeding.

Do not remove or install the lens while the unit is

hanging up. The lens can easily fall out if released.

Rotation Ring

Release Tab

PAR4INSTRUCTION MANUAL Page 3 of 4

MULTIPLE LENS PAR FIXTURE Version 20100224

LENS REMOVAL

1. Place the fixture on a horizontal surface with the

lens down.

2. Turn the lens rotation ring until the metal release

tab is 90ºaway from the gel retaining clip on the

housing.

3. Hold one hand under the lens and press the metal

release tab to release it. Allow the lens to carefully

drop out of the fixture.

LENS INSTALLATION

1. Place the fixture on a horizontal surface.

2. Turn the lens rotation ring until the metal release

tab is 90ºaway from the gel retaining clip on the

housing.

3. Slide the one edge of the lens edge under the fixed

tabs on the lens rotation ring.

4. Press the other edge of the lens down until it is

captured by the metal release tab of the rotation

ring.

OPERATION

CAUTION - HOT SURFACES

Do not touch any part if the fixture

during operation. It can operate at

temperatures which can cause severe

burns.

Do not operate the lamp unless the lamp holder is

installed in the fixture!

The lens and gel holder must be installed when the

fixture is operating.

Do not project the beam onto nearby flammable

surfaces. The minimum distance is 5 meters.

The lens may be rotated to adjust beam alignment.

This is done by rotating the lens rotation ring located

near the front of the fixture.

Once correctly installed, the fixture may be operated

by applying power via a dimmer or other compatible

power.

Switching the lamp on and off at short intervals will

reduce the life of both the lamp and the fixture.

MAINTENANCE

CAUTION RISK OF ELECTRIC SHOCK

Disconnect the fixture from power

before handling.

CAUTION - HOT SURFACES

Allow the fixture to cool off before

handling.

To ensure the reliability of the fixture it should be kept

clean. The lens and reflector should be regularly

cleaned to maintain an optimum light output.

Do not use any organic solvent, e.g. alcohol, to clean

the housing. Do NOT use glass cleaner or any type of

solvent on the reflector. When cleaning the reflector

use a damp, clean, soft, lint-free cotton cloth with a

mild, soapy water solution and gently wipe the

reflector, and then remove any soapy water residue

with a clean, soft, lint-free cotton cloth.

Do not use rough surface materials to wipe the

reflector. Cleaning frequency depends on the

environment in which the fixture operates. Moisture,

smoke or particularly dirty surroundings can cause

greater accumulation of dirt on the unit’s optics. It is

recommended that the lens be cleaned at least once

every 20 days. Clean the reflector at least once every

30 / 60 days.

TECHNICAL SPECIFICATIONS

Power Supply: 120 VAC, 60 Hz

Power Consumption: 800 Watts MAX

Dimensions: 255mm D x 280mm W x 290mm H

Weight: 4 kg

Lamp:OSRAM GLA/575 or GLE/750 (G9.5 Base)

Maximum Ambient Temperature: 45° C

Maximum Housing Temperature: 160° C

This product is warranted for a period of TWO YEARS from the date of purchase against

defects in materials and workmanship.

This warranty is subject to the following restrictions and conditions:

A) If service is required, you may be asked to provide proof of purchase from an authorized

Lightronics dealer.

B) This warranty is valid only for the original purchaser of the unit.

C) This warranty does not apply to damage resulting from abuse, misuse, accidents, shipping,

and repairs or modifications by anyone other than an authorized Lightronics service

representative.

D) This warranty is void if the serial number is removed, altered or defaced.

E) This warranty does not cover loss or damage, direct or indirect arising from the use or

inability to use this product.

F) Lightronics reserves the right to make any changes, modifications, or updates as deemed

appropriate by Lightronics to products returned for service. Such changes may be made

without prior notification to the user and without incurring any responsibility or liability for

modifications or changes to equipment previously supplied. Lightronics is not responsible

for supplying new equipment in accordance with any earlier specifications.

G) This warranty is the only warranty either expressed, implied, or statutory, upon which the

equipment is purchased. No representatives, dealers or any of their agents are authorized

to make any warranties, guarantees, or representations other than expressly stated herein.

H) This warranty does not cover the cost of shipping products to or from Lightronics for

service.

I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty

without prior notification.

Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 20100211

ARRANT

Autres manuels Lightronics Luminaire

Lightronics

Lightronics FXLD312R3I Manuel utilisateur

Lightronics

Lightronics FXLE1232W Manuel utilisateur

Lightronics

Lightronics FXLD818FRP4I Manuel utilisateur

Lightronics

Lightronics FXLD618C2I Manuel utilisateur

Lightronics

Lightronics FXLD818FRP4I Manuel utilisateur

Lightronics

Lightronics FXLD100ECMY26B Manuel utilisateur

Lightronics

Lightronics FXLD1036C4O Manuel utilisateur

Lightronics

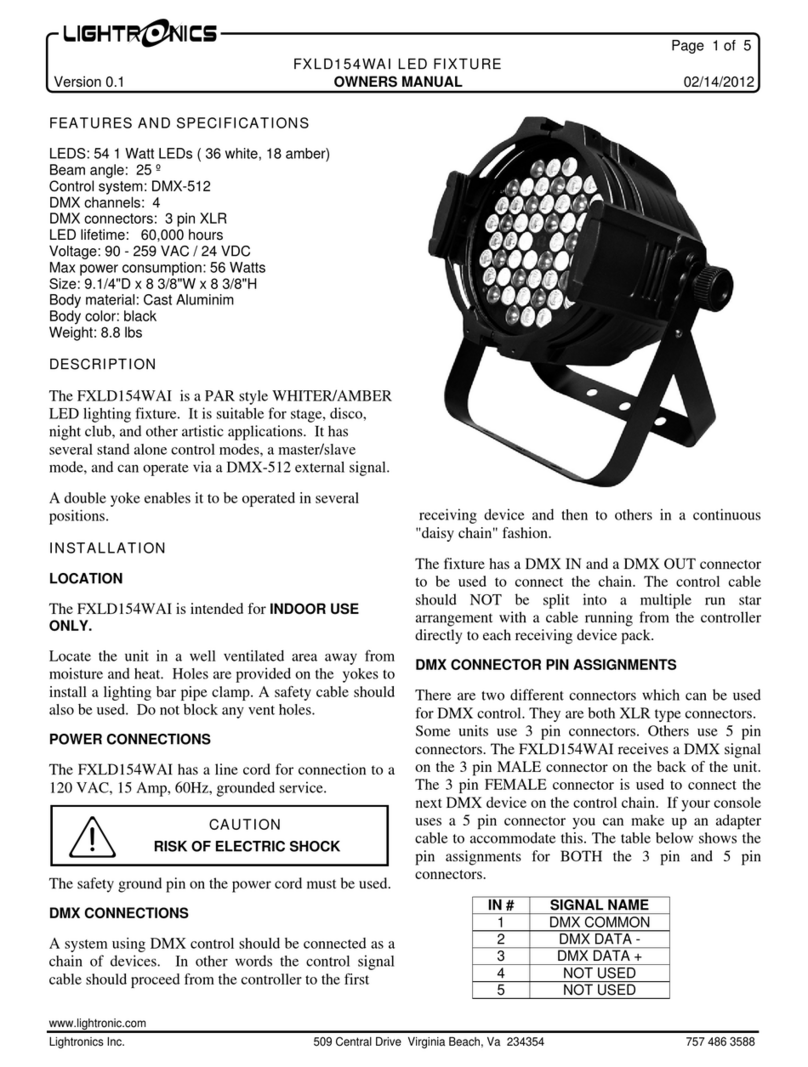

Lightronics FXLD154WAI Manuel utilisateur

Lightronics

Lightronics FXLD354WAO Manuel utilisateur

Lightronics

Lightronics FXLD348R3I Manuel utilisateur

Lightronics

Lightronics FXLD312R3I Manuel utilisateur

Lightronics

Lightronics FXLD68FP2I Manuel utilisateur

Lightronics

Lightronics FXLD127FR5I Manuel utilisateur

Lightronics

Lightronics FXLD354WAI Manuel utilisateur

Lightronics

Lightronics FXLD120EW Manuel utilisateur

Lightronics

Lightronics PROFILE SPOT575 Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur
