Lightolier Calculite 8068 Manuel utilisateur

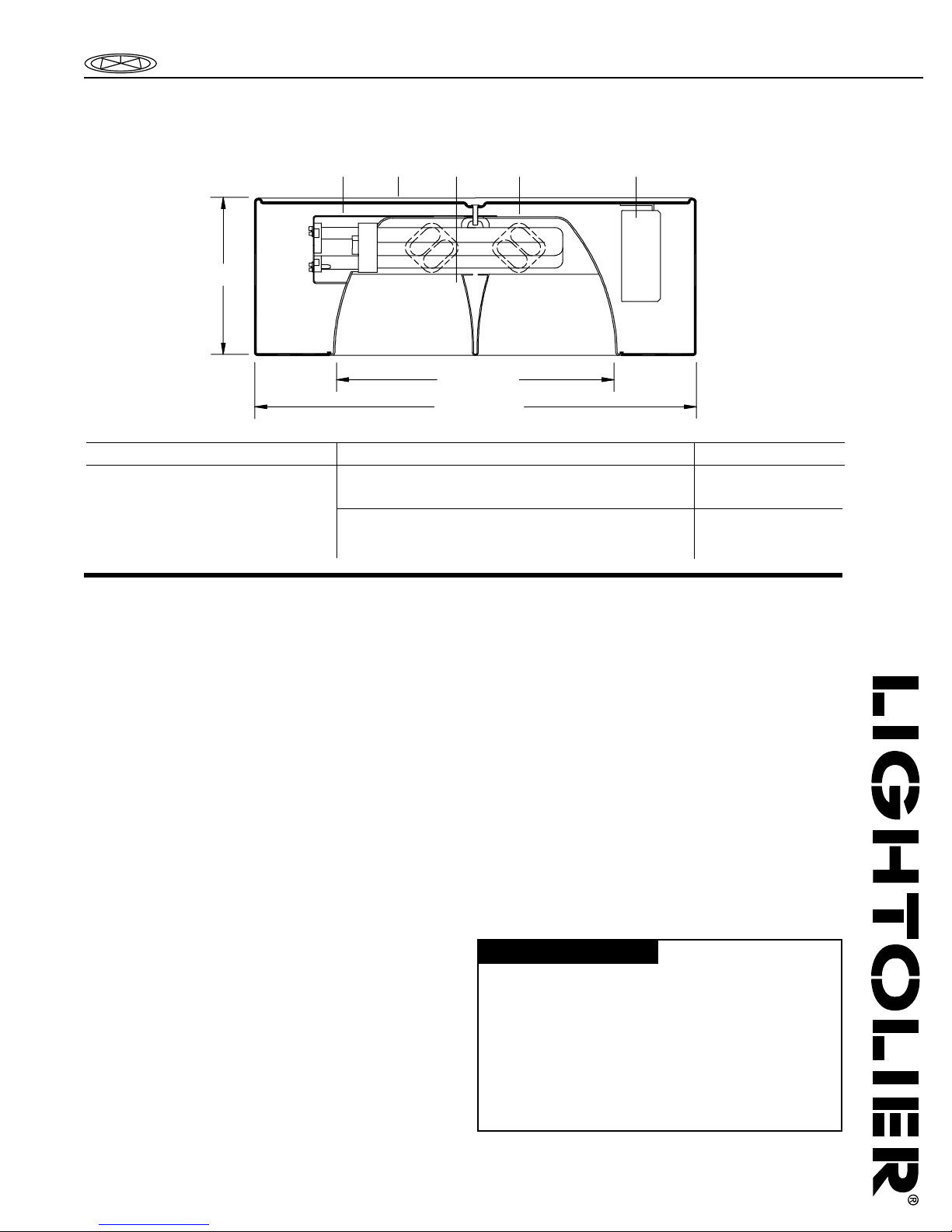

5 3/8"

8 3/4" Dia.

432 1 5

13 1/2" Dia.

Calculite®Surface Cylinder CFL Downlight 8068/CS8

Page 1 of 2 8 3/4” Aperture Quad Tube Parabolic Louver

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Reflector: Alzak®aluminum, 16 ga. 50° visual cutoff to lamp and lamp

image. Iridescence FreeTM finish eliminates rainbowing without degrading

optical performance. Mininum flange.

2. Parabolic Louver: Prefinished reflector aluminum, 50° visual cutoff to lamp

and lamp image. Removable and keyed for orientation. Louver/reflector/sock-

et support can be rotated for horizontal alignment. Aperture appearance

matches recessed unit (see Specification Sheet No. 8068).

3. Housing Cylinder: 16 ga. seamless aluminum with returned edge precisely

seats flush with reflector without exposed edge. Painted white finish.

4. Socket Support: Die-formed steel with venting to dissipate heat and assure

lamps maintain proper optical alignment to reflector. Can be rotated with

reflector/louver for horizontal alignment. Pre-wired with No. 18 ga. AWM

leads.

5. Ballast: Universal 120-277V, electronic, short circuit and end-of-lamp life

protection, THD<10%, Class P, high power factor, No PCBs, FCC approved,

quiet operation. Dimming Range: 100% -10% for PowerSpec®;100% - 5% for

Advance Mark VII®. For additional information, see Ballast, Dim-Lol and

Dim-Advance Specification Sheets.

Options and Accessories

Other Dimming Ballasts Consult Factory

Stem Kit Consult Factory

Electrical

UL listed for 90°C supply conductors.

Dimming Control

Use with dimmers specially designed for use with dimming ballasts. For addi-

tional information, see Lightolier Controls Catalog, or contact Lightolier Controls

at 800-526-2731 or visit website at www.lolcontrols.com.

Labels

UL listed for damp locations, I.B.E.W.

Reflector Trim Cylinder Housing Kit Lamps

8068CL Specular Clear CS8218LPU Electronic 120V-277V 2-18W Quad Tube

8068CCL Comfort Clear™ CS8218LPDU PowerSpec®Dimming 120V-277V 4-Pin

8068CCD Comfort Clear Diffuse™

8068WH White CS8226LPU Electronic 120V-277V 2-26W Quad Tube

CS8226LPDU PowerSpec®Dimming 120V-277V 4-PIN

CS8226LPJUM7 Advance Mark VII®Dimming 120V-277V

Alzak®is a registered trademark of ALCOA.

Mark VII®is a registered trademark of Advance Transformer Company.

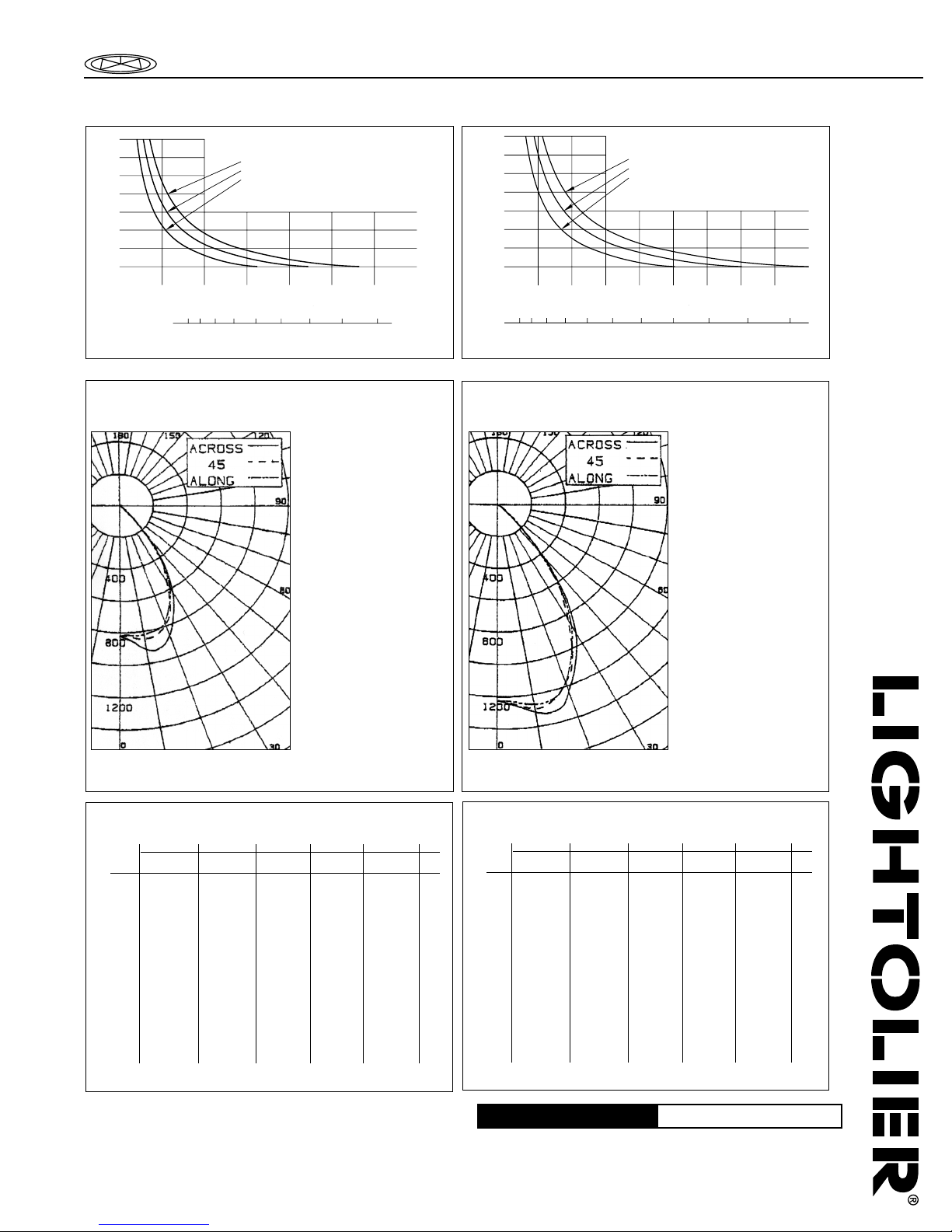

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

Use quick calculator chart to determine spacing of luminaires for desired level of illumination.

AREA PER FIXTURE IN SQUARE FEET

20 40 60 80 100 120

3 4 5 6 7 8 9 10 11

INITIAL FOOTCANDLES

Clear Alzak with 2-18W Quad Tube

1200 Lumens Per Lamp

RCR = 1 (60' x 60' x 8.5' room)

RCR = 5 (12' x 12' x 8.5' room)

RCR = 10 (6' x 6' x 8.5' room)

Room Surface Reflectances:

80% Ceiling; 50% Wall; 20% Floor

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

Use quick calculator chart to determine spacing of luminaires for desired level of illumination.

AREA PER FIXTURE IN SQUARE FEET

Clear Alzak with 2-26W Quad Tube

1800 Lumens Per Lamp

RCR = 1 (60' x 60' x 8.5' room)

RCR = 5 (12' x 12' x 8.5' room)

RCR = 10 (6' x 6' x 8.5' room)

Room Surface Reflectances:

80% Ceiling; 50% Wall; 20% Floor

INITIAL FOOTCANDLES

20 40 60 80 100 120 140 160

3 4 5 6 7 8 9 10 11 12 13

CANDLEPOWER DATA

IN 2.5 DEGREE STEPS

ALONG 22.5 45 67.5 ACROSS AVERAGE LUMENS

0 821 821 821 821 821

5 819 827 832 840 855 80

10 820 835 848 875 913

15 809 817 838 874 921 238

20 777 767 792 834 864

25 690 673 707 762 749 327

30 593 571 558 623 622

35 435 449 441 492 466 278

40 252 50 282 271 251

45 109 118 121 116 97 101

50 27 30 27 32 18

55 2 3 4 3 3 8

60 1 1 1 1 2

65 0 0 1 1 1 1

70 0 0 0 0 1

75 0 0 0 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

90 0 0 0 0 0

ZONE LUMENS LAMP LUMINAIRE

0-30 644 27.78 62.46

0-40 922 39.76 89.39

0-60 1031 44.45 99.93

0-90 1031 44.48 100.00

40-90 109 4.72 10.61

60-90 0 .03 .07

90-180 0 .00 .00

0-180 1031 44.48 100.00

** EFFICIENCY = 44.5% **

CANDLEPOWER DATA

IN 2.5 DEGREE STEPS

ALONG 22.5 45 67.5 ACROSS AVERAGE LUMENS

0 1225 1225 1225 1225 1225

5 1235 1237 1249 1255 1257 119

10 1258 1268 1286 1300 1310

15 1252 1249 1261 1288 1324 356

20 1174 1161 1176 1224 1232

25 1032 1004 1045 1119 1088 483

30 866 829 825 937 919

35 640 662 642 734 686 411

40 367 374 410 424 395

45 161 171 180 174 136 150

50 38 46 47 43 22

55 2 3 5 5 3 11

60 1 1 1 1 1

65 0 0 0 0 0 0

70 0 0 0 0 0

75 0 0 0 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

90 0 0 0 0 0

ZONE LUMENS LAMP LUMINAIRE

0-30 958 26.62 62.58

0-40 1369 38.04 89.44

0-60 1531 42.53 99.98

0-90 1531 42.53 100.00

40-90 161 4.49 10.56

60-90 0 .01 .02

90-180 0 .00 .00

0-180 1531 42.53 100.00

** EFFICIENCY = 42.5% **

CERTIFIED TEST REPORT NO. 1133FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

CALCULITE LOW PROFILE RECESSED 8” HORIZONTAL COMPACT FLUORESCENT DOWNLIGHT

CAT.#8068CLW/8218LPU, SPECULAR CLEAR REFLECTOR AND CROSS BLADE

2-18W QUAD TUBE G.E. COMPACT FLUORESCENT LAMPS. LUMEN RATING = 1160 LMS.

MAGNETEK BALLAST,CAT.# C218UNVBES,120V AC

CERTIFIED TEST REPORT NO. 1133FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

CALCULITE LOW PROFILE RECESSED 8” HORIZONTAL COMPACT FLUORESCENT DOWNLIGHT

CAT.#8068CLW/8218LPU, SPECULAR CLEAR REFLECTOR AND CROSS BLADE

2-18W QUAD TUBE G.E. COMPACT FLUORESCENT LAMPS. LUMEN RATING = 1160 LMS.

MAGNETEK BALLAST,CAT.# C218UNVBES,120V AC

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .47 .47 .46 .47 .46 .45 .45.44 .44 .43 .43 .42 .42 .41 .41 .40

2 .45 .43 .42 .44 .43 .41 .43 .41 .40 .41 .40 .40 .40 .39 .39 .38

3 .42 .40 .39 .41 .40 .38 .40 .39 .38 .39 .38 .37 .38 .37 .37 .36

4 .40 .38 .36 .39 .37 .36 .38 .37 .35 .37 .36 .35 .37 .35 .34 .34

5 .37 .35 .33 .37 .35 .33 .36 .34 .33 .35 .34 .33 .35 .33 .32 .32

6 .35 .33 .31 .35 .33 .31 .34 .32 .31 .34 .32 .31 .33 .31 .30 .30

7 .33 .31 .29 .33 .30 .29 .32 .30 .29 .32 .30 .28 .31 .30 .28 .28

8 .31 .29 .27 .31 .28 .27 .30 .28 .27 .30 .28 .27 .29 .28 .26 .26

9 .29 .27 .25 .29 .26 .25 .28 .26 .25 .28 .26 .25 .28 .26 .24 .24

10 .27 .25 .23 .27 .25 .23 .27 .24 .23 .26 .24 .23 .26 .24 .23 .22

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .50 .49 .48 .49 .48 .47 .47.46 .46 .45 .45 .44 .44 .43 .43 .42

2 .47 .45 .44 .46 .44 .43 .44.43 .42 .43 .42 .41 .42 .41 .41 .40

3 .44 .42 .40 .43 .42 .40 .42.41 .39 .41 .40 .39 .40 .39 .38 .38

4 .41 .39 .38 .41 .39 .37 .40.38 .37 .39 .38 .36 .38 .37 .36 .35

5 .39 .36 .35 .38 .36 .35 .38.36 .34 .37 .35 .34 .36 .35 .34 .33

6 .37 .34 .33 .36 .34 .32 .36.34 .32 .35 .33 .32 .35 .33 .32 .31

7 .34 .32 .30 .34 .32 .30 .34.31 .30 .33 .31 .30 .33 .31 .30 .29

8 .32 .30 .28 .32 .30 .28 .31.29 .28 .31 .29 .28 .31 .29 .28 .27

9 .30 .28 .26 .30 .28 .26 .30.27 .26 .29 .27 .26 .29 .27 .26 .25

10 .28 .26 .24 .28 .26 .24 .28.25 .24 .27.25 .24 .27 .25 .24 .23

Spacing Ratio= 1:1 Spacing Ratio= 1:1

Calculite®Surface Cylinder CFL Downlight 8068/CS8

Page 2 of 2 8 3/4”Aperture Quad Tube Parabolic Louver

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
