Lightcorp ANGUS Manuel utilisateur
ANGUS
MOUNTING INSTRUCTIONS
21619.000.000 Rev A
Included in the package:
•Angus unit (For units that
have an attached permanent
secondary unit, instructions
continue on the reverse side.)
•Drill template
•Hardware kit
1. Determine the desired location for the Angus unit underneath the
worksurface. Note that Angus must be placed at a minimum depth
of 4“ from the back edge (Fig. 1).
2. Using a pencil, trace inside each of the four mounting holes onto
the mounting surface. Remove unit and drill pilot holes at the
locations just marked. (Fig. 2).
3. Align Angus unit with the pilot holes, making sure to orient the unit
with the power switch facing the end user. Secure in place using
the provided screws (Fig. 3).
4. Plug in the unit into an AC wall outlet. Note: Do not plug Angus into
a power strip or extension cord.
5. Power Angus by turning on the switch. When the unit is “ON”, the
power switch will be lit.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe A est conformé à la norme NMB-003 du Canada.
Fig. 1
Tools required:
•Pencil
•Philips Head screwdriver
•Drill
•1/8” drill Bit
4”
Fig. 3
Fig. 2
MOUNTING INSTRUCTIONS
ANGUS WITH
PERMANENT SECONDARY UNIT
Fig. 5
Fig. 4 Fig. 5
Fig. 6 Fig. 7
Fig. 6
Included in the package:
•Angus with permanent
secondary unit
•Hardware kit
•Nik mount
•Nik mounting hardware
1. Install the Angus unit per the instructions on the reverse side. To
install Nik, follow the instructions below, respective to how Nik will
be mounted:

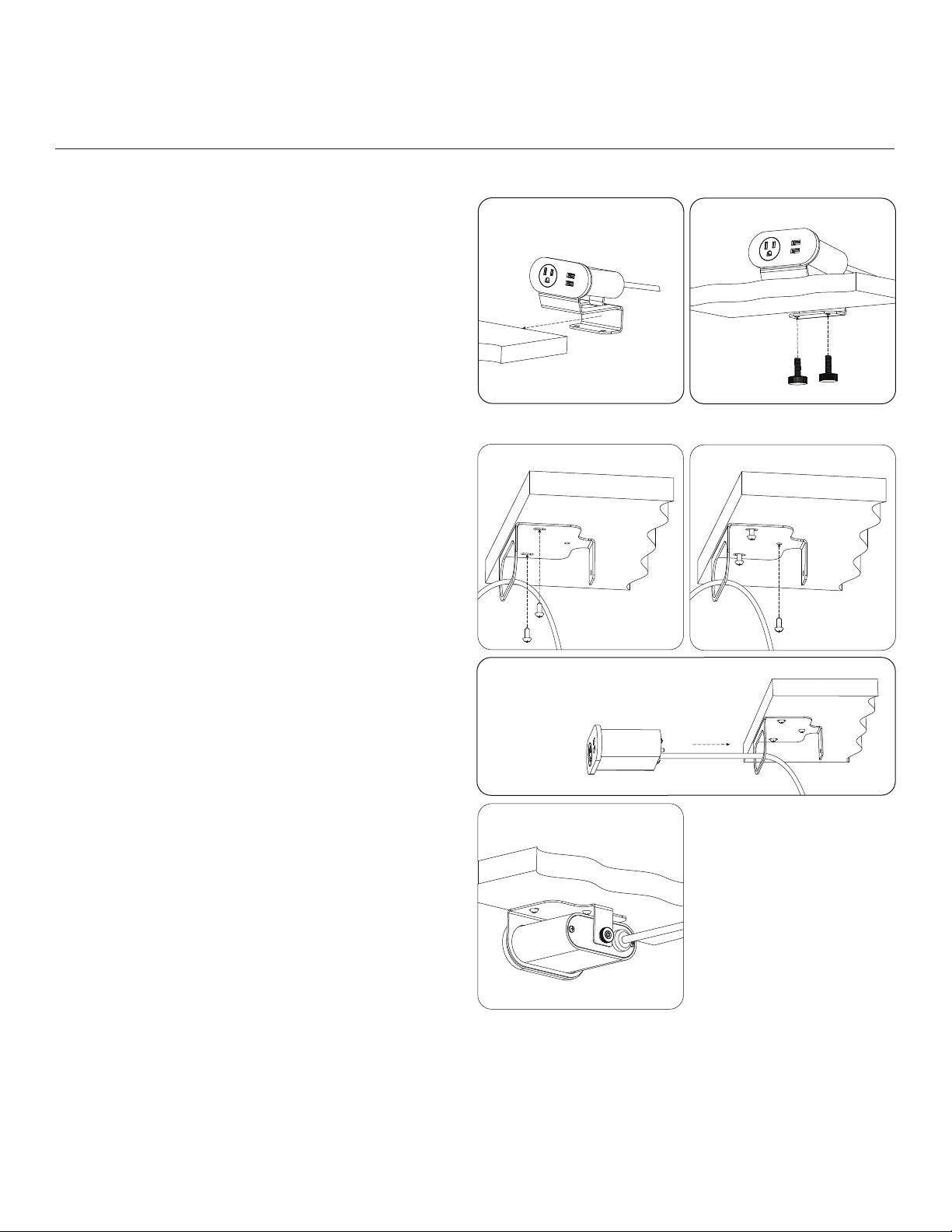

CLAMP MOUNT:
1. Slide unit mount onto edge of surface (Fig. 4).
2. Tighten thumbscrews on the underside of the surface (Fig. 5).
UNDERSURFACE MOUNT:
1. Locate mounting bracket where desired and place a small mark in
each slot. Remove bracket.
2. Using the pilot drill bit, drill a hole on each mark that is ½” deep.
3. Attach mounting bracket to the underside of the surface utilizing
the two slotted holes (Fig. 6). Do not lly tighten screws.
4. Align bracket to nal desired position and drive the third screw thru
the remaining hole (Fig. 7). Tighten all screws.
5. Feed unit thru the mounting bracket making sure to pass the
threaded stud thru the hole in the back of the bracket (Fig. 8).
6. Fix the unit in place with the provided thumb nut (Fig. 9).
Tools required:
•Pencil
•Philips Head screwdriver
•Drill
•1/8” drill Bit
