TINO™ PRODUCT INSTRUCTIONS

Assembling Arm to Divider Mount

1. Apply pressure near the top of the bushing.

2. (Fig. 1) Insert Arm base into divider mount.

Assembling Arm to Free Standing Base

1. Apply pressure near the top of the bushing.

2. (Fig. 2) Insert Arm base into Free standing mount.

Panel Mount Installation (Fig. 4 & 5):

1. For in-line panel (Fig. 4), insert the teeth of bracket

through the center slot of the panel bracket.

2. For corner panel (Fig. 5), remove screws and rotate

the bracket cover so that the screw holes will be on

the opposite side. Reattach and Insert the teeth of

bracket through the outer slot of the panel bracket.

3. While holding the screws in, Insert the teeth into the

slotted standard and press downward insuring the

teeth are fully hooked over the slots.

4. Tighten screws alternately using a 3/32 Hex Driver

until bracket is securely tight on panel

Fastening the Divider Mount

1. Open the divider mount by rotating the knob counter

clockwise to an appropriate size.

2. (Fig. 3) With care place divider mount into divider.

(Figure 1)

(Figure 2)

(Figure 3)

(Figure 4) (Figure 5)

Clamp Mount Installation (Fig. 6)

1. Slide the base bracket between the panel and the

work surface.

2. Unscrew the knob on adjuster bracket to the lowest

position and insert into slots on base bracket.

3. Tighten knob against bottom of work surface

(Figure 6)

TINO™ should be mounted or placed 1’

behind the desktop location you desire to

illuminate.

Slatwall Mount Installation (Fig. 7)

1. Twist the tension knob, positioning the hooks to ﬁt over a single slatwall rail.

2. Hook the top bracket hook over the slatwall rail.

3. Position the lower hook under the slatwall rail

4. Tighten the tension knob, securing the mount to the slatwall.

TINO PRODUCT INSTRUCTIONS

16518.000.000 Rev. B

(Figure 7)

Rail Mount Installation (Fig. 8)

1. Position the T-nut at the tip of the screw.

2. Aline the T-nut to ﬁt into the rail

3. Insert the bracket into the rail.

4. Hold the bracket ﬂush against the rail.

5. Tighten the screw using a 3/32 Hex Driver, ensuring the T-nut

turns and locks into the rail.

Surface Mount Installation (Fig. 9)

1. Drill Holes in work surface using the template (ﬁg. 10)

2. Insert the cap screw though the mounting bracket and smaller hole

in the work surface.

- Use the shorter 1 ½” screw for work surfaces ½” to 1” thick

- Use the longer 2” screw for work surfaces 1 1/8” to 1 1/5” thick

3. Aline the larger cord hole in the plate with the larger hole in the work

surface.

4. Screw the ﬂange nut onto the screw under the work surface.

5. Tighten using a 9/64” Hex Driver and an 11/32” wrench.

6. Thread the power cord down through the larger cord hole.

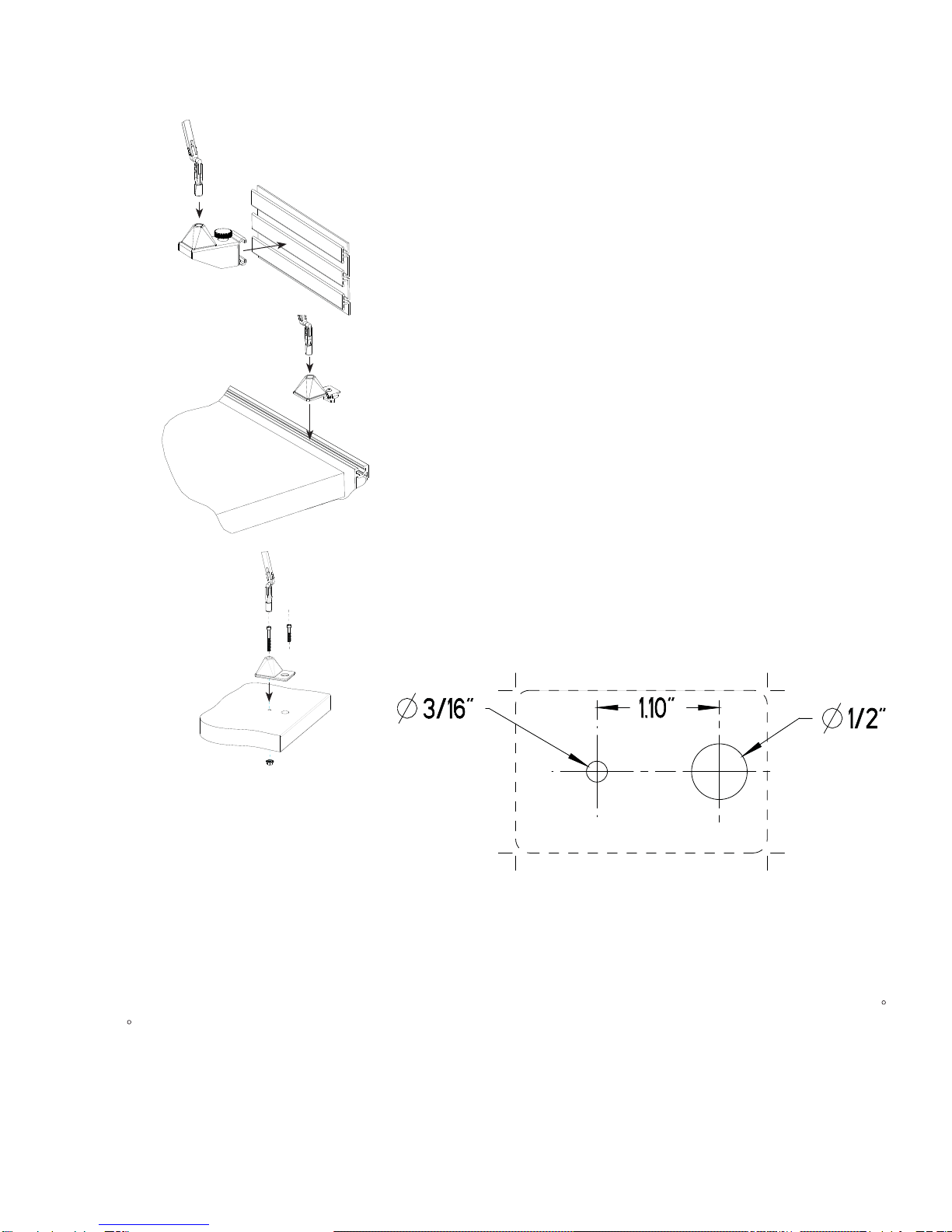

(Figure 8)

(Figure 9)

Occupancy Sensor:

The under-head integrated passive infared (PIR) occupancy sensor automatically turns the ﬁxture off after 30 minutes of no detection. Coverage: 360

lens view, 90 outward detection angle, coverage of 30” diameter at 15” distance.

Touch and Hold Dimming:

Any level of output can be achieved for user preferences, from 100% to 15% light output, with a touch and hold of the ﬁnger on the slightly raised touch

sensitive button under the head, releasing when desired level is reached. On/Off is toggled with a single touch.

(Figure 10)

MONITOR MOUNT INSTRUCTIONS

17113.000.000 Rev B

(Figure. 1)

(Figure. 3) (Figure. 4)

Determine Right Hand or Left Hand Mount

1. Right Hand Position Shipped Standard. (Fig. 1)

2. Flip lamp base to re-orient for Le Hand. (Fig. 2)

Positioning and Attachment of Monitor Mount to Monitor Arm

1. Choose (A) upper position or(B) lower position.

2. Insert screws into holes and tighten. (Fig. 3)

3. Place monitor arm on mount plate lining up screw holes. (Fig. 4)

4. Insert proper screws and tighten.

5. Slide inner mount arm and base monitor mount even with monitor edge and tighten screw.Refer to (Fig. 3) for positioning.

(A)

(B)

(Figure. 2)

Occupancy Sensor:

The under-head integrated passive infrared (PIR) occupancy sensor automatically turns the ﬁxture off after 30 minutes of no

detection. Coverage: 360 lens view, 90 outward detection angle, coverage of 30” diameter at 15” distance.

Touch and Hold Dimming:

Any level of output can be achieved for user preferences, from 100% to 15% light output, with a touch and hold of the ﬁnger on the

slightly raised touch sensitive button under the head, releasing when desired level is reached. On/Off is toggled with a single touch.

SPECIAL NOTE: Before installing your Monitor Mount, read the safety instructions that shipped with your monitor arm to ensure equipment weight ratings do not exceed[the

Monitor Mount and Tino Light weigh 1.2 lbs. combined].

CAUTION: Use Display weight, hole pattern, and Monitor Arm specifications to determine compatibility with the Monitor Mount.

CAUTION: The Monitor Mount is intended for use with most 15”-27” standard Monitors or Displays. It is length adjustable through a range that supports said sizes.

CAUTION: Use appropriate mounting hardware to attach Light Corp Monitor Mount. Longer screws may be required to meet Monitor Arm manufacturer’s specifications.

CAUTION: Monitor Mount is not recommended for use with Freestanding Monitors.

CAUTION: Do not use Monitor Mount for Monitor Arm movement oradjustment.

CAUTION: Light Corp Monitor Mount is intended for use with VESA standard mounting patterns (100mm x 100mm and 75mm x 75mm).

CAUTION: Light Corporation disclaims liability for damage to mounts, adapters, displays, monitors, monitor arms, other property orpersonal injury resulting, in whole or in

part, from improper installation, modification, use or misuse of its products.
