LIFESTYLER 831.297140 Manuel utilisateur

USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number

Decal

Model No. 831.297140

Serial No.

The serial number is found in the location

shown below. Write the serial number in

the space above for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached to the center of this manual. Save the

EXPLODED DRAWING and PART LIST for future reference.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with 8

feet of clearance behind it. Do not place the

treadmill on a surface that blocks any air

openings. To protect the floor or carpet from

damage, place the mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 250 pounds or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 7),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be

on the same circuit. Do not use an extension

cord.

11. Use only a single-outlet surge suppressor

that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppres-

sor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dis-

sipation of 450 joules. The surge suppressor

must be electrically rated for 120 volts AC and

15 amps.

12. Keep the power cord and the surge suppres-

sor away from heated surfaces.

WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See BE-

FORE YOU BEGIN on page 4 if the treadmill

is not working properly.)

14. Never start the treadmill while you are

standing on the walking belt. Always hold

the handrails while using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

16. To reduce the possibility of the treadmill

overheating, do not operate the treadmill

continuously for longer than 1 hour.

17. Never leave the treadmill unattended while

it is running. Always remove the key when

the treadmill is not in use.

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on pages 5 and 6, and HOW TO

MOVE THE TREADMILL on page 10.) You

must be able to safely lift 45 pounds (20 kg)

to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

20. Inspect and tighten all parts of the treadmill

every three months.

21. Never insert any object into any opening.

22. Always unplug the power cord before per-

forming the maintenance and adjustment

procedures described in this manual. Never

remove the motor hood unless instructed to

do so by an authorized service representa-

tive. Servicing other than the procedures in

this manual should be performed by an au-

thorized service representative only.

23. This treadmill is intended for in-home use

only. Do not use this treadmill in any com-

mercial, rental, or institutional setting.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown below has been placed on your treadmill. If the decal is missing, or if it is not legible,

please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual).

Apply the decal in the location shown.

Thank you for selecting the LIFESTYLER®EXPANSE

600 treadmill. The EXPANSE 600 treadmill combines

advanced technology with innovative design to let you

enjoy an excellent form of cardiovascular exercise in

the convenience and privacy of your home. And when

you’re not exercising, the unique EXPANSE 600 can

be folded up, requiring less than half the floor space of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and serial num-

ber before calling. The model number of the treadmill

is 831.297140. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

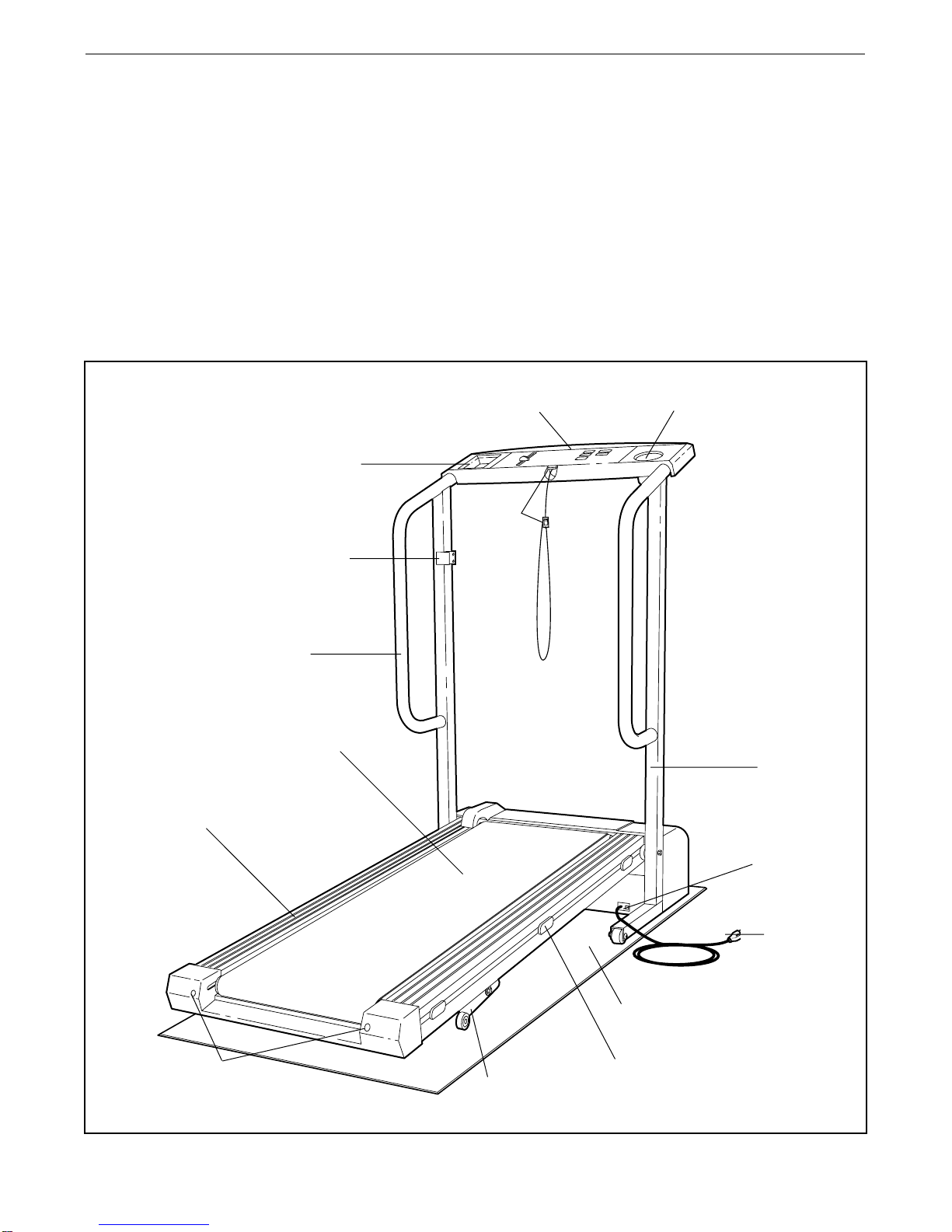

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

Handrail

Upright

Storage Latch

Key/Clip

Circuit

Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power

Cord

BACK

RIGHT SIDE

Rear Roller

Adjustment Bolt

Water Bottle Holder

(Water Bottle is not

included)

Towel Rack

Accessory Tray

Incline Leg

Treadmill Mat

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the parts

used in assembly. Assembly requires the following tools: The included allen wrench and your own

phillips screwdriver and adjustable wrench .

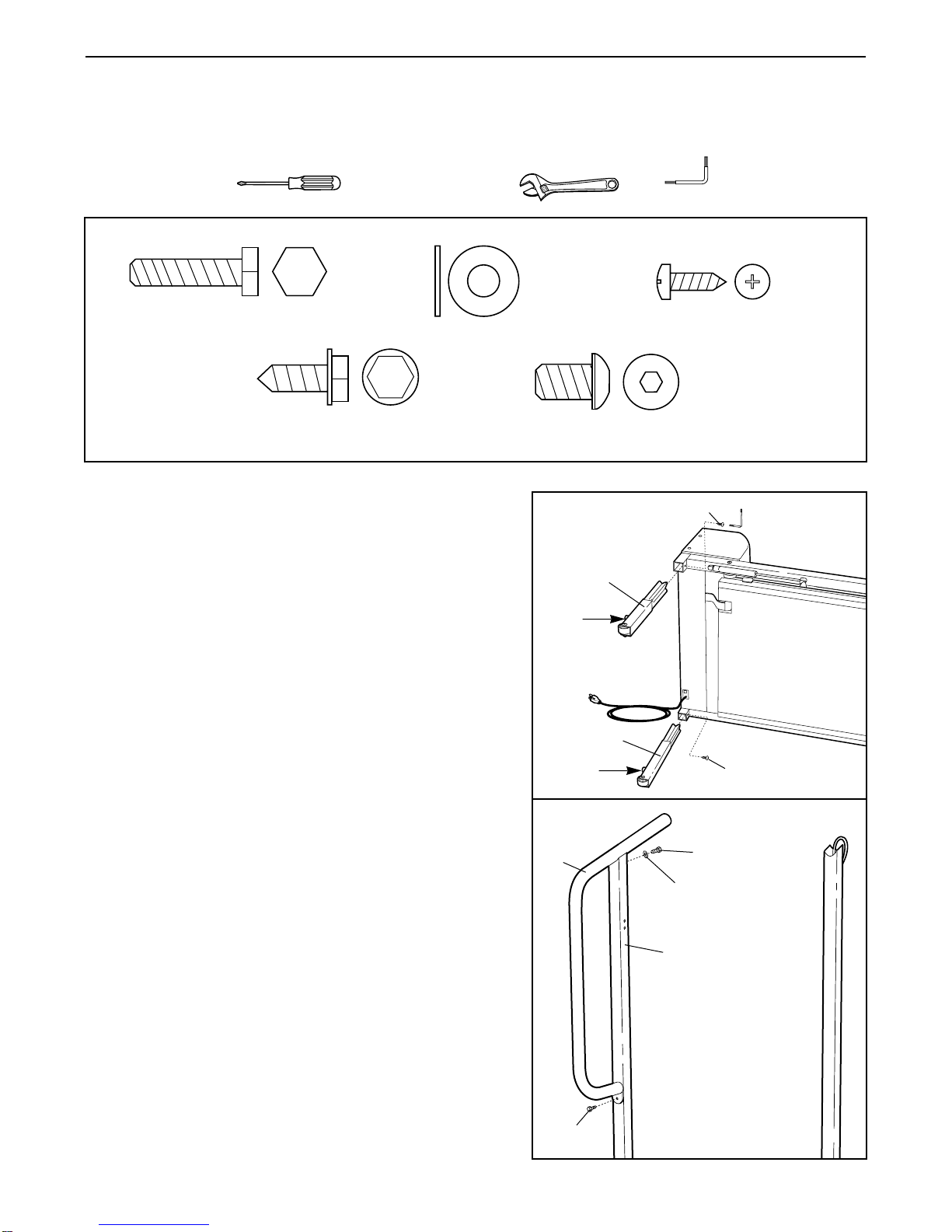

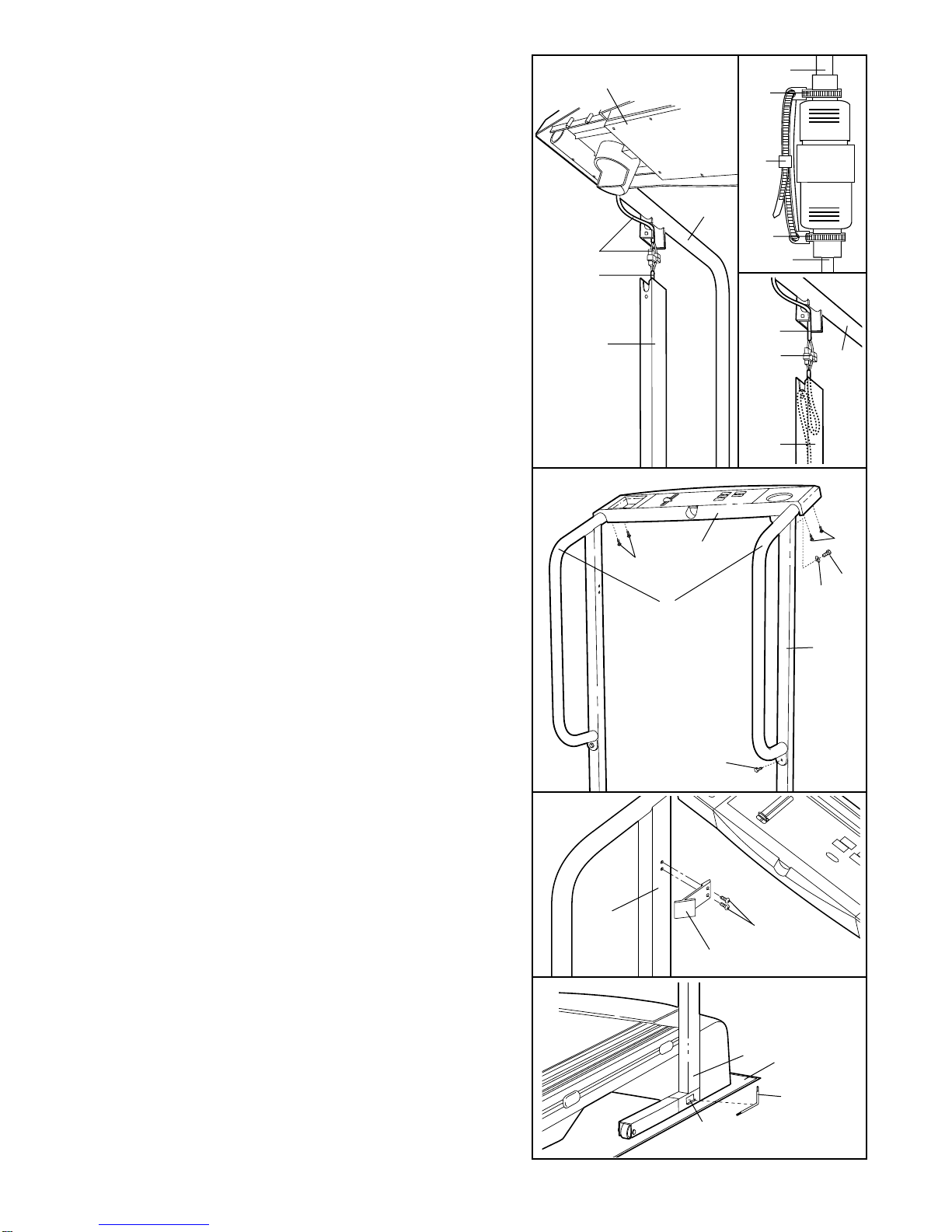

1. With the help of a second person, carefully lay the

treadmill on its right side. Insert one of the Extension

Legs (41) into the treadmill as shown. Make sure that the

Base Pad (36) is on the bottom of the Extension Leg.

Attach the Extension Leg with an Extension Leg Screw

(34). Be sure to push on the head of the Extension Leg

Screw while tightening it.

Attach the other Extension Leg (41) as described above.

With the help of a second person, carefully raise the

treadmill to the upright position so the Extension Legs

(41) are resting flat on the floor.

2. Refer to HOW TO LOWER THE TREADMILL FOR USE

on page 11. Follow the instructions in step 2 to lower the

treadmill.

Position one of the Handrails (2) on the left Upright (14)

as shown. Thread a Handrail Bolt (15) with a Handrail

Washer (16) into the left Upright and the Handrail. Do not

tighten the Handrail Bolt yet. Tighten a Handrail Screw

(32) into the lower end of the Handrail. Be sure to push

on the head of the Handrail Screw while tightening it.

Next, tighten the Handrail Bolt (15).

Handrail Washer (16)–2

Handrail Bolt (15)–2 Base Screw/Latch Screw (13)–6

Extension Leg Screw (34)–2

Handrail Screw (32)–2

3. With the help of a second person, hold the Console Base

(6) and the other Handrail (2) near the right Upright (14)

as shown. Note: It may be helpful to rest the other side of

the Console Base on the left Handrail.

Connect the Console Wire Harness (88) to the two plugs

on the Upright Wire Harness (26). Refer to the upper

inset drawing. Locate the 7 1/2” Wire Ties (10) on the

Console Wire Harness (88) and the Upright Wire Harness

(26). Slide the Wire Ties against the plugs as shown.

Insert the 11 1/2” Wire Tie (55) through the holes in the

Wire Ties. Close and tighten the 11 1/2” Wire Tie.

Refer to the lower inset drawing. Insert the Wire

Harnesses (26, 88) into the Right Upright (14). Note: If

necessary, bend the Wire Harnesses into an “s” shape.

Route the Console Wire Harness (88) through the notch

in the bracket on the right Handrail (2) as shown. Insert

the bracket into the right Upright (14). Make sure that the

Console Wire Harness is not pinched.

4. Thread a Handrail Bolt (15) with a Handrail Washer (16)

into the right Upright (14) and the right Handrail (2). Do

not tighten the Handrail Bolt yet. Tighten a Handrail

Screw (32) into the lower end of the Handrail. Be sure to

push on the head of the Handrail Screw while tightening

it. Next, tighten the Handrail Bolt (15).

Place the Console Base (6) on the left and right Handrails

(2). Attach the Console Base with four Console Screws

(13).

5. Attach the Storage Latch (12) to the left Upright (14) with

two Latch Screws (13). Be careful not to overtighten the

Latch Screws.

6. Remove the backing from the Adhesive Clip (74). Press

the Adhesive Clip onto the Upright Base (14) in the indi-

cated location. Press the Allen Wrench (73) into the

Adhesive Clip.

To protect the floor or carpet, place the Treadmill Mat (92)

under the treadmill.

7. Make sure that all parts are tightened before you use

the treadmill.

13 613

14 92

88 26

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

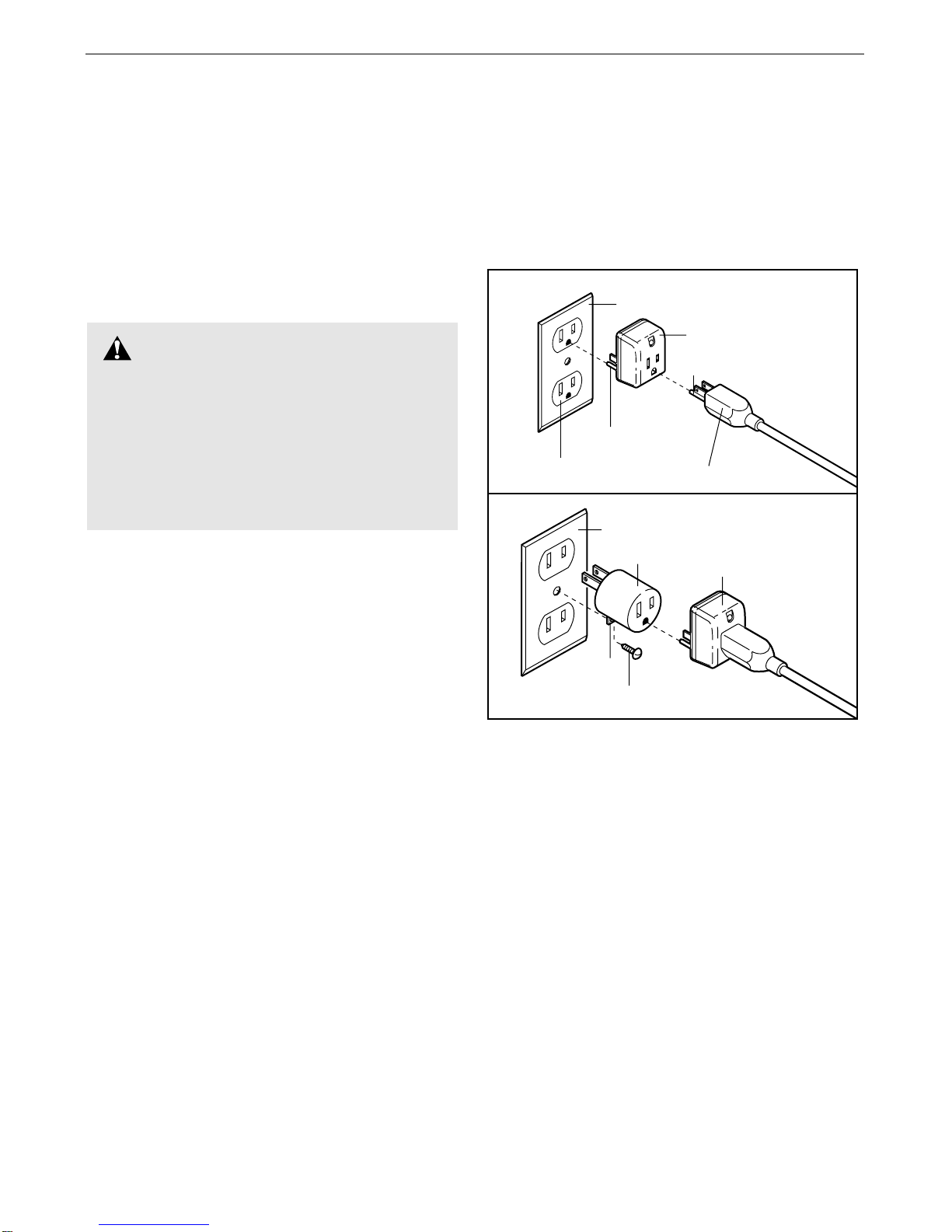

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right).

Surge suppressors are sold at most hardware stores

and department stores. Use only a single-outlet surge

suppressor that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppressor must

have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER:Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turning

on the power.

• Always wear the clip (see the drawing above)

while using the treadmill. When the key is re-

moved from the console, the walking belt will

stop.

• Adjust the speed in small increments.

• The training zones marked beside the speed

control are general guidelines only. See page

14 for more information.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids on

the console. Use only a sealable water bottle.

BATTERY INSTALLATION

The console requires three "AA" batteries (not

included). Alkaline batteries are recommended.

To install batteries, open the battery cover under the

console as shown below. Press three batteries into the

battery com-

partment.

Make sure

that the neg-

ative (–)

ends of the

batteries are

touching the

springs.

Close the

battery cover.

STEP BY STEP CONSOLE OPERATION

If there is a thin sheet of clear film on the face of the

console, remove it.

Before operating the console, make sure that the power

cord is properly plugged in. (See HOW TO PLUG IN

THE POWER CORD on page 7.)

Next, step onto the foot rails of the treadmill. Find the

clip attached to the key (see the drawing above), and

slide the clip onto the waistband of your clothing.

Follow the steps on page 9 to operate the console.

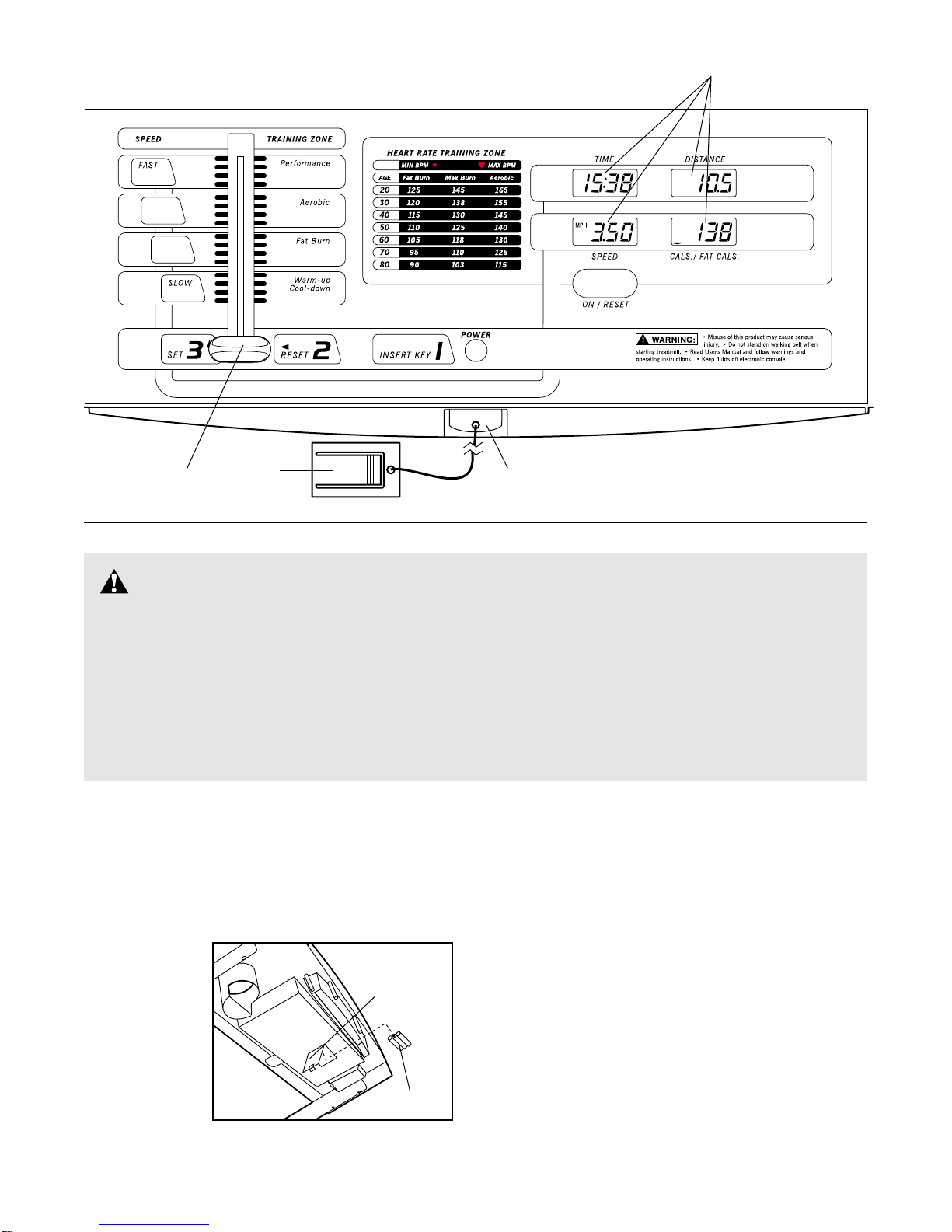

DIAGRAM OF THE CONSOLE

Clip Key

Speed Control

Monitor Displays

Batteries

Battery

Cover

Insert the key fully into the power switch.

Inserting the key will

not turn on the dis-

plays. The displays will

turn on when the

ON/RESET button is

pressed or when the

walking belt is started.

Note: If you just in-

stalled batteries, the displays will already be on.

Reset the speed control.

Slide the speed control

down to the RESET

position. Note: Each

time the walking belt is

stopped, the speed

control must be moved

to the RESET position

before the walking belt

can be restarted.

Start the walking belt.

After you have moved the speed control to the

RESET position, slowly slide it upward until the

walking belt begins to move at slow speed.

Carefully step onto the walking belt and begin exer-

cising. Change the speed of the walking belt as de-

sired by sliding the speed control.

To stop the walking belt, step onto the foot rails and

slide the speed control to the RESET position.

Follow your progress with the monitor displays.

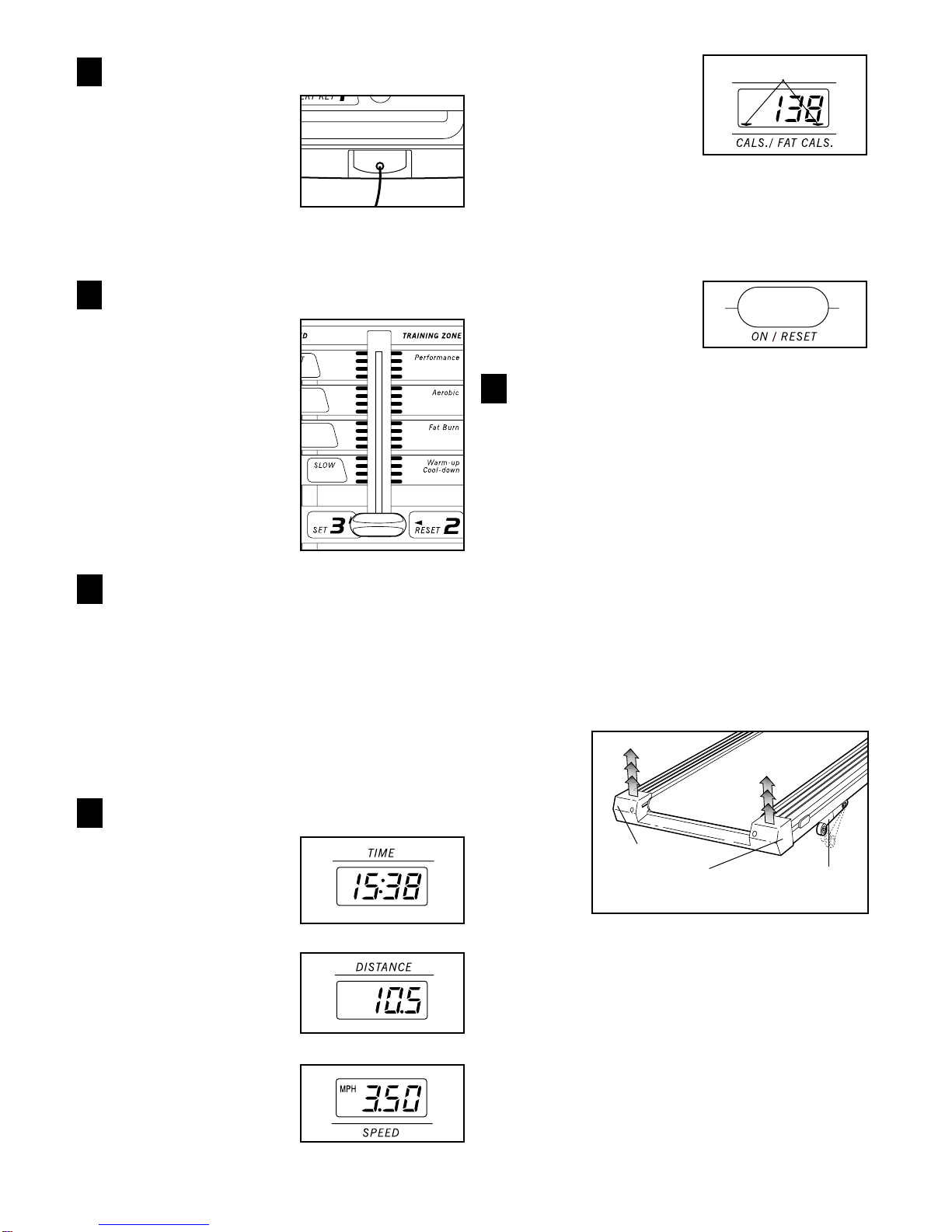

TIME display—This

display shows the total

time that you have

walked or run on the

treadmill.

DISTANCE display—

This display shows the

total distance that you

have walked or run, in

miles.

SPEED display—This

display shows the speed

of the walking belt, in

miles per hour.

CALORIES/FAT CAL-

ORIES display—This

display shows the ap-

proximate numbers of

calories and fat calories

you have burned. (See

FAT BURNING on page

14 for an explanation of fat calories.) Every seven

seconds, the display will change from one number

to the other. Arrows in the display will indicate

which number is currently shown.

The displays can be

reset, if desired, by

pressing the ON/RESET

button.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, stop the walking belt, and

remove the key from the console. Store the key in a

secure place. After the key is removed, the dis-

plays will turn off after about five minutes.

Note: Any time that the walking belt is stopped

and no console buttons are pressed for five

minutes, the displays will automatically turn off

in order to conserve the batteries.

HOW TO CHANGE THE INCLINE OF THE TREADMILL

The incline of the treadmill can be changed by raising

or lowering the back end. Before changing the in-

cline, remove the key and unplug the power cord.

Hold the

rear roller

endcap

with both

hands.

When the

back end

of the

treadmill is

in the low-

est posi-

tion, the incline is about 10%. Raise the back end until it

clicks into position. (Note: It may be necessary to shake

the treadmill lightly so that it clicks into position.) The in-

cline will then be about 5%. Raise the back end again

until it clicks into position. The incline will then be about

3%. To lower the back end, first raise it past the highest

position, and then lower it. CAUTION: Before exercis-

ing, push on the back of the treadmill to make sure

that the incline legs are locked in position. Do not

place objects under the treadmill to change the in-

cline; change the incline only as described above.

Incline

Leg

Hold the Rear

Roller Endcap

in these locations

Arrows

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution:

You must be able to safely lift 45 pounds (20 kg) in order

to raise, lower, or move the treadmill.

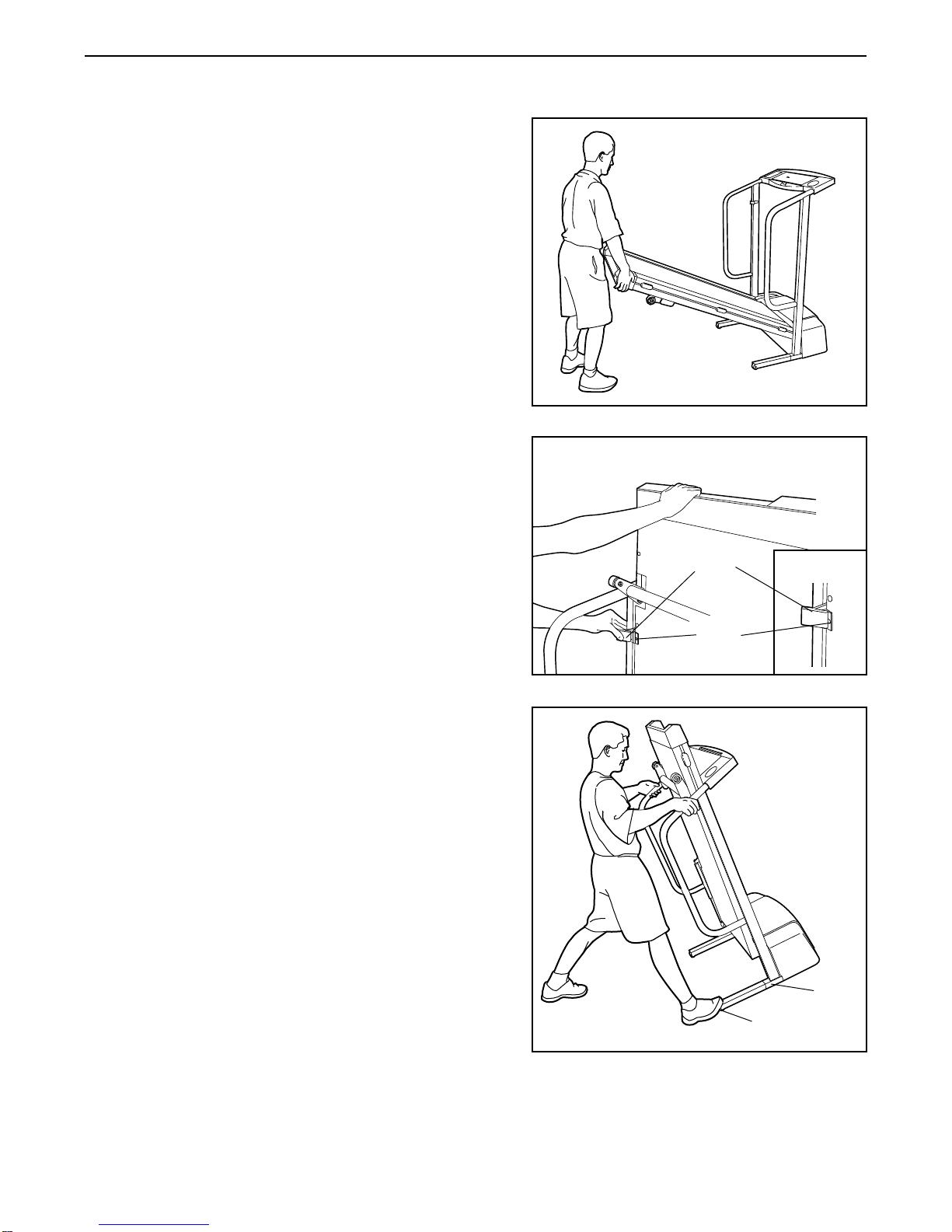

1. Hold the treadmill with your hands in the locations shown

at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch

closes over the catch. Make sure that the storage latch

is fully engaged over the catch.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the stor-

age latch is closed fully over the catch.

1. Hold the upper ends of the handrails. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the front

wheels. Carefully move the treadmill to the desired loca-

tion. Never move the treadmill without tipping it back,

or the base pads may come off. To reduce the risk of

injury, use extreme caution while moving the tread-

mill. Do not move the treadmill over an uneven

surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

Base

Front Wheels

Storage

Latch

Catch

Engaged

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LIFESTYLER tapis roulant

LIFESTYLER

LIFESTYLER 831.297242 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 600 Manuel utilisateur

LIFESTYLER

LIFESTYLER Lifestyler 3800pi Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 500 Manuel utilisateur

LIFESTYLER

LIFESTYLER 8.0 EXP Manuel utilisateur

LIFESTYLER

LIFESTYLER 831 297241 Manuel utilisateur

LIFESTYLER

LIFESTYLER 831.2974 Manuel utilisateur

LIFESTYLER

LIFESTYLER 831.296703 Manuel utilisateur

LIFESTYLER

LIFESTYLER 5.0 MPH Manuel utilisateur

LIFESTYLER

LIFESTYLER Lifestyler 831.298&50 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expanse 600 831.297160 Manuel utilisateur

LIFESTYLER

LIFESTYLER EXPANSE 1000 831.297451 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 850 Manuel utilisateur

LIFESTYLER

LIFESTYLER EXPANSE 500 831.297432 Manuel utilisateur

LIFESTYLER

LIFESTYLER 831.295401 Manuel utilisateur

LIFESTYLER

LIFESTYLER Inckine Lift assist 1900 Manuel utilisateur

LIFESTYLER

LIFESTYLER 831.297452 Manuel utilisateur

LIFESTYLER

LIFESTYLER expance 800 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expanse 850 831.297191 Manuel utilisateur

LIFESTYLER

LIFESTYLER 831.297052 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 2000 Manuel utilisateur

LIFESTYLER

LIFESTYLER Lifestyler Extend 10.0 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 550 Manuel utilisateur

LIFESTYLER

LIFESTYLER Expance 2000 831.297271 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur
