OWNERS INSTA

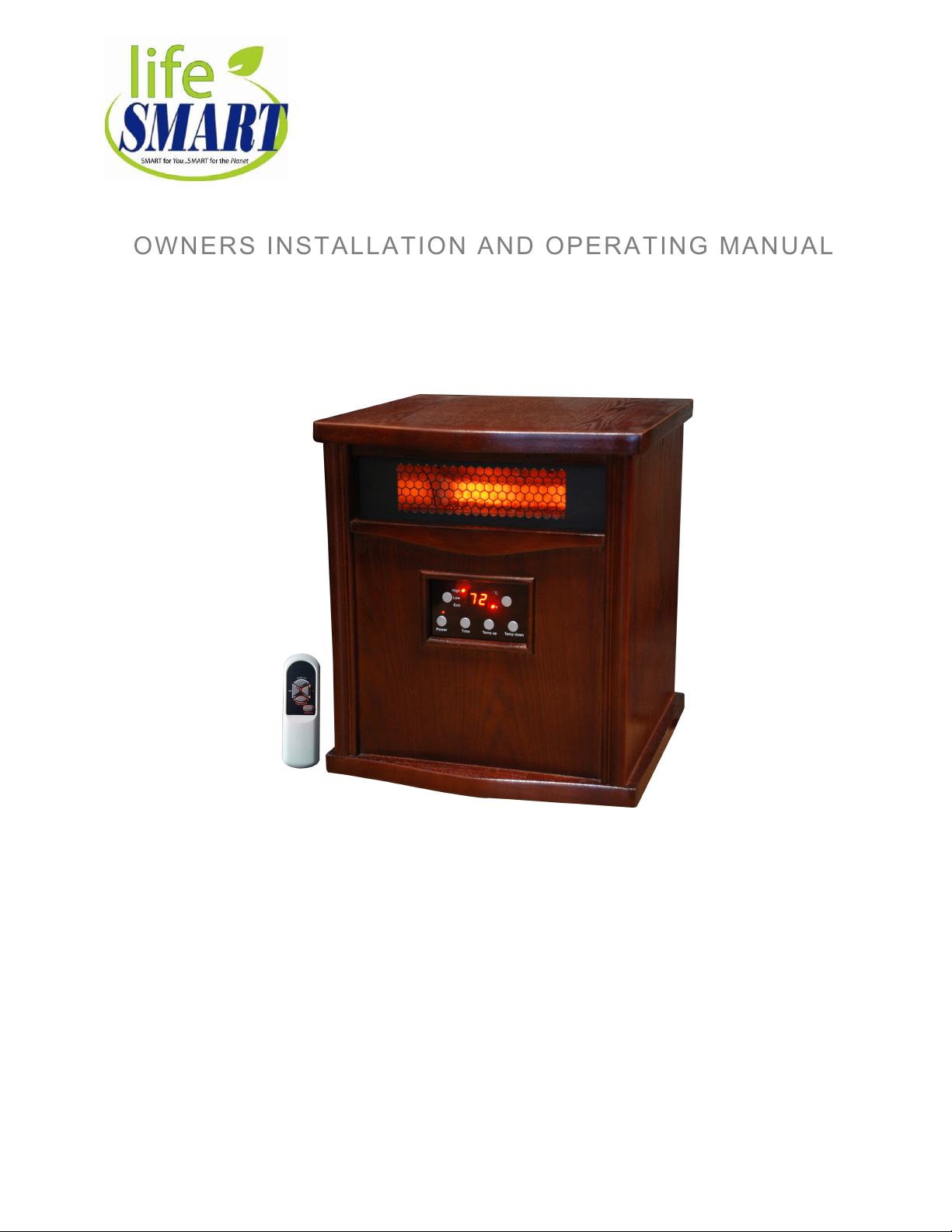

OWNERS INSTALLATION AND OPERATING MANUAL

LLATION AND OPERATING MANUAL

LIFESMART INFRARED HEATER

Model: LS1000HH13

Safety Notice

Please read this entire Installation and Operating Manual BEFORE installing and using

your new Infrared Heater. Failure to fully understand and follow instructions may result in

property damage, bodily injury, or even death.

If the Infrared Heater in not used properly, a house fire may result. For everyone’s safety,

FOLLOW all Installation and Operating Directions.

Save These Instructions

TABLE OF CONTENTS

Topic Page(s)

Introduction & Specifications 3

Important Safety Information 4-5

Frequently Asked Questions 6-8

Heater Operation 9

Heater Placement 10

Users Guide 11-12

Air Filter Maintenance 13

Warranty 14-15

Warranty Claim Contact Information 16

*Contents in the box:

1. Infrared heater (1unit)

2. Instruction manual (1pcs)

3. Remote Control (2 AAA batteries not included) (2pcs)

INTRODUCTION

Thank you for choosing one of the best Infrared distribution heaters available on the market

today. Our Infrared Heater is a very safe and effective room heater. It produces safe, clean and

economical heat by utilizing quartz infrared heating elements. The heating process of the

Infrared Heater is similar to the way the sun warms the earth. The infrared elements warm the

heat chamber and the whisper quiet fan distributes the accumulated warmth. This process is

unique among heaters in that it minimizes wasteful heat collection at the ceiling height of rooms

and targets it toward the living space instead. Thank you for being our customer, and enjoy your

heater!

Our Infrared Heaters have been tested and listed for installation in residential and mobile homes

by ETL:

3189533

Conforms to UL STD. NO.1278

Certified to CSA STD. C22.2 NO.46

SPECIFICATIONS:

Electrical:

Voltage: 120V~60Hz

Power consumption: Low 1000 Watts/High 1500 Watts

Thermostat range: 50-90 Fahrenheit

Coverage:

Up to 2000 square feet of unobstructed area

Dimensions:

15” x 14.8” x 18.3”, 27.3 lbs

Safety Features:

Advanced Safety Overheat Shut Off

Tip Over Shut Off

Features:

Remote Control

High/Low/Eco Heat Settings

Air filtration system

Lifetime Washable Filter

On/Off Timer

Eco Friendly Wood

IMPORTANT)SAFETY)INSTRUCTIONS)

READ)AND)UNDERSTAND)ALL)INSTRUCTIONS,)SAFETY)WARNINGS,)

AND)FAQ’s)BEFORE)USING)THE)HEATER)

WARNING!

!)POTENTIAL)FOR)ELECTRICAL)HAZARD)IF)NOT)ADHERED)TO!)

When using electrical appliances, basic precautions should always be followed to reduce

the risk of fire, electric shock, and injury to persons, including the following:

1. This heater must be plugged into a 120V, 15 amp (or more) circuit of its own. Nothing

else can be plugged into the same circuit. If unsure if your home meets this

specification, consult a certified electrician prior to use. Risk of fire, overheat,

malfunction, property damage, injury, or even death may result if not adhered

to!

2. Connect to a properly grounded, 3-prong outlet only. Do not connect the heater to

extension cords, surge protectors, timers, direct breakers, or an outlet with other

appliances connected to the same outlet. Risk of fire, overheat, malfunction,

property damage, injury, or even death may result if not adhered to!

3. This heater is hot when in use. To avoid burns, do not let bare skin touch hot

surfaces. Use handles (certain models) or wheels to move this heater.

4. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and

curtains from the front of the heater and keep them away from the sides and rear of

the heater.

5. Extreme caution is necessary when any heater is used by or near children, invalids,

pets, or when the heater is left operating unattended.

6. Always unplug the heater when not in use.

7. Do not operate any heater with a damaged cord or plug or after the heater

malfunctions, has been dropped, or damaged in any manner. Contact the

manufacturer for resolution options.

8. Do not use outdoors. Exposure(to(outdoor(elements(such(as(rain,(snow,(sun,(wind(or

extreme(temperatures(may(cause(the(heater(to(become(a(safety(hazard.

9. This heater is not intended for use in bathrooms, laundry areas and similar indoor

locations, nor any locations that use GFCI outlets.

10.Never place heater where it may fall into a bathtub or other water receptacles.

11.Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar

coverings. Arrange cord away from traffic area and where it will not be tripped over.

12.The heater must be plugged into a wall outlet that is a DEDICATED CIRCUIT, with a

minimum 15 amp rating on that individual circuit.

13.To disconnect the heater: FIRST, turn the power button to the “off” position, then

remove plug from the wall outlet.

14.Do not allow foreign objects to enter or block any ventilation or exhaust opening as

this may cause an electric shock or fire, or damage the heater.

15.Allow at least 3 feet of unobstructed space to the front and rear of the heater to allow

for maximum heat, air, and ventilation flow.

16.A heater has hot and arcing or sparking parts inside. Do not use it in areas where

gasoline, paint, or flammable liquids are used or stored, nor use flammable solvents to

clean the heater. Also, make sure to keep heater dry at all times.

17.Use this heater only as described in this manual. Any other use not recommended by

the manufacturer may cause fire, electric shock, or injury to persons.

18.Do not use abrasive solvents to clean the heater as it may cause damage to the finish

or casing.

PLEASE REVIEW FREQUENTLY ASKED QUESTIONS ON THE NEXT

FEW PAGES PRIOR TO USING YOUR HEATER.

FREQUENTLY ASKED QUESTIONS (FAQ’S)

!"#$%&'%(#%)*'+#&#,+'(&-.%/#010(#2$%-#3#4*(+'#05%-#'$%#60782$%-#3#'9(-#'$%#$%&'%(#0-#40(#'$%#4*(+'#

'*)%:#;$"<#

These are both normal. This heater is treated with a special heat safe/resistant coating. This

odor will sometimes be present when the box is opened, and may be compared to a heaters

version of “new car smell.” Also, similar to all hearth appliances (woodstoves, etc.), the coating,

exposed to heat, will produce this particular odor during the first few hours of operation. This will

dissipate after the break-in period. If you are sensitive to odors, you may want to pre-burn the

unit in a garage with the door open until the initial odor dissipates.

34#)"#$%&'%(#(9-+#0-#&55(07*)&'%="#>?@@#2&''+A#$02#)&-"#BCDE+#*+#'$&'<#3+#'$&'#&#=0'#04#$%&'<#

At 1500 Watts, your heater will use approximately 5100 BTUs. 5100 BTUs, compared to your home

furnace, is a very small amount of heat. It may take several minutes, to several hours to heat your

area, depending on various factors (see Heater Placement).

F&-#)"#$%&'%(#(%&=="#05%(&'%#0-#=%++#)0-%"#5%(#1&"<#;$&'#&(%#)"#05%(&'*-.#G0+'+<"

Most Definitely. If the heater is used as it is intended (as supplement/assist heat), it should cycle

on and off, allowing for it to heat a total of approximately 8 out of the 24 hours of the day. Using the

national average of approximately 10¢ per kWh (look at your bill for exact cost per kWh--will vary

per state), your average heating cost should be less per day compared to your main furnace. The

costs will increase if it is used as the single source of heat, or if heat somehow escapes the room

being heated, since the “on” cycle will run longer.

The Formula: To determine the cost of this or ANY 1500 watt appliance, multiply 1.5 X your cost

per Kilowatt Hour. You can find the cost per KWH for your state at:

http://www.eia.doe.gov/fuelelectric.html

;$&'#*+#'$%#=*4%#%75%G'&-G"#40(#'$%#H%&'*-.#I=%)%-'+<#F&-#'$%#$%&'*-.#%=%)%-'+#6%#(%5=&G%1<#

The life expectancy of the heating elements is typically 25,000 hours. Heating elements may be

replaced by obtaining parts from LIFESMART Products, although it is not recommended (unless

you are a certified heater technician or authorized directly by LIFESMART). All parts may be

purchased through LIFESMART PRODUCTS if your product is out of warranty. Note: If you feel

that the elements are definitely faulty right out of the box, contact LIFESMART Products Tech

Support first (for troubleshooting). Contact your place of purchase second.

J-G%#3#5=9.#'$%#9-*'#*-#&-1#'9(-#*'#0-A#$02#=0-.#2*==#*'#'&K%#'0#$%&'#)"#(00)<#

Typically it takes about ½hour to feel a significant room temperature change. Please remember

that with any type of heating process, there are many variables: Location (in the home), floor plan

and size of the room, how well the room is insulated, how many doors/windows, how much bare

concrete (acts as a heat sink with any type of heating), the opening and closing of an exterior door,

long hallways, high ceilings, etc. Customers with smaller rooms experience quick heat changes.

Others with larger and open floor plans can expect up to 24 hours to heat up.

3#10-E'#$&L%#&#.(09-1%1#09'=%'M#G&-#3#9+%#&1&5'%(+A#&#NO5(0-.#502%(#+'(*5A#0(#(%)0L%#'$%#.(09-1#

5(0-.#4(0)#'$%#G0(1<#

Definitely NOT! If you don’t have a grounded outlet, contact a certified electrician for advice.

Removing or altering any part of the heater’s original design or intent (including the power cord) will

not only void the warranty, but will make you liable for any unexpected or hazardous results.

;$"#10%+-E'#'$%#'%)5%(&'9(%#0-#)"#$%&'%(#)&'G$#'$%#'%)5%(&'9(%#1*+5=&"#0-#)"#2&==A#0(#

%7'%(-&=#'$%()0+'&'<#

This is completely normal. The temperature display on your heater may vary from the

temperature display on another thermostat (like the one mounted to your wall or a purchased

external thermostat). The temperature sensor on your heater reads the temperature in, and around,

the heater. The unit is near the cold floor (and heat rises), which in turn, will display a cooler

temperature than elevated or external thermostats. The best way to operate your heater is just to

set the unit on “High” and dial up to a temperature that feels comfortable to you. Then, leave it at

that temperature, regardless of the mismatch. The heater will cycle off when the set temperature is

met or exceeded slightly.

3#10-E'#$&L%#&#.(09-1%1#09'=%'M#G&-#3#9+%#&1&5'%(+A#&#NO5(0-.#502%(#+'(*5A#0(#(%)0L%#'$%#.(09-1#

5(0-.#4(0)#'$%#G0(1<#

Definitely NOT! If you don’t have a grounded outlet, contact a certified electrician for advice.

Removing or altering any part of the heater’s original design or intent (including the power cord) will

not only void the warranty, but will make you liable for any unexpected or hazardous results.

!"#$0)%#*+#-0'#*-+9=&'%1#L%("#2%==A#2*==#'$*+#$%&'%(#$%=5#)%<#F&-#3#9+%#'$%#$%&'%(#*4#3#$&L%#L&9='%1#

0(#G&'$%1(&=#G%*=*-.+<#3#=*L%#*-#&#+'(9G'9(%#'$&'#*+#)0(%#'$&-#>?@@#+P9&(%#4%%':#;*==#'$*+#$%&'%(#$%=5#

)%< F&-#3#9+%#'$%#$%&'%(#'0#$%&'#)9='*5=%#(00)+#&'#'$%#+&)%#'*)%<#;*==#3#6%#&6=%#'0#9+%#'$%#$%&'%(#

*-#&#6&+%)%-'#0(#.&(&.%<#

The answer to these is the same. Yes. You will be able to use it, but keep in mind that

rooms/structures with open floor plans, minimal insulation, adjacent rooms, or high ceilings will not

retain the heat as efficiently, and may not feel pronounced heat changes. Also, the heater will stay

on longer (delays the “off” cycle), and may increase your electric costs. Note that if you do use it in

a garage or basement, the moisture levels must be very low and they must have dedicated circuits

(15 amps minimum) with no GFCI outlets. If unsure what a GFCI outlet is, contact a certified

electrician.

F&-#3#9+%#)0(%#'$&-#0-%#$%&'%(#&'#&#'*)%<#F&-#3#9+%#'$%#$%&'%(#&-1#&-0'$%(#&55=*&-G%#&'#'$%#+&)%#

'*)%<#

Yes. But make sure they are not plugged into the same circuit. Each heater (heaters are

considered appliances) requires its own minimum15 amp circuit (with no other items plugged

into that circuit). If unsure your circuit meets these requirements, verify with a certified electrician.

Risk of fire, damage to property, or injury may result if requirements are not met.

;$"#10%+#)"#$%&'%(E+#4&-#G0-'*-9%#'0#(9-#%L%-#&4'%(#'$%#+%'#'%)5%(&'9(%#*+#(%&G$%1#0(#'$%#502%(#

*+#'9(-%1#044<#

This is normal. The heater’s fan will continue to run, even after the heater automatically cycles

down. The fan continues to run so that every last bit of heat is blown out of the heat chamber, while

allowing the unit to continue filtering your air. Once the internal box/components cool completely,

the fan should then shut off on its own.

!"#4&-#(9-+#&'#&==#'*)%+A#%L%-#2$%-#'$%#$%&'#$&+#G"G=%1#044:#;$"<#

This is normal. Although the heat cycles off, the fan stays on until the chamber is cool. If the

temperature falls below the desired set temperature during the time the fan is cooling, the heating

elements will cycle back on. This will not allow for the fan to completely cool off the chamber, and

shut down. The fan seems to run continuously. It is a safety mechanism to prevent overheating.

The best way to avoid this is to have the set temperature at least 5 degrees higher than the desired

heat, so that it retains that heat during the cooling cycle.

;$"#10%+-E'#'$%#4&-#+5%%1#*-G(%&+%#2$%-#3#G$&-.%#'$%#+%''*-.#4(0)#QJ#'0#H3<#

This is normal. The heater’s fan’s speed is not affected by the HI/LO settings. The fan is designed

to vent the heat at one soft, comfortable, and energy efficient speed. What is affected by the HI

setting is the heat output. In essence, in the HI mode, the heater produces “more” heat, rather than

“faster” heat.

3#2&-'#'0#)&K%#+9(%#)"#2&((&-'"#*+#(%.*+'%(%1:#;$&'#10#3#+%-1#'0#)&K%#+9(%#*'#*+#(%.*+'%(%1<#

;$%(%#10#3#+%-1#*'<#

The heater comes with an automatic 5 year limited manufacturer’s warranty at the time of

purchase. Your receipt is considered your proof of purchase and registration. Keep it in a safe

place. As long as it is legible, a copy may be used for any future warranty claims (if requested). If

you have access to e-mail, and would like peace of mind, e-mail us to: Warranty

@lifesmartproducts.com. In the body of the e-mail, include your full name, address, phone number,

model, serial number, and scanned copy of your legible receipt. Or you can register online on the

registration tab of www.lifesmartproducts.com.

!"#$%&'%(#10%+#-0'#5%(40()#&+#2%==#&+#&-0'$%(#6(&-1#$%&'%(#'$&'#3#59(G$&+%1:#;$"#R0'<#

There are many brands of heaters on the market. Each brand is designed with different heat

specifications, fan speeds, colors, material types, displays, and electrical components. They are

manufactured this way for you, as the consumer to have choices, selection, and preferences. As

long as the unit functions as specifications indicate, comparison to other brands will ultimately

depend on individual consumer perception.

3#59(G$&+%1#)"#$%&'%(#+0#'$&'#*'#G09=1#G9'#)"#$%&'*-.#G0+'+A#69'#)"#%=%G'(*G#6*==#$&+#.0-%#95:#;$"<#

The compact LIFESMART heater can definitely save you on heating costs, when compared to the

existing central heating system in place in your home, and when used as directed. Your heater is

designed to give your main heat source a supplement “boost,” or allow for you to have extra heat

(in the form of soft infrared waves) in locations where you would otherwise be short. It is meant to

cycle on and off, and not specifically designed to be used as a single heat source, especially in

larger homes. If you intend on using it as a single heat source (which you may), expect the heater

to 1) take as much as 24 hours to heat the area, 2) stay on for longer periods of time (without

cycling off) due to heat loss, and 3) increased use time, and electric costs.

!"#$%&'%(E+#1*+5=&"#+$02+#)"#&)6*%-'#'%)5%(&'9(%#'0#6%#*-#'$%#N@E+A#2$%-#3#K-02#*'#*+#2&()%(#

'$&-#'$&':#;$"<#

The heater’s display is defaulted to read the temperature as Fahrenheit. If your heater is definitely

heating, but shows it is in the 20’s, you probably have the setting to read your temperature in

Celsius, rather than Fahrenheit. See Users Guide to change.

10"

HEATER OPERATION

Here is a small description of how our heaters work:

Operation Mechanism:

1) Air is brought into the heater through an easy to clean, washable filter at the rear of the

unit.

2) The highly efficient, one-speed, high volume fan pushes filtered air through the chamber,

across the heat elements.

3) During this exchange, heat is accumulated and transferred to the air in the chamber.

4) The newly transferred filtered, clean, and hot air is then circulated out the infrared

heater’s front vent.

5) The whole process produces variably hot air, compared to the air originally entering the

heater.

6) This method of heat generation creates an even, comfortable level of infrared heat from

floor to ceiling (as opposed to venting hot air blowing that will just rise to the ceiling and

dissipate)

There is no drying of the air with this method of heating and no harmful chemicals or pollutants

are released.

Table des matières

Autres manuels Life Smart Chauffage

Life Smart

Life Smart REFURBISHED R-W-19 Manuel utilisateur

Life Smart

Life Smart ZCHT1040US Manuel utilisateur

Life Smart

Life Smart LS-1000X-6W Guide de démarrage rapide

Life Smart

Life Smart LS-3ECO Manuel utilisateur

Life Smart

Life Smart YAA02E-5 Guide de démarrage rapide

Life Smart

Life Smart LS-IF1500-MOFP Guide de démarrage rapide

Life Smart

Life Smart LS1001HH13 Guide de démarrage rapide

Life Smart

Life Smart LS-Stealth-6FP Manuel utilisateur

Life Smart

Life Smart LS1000-2 Manuel utilisateur

Life Smart

Life Smart LS-500-1WP Guide de démarrage rapide

Life Smart

Life Smart HT1041 Manuel utilisateur

Life Smart

Life Smart L-SIFST-S Guide de démarrage rapide

Life Smart

Life Smart LS-1000X-6W Manuel utilisateur

Life Smart

Life Smart LS?Stealth?4 Manuel utilisateur

Life Smart

Life Smart LS-6BPIQH-X Guide de démarrage rapide

Life Smart

Life Smart LS-PP1800-6WCH Manuel utilisateur

Life Smart

Life Smart XXHT1086US Manuel utilisateur

Life Smart

Life Smart LS-3W-BPIQT Manuel utilisateur

Life Smart

Life Smart S-1500-6WB operati Guide de démarrage rapide

Life Smart

Life Smart LS-8WIQH-LB Manuel utilisateur

Life Smart

Life Smart LS-1500X-6WB Guide de démarrage rapide

Life Smart

Life Smart LS-Stealth-1 Manuel utilisateur

Life Smart

Life Smart LS-3ECO Manuel utilisateur

Life Smart

Life Smart MCHT1153US Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
