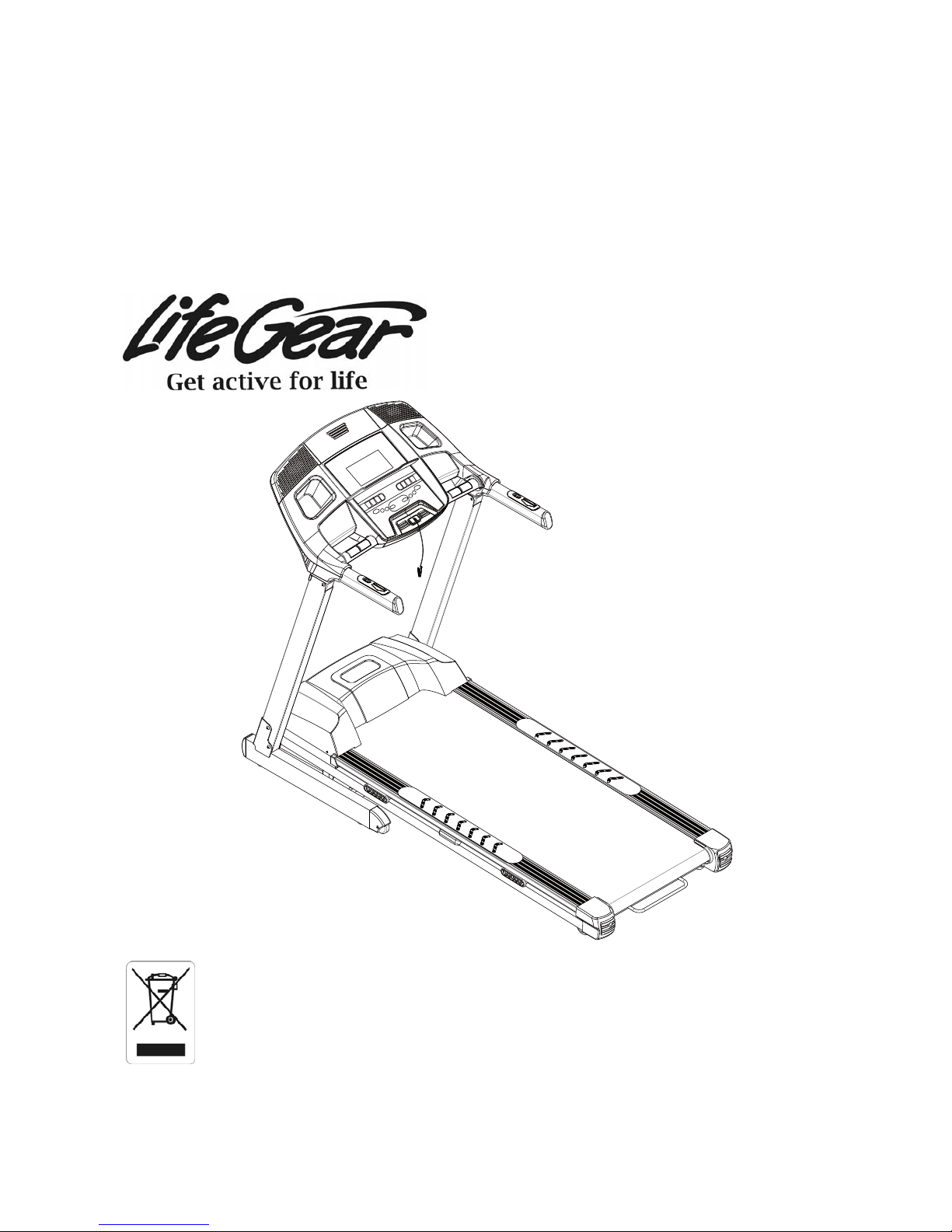

Life Gear 98850 Manuel utilisateur

ENTERPRISE PROGRAMMABLE

MOTORIZED TREADMILL

ITEM NO: 98850

OWNER’S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo and are subject to change

without prior notice. 2015, April

TABLE OF CONTENTS

WARRANTY -------------------------------------------------------------------------------- 2

IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3

PARTS LIST -------------------------------------------------------------------------------- 5

HARDWARE AND TOOLS PACK ---------------------------------------------------- 6

ASSEMBLY COMPONENT ------------------------------------------------------------ 7

OVERVIEW DRAWING ----------------------------------------------------------------- 8

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9

LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 13

MOVING THE TREADMILL ------------------------------------------------------------ 14

OPERATING THE COMPUTER ------------------------------------------------------ 15

CARE, MAINTENANCE & TROUBLESHOOTING GUIDE -------------------- 26

BELT ADJUSTMENT -------------------------------------------------------------------- 27

LUBRICATION ----------------------------------------------------------------------------- 28

EMERGENCY STOP -------------------------------------------------------------------- 28

WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 29

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that

it has been installed and operated in accordance with LifeGear's Owner's Manual.

LifeGear's obligation under this warranty is limited to replacing or repairing free of charge,

any parts which may prove to be defective under normal home use. This warranty does

not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is offered only to the original owner and is not transferable. Proof of

purchase is required.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions, including the following important safety instructions should

always be followed when using this treadmill. Read all instructions before using

this treadmill.

DANGER:To reduce the risk of electric shock, always unplug the treadmill

from the electrical outlet immediately after using and before cleaning, assembling, or

servicing the treadmill.

Failure to follow these instructions may lead to personal injury and cause damage

to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock or injury to any

persons, please read the following:

zNever leave the treadmill unattended while plugged in. Disconnect by turning off the

master power switch and unplugging from wall outlet when not in use and before

putting on or taking off parts.

zUse this appliance only for its intended use as described in this manual. Do not use

attachments not recommended by the manufacturer.

zNever operate this treadmill if it has a damaged cord or plug, or if it is not working

properly. If it has been dropped or damaged, or been exposed to water, return the

appliance to a service center for examination and repair.

zDo not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult an Authorised

Service Representative.

zNever operate the appliance with the air openings blocked. Keep the air openings

free of lint, hair, and other obstructions.

zDo not use the treadmill outdoors.

zDo not pull the treadmill by its power cord or use the cord as a handle.

zKeep children and pets away from the equipment while in use.

zElderly or disabled users should only use this treadmill in the presence of an adult

who can provide assistance if required.

zDo not operate where aerosol (spray) products are being used or where oxygen is

being administered.

zKeep dry - do not operate in a wet or moist condition.

zThe motor cover can become hot while the treadmill is in use. Do not place the

treadmill on a blanket or other flammable surface as this can create a fire hazard.

zKeep electrical cord away from heated surfaces.

zKeep the treadmill on a solid, level surface with a minimum safety area clearance

of two meters around the treadmill. Be sure the area around the treadmill remains

clear of any obstructions during use.

zThis treadmill is for domestic household use only.

zOnly one person should use the treadmill at a time.

zWear comfortable and suitable clothing when using the treadmill. Do not use the

treadmill barefoot or in socks. Always wear appropriate, enclosed athletic footwear.

Never wear loose or baggy clothing as it can become caught on the treadmill and

create an entrapment hazard.

zAlways hold on to the handrails while using the treadmill.

zAlways make sure the storage latch is in place when folding and moving the treadmill.

zDo not leave children who are under 12 years-old unsupervised near or on the

treadmill.

zTo disconnect, turn all controls to the off position, then remove plug from the wall

outlet.

zThis appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

zChildren should not be allowed to play on or near the treadmill at any time.

zCAUTION - RISK OF INJURY TO PERSONS - To avoid injury, use extreme caution

when stepping onto or off of a moving treadmill belt. Carefully read this instruction

manual before use.

zMaximum Weight Capacity is 130 kgs.

zPull out the Safety Tether Key for emergency stop.

zThis unit must be plugged into a nominal 220-240 volt 50/60Hz outlet which has been

grounded.

zKeep hands clear of all moving parts. Never place hands or feet under the treadmill

while in use.

zDo not use the treadmill on a carpet that is greater than 1.3 cm in height.

zBefore using the treadmill, check that the belt is aligned and centered on the running

deck and all visible fasteners on the treadmill are sufficiently tightened and secure.

WARNING: Before beginning any exercise program consult your physician.

This is especially important for people who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness equipment.

Do not operate this exercise equipment without properly fitted guards, as the moving

parts can present a risk of serious injury if exposed.

CAUTION:Read all instructions carefully before operating this product. Retain

this Owner’s Manual for future reference.

PARTS LIST

No. Description Qty No. Description Qty

001 Base Frame 1 030 Side Rail (T2.5x1122x85) 2

002 Main Frame 1 031 Wheel Ø64x22 2

003 Right Handlebar Support Tube 1 032L Left End Cover 1

004 Left Handlebar Support Tube 1 032R Right End Cover 1

005 Incline Frame 1 033 Rear Roller

(Ø46x539/Ø17x593) 1

006 Motor Bracket 1 034 Deck Bumper Ø25x25 4

007 Handlebar Bracket 1 035L Left Anti Slip Pad 1

008 Motor Adjuster 1 035R Right Anti Slip Pad 1

009 Transport Wheel Cap 2 036 Motor 1

010 Transport Wheel Ø62xØ9x23 2 037 Front Roller

(Ø46x557/Ø17x602) 1

011 Base Frame End Cap (□40x80) 2 038 Shock Absorption Elastomer

61x145xT30 2

012 Adjustable Leveler M8 6 039 Shock Absorption Bumper

44x114xT27 4

013 Bumper Stopper 35x35xT15 2 040 Hexagon Socket Head Cap Bolt

M8x80 1

014 Incline Connect Plate

30x30xT2x69 2 041 Hexagon Socket Head Cap Bolt

M8x60 4

015 Foot Lock Latch Tube 1 042 Spring Washer M8 2

016 Incline Motor 1 043 Hexagon Socket Oval Head Bolt

M8x20 4

017 Adhesive Tape 35x35xT3.0 2 044 Motor Cover Fixture 17x19xT1.2 4

018 Hexagon Socket Head Cap Bolt

M8x20 4 045 Speed Sensor 1

019 Hexagon Socket Oval Head Bolt

M8x50 5 046 Fuse 1

020 Nylon Nut M8 23 047 Power Switch 1

021 Flat Washer Ø8xØ16xT1.5 33 048 Power Cord (L=2000 mm) 1

022 Hexagon Socket Oval Head Bolt

M8x40 5 049 Power Control Board 1

023 Hexagon Socket Oval Head Bolt

M10x60 1 050 Self Tapping Screw ST4x16 22

024 Nylon Nut M10 4 051 Motor Cover 1

025 Flat Washer Ø10xØ22xT2.0 4 052 Running Belt (T1.6x2855x520) 1

026 Hexagon Socket Oval Head Bolt

M10x55 2 053 Washer T5.0xØ25xØ15 1

027 Hexagon Socket Oval Head Bolt

M8x55 2 054 Countersunk Head Bolt M8x25 6

028 Hexagon Socket Oval Head Bolt

M10x40 1 055 Countersunk Head Bolt M8x30 2

029 Belt (PJ-180J6) 1 056 Running Deck (T15x650x1220) 1

PARTS LIST

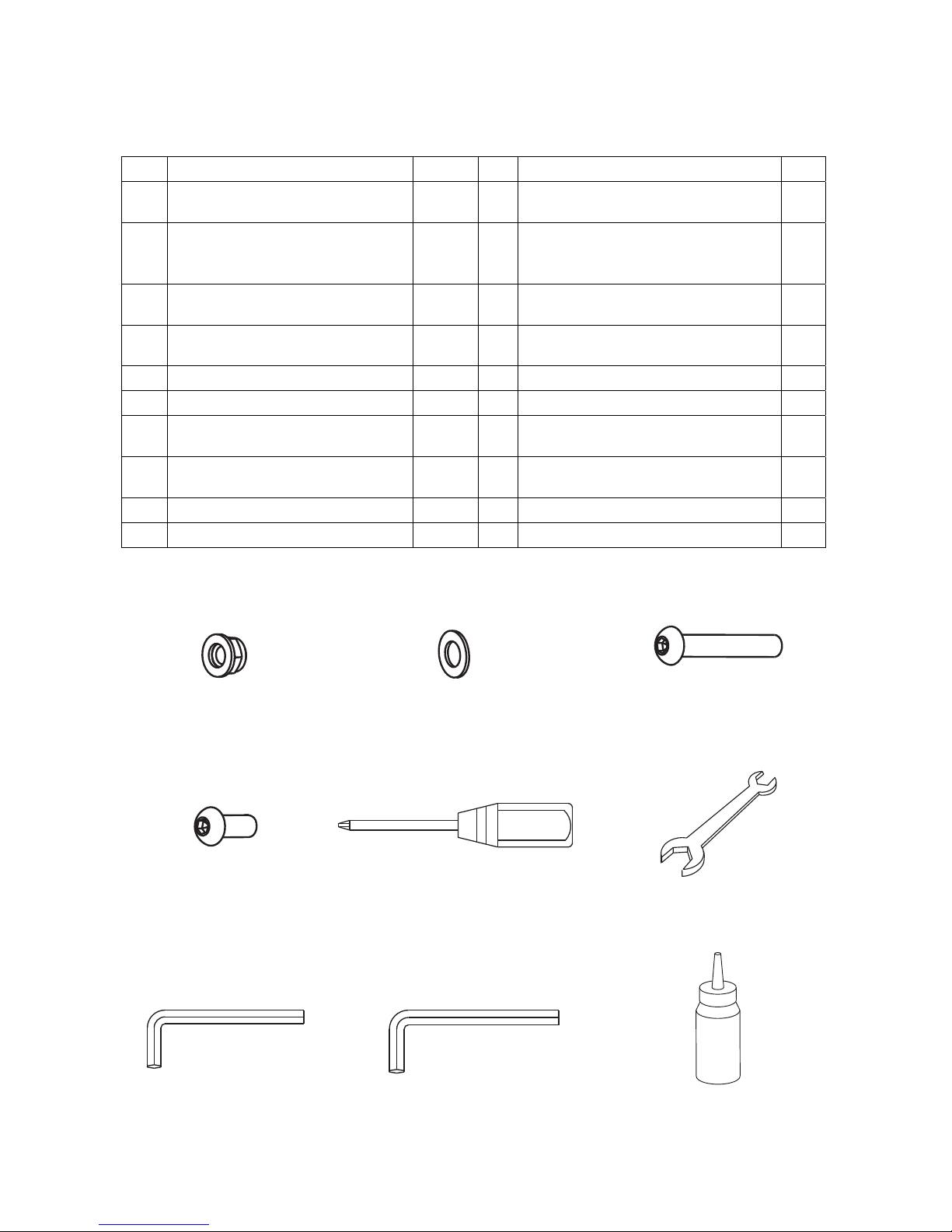

HARDWARE AND TOOLS PACK

No. Description Qty No. Description Qty

057 Handlebar Foam Grip

(30x60x255x3.0T) 2 067 Wire Grommet (SB6R-3) 3

058 Hand Pulse Sensor and

Control Buttons with Wire

(L=500 mm) 2 068 Brown AC Connect Wire

L=100 mm 1

059 Handlebar End Cap (60x30) 2 069 Extension Sensor Wire

L=1950 mm 1

060 Computer 1 Set 070 Extension Sensor Wire I

L=750 mm 1

061 Shelf 1 071 Nut M8 1

062 Safety Tether Key 1 072 Bolt M4x12 2

063 Self Tapping Screw ST4x45 2 073 Blue AC Connect Wire

L=250 mm 1

064 Plastic Washer Ø8xØ22xT2.0 2 074 Brown AC Connect Wire

L=250 mm 1

065 Self Drilling Screw ST4x16 5 075 Deck Bumper Ø25x22 2

066 Binder Post & Bolt Set 2 Sets 076 Running Belt Alignment Bracket 2

Lubricant

1 PC

(21) Flat Washer

Ø8xØ16xT1.5

6PCS

(20) Nylon Nut M8

2 PCS

(43) Hexagon Socket Oval

Head Bolt M8x20

4 PCS

(27) Hexagon Socket Oval

Head Bolt M8x55

2 PCS

5mm Allen Wrench

1 PC 6mm Allen Wrench

1 PC

Double Open End Wrench

1 PC

Phillips Screwdriver

1 PC

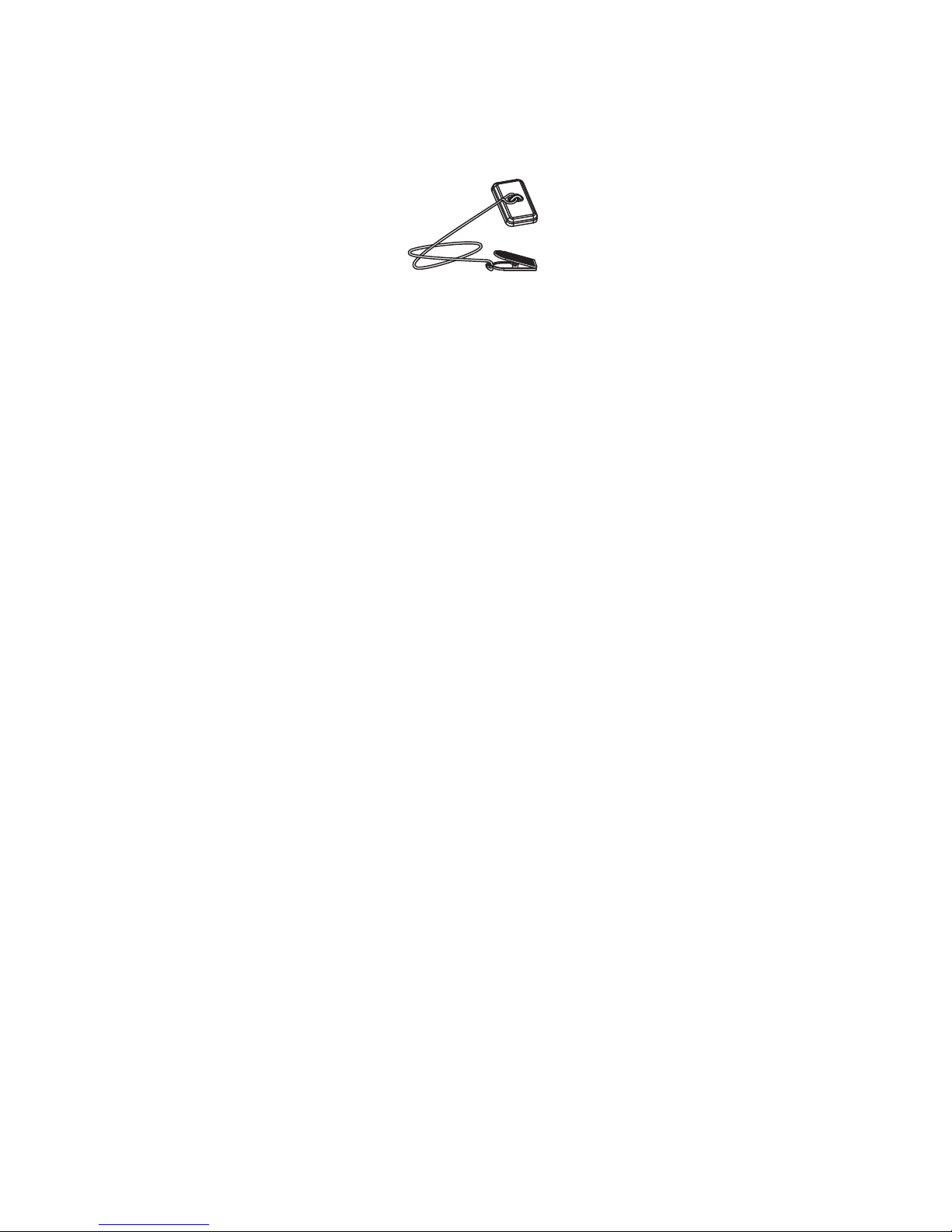

ASSEMBLY COMPONENT

(62) Safety Tether Key

1 PC

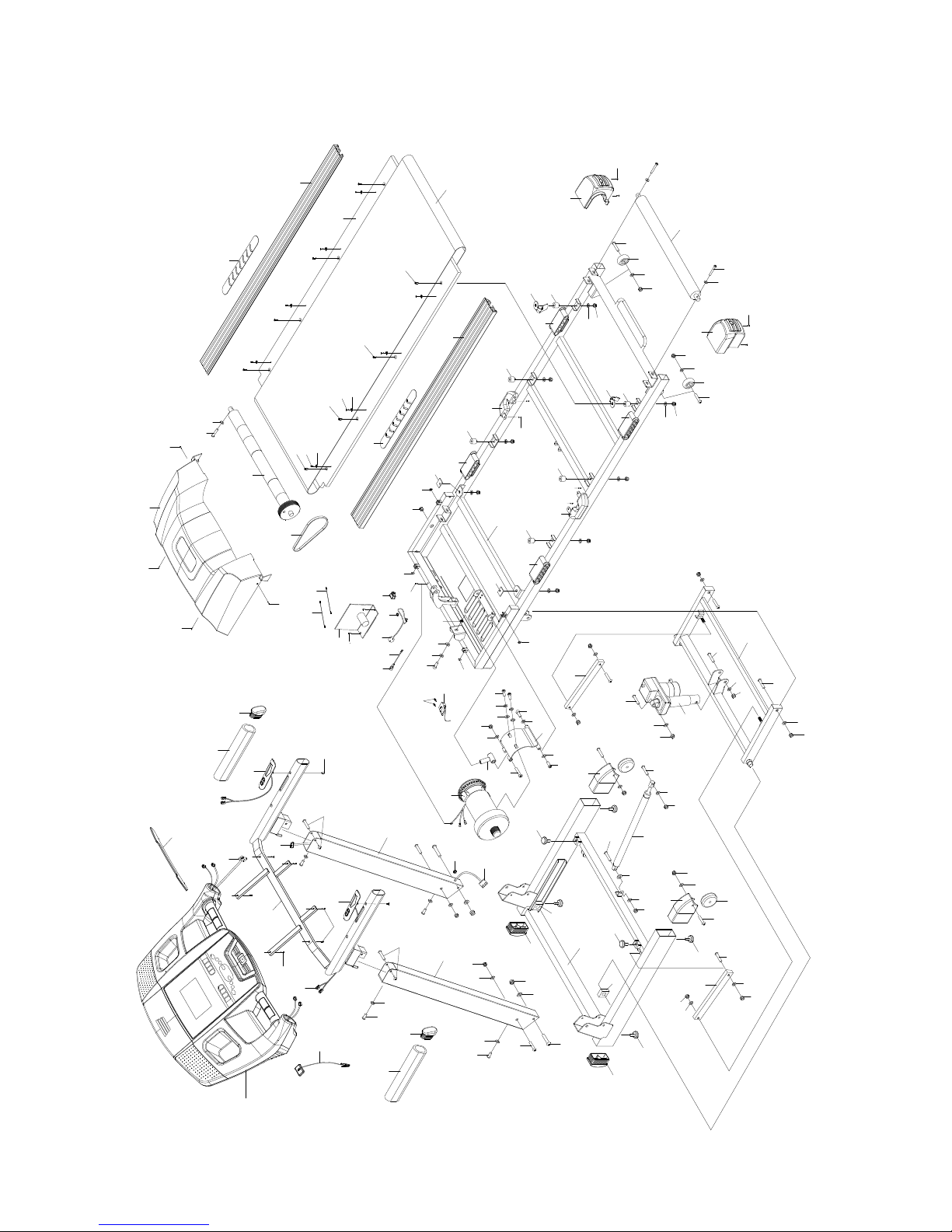

OVERVIEW DRAWING

32L

46 47

35L

60 58

20 21

32R

35R

Tool:

5mm Allen Wrench

Double Open End Wrench

ASSEMBLY INSTRUCTIONS

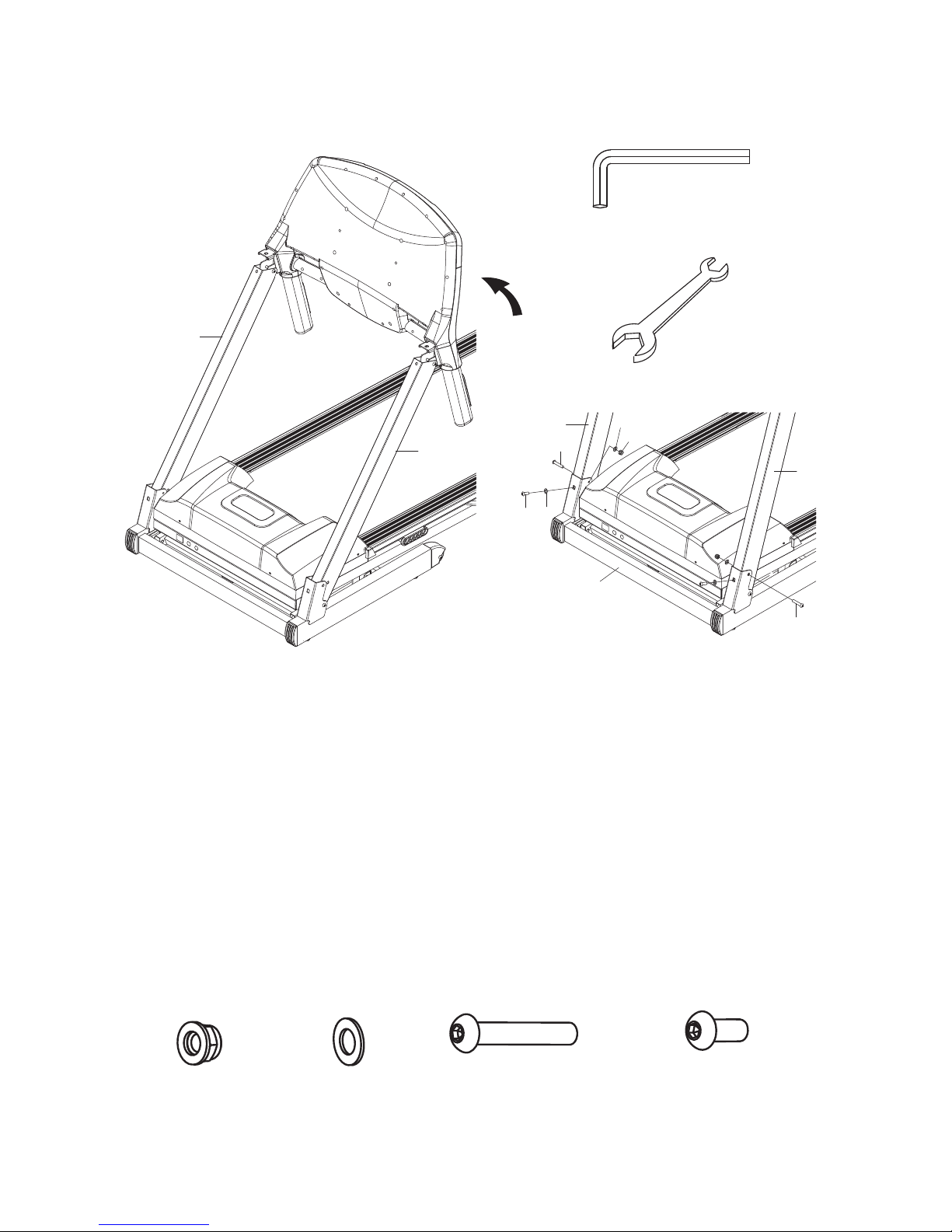

Step 1

Remove the treadmill from the shipping carton and place it on a level flat surface. Please

always use the aid of a second person when removing the treadmill from the shipping

carton.

Lift both Right/Left Handlebar Support Tubes (3, 4) up and align bolt holes. Use two M8

Nylon Nuts (20), two M8x55 Hexagon Socket Oval Head Bolts (27), two M8x20 Hexagon

Socket Oval Head Bolts (43), and four Ø8xØ16xT1.5 Flat Washers (21) to secure both

Right/Left Handlebar Support Tubes (3, 4) onto the Base Frame (1). Semi-tighten all

bolts and nylon nuts with the 5mm Allen Wrench and Double Open End Wrench provided.

It is recommended to have a second person assist with this step. One person should hold

the both Right/Left Handlebar Support Tubes (3, 4) in place while the other person tightens

the bolts and nylon nuts.

NOTE: DO NOT FULLY TIGHTEN BOLTS AND NYLON NUTS IN STEP 1 UNTIL THE

STEP 2 IS COMPLETE.

Hardware:

(21) Flat Washer

Ø8xØ16xT1.5

4 PCS

(20) Nylon Nut M8

2 PCS (43) Hexagon Socket Oval

Head Bolt M8x20

2 PCS

(27) Hexagon Socket

Oval Head Bolt M8x55

2 PCS

Table des matières

Autres manuels Life Gear tapis roulant

Life Gear

Life Gear CAMINADORA 97001 Manuel utilisateur

Life Gear

Life Gear 40120 Manuel utilisateur

Life Gear

Life Gear STEP MAKER PRO 97340 Manuel utilisateur

Life Gear

Life Gear 97015 Manuel utilisateur

Life Gear

Life Gear 97620 Manuel utilisateur

Life Gear

Life Gear 97400 Manuel utilisateur

Life Gear

Life Gear Mentor II Manuel utilisateur

Life Gear

Life Gear 97450 Manuel utilisateur

Life Gear

Life Gear PACE MAKER PRO 97320 Manuel utilisateur

Life Gear

Life Gear Sprint-1 97710 Manuel utilisateur

Life Gear

Life Gear Motion capture plus 97920 Manuel utilisateur

Life Gear

Life Gear 40120 Manuel utilisateur

Life Gear

Life Gear POWER TRACK PRO 97370 Manuel utilisateur

Life Gear

Life Gear 97780 Manuel utilisateur

Life Gear

Life Gear Energetic Pro Manuel utilisateur

Life Gear

Life Gear 97630 Manuel utilisateur

Life Gear

Life Gear 97960 Manuel utilisateur

Life Gear

Life Gear 97910 Manuel utilisateur

Life Gear

Life Gear 97830 Manuel utilisateur

Life Gear

Life Gear 98105 Manuel utilisateur

Life Gear

Life Gear 40115 Manuel utilisateur

Life Gear

Life Gear POWER TRACK PLUS 97362 Manuel utilisateur

Life Gear

Life Gear 97010 Manuel utilisateur

Life Gear

Life Gear ACACIA PRO Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur
