cv MANUAL TREADMILL

ITEM NO.: 40215

OWNER’S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

TABLE OF CONTENTS

WARRANTY ------------------------------------------------------------------------------- 2

IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3

OVERVIEW DRAWING -----------------------------------------------------------------4

PARTS LIST ------------------------------------------------------------------------------- 5

HARDWARE PACKING LIST --------------------------------------------------------- 6

TOOLS -------------------------------------------------------------------------------------- 6

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7

OPERATING THE COMPUTER ------------------------------------------------------ 14

LIFTING UPAND SETTING DOWN THE TREADMILL ------------------------ 16

ADJUSTMENTS -------------------------------------------------------------------------- 17

MAINTENANCE -------------------------------------------------------------------------- 18

TROUBLESHOOTING ------------------------------------------------------------------ 18

WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 18

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is offered only to the original owner and is not transferable. Proof of

purchase is required.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

IMPORTANT SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this manual treadmill: Read all instructions before using this

manual treadmill.

1. Check every part of the equipment before exercise. If there is any defective

component, replace it immediately; keep the equipment out of use until repair.

2. Make sure all parts, bolts and nuts are well assembled and locked before exercise.

3. Never insert any object into any opening.

4. Never operate this manual treadmill if it is not working properly. If it has been dropped

or damaged, or been exposed to water, return the appliance to a service center for

examination and repair.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult your local dealer.

6. Wear comfortable and suitable clothing when using the magnetic treadmill. Do not use

the manual treadmill barefoot, in only socks or in sandals, always wear athletic shoes.

7. Never wear loose clothing because it could run the risk of getting caught in the manual

treadmill.

8. Keep children and pets away from the equipment while in use.

9. Do not use the manual treadmill outdoors. This manual treadmill is for household use

only.

10. Only one person should be on the manual treadmill while in use.

11. Keep the manual treadmill on a solid, level surface with the minimum safety area

clearance of 2000mm x 1000mm of the manual treadmill. Be sure the area around the

manual treadmill remains clear during use and has adequate clearance.

12. Hold the handlebar with your hands when starting or stopping exercise and increasing

or decreasing the speed.

13. If feeling chest pains, nausea, dizziness, or short of breath, you should stop exercising

immediately and consult your physician before continuing.

14. The maximum weight capacity for this product is 110kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

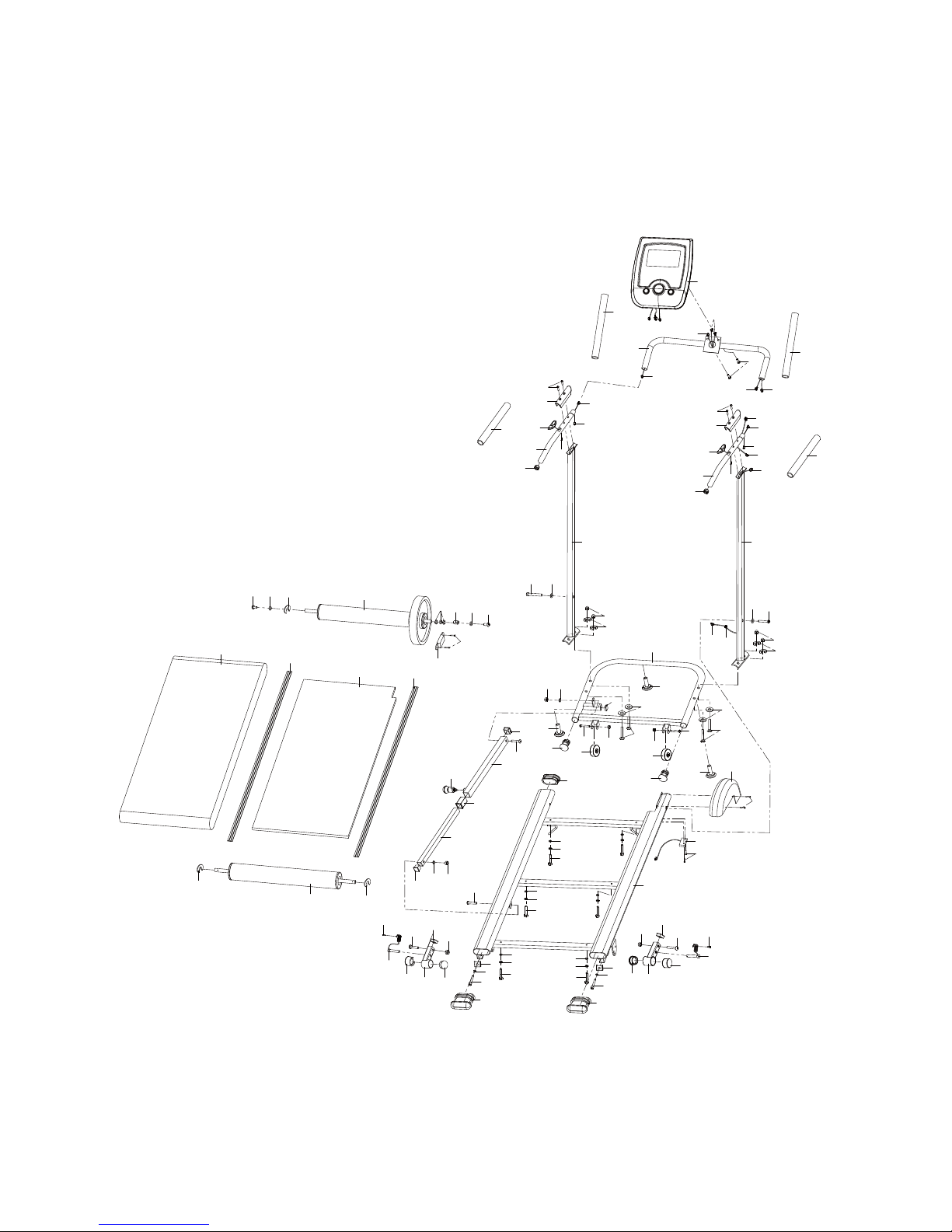

OVERVIEW DRAWING

60 50

19 30

942

842

54 57

17R

43 22

17L 19

37R

37L

47 65 53

PARTS LIST

No. Description Qty No. Description Qty

001 Rear Roller Ø60x395 1 028 Transport Wheel Ø50 2

002 Running Deck 1020x407x12 1 029 Spring Washer M8 4

003 Front Roller Ø60x395 1 030 Adjustable Leveler 3

004 Running Belt 2400x335x1.2 1 031 Extension Sensor Wire III

(180mm) 1

005 Main Frame 1 032 Sensor with Wire 1

006 Protective Cover 1 033 Extension Sensor Wire I

(1250mm) 1

007 Base Frame 1 034 Extension Sensor Wire II (250mm) 1

008 Left Handlebar 1 035 Extension Hand Pulse Sensor

Wire (250mm) 2

009 Right Handlebar 1 036 Wire Grommet (Ø6xØ21x10) 1

010 Left Handlebar Support Tube 1 037R Right Side Rail (950mm) 1

011 Right Handlebar Support Tube 1 037L Left Side Rail (1020mm) 1

012 Hand Pulse Sensor with Wire 2 038 Magnet with Magnet Bracket 1

013 Handlebar Adorner 2 039 Screw ST3x6 2

014 Computer Bracket

L140xW640xØ28 1 040 Rear Roller Adjustment Bolt

M6x50mm 2

015 Computer (KB5128-4) 1 041 Bolt M6x25 6

016 Rear Roller Adjustment Bolt Plate 2 042 Screw ST4x16 4

017R Right Incline Adjuster 1 043 Bolt M8x40mm 5

017L Left Incline Adjuster 1 044 Bolt M8x35mm 1

018 Incline Adjuster End Cap Ø50 2 045 Bolt M8x45mm 4

019 Incline Adjuster End Cap Ø38 4 046 Carriage Bolt M8x45mm 4

020 Locking Pin Ø8x60 2 047 Bolt M8x16mm 4

021 Main Frame End Cap T65x25 3 048 Washer Ø12.5xØ22 3

022 Square End Cap (□25.4) 3 049 Sleeve Ø16xØ12.5x9mm 1

023 Square End Cap (□20) 2 050 Bolt M10x55mm 2

024 Safety Tube A(□20x500) 1 051 Handlebar End Cap Ø28 2

025 Safety Tube B Bushing

(F23xF20.3x42) 1 052 Bolt M5x10mm 2

026 Safety Tube B (□25x460) 1 053 C Clip Ø12 3

027 Spring Knob Ø8xØ22x71 1 054 Nylon Washer Ø8.2xØ16x2T 2

PARTS LIST

No. Description Qty No. Description Qty

055 Washer M6 8 061 Computer Bracket Foam Grip

Ø23x3Tx390 2

056 Spring Washer M6 6 062 Handlebar Foam Grip

Ø23x3Tx580 2

057 Nylon Nut M8 6 063 Screw ST4x12 2

058 Screw ST3x12 2 064 Cap Nut M8 4

059 Curve Washer M8 4 065 Washer M8 2

060 Washer M10 2

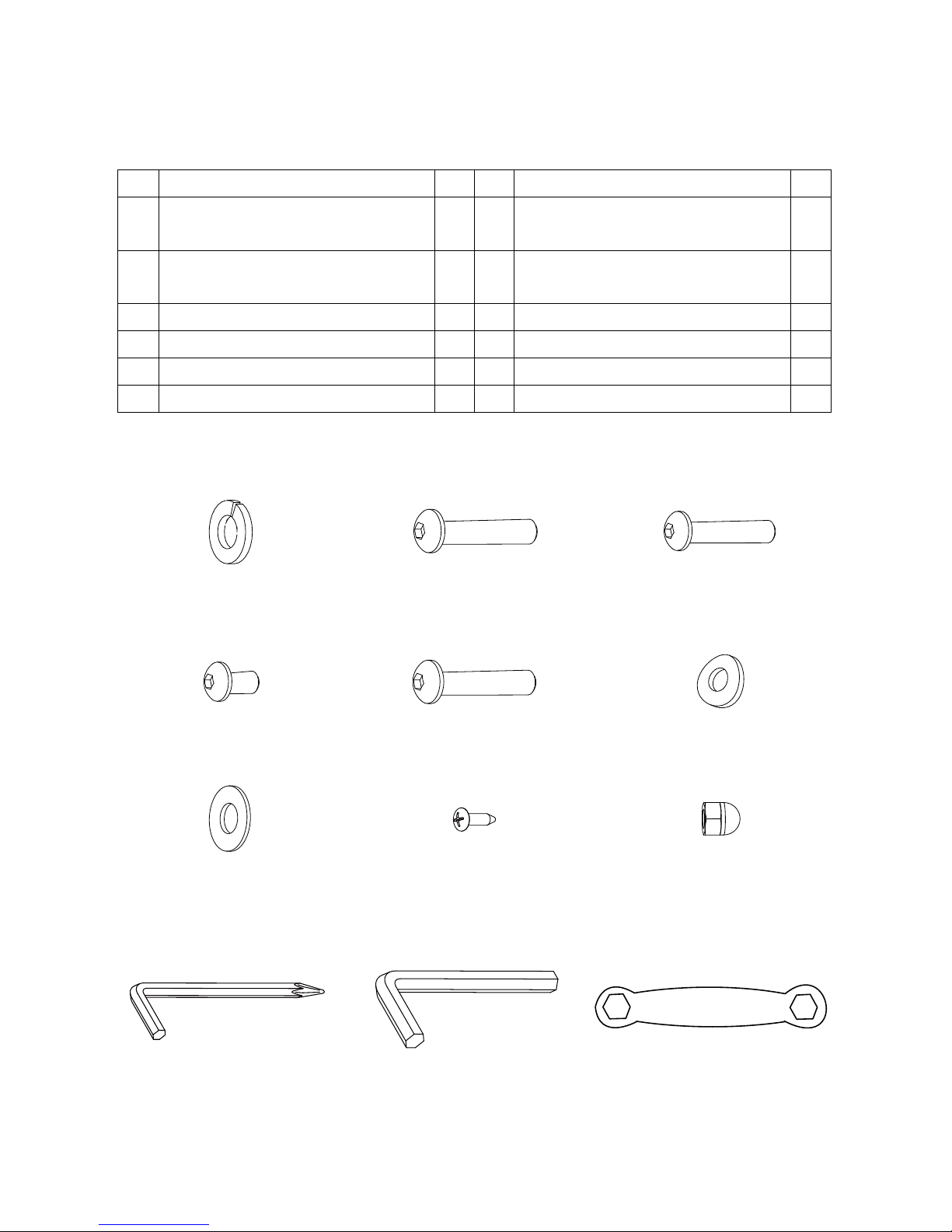

HARDWARE PACKIG LIST

TOOLS

Allen Wrench with

Phillips Screwdriver 5M

1 PC

Allen Wrench 6M

1 PC Hex Wrench

1 PC

(29) Spring Washer M8

4 PCS (45) Bolt M8x45mm

4 PCS (46) Carriage Bolt

M8x45mm

4 PCS

(47) Bolt M8x16mm

2 PCS (50) Bolt M10x55mm

2 PCS (59) Curve Washer M8

4 PCS

(60) Washer M10

2 PCS (63) Screw ST4x12

2 PCS (64) Cap Nut M8

4 PCS

ASSEMBLY INSTRUCTIONS

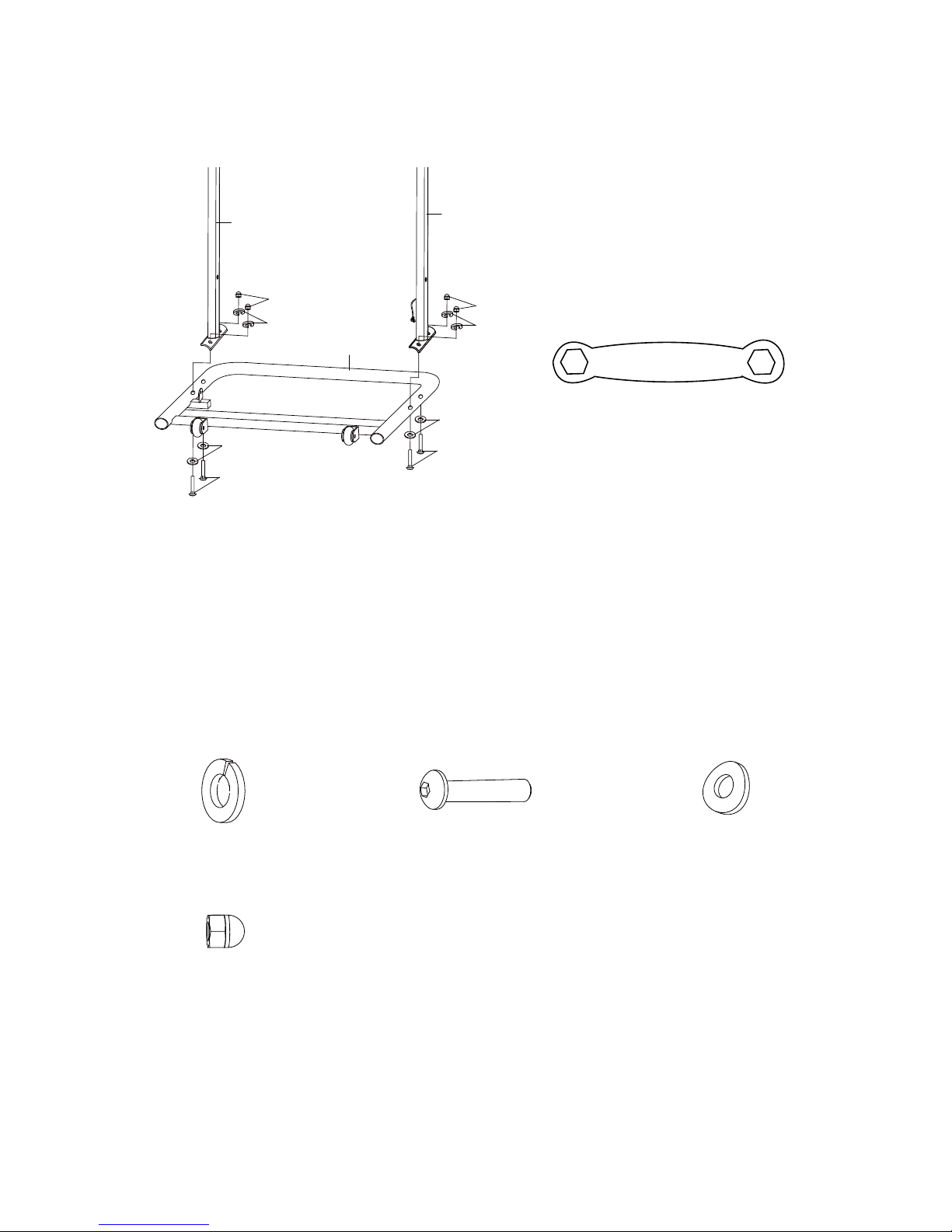

Step 1

Attach both Left/Right Handlebar Support Tubes (10, 11) onto the Base Frame (7) with

four M8x45mm Carriage Bolts (46), four m8 Curve Washers (59), four M8 Spring Washers

(29), and four M8 Cap Nuts (64). Tighten cap nuts with the Hex Wrench provided.

NOTE: PLEASE DO NOT FULLY TIGHTEN HARDWARE IN STEP 1 UNTIL STEP 5 IS

COMPLETED.

Hardware:

Hex Wrench

Tool:

(29) Spring Washer M8

4 PCS (46) Carriage Bolt

M8x45mm

4 PCS

(59) Curve Washer M8

4 PCS

(64) Cap Nut M8

4 PCS

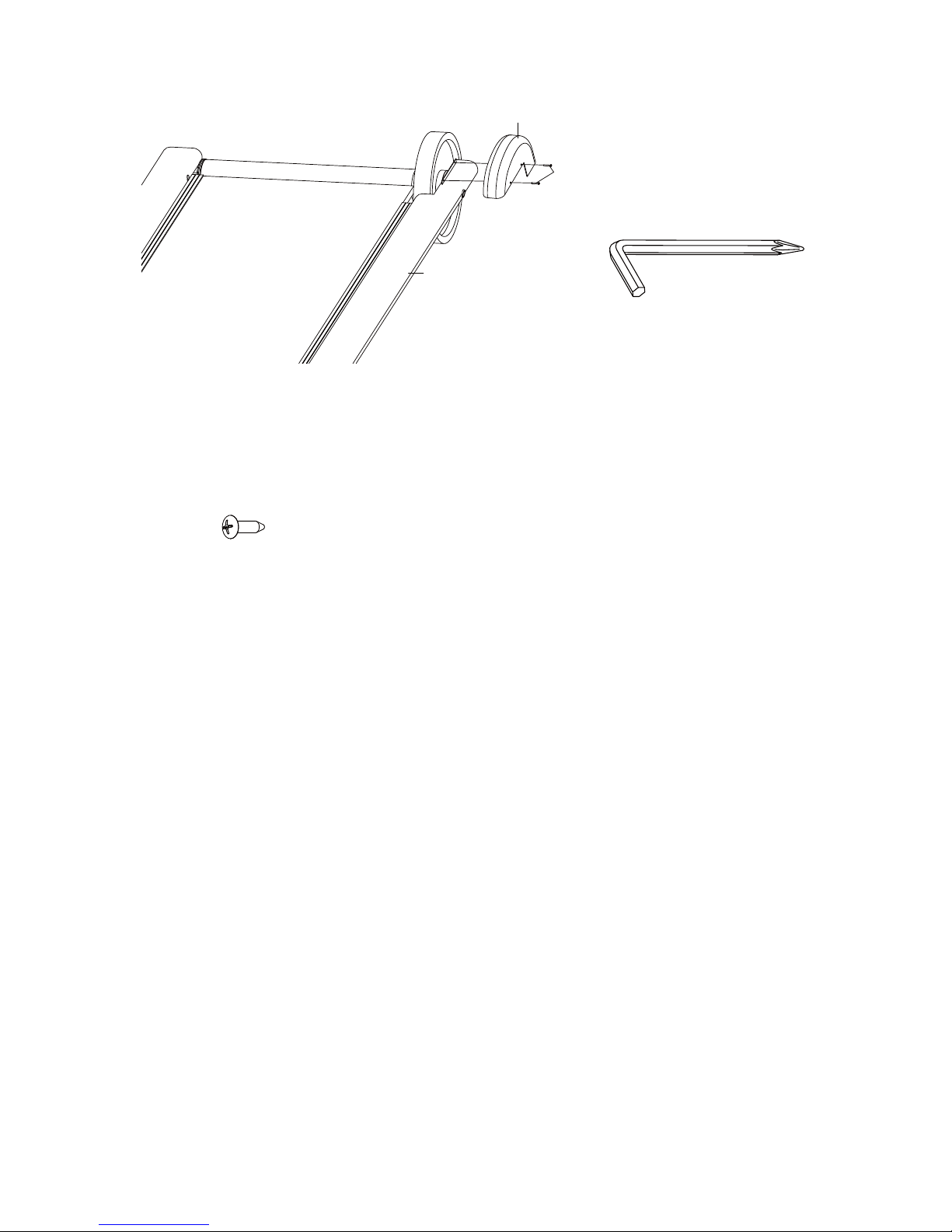

Step 2

Attach the Protective Cover (6) onto the Main Frame (5) with two ST4x12 Screws (63).

Tighten screws with the 5M Allen Wrench with Phillips Screwdriver provided.

Hardware:

Allen Wrench with

Phillips Screwdriver 5M

Tool:

(63) Screw ST4x12

2 PCS

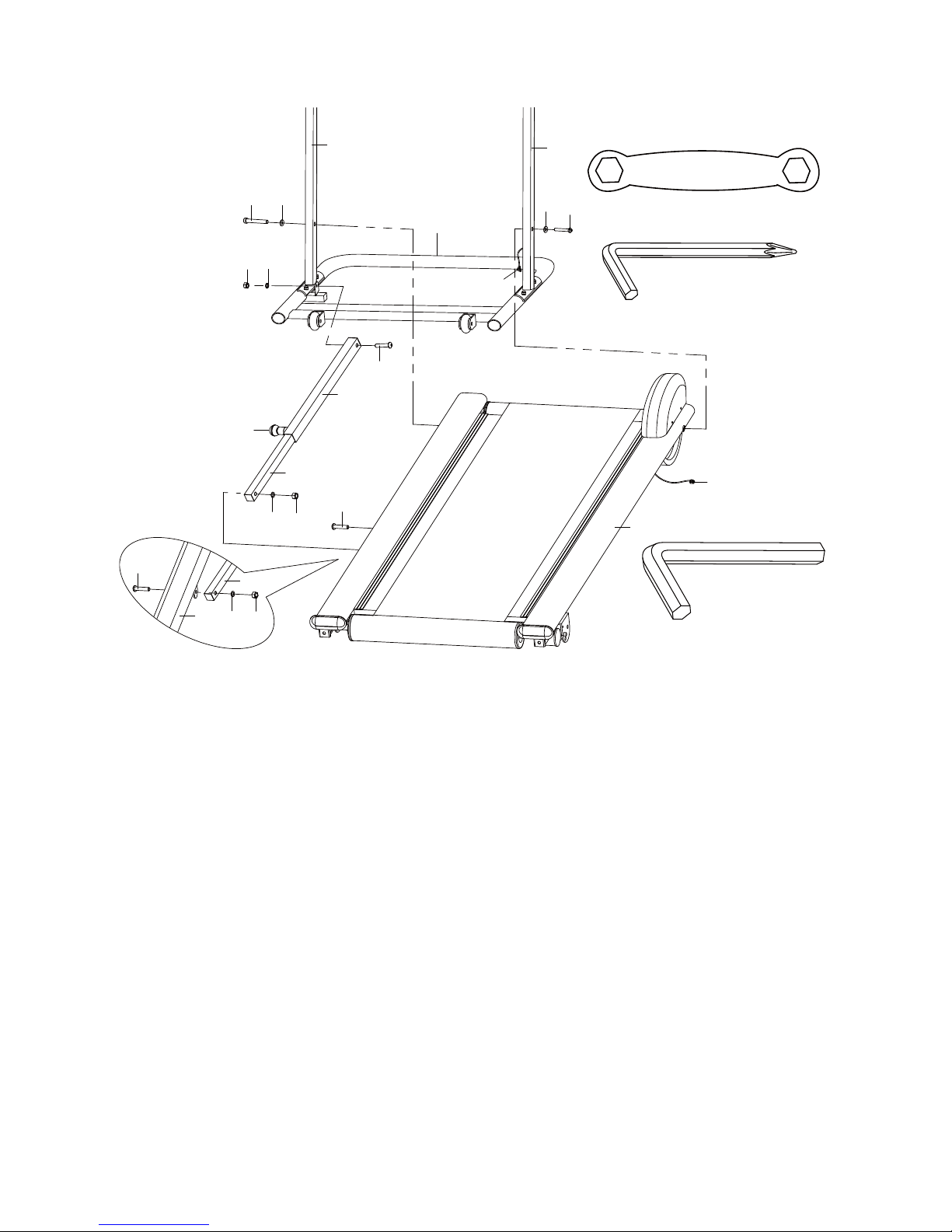

Step 3

Lift the front end of Main Frame (5) up by two or more people and then attach the Main

Frame (5) onto the Left/Right Handlebar Support Tubes (10, 11) with two M10x55mm Bolts

(50) and two M10 Washers (60). Tighten bolts with the 6M Allen Wrench provided.

Please do not fully tighten the bolts until the computer bracket is installed.

Connect the Sensor Wire (32) from the Main Frame (5) to the Extension Sensor Wire I (33)

from the Right Handlebar Support Tube (11).

Remove one M8x35mm Bolt (44), one Ø8.2xØ16x2T Nylon Washer (54), and one M8 Nylon

Nut (57) from the Safety Tube A (24). Remove bolt and nylon nut with the 5M Allen

Wrench with Phillips Screwdriver and Hex Wrench provided.

Remove one M8x40mm Bolt (43), one Ø8.2xØ16x2T Nylon Washer (54), and one M8 Nylon

Nut (57) from the Safety Tube B (26). Remove bolt and nylon nut with the 5M Allen

Wrench with Phillips Screwdriver and Wrench provided.

Lift up the Main Frame (5) and hold it by one person, release the Spring Knob (27) by the

other person and pull the Safety Tube A(24) to stretched-out. Attach the Safety Tube B (26)

onto the L-plate on the Base Frame (7) with one M8x40mm Bolt (43), one Ø8.2xØ16x2T

Nylon Washer (54), and one M8 Nylon Nut (57) that were removed. Tighten bolt and nylon

nut with the 5M Allen Wrench with Phillips Screwdriver and Hex Wrench provided.

Attach the Safety TubeA(24) onto the Main Frame (5) with one M8x35mm Bolt (44), one

Ø8.2xØ16x2T Nylon Washer (54), and one M8 Nylon Nut (57) that were removed. Tighten

Hex Wrench

Tool:

Allen Wrench with

Phillips Screwdriver 5M

Allen Wrench 6M

60 50

54 57
