INSTRUCTION MANUAL

(M001B02-03-18A)

Power analyzer

MCA PLUS II

Instruction Manual

SAFETY PRECAUTIONS

DISCLAIMER

LIFASA, reserves the right to make modi cations to the device or the unit speci cations set

out in this instruction manual without prior notice.

LIFASA, on its web site, supplies its customers with the latest versions of the device speci -

cations and the most updated manuals.

www.lifasa.es

LIFASA, recommends using the original cables and accessories that are sup-

plied with the device.

DANGER

Warns of a risk, which could result in personal injury or material damage.

ATTENTION

Indicates that special attention should be paid to a speci c point.

Follow the warnings described in this manual with the symbols shown below.

If you must handle the unit for its installation, start-up or maintenance, the following

should be taken into consideration:

Incorrect handling or installation of the unit may result in injury to personnel as well as damage

to the unit. In particular, handling with voltages applied may result in electric shock, which may

cause death or serious injury to personnel. Defective installation or maintenance may also

lead to the risk of  re.

Read the manual carefully prior to connecting the unit. Follow all installation and maintenance

instructions throughout the unit’s working life. Pay special attention to the installation stan-

dards of the National Electrical Code.

Refer to the instruction manual before using the unit

In this manual, if the instructions marked with this symbol are not respected or carried out correctly, it can

result in injury or damage to the unit and /or installations.

LIFASA, reserves the right to modify features or the product manual without prior noti cation.

Instruction Manual

MCA PLUS II

CONTENTS

SAFETY PRECAUTIONS ��3

DISCLAIMER ��3

CONTENTS��4

REVISION LOG��6

1�- VERIFICATION UPON RECEPTION��7

2�- PRODUCT DESCRIPTION��7

3�- DEVICE INSTALLATION ��9

3�1�- PRIOR RECOMMENDATIONS��9

3�2�- INSTALLATION ��10

3�3�- MCA PLUS II -FLEX: ROGOWSKI SENSORS��10

3�4�- DEVICE TERMINALS��12

3�4�1�- LIST OF TERMINALS, MCA PLUS II - ITF, MCA PLUS II - MC AND MCA PLUS II - mV

MODELS��12

3�4�2�- LIST OF TERMINALS, MCA PLUS II - ITF-IN AND MCA PLUS II - MC-IN MODELS�� 13

3�4�3�- LIST OF TERMINALS, MCA PLUS II - FLEX MODEL ��14

3�5�- CONNECTION DIAGRAM��15

3�5�1�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION, MCA PLUS II - ITF

AND MCA PLUS II - mV MODEL� �� 15

3�5�2�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION, MCA PLUS II - ITF

-IN MODEL� ��16

3�5�3�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION MCA PLUS II - MC

MODEL� ��17

3�5�4�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION MCA PLUS II - MC

-IN MODEL� ��18

3�5�5�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION, MCA PLUS II

- FLEX MODEL��19

3�5�6�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II -

ITF AND MCA PLUS II - mV MODEL� ��20

3�5�7�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II - MC

MODEL� ��21

3�5�8�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II

-FLEX MODEL��22

3�5�9�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION AND TRANSFOR

MERS WITH AN ARON CONNECTION, MCA PLUS II - ITF AND MCA PLUS II - MC MODELS� �� 23

3�5�10�- MEASURING TWO-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II - ITF,

MCA PLUS II -MC AND MCA PLUS II - mV MODELS� ��24

3�5�11�- MEASURING TWO-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II - ITF-

IN AND MCA PLUS II -MC-IN MODELS� ��25

3�5�12�- MEASURING TWO-PHASE NETWORKS WITH A 3-WIRE CONNECTION, MCA PLUS II - FLEX

MODEL� ��26

3�5�13�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE CONNEC-

TION, MCA PLUS II - ITF, MCA PLUS II - MC AND MCA PLUS II - mV MODELS�� 27

3�5�14�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE CONNEC-

TION, MCA PLUS II - FLEX MODEL��28

3�5�15�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO NEUTRAL, WITH A 2-WIRE CON-

NECTION, MCA PLUS II - ITF, MCA PLUS II - MC AND MCA PLUS II - mV MODELS� �� 29

3�5�16�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO NEUTRAL, WITH A 2-WIRE CON-

NECTION, MCA PLUS II - FLEX MODEL� �� 30

4�- OPERATION ��31

4�1�- MEASURING PARAMETERS ��32

4�2�- KEYBOARD FUNCTIONS��33

4�3�- DISPLAY ��35

4.3.1. cos φ - PF (POWER FACTOR) BAR ��35

4�3�2� ANALOGUE BAR ��36

4�3�3� OTHER SYMBOLS ON THE DISPLAY��36

4�4�- LED INDICATORS��37

4�5�- OPERATION PROFILES ��37

4�5�1� ANALYZER PROFILE�� 37

4�5�2� e3PROFILE��41

MCA PLUS II

Instruction Manual

4�5�3� USER �� 44

4�6�- HARMONICS ��44

4�7�- INPUTS ��45

4�8�- OUTPUTS �� 45

4�9�- PROGRAMMING �� 46

4�9�1� PRIMARY VOLTAGE ��47

4�9�2� SECONDARY VOLTAGE�� 48

4�9�3� PRIMARY CURRENT �� 48

4�9�4� SECONDARY CURRENT ( MODEL MCA PLUS II - ITF) �� 49

4�9�5� PRIMARY NEUTRAL CURRENT(MODELS: MCA PLUS II - ITF-IN AND MCA PLUS II - MC-IN) � 49

4�9�6� SECUNDARY NEUTRAL CURRENT (MODEL MCA PLUS II - ITF-IN)�� 50

4�9�7� NUMBER OF QUADRANTS ��50

4�9�8� MEASUREMENT CONVENTION ��50

4�9�9� TYPE OF INSTALLATION �� 51

4�9�10� MAXIMUM DEMAND INTEGRATION PERIOD��51

4�9�11� DELETING MAXIMUM DEMAND��52

4�9�12� SELECTING THE OPERATION PROFILE��52

4�9�13� BACKLIGHT, TURNING ON THE BACKLIT DISPLAY �� 54

4�9�14� SELECTING THE Cos φ - PF BAR ON THE DISPLAY�� 54

4�9�15� DELETING MAXIMUM AND MINIMUM VALUES ��55

4�9�16� DELETING ENERGY VALUES�� 55

4�9�17� SELECTING THE RANGE OF ENERGIES��55

4�9�18� ACTIVATING THE HARMONICS DISPLAY SCREEN� ��56

4�9�19� kgC02CARBON EMISSION RATIO OF GENERATED ENERGY��56

4�9�20� kgC02CARBON EMISSION RATIO OF CONSUMED ENERGY�� 57

4�9�21� COST RATIO OF GENERATED ENERGY��57

4�9�22� COST RATIO OF CONSUMED ENERGY ��58

4�9�23� PROGRAMMING ALARM 1 (RELAY 1)�� 59

4�9�24� PROGRAMMING ALARM 2 (RELAY 2)�� 64

4�9�25� PROGRAMMING ALARM 3 (DIGITAL OUTPUT T1)��64

4�9�26� PROGRAMMING ALARM 4 (DIGITAL OUTPUT T2)��66

4�9�27� OPERATING MODE OF DIGITAL INPUT 1 ��67

4�9�28� OPERATING MODE OF DIGITAL INPUT 2 ��67

4�9�29� RS-485 COMMUNICATIONS: PROTOCOL�� 67

4�9�30� LOCKING THE PROGRAMMING ��71

4�10�- COMMUNICATIONS�� 73

4�10�1� CONNECTIONS��73

4�10�2� PROTOCOL��74

4�10�3� MODBUS COMMANDS�� 75

4�10�4� BACnet PROTOCOL�� 84

4�10�5� MAPA PICS�� 85

5�- TECHNICAL FEATURES ��88

6�- MAINTENANCE AND TECHNICAL SERVICE��92

7�- GUARANTEE��92

Instruction Manual

MCA PLUS II

REVISION LOG

Table 1: Revision log�

Date Revision Description

04/14 M001B02-03-14A Initial Version

06/14 M001B02-03-14B Changes in the following sections:

3.4 - 4.9 - 4.10 - 5

06/14 M001B02-03-14C Changes in the following sections:

4.9.5 - 4.9.6 - 4.10.2.1

11/14 M001B02-03-14D Changes in the following sections:

4.9.21 - 4.9.23 - 4.10.2 - 4.10.3 - 5

11/14 M001B02-03-14E Changes in the following sections:

3.3.2 - 3.4.2 - 3.4.8 - 4.5 - 4.9 - 4.10.3.1

01/15 M001B02-03-15A Changes in the following sections:

2 - 3.3.- 3.4- 4.1- 4.9.4 -4.9.28 - 4.10 - 4.10.3.2 - 5

10/15 M001B02-03-15B

Changes in the following sections:

4.2 - 4.5.1 - 4.5.3 - 4.6 - 4.7 - 4.9 - 4.9.1 - 4.9.9 - 4.9.12 -

4.9.22.- 4.9.24 - 4.10.5

12/15 M001B02-03-15C Changes in the following sections:

3.2.- 4.- 4.3.1.- 4.9.- 4.10.3.6. - 4.10.4.- 4.10.5.- 5.

07/16 M001B02-03-16A Changes in the following sections:

4.9.23

02/17 M001B02-03-17A Changes in the following sections:

2.- 3.3. - 3.4. - 3.5. - 4.7. - 4.8. - 4.9.- 4.10.3.6. - 4.10.3.7 - 5

07/17 M001B02-03-17B Changes in the following sections:

5. - 8.

10/17 M001B02-03-17C Changes in the following sections:

3.3 - 5.

06/18 M001B02-03-18A

Changes in the following sections:

2. - 3.4.2. - 3.5. - 4.1. - 4.5.1. - 4.5.3. - 4.8. - 4.9.5. - 4.9.23. -

4.10.3.1. - 4.10.3.7.2. - 4.9.25. - 4.9.26.- 4.10.3.7.13. - 5.

Note : Devices images are for illustrative purposes only and may differ from the actual device.

MCA PLUS II

Instruction Manual

1�- VERIFICATION UPON RECEPTION

Check the following points when you receive the device:

a) The device meets the specications described in your order.

b) The device has not suffered any damage during transport.

c) Perform an external visual inspection of the device prior to switching it on.

d) Check that it has been delivered with the following:

- An installation guide,

- 2 Retainers used to attach the device,

- 5 connectors.

If any problem is noticed upon reception, immediately contact the transport

company and/or LIFASA's after-sales service.

2�- PRODUCT DESCRIPTION

The MCA PLUS II device measures, calculates and displays the main electrical parameters

of the following networks: single-phase, two-phase, with and without neutral, balanced three-

phase, with ARON measurements or unbalanced. The measurement will be taken in RMS with

the three AC voltage inputs and three current inputs.

There are 6 versions of the device, depending on the type of current input:

MCA PLUS II - ITF, indirect current measurement with /5A or /1A transformers.

MCA PLUS II - ITF-IN, indirect current measurement with /5A or /1A transformers and

an input to measure the neutral current.

MCA PLUS II - MC, indirect current measurement with efcient transformers of the

MC1 and MC3 series.

MCA PLUS II - MC-IN, indirect current measurement with efcient transformers of the

MC1 and MC3 series and an input to measure the neutral current.

MCA PLUS II - mV indirect current measurement with /0.333V transformers.

MCA PLUS II - FLEX current measurement through Rogowski sensors.

The device features:

- 3 keys that allow you to browse between the various screens and program the device.

- 3 indicator LEDs: CPU, ALARM and KEY.

- LCD display, displays all parameters,

Instruction Manual

MCA PLUS II

- 2 digital inputs, used to select the tariff or detect the logic state of external signals.

- 2 digital outputs, fully programmable.

(Not available in the MCA PLUS II - ITF-IN, MCA PLUS II - MC-IN and MCA PLUS

II - FLEX models)

- 2 alarm relays, fully programmable (Not available in the MCA PLUS II - FLEX model)

- RS-485 Communications, with two serial protocols: MODBUS RTU© and BACnet.

MCA PLUS II

Instruction Manual

3�- DEVICE INSTALLATION

3.1.- PRIOR RECOMMENDATIONS

In order to use the device safely, it is critical that individuals who handle it follow

the safety measures set out in the standards of the country where it is being used,

use the necessary personal protective equipment, and pay attention to the vari-

ous warnings indicated in this instruction manual.

The MCA PLUS II device must be installed by authorised and qualied staff.

The power supply plug must be disconnected and measuring systems switched off before

handling, altering the connections or replacing the device. It is dangerous to handle the device

while it is powered.

Also, it is critical to keep the cables in perfect condition in order to avoid accidents, personal

injury and damage to installations.

The manufacturer of the device is not responsible for any damage resulting from failure by the

user or installer to heed the warnings and/or recommendations set out in this manual, nor for

damage resulting from the use of non-original products or accessories or those made by other

manufacturers.

If an anomaly or malfunction is detected in the device, do not use it to take any measure-

ments.

Inspect the work area before taking any measurements. Do not take measurements in danger-

ous areas or where there is a risk of explosion.

Disconnect the device from the power supply (device and measuring system

power supply) before maintaining, repairing or handling the device's connections.

Please contact the after-sales service if you suspect that there is an operational

fault in the device.

Instruction Manual

MCA PLUS II

3.2.- INSTALLATION

The device will be installed on a panel (92+0.8 x 92+0.8 mm panel drill hole, in compliance with DIN

43700). All connections are located inside the electric panel.

Terminals, opening covers or removing elements can expose parts that are haz-

ardous to the touch while the device is powered. Do not use the device until it is

fully installed.

The device must be connected to a power circuit that is protected with gl (IEC 269) or M type

fuses with a rating of 0.5 to 2 A. It must be tted with a circuit breaker or equivalent device, in

order to be able to disconnect the device from the power supply network.

The power and voltage measuring circuit must be connected with cables that have a minimum

cross-section of 1mm2.

The secondary line of the current transformer will have a minimum cross-section of 2.5 mm2.

The temperature rating of insulation of wires connected to the device will be at minimum 62ºC.

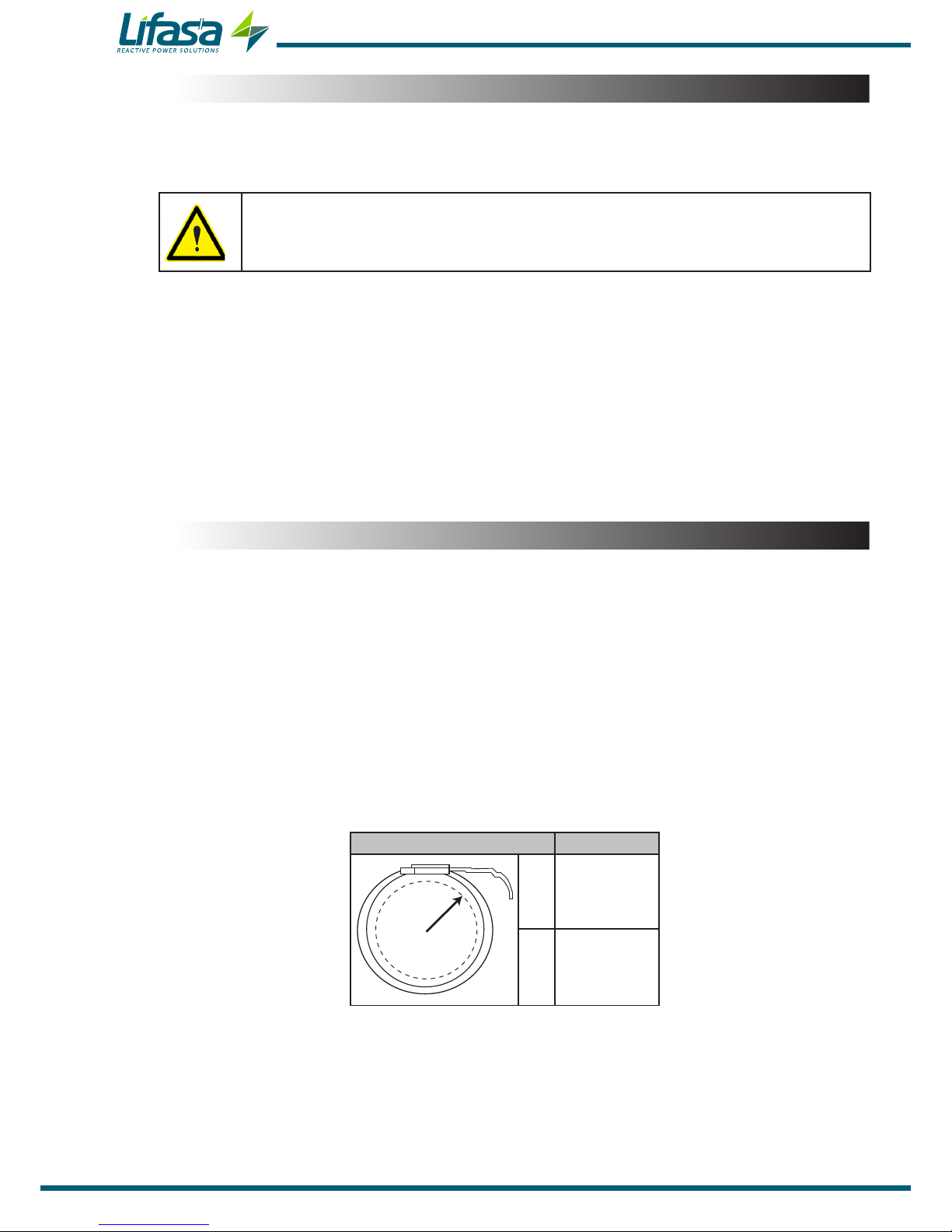

3.3.- MCA PLUS II - FLEX : ROGOWSKI SENSORS

The MCA PLUS II - FLEX model measures currents using exible sensors, based on the Ro-

gowski coil principle.

The exibility of the sensor allows it to measure an alternating current irrespective of the posi-

tion of the conductor.

LIFASA has 2 Rogowski sensor models that can be used with the MCA PLUS II - FLEX: FLEX-

MAG and FLEX-BAY.

Table 3 shows the connection of the sensors and Table 2 the maximum position error.

Note: For more information, consult the corresponding sensor guide.

Table 2:Position error�

Position Error

A± 1%

BA ± 3%

MCA PLUS II

Instruction Manual

Autres manuels pour MCA PLUS II

Table des matières

Autres manuels Lifasa Instrument de mesure

Lifasa

Lifasa MCA PLUS II Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
