OWNER’S MANUAL

Portable Bluetooth

Speaker

2105_Rev03

www.lg.com

Please read this manual carefully before operating your set and retain it for future

reference.

MODEL

PN5/PN5W/PN5G/PN5R

1 Getting Started

Getting Started2

Getting Started

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead

symbol within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product’s

enclosure that may be of sufcient

magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing) instructions

in the literature accompanying the

product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

CAUTION: The apparatus should not be exposed to

water (dripping or splashing) and no objects lled

with liquids, such as vases, should be placed on the

apparatus.

WARNING: Do not install this equipment in a

conned space such as a book case or similar unit.

CAUTION: Do not use high voltage products around

this product, (ex. Electrical swatter). This product may

malfunction due to electrical shock.

CAUTION: No naked ame sources, such as lighted

candles, should be placed on the apparatus.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of

the product and to protect it from over heating.

The openings should never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer’s

instruction has been adhered to.

Getting Started 3

Getting Started

CAUTION concerning the Power Cord

The Power Plug is the disconnecting device. In case

of an emergency, the Power Plug must remain readily

accessible.

Check the specication page of this owner’s manual

to be certain of the current requirements.

Do not overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords, frayed

power cords, or damaged or cracked wire insulation

are dangerous. Any of these conditions could result

in electric shock or re. Periodically examine the

cord of your device, and if its appearance indicates

damage or deterioration, unplug it, discontinue use of

the device, and have the cord replaced with an exact

replacement part by an authorized service center.

Protect the power cord from physical or mechanical

abuse, such as being twisted, kinked, pinched, closed

in a door, or walked upon. Pay particular attention to

plugs, wall outlets, and the point where the cord exits

the device.

NOTICE: For safety marking information including

product identication and supply ratings, please refer

to the main label on the bottom or the other surface

of the product.

CAUTION when using this product in environments

of low humidity

yIt may cause static electricity in environments of

low humidity.

yIt is recommended to use this product after

touching any metal object which conducts

electricity.

For models using an adapter

Only use the AC adapter supplied with this device.

Do not use a power supply from another device or

another manufacturer. Using any other power cable

or power supply may cause damage to the device and

void your warranty.

Getting Started4

Getting Started

Symbols

~Refers to alternating current (AC).

0Refers to direct current (DC).

Refers to class II equipment.

1Refers to stand-by.

!Refers to “ON” (power).

Refers to dangerous voltage.

Table of Contents 5

1 Getting Started

2 Safety Information

6 Unique features

6 Introduction

7 Front

8 Rear

2 Operating

9 Charging the speaker

9 – Charging with the AC adapter

9 – Checking the charging status

10 – Checking Battery status

11 Basic Operations

11 – Using power button

11 – Bluetooth Connection

11 – Bluetooth LED status

12 – Simple Operation Guide

13 Handsfree Function

14 Voice Command

15 Mood light

16 Sound Effect

16 – Setting Sound effect

17 Listening to Music from Your External Device

18 Using BLUETOOTH® wireless technology

18 – Listening to music stored on the

BLUETOOTH devices

21 Multi phone pairing

23 Using the LG XBOOM App

23 – About “LG XBOOM” App

23 – Install “LG XBOOM” App onto Your

Bluetooth Device

24 – Activate Bluetooth with “LG XBOOM” App

25 Dual Mode Connection

27 Other Operation

27 – Resetting

27 – Turn on/off the beep sound

27 – Notice for Auto Power Off

3 Troubleshooting

28 Troubleshooting

4 Appendix

29 Trademarks and Licenses

30 Handling the Unit

31 Specifications

Table of Contents

Getting Started6

Getting Started

Unique features

Auto Power Off

This unit supports to turn off by itself for saving

energy consumption. (Page 27)

AUX (Portable In)

Listen to music from your portable device.

(Smart phone, Notebook, etc.)

BLUETOOTH®

Listen to music stored on your Bluetooth device.

LG XBOOM

LG XBOOM is an app designed to let you take control

of some of LG’s latest audio devices.(Page 23-

24)

Dual Mode

You can enjoy the sound in stereo by using two

speakers. For enjoying Dual Mode, you need to

purchase another speaker.

(Available PN series model: 5, 7)

(Page 25-26)

Multi Mode

You can connect multiple speakers to enjoy the Multi

Mode sound by using only "LG XBOOM" app. For

enjoying Multi Mode, you need to purchase another

speaker.

(Available PN series model: 5, 7)

Introduction

Symbol used in this manual

, Note

Indicates special notes and operating features.

> Caution

Indicates cautions for preventing possible damages

from abuse.

Water-proof (IPX5)

This speaker is water-proof according to IPX5.

IPX5 is “Degrees of protection against ingress of

water". However, this system is not completely

water-tight. Avoid the cases below.

yDo not use unit under water or other liquid.

yWhen battery is charging, do not expose the

unit to water.

yWhen port is exposed to water, wipe off it

with a soft dry cloth. Thoroughly dry it before

using the speaker.

yPorts are not water-proof. Make sure close

the port cover securely. Refer to below image.

- Position port cover onto a and securely

press it in b.

The water resistant performance of the system is

based on our measurements under the conditions

herein described. Note that malfunctions as a

result of water immersion caused by misuse by the

customer are not covered by the warranty.

> Caution

Getting Started 7

Getting Started

Front

g h i j k l m n

b c d e f

aBattery LED

Power LED

Bluetooth LED

dts Stereo Plus LED

SOUND BOOST LED

Microphone

Turns On / Off: Press it.

* If the power turned on, you can check the

battery status by pressing the

button for

2 seconds.

- Adds a Bluetooth device for multi phone

pairing. (Press and hold j for 2 seconds)

- Changes to Bluetooth mode in AUX mode.

(Press j)

* When you connect the 3.5 mm stereo cable,

the function is changed to AUX mode.

- Press and hold j for 7 seconds for Bluetooth

Initialization.

P : Turn down the volume.

O : Turn up the volume.

- Plays, pauses or skips playback on the

Bluetooth mode. (Page 12)

- Receives a call on the Bluetooth device.

(Page 13)

- Mutes the sound on the AUX mode.

.()

- Use voice command of your smart device.

(Page 14)

- Changes mood light.

(Press and hold for 2 seconds) (Page 15)

dts Stereo Plus

- Changes sound effect. (Page 16)

SOUND BOOST

- Changes sound effect. (Page 16)

Getting Started8

Getting Started

Rear

b c d e f

Port cover

bDC IN 5 V

USB (C type) port for charging

AUX

Listens to music from your portable device.

RESET button

Connects two speakers for Dual Mode.

(Page 25-26)

Dual Mode LED

2 Operating

Operating 9

Operating

Charging the speaker

Charging with the AC adapter

This speaker uses built-in battery. Before using it,

charge the battery by connecting the AC Adapter.

1. Connect the supplied USB cable to the AC

adapter.

2. Connect the USB cable to DC IN 5V port of the

speaker.

3. Plug the AC power cord into an AC outlet.

(Not supplied)

yOperating time is approx. 18 hours. It is based

on what fully charged the battery, continuous

playback using 50 % volume level and turning

off mood light and Sound Effect functions.

It may vary depending on the battery status

and operational conditions.

yIt is recommended that you use the supplied

USB cable for device protection.

, Note

AC adapter is not supplied. It is recommended

that you use the 5 V AC adapter approved by

LG Electronics Inc. (more than 2 A) with this

speaker because of danger of explosion. If you

do not use the recommended adapter, charging

is unavailable or charging time may differ.

> Caution

Checking the charging status

When speaker's battery is charging, you can check

the charging status by Battery LED.

LED Description

Green Off

Red

Battery is fully charged.

Green Off

Red

Battery is charging.

yIf you listen to the music while charging, it will

take longer to charge.

yWhen the speaker is not charging due to

overheating, The Battery LED turns on

red and amber alternately. And charging is

stopped.

yWhen the speaker’s battery is fully charged,

the Battery LED turns on green for 15

seconds and then off.

, Note

Operating10

Operating

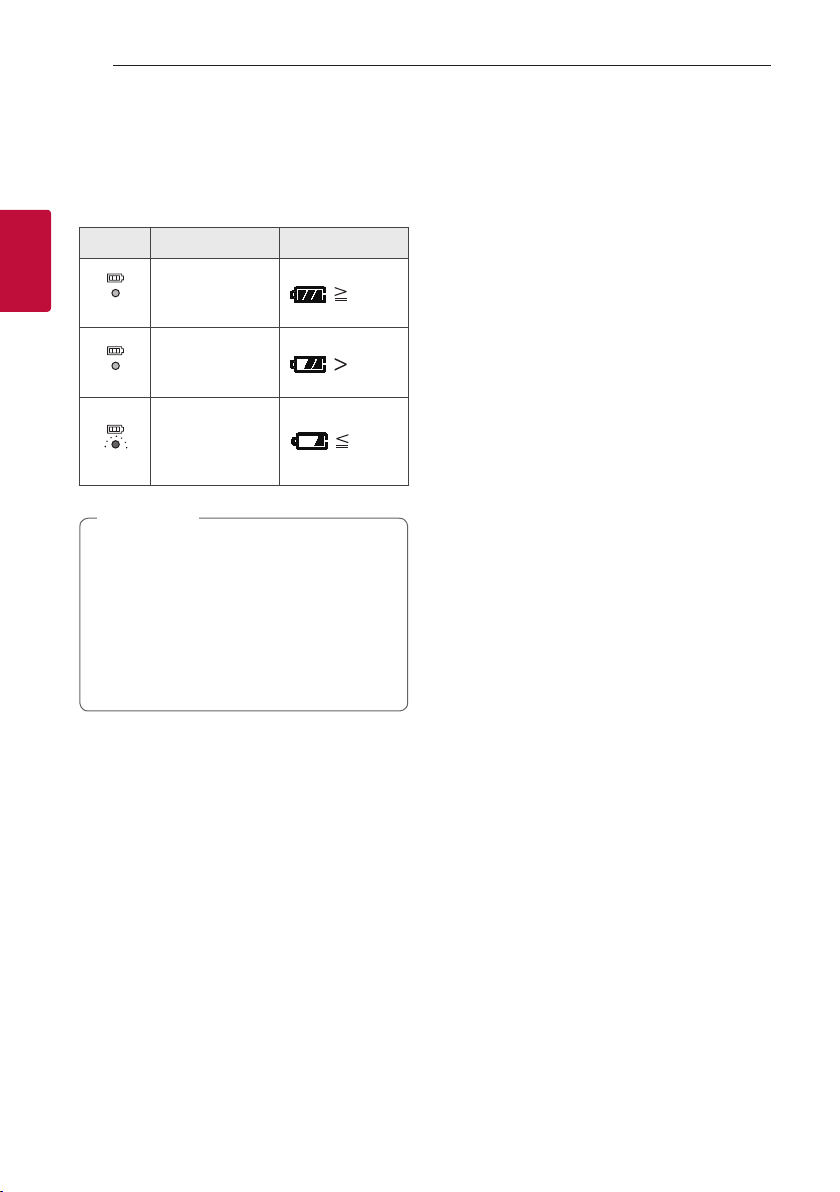

Checking Battery status

If the power is turned on, you can check the charging

status by pressing the 1 button for 2 seconds. Then

Battery LED light will change depending on battery

charging status.

LED Description Status

Green

Amber

Red

Battery LED turns

on green.

70 %

10 %

Green

Amber

Red

Battery LED turns

on amber.

70 %

10 %

Green

Amber

Red

Battery LED

continuously

blinks in red and

sounds once.

70 %

10 %

yThe Battery LED turns on for 3 seconds, after

the 1 button press for 2 seconds.

yBattery checking status is not possible when

the speaker is charging.

yIf the speaker is connected to your

smartphone, you can check the battery

status on “LG XBOOM” app. It may vary from

actual battery capacity.

, Note

Ce manuel convient aux modèles suivants

Table des matières

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
