LG BS254 Manuel utilisateur
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
1 2011/06/16
DATA PROJECTOR
BS254 & BX254 & BX324
SERVICE MANUAL
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
2 2011/06/16
CONTENTS
1.COMPLIANCE OF SAFE REPAIR.........................................................................................4
1-1.Caution During DisassemblingAnd Assembling.............................................................4
1-2.Lamp.............................................................................................................................. 4
1-3.Lens................................................................................................................................4
2.SPECIFICATIONS.................................................................................................................5
2-1.Summary Specifications................................................................................................. 5
2-2.I/O Ports Illustration........................................................................................................7
2-3.Top view-on screen Display (OSD) buttons and LEDS……………………………..…….. 8
2-4. Rear view……………………………………………………..…………………..………….10
2-5. Bottom view…………………………………………………………………………………..11
2-6. Remote Control Parts………………………………………………...………………….….12
2-7. Inserting the Remote Control Batteries……………………………………………………14
2-8. Block Diagram…...................................….................................................................. 15
3.TROUBLE SHOOTING....................................................................................................... 16
4.DISASSEMBLYAND ASSEMBLY....................................................................................... 24
5.Flash Upgrade Flow........................................................................................................... 37
5-1. Projector RS-232 Drivers Installation Guide…………………………..………………….37
5-2. DLP Projector Flash-Tool (firmware) User Guide…………………...……….…………..42
5-3. Started with Download…………………………………….……..………………………....43
5-4.Starting and Shutting down the Projector……………………………………………….....49
5-5.Setting an Access Password (Security Lock)………………………………….…………..51
5-6.Factroy Reset……………….……………………………………………………………..…53
5-7. Status…………………………………………………………………….…………………...54
6.
Calibration…………………………………………………………………………………...…….55
7. Color Border Adjustment………………………………………………………………………...59
8. Projection Lamp…………………………………………………………………………………..60
9. Cleaning………………………………………………………………..………………..………...64
10.SERVICE NOTE............................................................................................................... 65
10-1.Cleaning..................................................................................................................... 65
10-2.Inserting the Remote Control Batteries...................................................................... 66
10-3.Power & READY LED Blink Code Message.............................................................. 67
10-4.Factory Preset Display Modes................................................................................... 68
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
3 2011/06/16
10-5.Projection Distance……………………………………………………………………..…..70
11.EDID data …..................................................................................................................... 71
12.RS232…………………………….……………………………………………….………………75
13.Spare part list ....................................................................................................................84
Revision
Description Date
rev.00 Preliminary 12/21/2009
rev.01 Updated the spare part list (Pg80), change 3392132902 to 339213290
3;
change 3534117300 to 3534117301 01/20/2010
rev.02 Updated the spare part list (page85), add the speaker in the list 05/17/2010
rev.03 Page86, Item8 and item9, change the photo position 07/07/2010
rev.04 Page84, Item9, change the part number from 3622403511 to 3622404311,
LG P/N no change. 12/01/2010
rev.05 Page84, item17, change the LVPS Board P/N from EBT61018601 to
EBT61018602 04/07/2011
rev.06 Page85, add two new items (DMD chip), one is
COV30816101, and the
other is COV30816201,
and updated the photos on the page87 6/16/2011
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
4 2011/06/16
1. COMPLIANCE OF SAFE REPAIR
Be sure to read this Service Manual before providing services. In the projector, full
consideration is taken to ensure safety for fire, electric shock, injury, harmful radiation, and
substance. Therefore, observe the notice described in this Service Manual so that safety is
kept when providing services. Moreover, be sure to observe the notice described in the
Instruction Manual.
Pay attention to the following items during service inspection.
1.1 Cautions during disassembling and assembling
1. This equipment contains parts under high voltage. When making repairs, etc.
Be sure to pull out the power plug beforehand to insure safety.
2. Parts may be very hot immediately after use.
Make sure the equipment has cooled off sufficiently before carrying out repairs.
3. Make sure that parts and screws and wiring, etc. are returned to their original positions.
Tube, tape and other insulation materials have been used for safety reasons.
The internal wiring has been designed to avoid direct contact with hot parts or parts under
high voltage when using clamps or other tools.
4. The parts used in this device have special safety features such as flame-resistance and
anti-voltage properties. When replacing parts, always use parts supplied from the factory.
5. After finishing operations make sure that all parts and wires have been returned to their
original position and that there has been no deterioration of the area around the location that
was worked on.
6. Be sure to use a grounding strap (wrist band) during repair and inspection.
1.2 Lamp
During current conduction, the lamp is in the high-temperature state. In this case, pay
careful attention because a high voltage is used. When replacing a lamp, replace it after
confirming that the lamp has gotten cold sufficiently.
1.3 Lens
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
5 2011/06/16
Do not look into a lens during projection. This damages your eyes.
2. Specifications
2-1. Summary Specifications
Model BS254 BX254 BX324
Display type TIDMD0.55-inch SVGA TI DMD 0.55-inch XGA
Resolution SVGA 800x600 Native
XGA 1024x768 Native
Projection distance 1 meters ~ 10 meters
Projection screen size 36 to 243 inch (can overdrive 300”)
Projection lens Manual focus / Manual zoom
Zoom ratio 1.1
Vertical keystone
correction +/- 15 degrees
Projection methods Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility IBM PC or compatibles (VGA, SVGA, XGA, SXGA, UXGA), Mac
SDTV/EDTV/ HDTV 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video compatibility NTSC, PAL , SECAM
H-Sync 15, 30 – 91.4 KHz
V-Sync 43 - 87 Hz
Safety certification FCC-B, UL, cUL, TUV, CB, CE, PCT, SASO, NOM, KC and CCC
Operation temperature 5°~ 35°C
Dimensions 261 mm (W) x 78 mm (H) x 190 mm (D)
WEIGHT 4.1 lbs 4.0 lbs
AC Input AC Universal 100 ~ 240, Typical @ 110 VAC (100~240)/±10%
Power consumption Typical 230W (standard mode);
Typical 205W (ECO mode)
Typical 300W (standard mode);
Typical 230W (ECO mode)
Stand By < 1 watts
Lamp Normal Mode: 180W;
Eco Mode: 160W
Normal Mode: 240W;
Eco Mode: 180W
Audio speaker 1.5W mono speaker
PC RGB
Composite video (RCA X 1)
Video S-Video (Mini-DIN)
Delta Elec. Inc. BS254 & BX254 & BX324 rev.06
Company Confidential LGE_______________________ Delta____________
6 2011/06/16
Audio IN 3.5 Mini-jack Stereo
Control Terminal RS-232
Security Kensington lock
Delta Elec. Inc. BS254 & BX254 & BX324 rev.05
Company Confidential LG ______________________ Delta____________
7 2011/04/07
2-2. Views of Projector parts
I
TEM
L
ABEL
D
ESCRIPTION
1.
IR receiver Receiver for IR signal from remote control
2.
Lens cap Covers lens to protect when not in use
3.
Height-adjust button Push to release height adjuster
4.
Height adjuster Adjusts level of projector
5.
Lens Remove lens cap before use
6.
Zoom ring Enlarges the projected image
7.
Focus ring Focuses the projector image
8.
Function keys See Top view-on screen Display (OSD) buttons and LEDS
9.
Height adjuster Adjusts level of projector
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector
lamp cool. Do not obstruct any of ventilation openings.
Delta Elec. Inc. BS254 & BX254 & BX324 rev.05
Company Confidential LG ______________________ Delta____________
8 2011/04/07
2-3. Top view-on screen Display (OSD) buttons and LEDS
I
TEM
L
ABEL
D
ESCRIPTION
1.
Menu Open and Exits the OSD buttons
ON System over temperature
2.
Temp LED OFF Normal state
3.
Lamp LED Flashing Error code
Green Power on
Off Power off (AC Off)
4.
Power LED
Flashing Error off
5.
Source Detects the input device
6.
Up Cursor / Keystone Navigates and changes settings in the OSD / Quick Menu-For Keystone
7.
Down Cursor / Keystone
Navigates and changes settings in the OSD / Quick Menu-For Keystone
Delta Elec. Inc. BS254 & BX254 & BX324 rev.05
Company Confidential LG ______________________ Delta____________
9 2011/04/07
8.
Right Cursor / OK Navigates and changes settings in the OSD / Enter Menu
9.
Power Turns the projector on or off
10.
Left Cursor / Auto Navigates and changes settings in the OSD / Optimizes image size, position,
and resolution
Delta Elec. Inc. BS254 & BX254 & BX324 rev.05
Company Confidential LG ______________________ Delta____________
10 2011/04/07

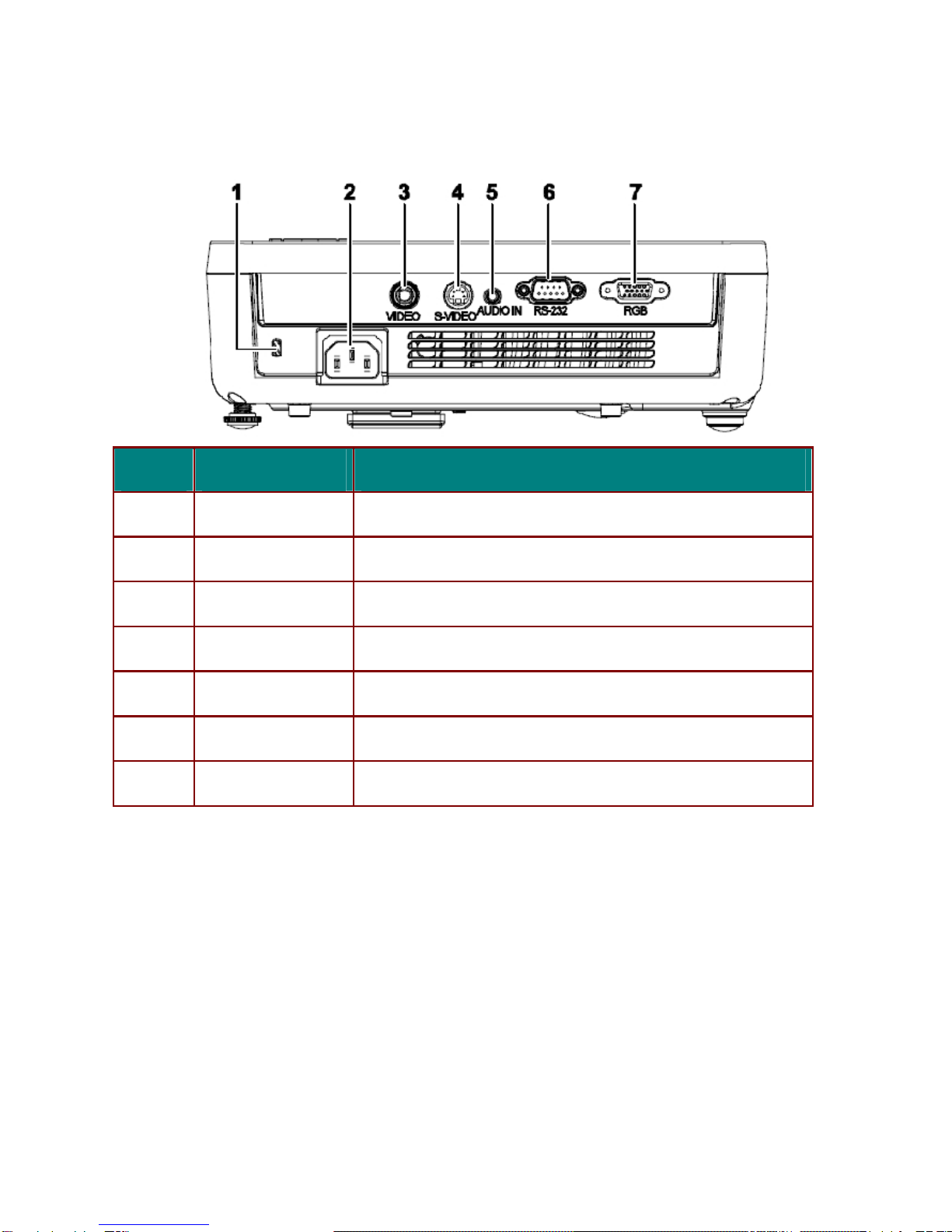

2-4. Rear view
I
TEM
L
ABEL
D
ESCRIPTION
1.
Kensington Lock Secure to permanent object with a Kensington Lock system
2.
AC IN Connect the POWER CABLE
3.
VIDEO Connect the VIDEO CEBLE from a video device
4.
S-VIDEO Connect the S-VIDEO CEBLE from a video device
5.
AUDIO-IN Connect the AUDIO CEBLE from the input device
6.
RS-232 Connect the RS-232 CABLE from a computer
7.
RGB Connect the RGB CABLE from a computer or components
NOTE:
If you video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
