OWNER’S MANUAL

LCD MONITOR

IPS225T

IPS235T

Please read this manual carefully before operating

your set and retain it for future reference.

LCD MONITOR MODEL

ENGLISH

Important Precautions

NOTE

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY

NOTE

This epuipment has been tested and found to comply with the limits for a class

B digital device,pursuant to part 15 of the FCC Rules.These limits are designed

to provide reasonable protection against harmful interference in a residential

installation.This equipment generates,uses and can radiate radio frequency

cause harmful interference to radio communications.However,there is no

guarantee that interference will not occur in a particular installation.If this

which can be determined by turning the equipment off and on,the user is

encouraged to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

energy and,if not installed and used in accordance with the instructions,may

equipment does cause harmful interference to radio or television reception,

TO OPERATE THE EQUIPMENT.

-Consult the dealer or an experienced radio/TV technician for help.

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND PREPARING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand Base

6 - Detaching the Stand Base

7 - Mounting on a table

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - DVI-D connection

12 CUSTOMIZING SETTINGS

12 Accessing The Main Menus

13 Customizing Settings

13 - Menu Settings

14 - PICTURE

15 - COLOR

16 - DISPLAY

17 - OTHERS

18 MODE Setting

19 DUAL PACKAGE Setting

20 TROUBLESHOOTING

22 SPECIFICATIONS

22 IPS225T

23 IPS235T

24 Preset Modes(Resolution)

24 Indicator

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any unapproved accessories to ensure the safety and product life span.

 Any damages or injuries by using unapproved accessories are not covered by the warranty.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

 User should use shielded signal interface cables (D-SUB cable / DVI-D cable) with ferrite cores to

maintain standard compliance for the product.

CAUTION

NOTE

Stand Base

Power Cord

CD(Owner's Manual) /

Card

D-SUB Cable

(This signal cable may be attached

to this product before shipping out.)

DVI-D Cable

(This cable is not included in all

countries.)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

AC-IN/

D-SUB DVI-D

电源输入

Power Indicator

 Lighting On: Turned on

 Lighting Off: Turned off

Connection panel (See p.10)

Button (See p.13)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Button Description

MENU Accesses the main menus.(See p.13)

OSD LOCKED/

UNLOCKED

This function allows you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing

the MENU button for several seconds. The message "OSD

UNLOCKED" should appear.

MODE Use this button to enter USER, MOVE,TEXT,PHOTO,sRGB menus.(See p.18)

DUAL Use this button to enter DUAL MONITOR and DUAL WEB menus.(See p.19)

AUTO When adjusting your display settings, always press the AUTO button on the MONITOR

SETUP OSD. (Only supported in Analog Mode)

The best display mode 1920 x 1080

INPUT You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB/DVI)

you want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT Exit the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays blue if the display is running

properly (On Mode). If the display is in Sleep Mode, the power

indicator blinks blue.

ENG

ENGLISH

ASSEMBLING AND PREPARING

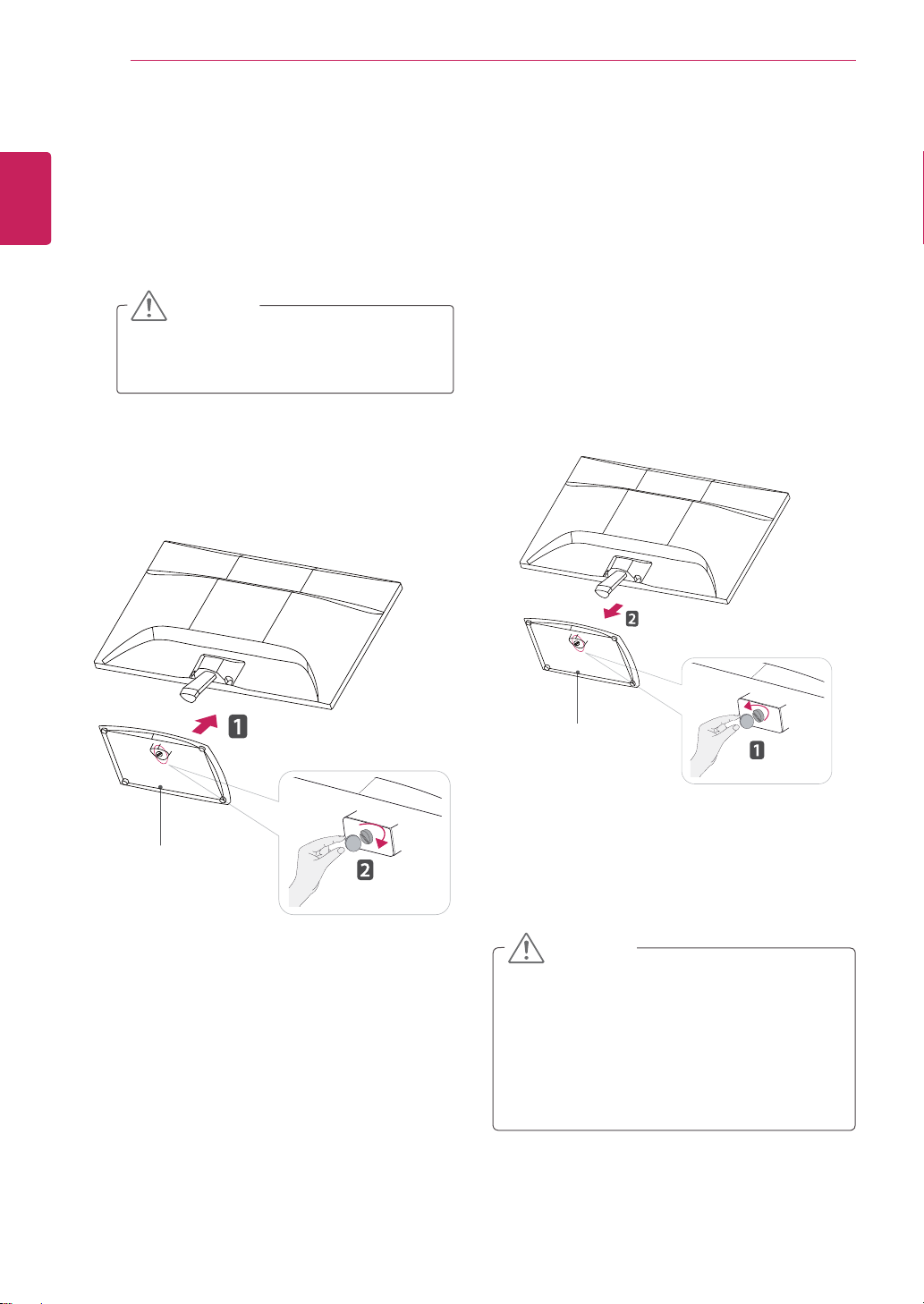

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

 This illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

 Do not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

2Turn the screw to the left, and then pull out the

Stand Base from the Stand Body.

2Attach the Stand Base and then tighten the

screw to the right with a Coin.

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2Connect the Power Cord to a wall outlet.

3Press (Power) button on the front switch

panel to turn the power on.

10 cm

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

Tilt from +15 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

CAUTION

NOTE

Front Rear

15- 5

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm

on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

Please use VESA standard as below.

 784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

 787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

10 cm

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

 Disconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

 If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

 Use only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

 Do not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

 Use only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

 Use the screws that are listed on the VESA

standard screw specifications.

 The wall mount kit will include an installation

manual and necessary parts.

 The wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

 The length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

 For more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

Model IPS225T/IPS235T

VESA (A x B) 100 x 100

Standard screw M4

Number of screws 4
