LG 42WT30MS Manuel utilisateur

www.lg.com

OWNER’S MANUAL

MONITOR SIGNAGE

42WT30MS

47WT30MS

55WT30MS

Please read this manual carefully before operating the your set and

retain it for future reference.

MONITOR SIGNAGE MODELS

ENG

ENGLISH

TABLE OF CONTENTS

4LICENSES

5ASSEMBLING AND

PREPARING

5 Accessories

6 Optional Accessories

7 Parts and Buttons

8 Connecting the Speaker

9 Using the Mounting Cable Tie

10 Using the IR Receiver

10 Portrait Layout

11 Mounting on a Wall

13 REMOTE CONTROL

15 USING THE MONITOR

15 Connecting to a PC

15 - RGB Connection

16 - DVI Connection

16 - HDMI Connection

17 - Display Port Connection

17 - IR Receiver Connection

18 - Touch USB Cable Connection

19 Adjusting the Screen

19 - Selecting an Image Mode

19 - Customizing Image Options

20 - Customizing PC Display Options

20 Adjusting the Sound

20 - Selecting an Sound Mode

21 - Customizing Sound Options

21 Using Additional Options

21 - Using the Input List

22 - Adjusting Aspect Ratio

24 ENTERTAINMENT

24 - Using the Network

24 - Connecting to a Wired Network

25 - Network Status

26 - Using the My Media

26 - Connecting USB Storage Device

28 - Browsing Files

30 - Viewing movies

33 - Viewing photos

36 - Listening to music

38 - Viewing the Contents List

39 - DivX® VOD Guide

40 - Using PIP/PBP

41 CUSTOMIZING SETTINGS

41 Accessing Main Menus

42 - PICTURE Settings

45 - AUDIO Settings

46 - TIME Settings

47 - OPTION Settings

51 - Picture ID Settings

52 - NETWORK Settings

53 MAKING CONNECTIONS

54 External Device Connection

54 - AV (CVBS) Connection

54 - COMPONENT Connection

55 - HDMI Connection

55 - DVI Connection

56 USB Connection

56 LAN Connection

ENG

ENGLISH

TABLE OF CONTENTS

57 USING THE TOUCH SCREEN

57 To Use the Touch Screen on Windows 7

57 Gestures and Settings on Windows 7

58 To Use the Touch Screen on Windows XP

59 Touch Response to Windows XP

60 How to Use LG TDS

60 LG TDS Detailed Function Settings

61 Precautions When Using the Touch

Screen

62 TROUBLESHOOTING

67 SPECIFICATIONS

77 IR CODES

78 CONTROLLING THE MULTIPLE

PRODUCT

78 Connecting the Cable

78 RS-232C Configurations

78 Communication Parameter

79 Command Reference List

81 Transmission / Receiving Protocol

ENGLISH

4LICENSES

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified to play DivX video up to HD 1080p, including premium

content.

DivX , DivX Certified and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

yThe warranty will not cover any damages caused by using the product in an excessively dusty

environment.

yAvoid using the product in a high temperature and high humidity area. Moving the monitor from a

environment like this to an air conditioned area may cause moisture formation inside the glass. This

moisture will be dissipate over time, which may vary depending on the operating environment.

NOTE

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

NOTE

Remote Control and

Batteries

Power Cord

CD (Owner's Manual,

SuperSign Program/ Manual)/

Cards

D-sub 15-pin Signal Cable

Mounting Cable Tie

IR Receiver Magnetic sheet

USB Cable

ENG

ENGLISH

ASSEMBLING AND PREPARING

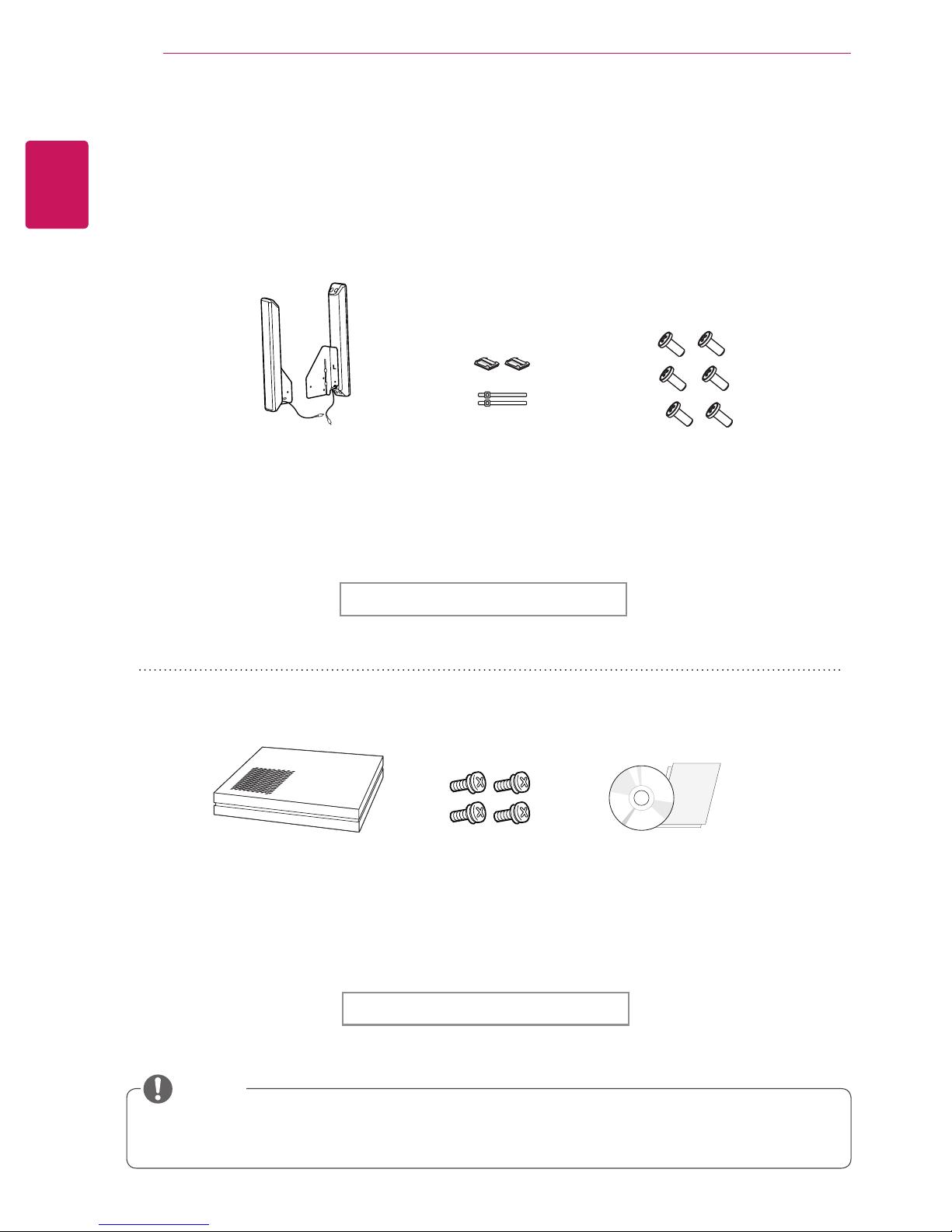

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product,

and new accessories may be added. The illustrations in this manual may differ from the actual product and

accessories.

yCable holder/cable tie may not be available in some areas or for some models.

yOptional accessories are not included for all models.

NOTE

Media Player Kit

Screws CD(Owner's Manual)/

Cards

NC1000/NC1100

NA1000/NA1100

Media Player

Speaker Kit

Cable holder/

Cable Tie

Speaker

SP-2100

Screws

Diameter 4.0 mm x

Pitch 1.6 mm x Length

10 mm

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and Buttons

No. Description

1Moves the selection up and down.

2Adjusts the volume level.

3Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

4Accesses the main menus, or saves your input and exits the menus.

5Changes the input source.

6Turns the power on or off.

Connection PanelButtons

ENG

ENGLISH

ASSEMBLING AND PREPARING

Connecting the Speaker

- Only on some models.

1Connect the input signal cable to the monitor

before installing the speakers. Use a cable tie

to organize the cables.

4Then connect the speaker cable. After installing

your speakers, use holders and cable ties to

organize the speaker cables.

3Mount the speaker by using a screw as shown

in the following. Make sure the power cable is

disconnected.

2Remove the 6 screws before assembling the

speakers.

ENG

ENGLISH

ASSEMBLING AND PREPARING

42WT30MS

Using the Mounting Cable Tie

First, connect the input signal cable to be used.Insert the cable tie into the bottom hole on the back as

shown in the figure to organize cables.

55WT30MS

47WT30MS

ENG

ENGLISH

ASSEMBLING AND PREPARING

Portrait Layout

To install in portrait mode, rotate the set

counterclockwise 90 degrees when looking from

the front.

Using the IR Receiver

This allows a remote control sensor to be placed

in a custom location. The IR receiver is made

with a magnet. Attach the magnetic sheet to the

desired position on the product. It is recommended

to attach it to the location illustrated in the figure

below.

yDo not attach the IR receiver to the surface

of the monitor or within 50 cm of it in any

direction.

NOTE
