LG 34WK500-P.AAU Manuel utilisateur

www.lg.com

Please read the safety information carefully before using the product.

IPS LED Monitor (LED Monitor) Model List

OWNER’S MANUAL

IPS LED MONITOR

(LED MONITOR*)

*Disclaimer: LG LED Monitor applies LCD screen with LED backlights.

This product is a computer monitor and not for television purpose.

29WK500

34WK500

ENG

ENGLISH

Contents

CONTENTS

19 USER SETTINGS

19 Activating the Main Menu

19 - Main Menu Features

20 User Settings

20 - Menu Settings

24 TROUBLESHOOTING

26 SPECIFICATIONS

26 29WK500

27 34WK500

28 Factory Support Mode (Preset Mode, PC)

28 HDMI

28 HDMI Timing (Video)

29 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

7 Input Connector

8 Moving and Lifting the Monitor

9 Installing the Monitor

9 - Assembling the stand base

10 Installing the Monitor

10 - Assembling the stand base

12 - Installing onto a table

13 - Adjusting the angle

15 - Using the Kensington lock

16 - Detaching the Stand Body

16 - Installing the wall mount plate

16 - Installing to a wall

18 USING THE MONITOR

18 Connecting to a PC

18 - HDMI connection

18 Connecting to External Devices

18 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically after 4 hours when you turn on the display and there is are no ad-

justments made to the display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

29WK500

34WK500

CD(Owner's Manual) /

Card

Stand Body

Stand Base

Screw Cover 2 Screws

( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

HDMI Cable

ENG

ENGLISH

ASSEMBLING AND PREPARING

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 29WK500/34WK500

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

29WK500 34WK500

Power LED

yOn: power is on

yOff: power is off

Joystick Button

ENG

ENGLISH

ASSEMBLING AND PREPARING

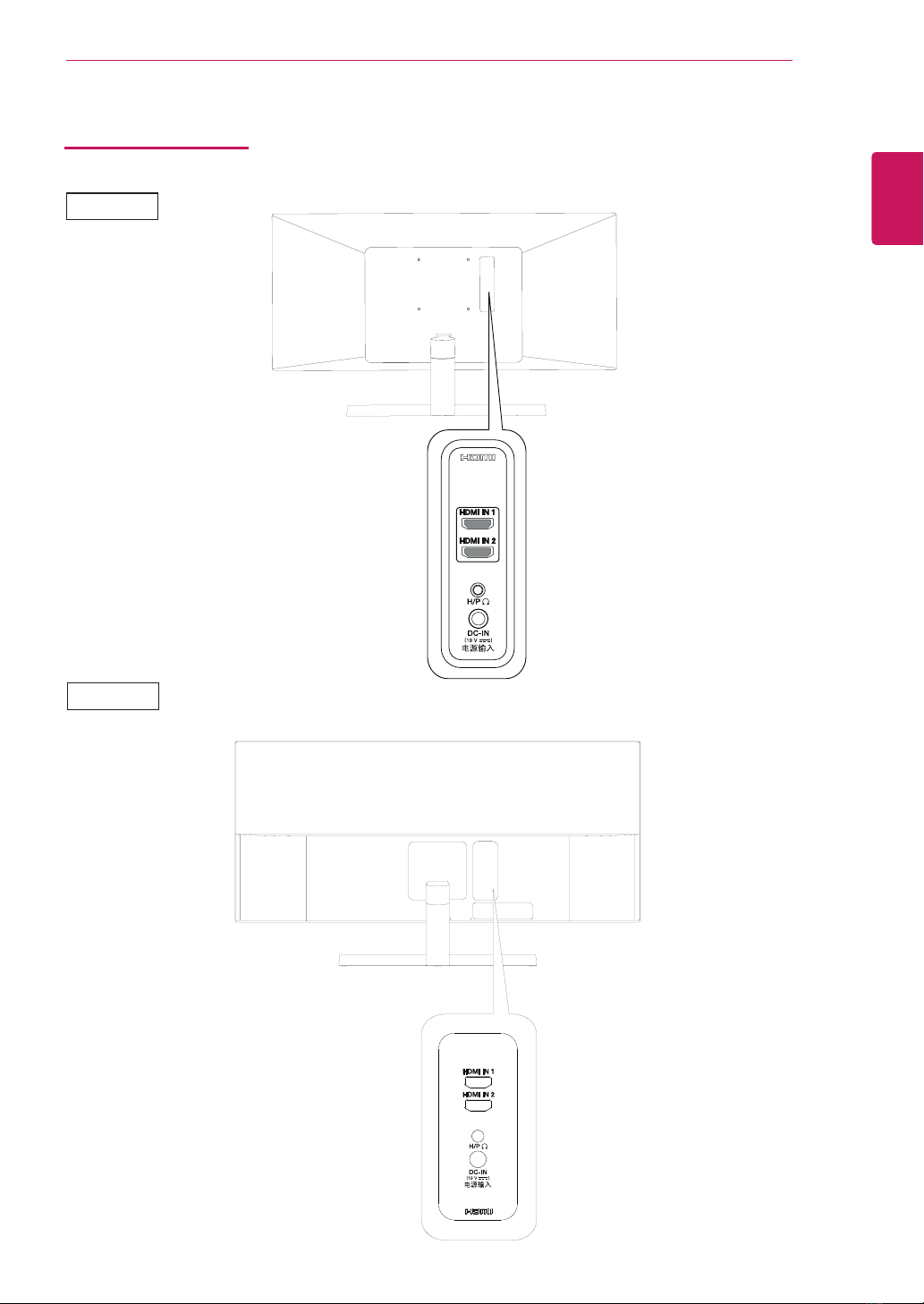

Input Connector

29WK500

34WK500

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

29WK500

34WK500

29WK500

34WK500

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

Stand Body

Stand Base

Applying excessive force when tightening the

screws may cause damage to the monitor. Dam-

age caused in this way will not be covered by the

product warranty.

CAUTION

It may hurt your foot off the stand, so be careful.

CAUTION

Stand Body

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

29WK500

ENG

ENGLISH

ASSEMBLING AND PREPARING

yPress the stand until the button reaches the top.

NOTE

Stand Body

Stand Base

34WK500

Installing the Monitor

Assembling the stand base
