Please read the safety information carefully before using the product.

IPS LED Monitor (LED Monitor) Model List

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

34BL650

ENG

ENGLISH

Contents

CONTENTS

17 USER SETTINGS

17 Activating the Main Menu

17 - Main Menu Features

18 User Settings

18 - Menu Settings

22 TROUBLESHOOTING

24 SPECIFICATIONS

25 Factory Support Mode (Preset Mode, PC)

25 HDMI / DP Timing (PC)

25 HDMI Timing (Video)

25 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

7 Input Connector

8 Moving and Lifting the Monitor

9 Installing the Monitor

9 - Assembling the stand base

10 - Installing onto a table

11 - Adjusting the angle

12 - Adjusting the Stand Height

13 - Using the Kensington lock

13 - Installing the wall mount plate

14 - Installing to a wall

15 USING THE MONITOR

15 Connecting to a PC

15 - HDMI connection

15 - DisplayPort connection

16 Connecting to AV Devices

16 - HDMI connection

16 Connecting to External Devices

16 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically after 4 hours when you turn on the display and there is are no ad-

justments made to the display.

* To disable this setting, change the option to "Off" in Settings menu of "Automatic Standby".

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade-

marks of Waves Audio Ltd.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

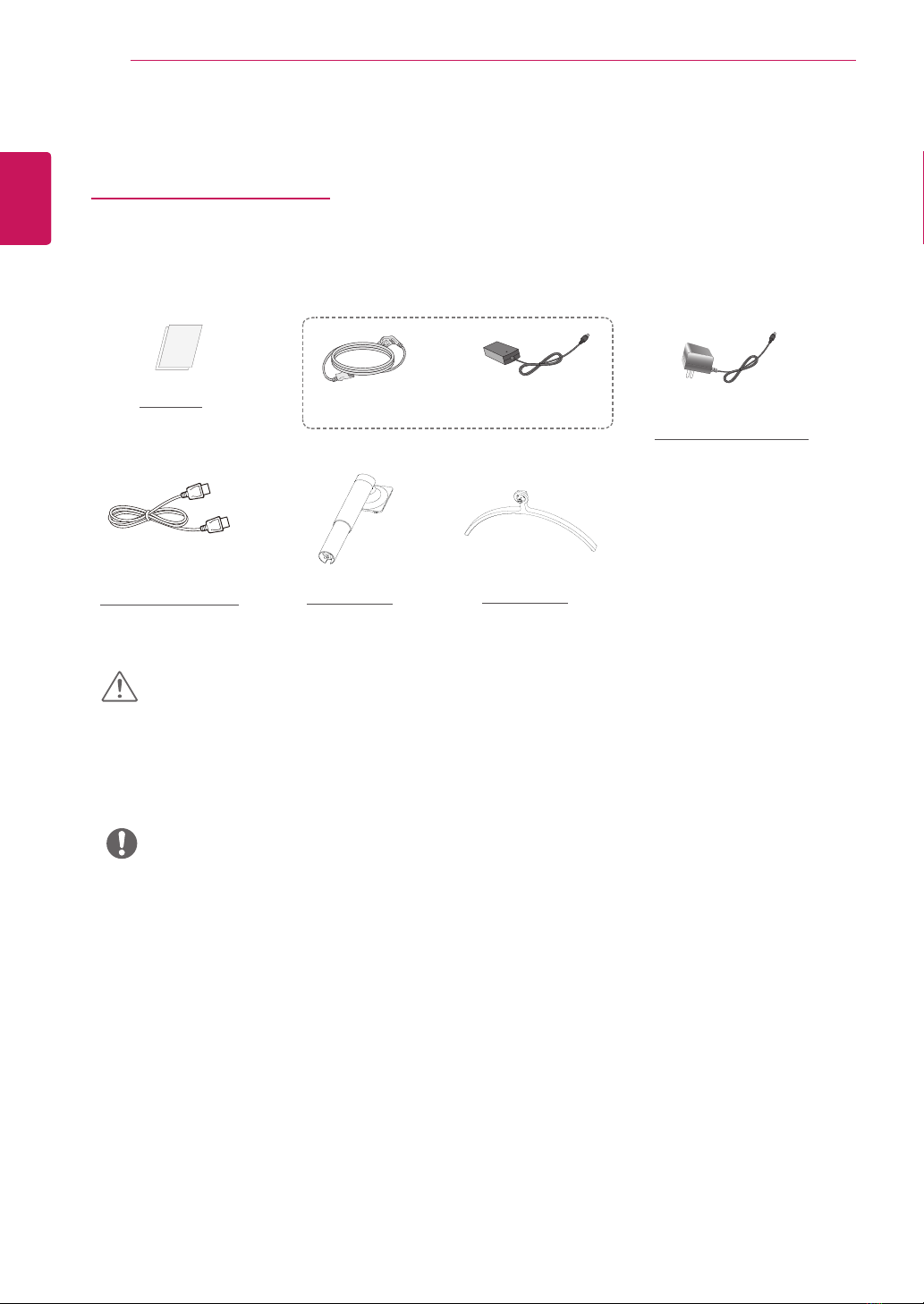

Card

Stand Body Stand Base

DisplayPort Cable

( This cable is not included

in all countries. )

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

ENG

ENGLISH

ASSEMBLING AND PREPARING

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority

Monitor Driver Recommended

OnScreen Control Recommended

Dual Controller Optional

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

Power LED

yOn: power is on

yOff: power is off

Joystick Button

ENG

ENGLISH

ASSEMBLING AND PREPARING

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

yPress the stand until the button reaches the top.

NOTE

Stand Body

Stand Base

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage

caused in this way will not be covered by the

product warranty.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

Installing onto a table

1Lift the monitor and place it on the table in an up-

right position.

Place at least 100 mm (3.94 inches) away from the

wall to ensure sufficient ventilation.

2Connect the Power cord to the monitor, then plug

the power cord into the wall outlet.

100 mm

(3.94 inches) 100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

yUnplug the power cord prior to moving or install-

ing the monitor. There is risk of electric shock.

CAUTION

3Press the joystick button on the bottom of the

monitor to turn on the monitor.
