Contents

CONTENTS

20 USER SETTINGS

20 Activating the Main Menu

20 - Main Menu Features

21 User Settings

21 - Menu Settings

26 TROUBLESHOOTING

28 SPECIFICATIONS

28 29WK600

29 34WK650

30 34BK650

31 Factory Support Mode (Preset Mode, PC)

31 HDMI / DP Timing (PC)

31 HDMI Timing (Video)

31 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

7 Input Connector

8 Moving and Lifting the Monitor

9 Installing the Monitor

9 - Assembling the stand base

10 Installing the Monitor

10 - Assembling the stand base

11 - Using the cable holder

12 - Installing onto a table

13 - Adjusting the angle

14 - Adjusting the Stand Height

15 - Using the Kensington lock

16 - Installing the wall mount plate

16 - Installing to a wall

18 USING THE MONITOR

18 Connecting to a PC

18 - HDMI connection

18 - DisplayPort connection

19 Connecting to AV Devices

19 - HDMI connection

19 Connecting to External Devices

19 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit

www.lg.com

for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically after 4 hours when you turn on the display and there is are no ad-

justments made to the display.

* To make this setting be disabled, change the option to ‘Off’ in Setttings menu of “Automatic Standby”.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade-

marks of Waves Audio Ltd.

ENG

ENGLISH

ASSEMBLING AND PREPARING

29WK600

34WK650

34BK650

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD / Card

Stand Body

Stand Base

Cable Holder

Screw Cover 2 Screws

DisplayPort Cable

( This cable is not included

in all countries. )

HDMI Cable

( This cable is not included

in all countries. )

( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

ENG

ENGLISH

ASSEMBLING AND PREPARING

Supported Drivers and Software

You can download and install the latest version from the LGE website (

www.lg.com

Drivers and Software Installation Priority 29WK600/34WK650/34BK650

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

ENG

ENGLISH

ASSEMBLING AND PREPARING

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

Component and Button Description

Power LED

yOn: power is on

yOff: power is off

Joystick Button

yThe joystick button is located at the bottom of the monitor.

NOTE

29WK600 34WK650 34BK650

ENG

ENGLISH

ASSEMBLING AND PREPARING

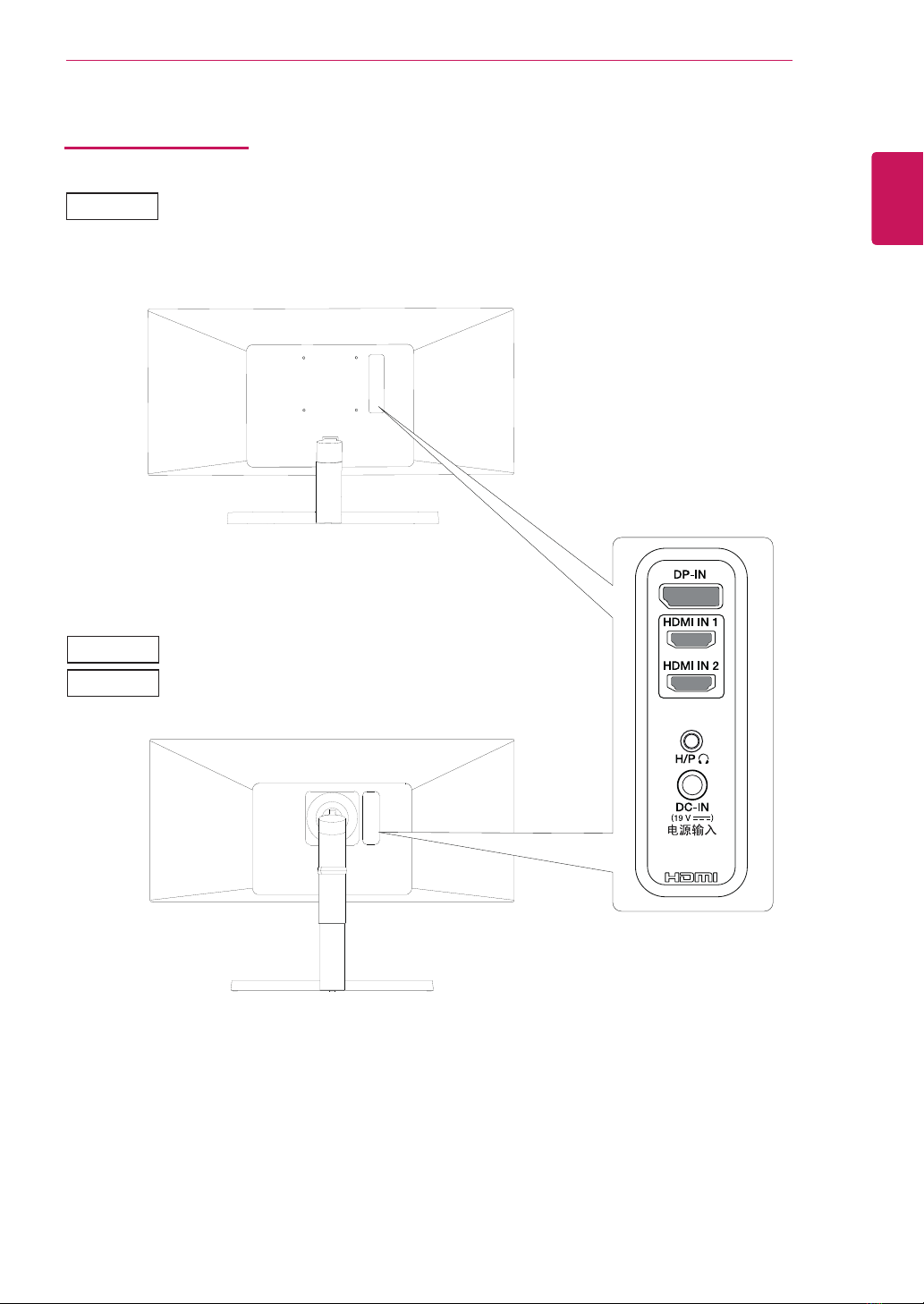

Input Connector

29WK600

34WK650

34BK650

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

34WK650

34BK650

29WK600

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

Stand Body

Stand Base

Screw Cover

Applying excessive force when tightening the

screws may cause damage to the monitor. Dam-

age caused in this way will not be covered by the

product warranty.

CAUTION

It may hurt your foot off the stand, so be careful.

CAUTION

Stand Body

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

29WK600

ENG

ENGLISH

ASSEMBLING AND PREPARING

yPress the stand until the button reaches the top.

NOTE

Stand Body

Stand Base

Installing the Monitor

Assembling the stand base

34WK650 34BK650

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

Cable Holder
