LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

19M48H

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjust-

ment to display.

*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

D-SUB Cable

(Depending on the country)

HDMI Cable

Stand Body Stand Base

DVI-D Cable

(Depending on the country)

(Depending on the country)

(Images may vary depending on models)

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

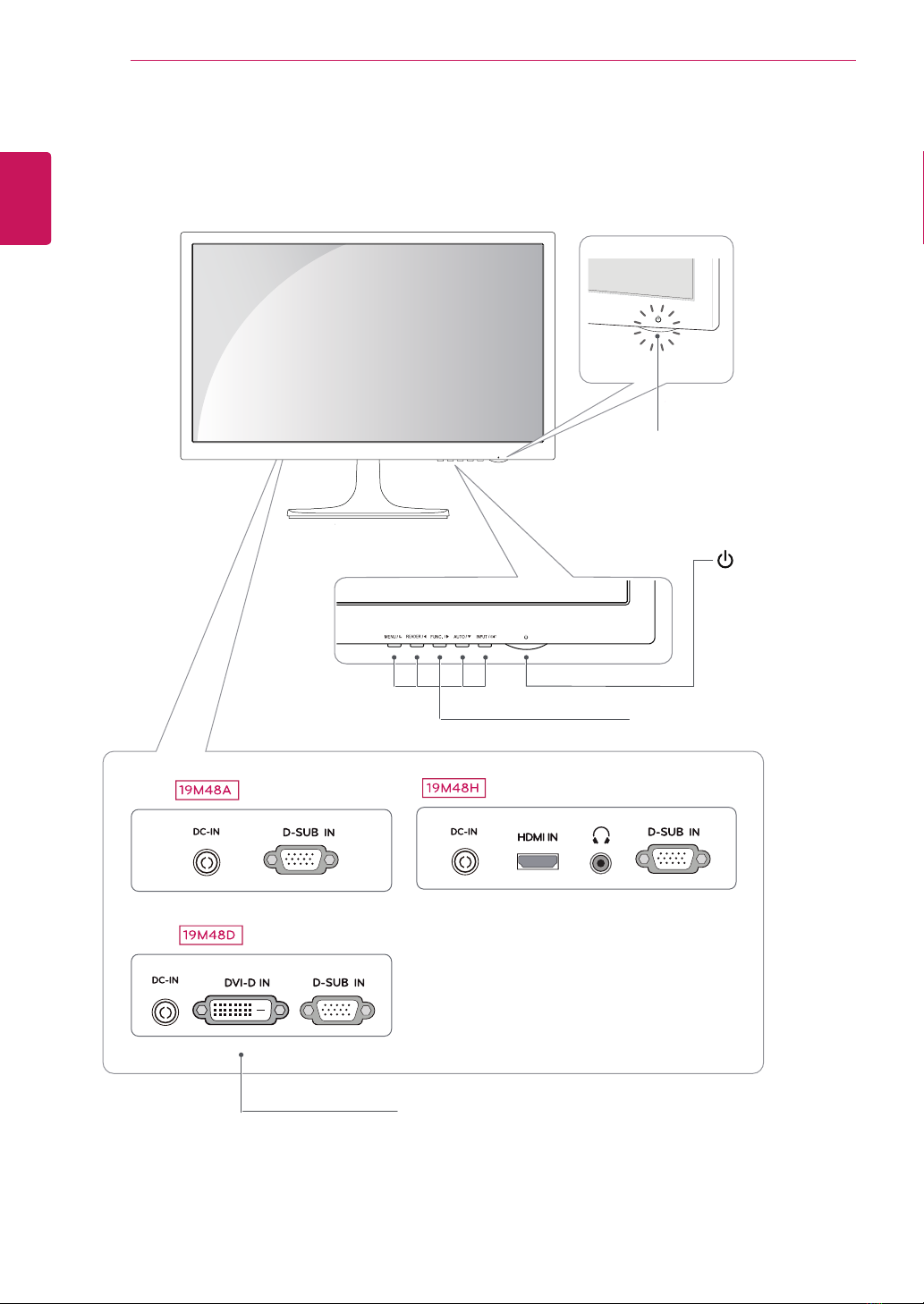

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.12~14)

Button (See p.15)

(Power Button)

(Images may vary depending on models)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

yWhen holding the monitor, the screen should 

face away from you to prevent it being 

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

firmly. Do not hold the panel itself.

(Images may vary depending on models)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Pull out the Stand Body and Stand Base

from the monitor set.

Turn the screw to the left.

Pull out the Stand Base.

yThis illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

yDo not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

(Images may vary depending on models)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

Using the cable holder

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

3Press (Power) button on the bottom switch

panel to turn the power on.

10 cm

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

Cable holder

(Images may vary depending on models)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor

screen can detach from stand base and injure

your body.

WARNING

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front Rear
