LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet

the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

CAUTION

NOTE

User Manual/Card

Stand Base Stand Body Screw Cover Screws

HDMI Cable

Stand Base Stand Body Screw Cover Screws

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

Clear sheet

OPTIONAL ACCESSORIES

DVI-D Dual Cable

( This cable is not included in

all countries. )

ENG

ENGLISH

ASSEMBLING AND PREPARING

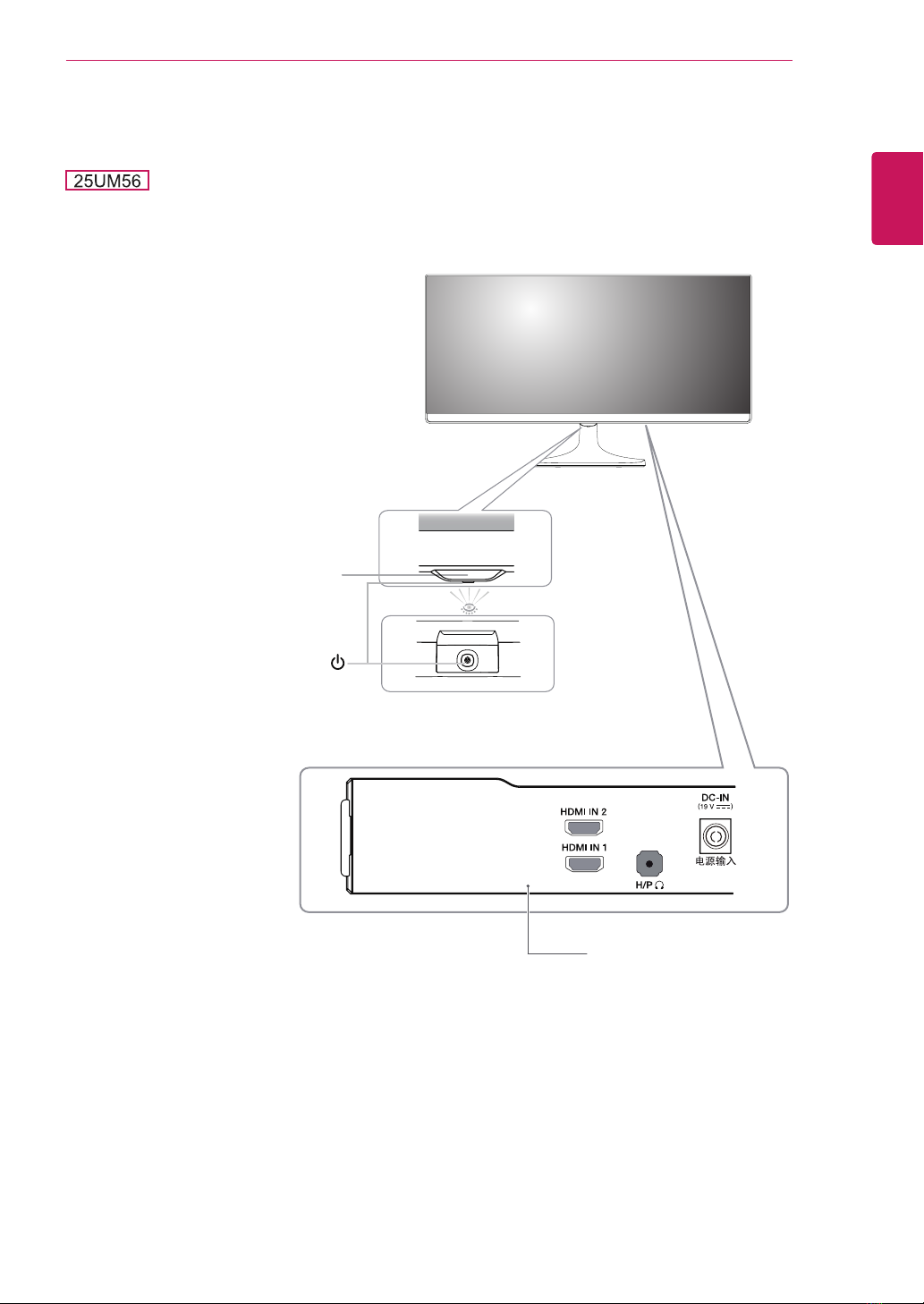

Component and Button Description

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

Power Indicator

yOn: power is on

yOff: power is off

Ports

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

Ports

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

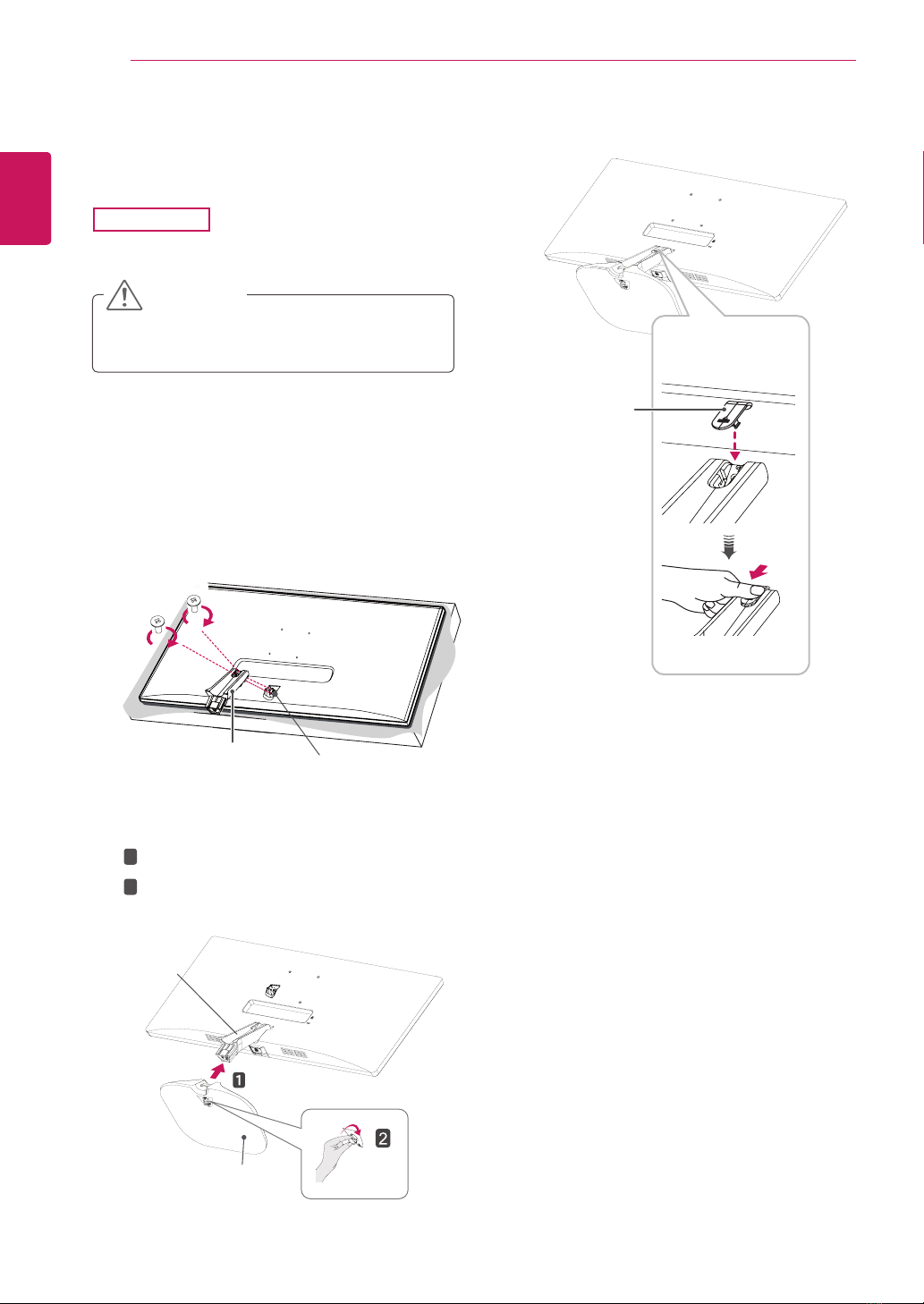

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Tighten two screws into the back of the stand

body .

1Place the screen face down.

4Attach the screw cover.

Stand Body

Stand Base

Stand Hinge

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Screws

Screw Cover

25UM56

ENG

ENGLISH

ASSEMBLING AND PREPARING

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Tighten two screws into the back of the stand

body .

1Place the screen face down.

Applying excessive force when tightening

the screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

CAUTION

4Attach the screw cover.

It may hurt your foot off the stand, so be

careful.

CAUTION

Stand Body

Stand Base

Stand Hinge

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Screws

Screw Cover

Using the cable holder

34UM56

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand base

2Remove the screw cover.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

1Place the screen face down.

3Remove the two screws on the back of stand

body.

As shown in the illustration, disconnect the

stand body from the stand hinge.

Screw cover

Stand Body

Stand Base

Turn the screw to the left.

Pull out the Stand Base.

Screws

Stand Body

25UM56
