OWNER’S MANUAL

LED LCD MONITOR

20M35TH

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand Base

6 - Detaching the Stand Base

7 - Mounting on a table

7 - Adjusting the angle

8 - Using the Kensington locking device

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - HDMI connection

11 Connecting to AV Devices

11 - HDMI connection

12 CUSTOMIZING SETTINGS

13 Customizing Settings

13 - Menu Settings

14 -Picture

14 -Color

15 -Display

15 -Others

16 READER Setting

16 SMART ENERGY SAVING

17 TROUBLESHOOTING

19 SPECIFICATIONS

19 20M35TH

20 Preset Modes (Resolution)

20 Indicator

LICENSE

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc. in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Base Stand Body

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not included in all

countries.)

Power Cord

HDMI Cable

(This cable is not included in all

countries.)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

(Power Button)

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

Input Connectors (See p.10)See p.10))

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Attach the Stand Body to the monitor set.

Attach the Stand Base to Stand Body.

Tighten the screw to the right with a coin.

Lay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

CAUTION

Stand Base

Stand Body

Detaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Turn the screw to the left with a coin.

Pull out the Stand Base.

Pull out the Stand Body from the monitor

set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 20° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 100 mm away from the wall to

ensure sufficient ventilation.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

100 mm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front Side

Rear Side

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

100 mm

ENG

ENGLISH

ASSEMBLING AND PREPARING

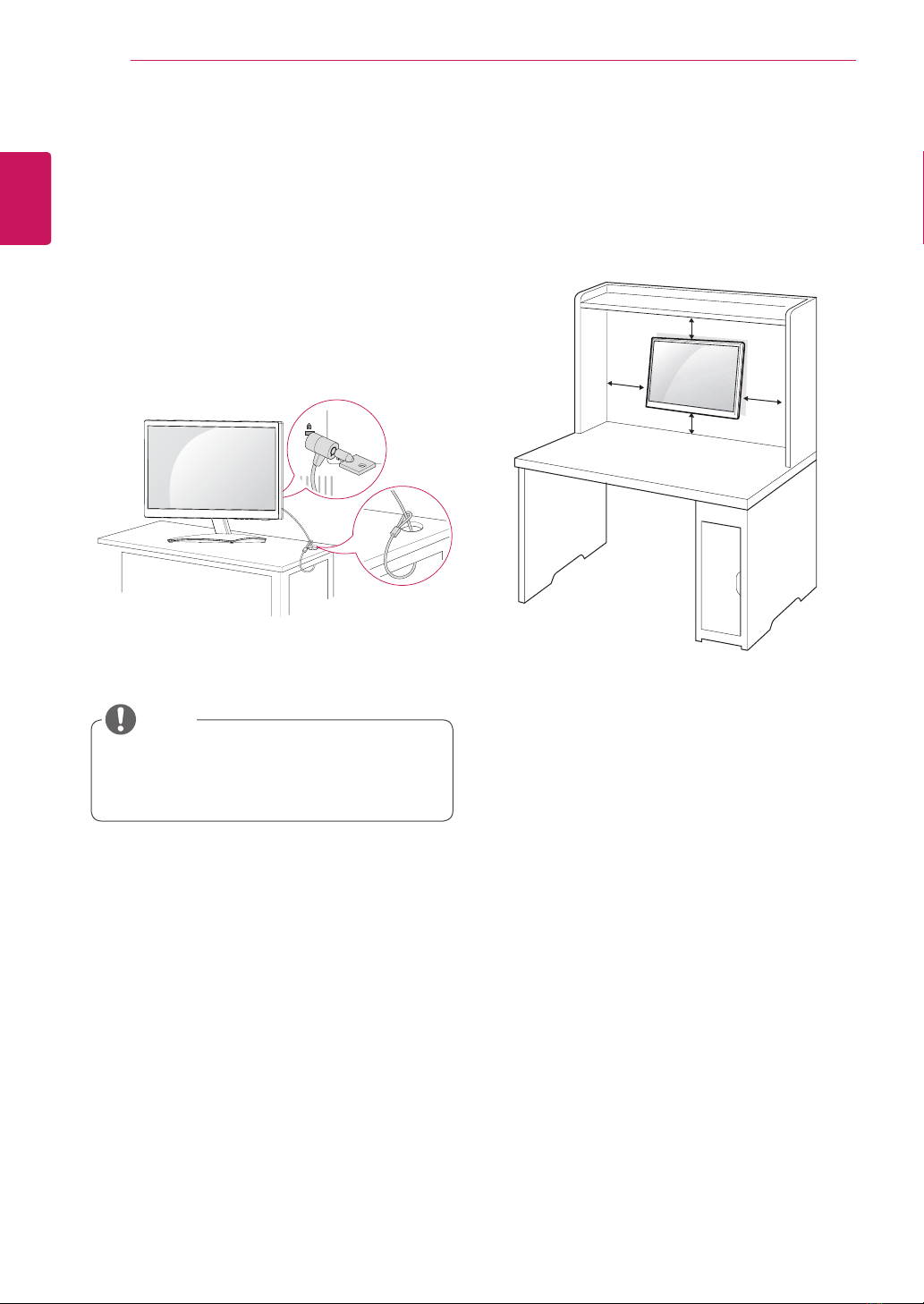

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

Mounting on a wall

For proper ventilation, allow a clearance of 100

mm on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2If you use screw longer than standard, the

monitor might be damaged internally.

3If you use improper screw, the product might be

damaged and drop from mounted position. In

this case, LG Electronics is not responsible for

it.

4VESA compatible.

5Please use VESA standard as below.

y784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

y787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

100 mm

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDisconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

yIf you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

yUse only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

yDo not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

yUse only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

yUse the screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit will include an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

Model 20M35TH

VESA (A x B) 100 x 100

Standard screw M4

Number of screws 4

ENG

ENGLISH

USING THE MONITOR SET

Connecting to a PC

yYour Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

NOTE

yIf you use HDMI PC, it can cause compatibility

problem.

yWhen you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/

HDMI) respectively in Monitor set.

yIf you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

ySome red, green, or blue spots may appear

on the screen. This is normal.

NOTE

yConnect the signal

input cable and tighten

it by turning the screws

clockwise.

yDo not press the screen

with your finger for a long time as this may

result in temporary distortion on the screen.

yAvoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION

HDMI connection

Transmits the digital video and audio signals from

your PC to the Monitor set. Connect the PC and

the Monitor set with the HDMI cable as shown in

the following illustrations.
