LG 19MB35P Manuel utilisateur

www.lg.com

OWNER’S MANUAL

IPS LED MONITOR

(LED LCD MONITOR)

19MB35P

22MB35P

23MB35P

24MB35P

Please read this manual carefully before operating

your set and retain it for future reference.

IPS LED(LED LCD) MONITOR MODEL

ENGLISH

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

5 - Detaching the stand base

6 - Detaching the stand body

7 - Mounting on a table

7 - Adjusting the angle

8 - Adjusting the stand height

8 - Using the Kensington locking device

9 - Swivel stand

9 - Using the Pivot function

10 - Mounting on a wall

11 USING THE MONITOR SET

11 Connecting to a PC

11 - D-SUB connection

11 - DVI-D connection

13 CUSTOMIZING SETTINGS

14 Customizing Settings

14 - Menu Settings

15 -Picture

16 -Color

17 -Display

18 -Others

19 READER Setting

20 -SUPER ENERGY SAVING

21 TROUBLESHOOTING

23 SPECIFICATIONS

23 19MB35P

24 22MB35P

25 23MB35P

26 24MB35P

27 Preset Modes (Resolution)

27 Indicator

28 PROPER POSTURE

28 Proper posture for using the Monitor set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Base

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not included in all

countries.)

Power Cord

DVI-D Cable

(This cable is not included in all

countries.)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

(Power Button)

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

Input Connectors (See p.11)See p.11))

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Detach the stand base from the stand body.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 20° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 10 cm away from the wall to

ensure sufficient ventilation.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

10 cm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

ENG

ENGLISH

ASSEMBLING AND PREPARING

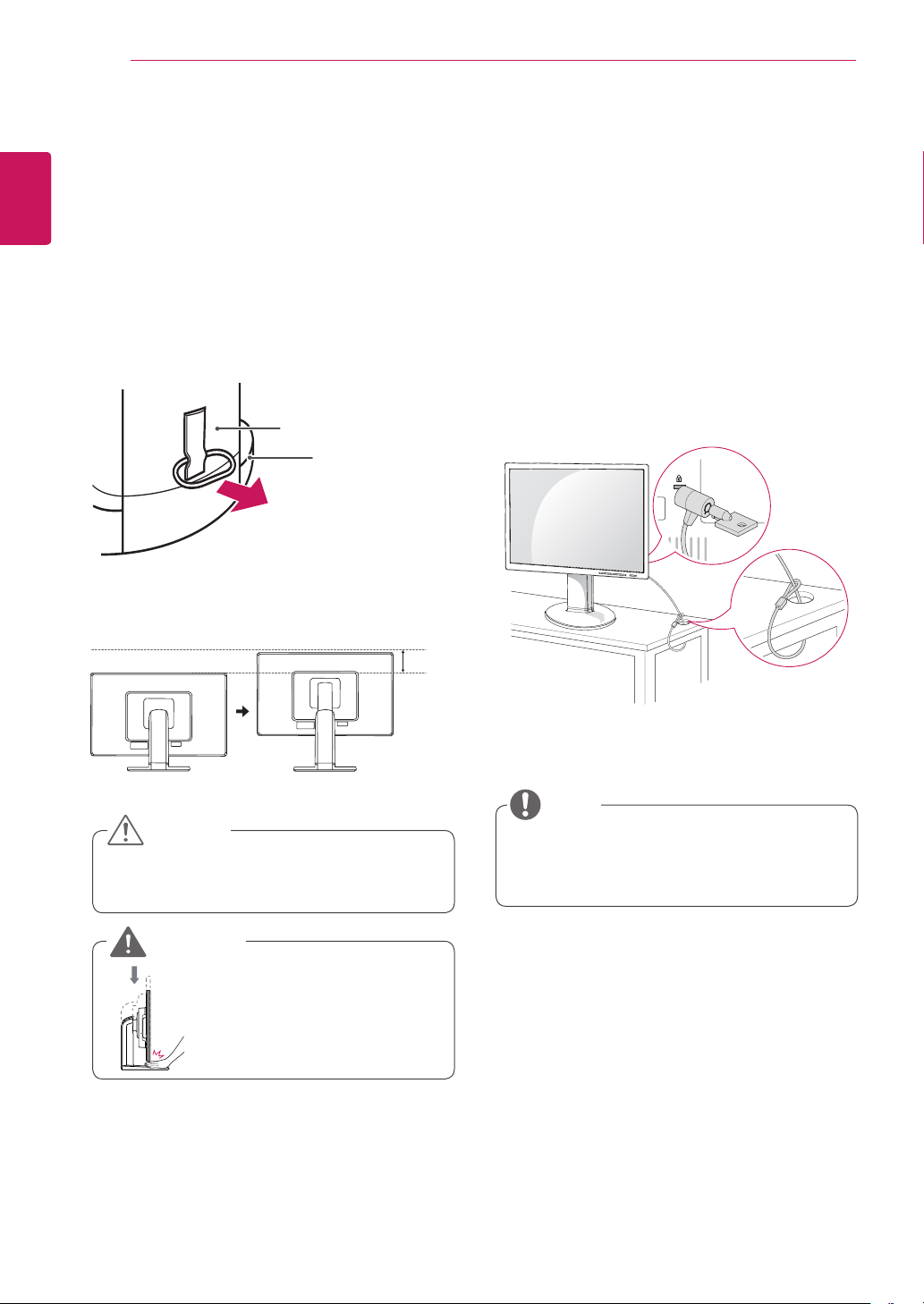

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

Tape

Locking Pin

Stand Body

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

3The height can be adjusted up to 110 mm.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

CAUTION

WARNING

110.0mm

ENG

ENGLISH

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.
