INSTALLATION MANUAL

LED TV*

Please read this manual carefully before operating your set

and retain it for future reference.

UU76*

UU66*

UU64*

EU96*

WU96*

WT98*

www.lg.com

*MFL70423710*

ENGLISH

Table of contents

4 Location and Function of Controls

4 Parts and Button

4 Basic functions

5 LED Clock Connection

6 First Use Wizard

7 Basic Settings

7 - Language & Location

7 - Network Settings

8 - Portal Settings

8 - Voice Service Coverage

9 Data Cloning

9 Solution Settings

9 - Language & Country selection

10 - Automatically for Setup

14 - Manually for Setup

17 Installation Menu Settings

18 Installation Menu

18 Introduction

19 LG Hotel Mode

19 - Hotel Mode Operation

19 - Power On Status

20 - Volume

20 - Key Management

21 - Limited Mode

21 - DTV Programme Update

22 - Power On Default

22 - Aux Source Setting

22 - Power Management

22 - Radio Video Blank

22 - Factory Reset

23 Network

23 - MAC Address

23 - Network Setting

23 - LG Connect

24 - IP Stream Control

24 - Wake On LAN

24 - VLAN ID

24 - Server Settings

25 Pro:Centric

25 - Mode

25 - WORF

25 - Room Number Setting

25 - MediaType

26 - Receive Data

26 - Native EPG

27 General

27 - Configuration Setup

31 - External Speaker

31 - Set ID Setup

31 - Power Saving

32 - HCEC Setup

33 - Clock Setup

33 - Password Change

34 - Lock Mode

34 - Crestron

34 - WelcomeVideo

34 - Developer Mode

35 Portal Settings

35 - Portal Mode

35 - Auto Start

35 - PreLoaded App

35 - Website Shortcut

36 - Hotel Directory

36 - Portal Editor

37 Media Share

37 - SmartShare

37 - Screen Share

37 - Media Renderer

37 - DIAL

37 - TV Name

38 - SoftAP

38 - Beacon

40 TV Manager

40 - Diagnostics

47 - USB Download Menu

48 CONTENT MANAGER

48 - Web Login

48 - Content Manager

52 - Group Manager 2.0

ENGLISH

54 IR Codes

55 External control device Setup

55 RS-232C Setup

55 Phone jackType

55 Type of Connector : D-Sub 9-Pin Male

56 RS-232C Configurations

56 Communication Parameters

56 IR OUT Using Guide

56 - Suitable / Not Recommend remote-controller data

format

56 - IR Receiver specifications

57 Command Reference List

57 Transmission / Receiving Protocol

ENGLISH

Location and Function of Controls

Parts and Button

(Except forWT98*)

(Except forWU96*, EU96*)

(Only EU96*)

(OnlyWU96*)

Basic functions

(Except forWU96*, EU96*)

Power On (Press)

Power O1(Press and Hold)

Menu Control (Press2)

Menu Selection (Press and Hold3)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

(OnlyWU96*, EU96*)

Power On (Press)

Power O 1(Press and hold)

Volume Control

Programmes Control

1 All running apps will close.

ENGLISH

LED Clock Connection

(Depending on model)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

ENGLISH

First Use Wizard

* Image shown may differ from your TV.

(Depending on model)

•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by

START button.

ENGLISH

Basic Settings

* Image shown may differ from your TV.

This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.

There are four steps for it.

Language & Location

(Depending on model)

•Select the Language and Country. Some countries need to select the Time Zone.

Network Settings

(Depending on model)

•Set Network connection.You can connect easily to wired/wireless network. (“Network Setting”on page 23)

ENGLISH

Portal Settings

•Set the Portal Mode and Portal Auto Start.

Portal Mode

(Depending on model)

•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or‘None’(Do not use portal).

Portal Auto Start

•You can select‘On’or‘O’. If you select‘On’, Portal (Home Launcher) will be execute automatically after TV on.

Voice Service Coverage

(Depending on model)

•Set the voice service coverage.You can set LG Service Country, Voice Recognition Language, and Service Area Postcode for voice

service.

ENGLISH

Data Cloning

(Depending on model)

Access Data cloning menu ofTV Manger application for applying cloning le.

Solution Settings

(Depending on model)

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”and IP Server

Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. IfTV

doesn’t contact the Server, TV will search the pre-dened programme earlier than all programmes. (Only DVB-C)

The frequencies of pre-dened programmes are below.

•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.

•Philippines 6 Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.

•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.

Language & Country selection

(Depending on model)

•Please select the Language and Country. Some countries need to select the Time Zone.

ENGLISH

Automatically for Setup

(Depending on model)

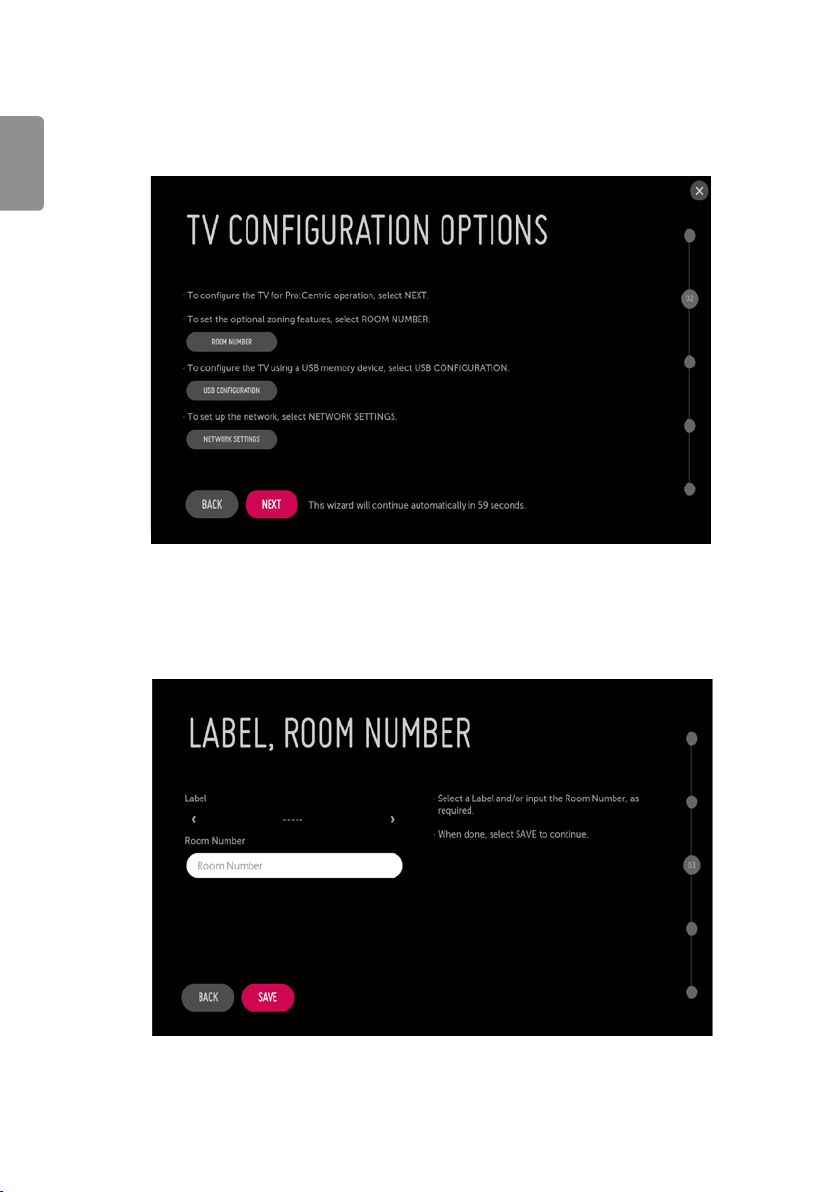

1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of thisTV.Whether you will congure theTV

for Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set the Room Number on theTV.

Also, you can congure the network environment.

•If you intend to set Room Number as part of the TV conguration, use the Room Number option to assign the Room # for thisTV before you

continue with additional conguration.

•In the Label eld, use the Left/Right arrow keys to specify a North, South, East, or West designation for this TV.

•In the Room Number eld, you can use the number keys on the Installation Remote to direct enter a room number or use the virtual keyboard

on theTV screen.

•If you intend to apply the les via USB, use USB Conguration option to accessTV Manager app. (“TV Manager”on page 40)

•To continue, move and select NEXT.
